Features

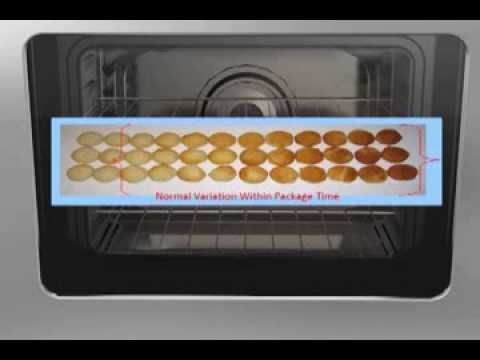

EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.

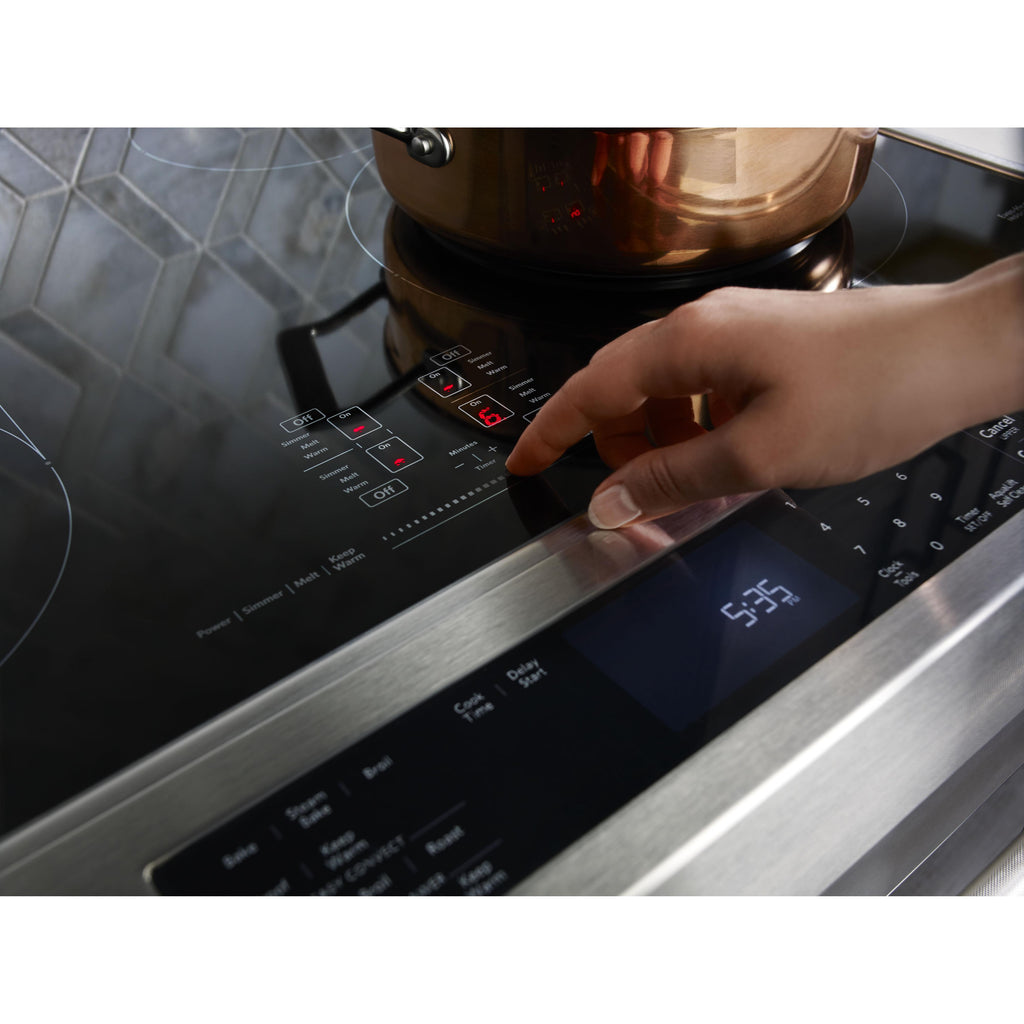

GLASS TOUCH CONTROLS
Offer an intuitive, easy-to-use touch screen experience.
AQUALIFT®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

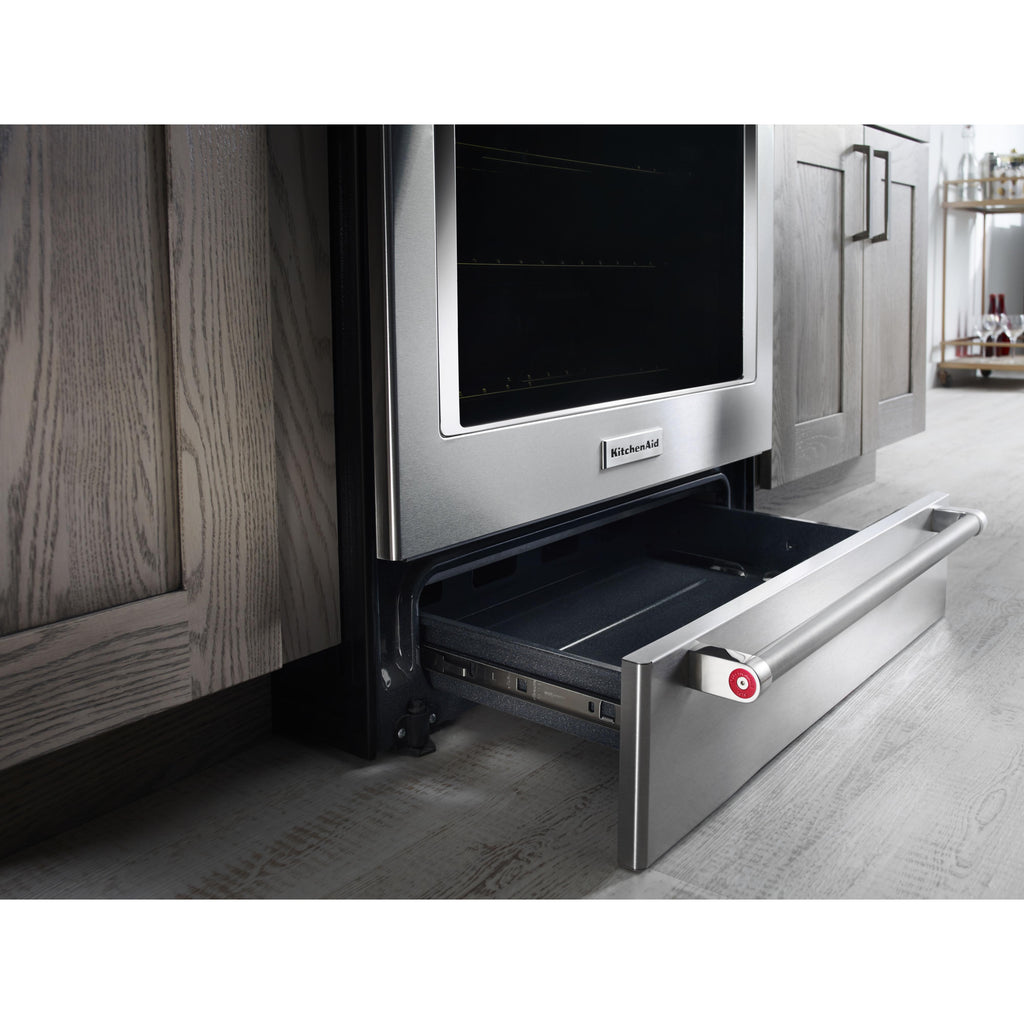

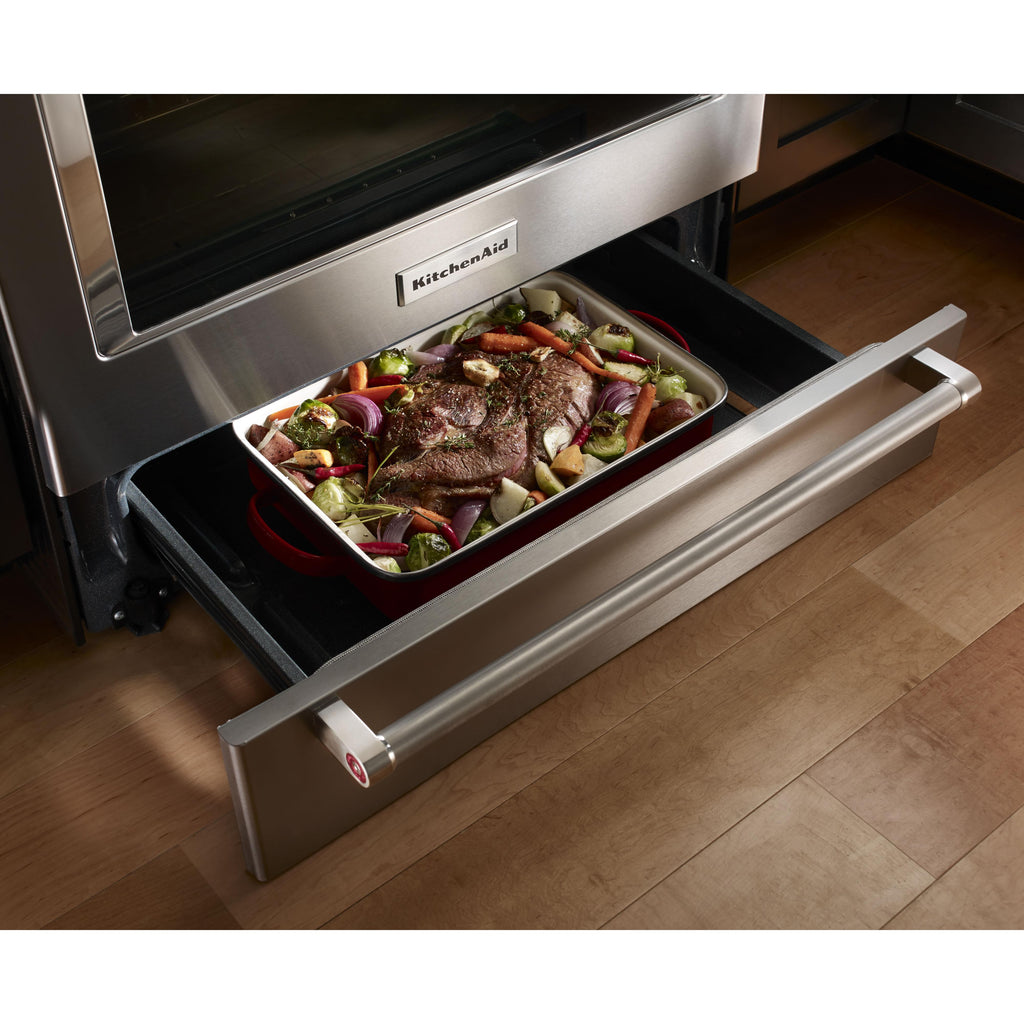

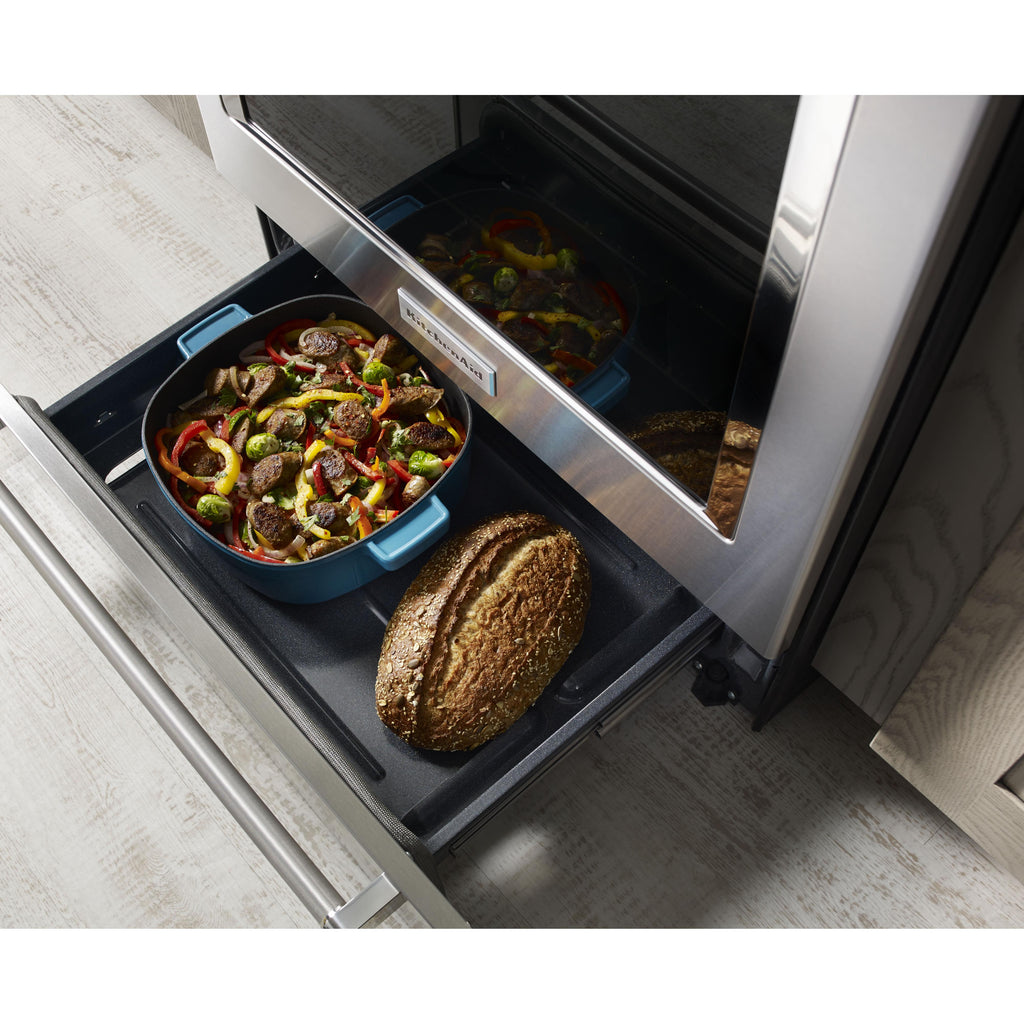

BAKING DRAWER
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.
FIT GUARANTEE
A promise to fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
SIDE TRIM ACCESSORY KIT
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
STEAM RACK
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Rear : 100 Watts
• Left Front : 3000/1950/1050 Watts
• Left Rear : 1300 Watts
• Right Front : 3200 Watts
• Right Rear : 1200 Watts
• Left Front : 3000/1950/1050 Watts
• Left Rear : 1300 Watts
• Right Front : 3200 Watts
• Right Rear : 1200 Watts
Burner/Element Size
6", 12"/9"/6", 6", 10", 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
7.1 cu. ft.
Number of Ovens
Single
Features
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Selections : Baking Drawer Bake, Baking Drawer Keep Warm, Baking Drawer Slow Cook, Clock, Cook Time, Delay Start, Keep Warm Setting, Proofing, Steam Bake, Warm Zone
• Bake Element Power : 3600W
• Broiler Element Power : 4000W
• AquaLift® Self Clean

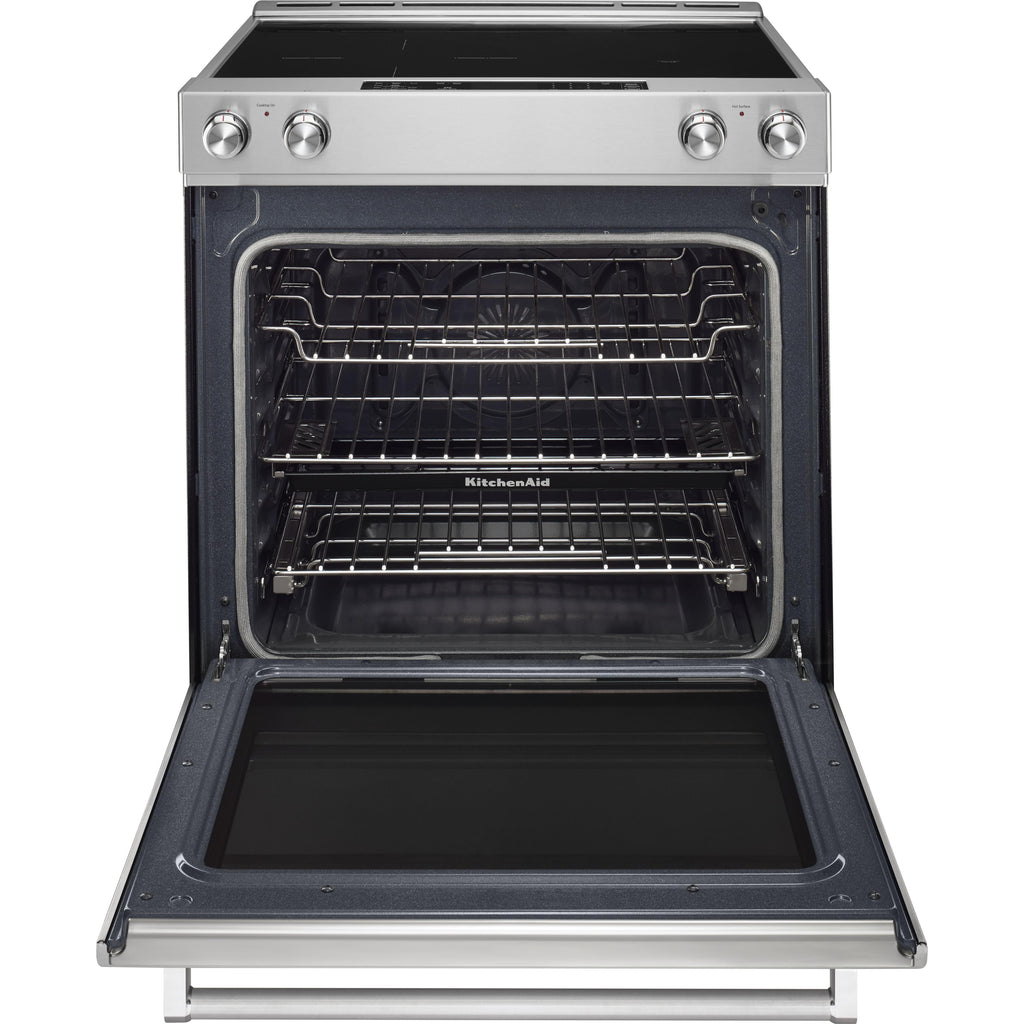

• 3 Oven Racks
• Hidden Bake Element
• Single-Fan Convection Element Type
• Even-Heat™ True Convection
• Steam Rack
• EasyConvect™ Conversion System
• Glass Touch Controls
• Side Trim Accessory Kit Optional
• Bake Element Power : 3600W
• Broiler Element Power : 4000W
• AquaLift® Self Clean
• 3 Oven Racks
• Hidden Bake Element
• Single-Fan Convection Element Type
• Even-Heat™ True Convection
• Steam Rack
• EasyConvect™ Conversion System
• Glass Touch Controls
• Side Trim Accessory Kit Optional
Drawer Features
Baking
Yes
Electrical Information
Information
240
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.37 inch(es) / 66.99 cm
Depth (Including Handles)
28.87 inch(es) / 73.34 cm
Weight
181.99 lb(s) / 82.55 kg
Additional Dimensions
• 1 3/16" (3.0 cm) Height From Cooktop To Top Of Vent
• 36" (91.4 cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed All The Way In
• 28 5/16" (71.9 cm) Max. Depth From Front Of Console To Back Of Range
• 28 7/8" (73.3 cm) Max. Depth From Handle To Back Of Range
• Range Can Be Raised Approximately 1" (2.5 cm) By Adjusting The Leveling Legs
• 36" (91.4 cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed All The Way In
• 28 5/16" (71.9 cm) Max. Depth From Front Of Console To Back Of Range
• 28 7/8" (73.3 cm) Max. Depth From Handle To Back Of Range
• Range Can Be Raised Approximately 1" (2.5 cm) By Adjusting The Leveling Legs
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.56 inch(es) / 77.63 cm
Weight
200 lb(s) / 90.72 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049343617
