Features
ROCKER CONTROL
Streamlined, deluxe 2-speed rocker control operates light and fan speeds.
![ROCKER CONTROL](https://tmimages.tailbase.com/featlogo/36902.jpg)
USE THE OPTIONAL RANGE HOOD MOUNTING BRACKETS
For those kitchens that do not have a cabinet above the range, Broan-NuTone offers the Model 35 Range Hood Mounting Brackets. They allow you to still hang your Broan-NuTone range hood by mounting these brackets to the wall. For best capture of cooking impurities, your range hood should be mounted 18-24 inches above the cooking surface. Make sure the hood (and brackets) are level.
![USE THE OPTIONAL RANGE HOOD MOUNTING BRACKETS](https://tmimages.tailbase.com/featlogo/53390.jpg)
Specifications
General
Series Name
BXT1
Blower Included
Yes
Airflow
270 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
7" Round
Speeds
2-speed rocker switch
Additional Information

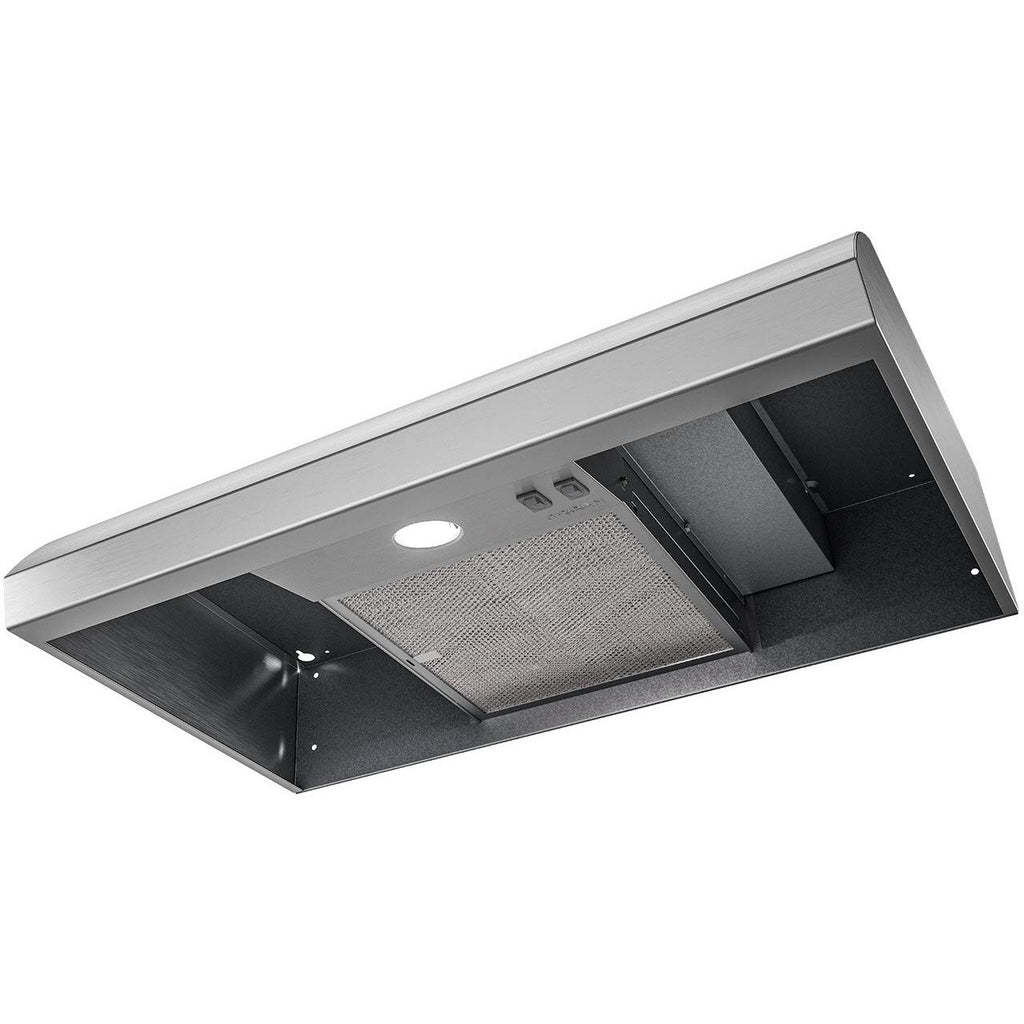

• One-level lighting system includes a bright LED bulb to illuminate the cooking surface (bulb included)
• The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
• Aluminum mesh filter
• ADA compliant
• The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
• Aluminum mesh filter
• ADA compliant
Electrical Information
Information
120 V
Certifications and Approvals
Hvi Certified
Yes
Accessories
Optional
• 7 in. round BP87Q damper
• Charcoal filter HPFX1
• Power Cord Kit SHCK44
• Charcoal filter HPFX1
• Power Cord Kit SHCK44
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
6 inch(es) / 15.24 cm
Depth
15 inch(es) / 38.1 cm
Warranty
Warranty
1 Year
