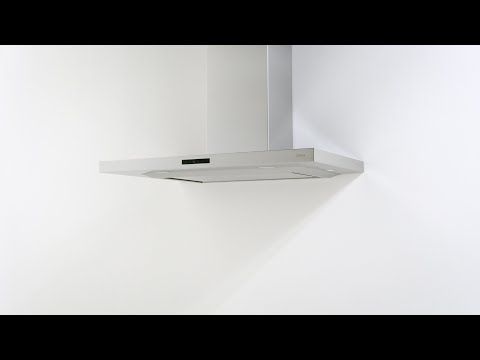

Zephyr 42-inch Layers Series Wall Hood Shell DLA-M90ASSX EXTERNAL_VIDEO 1

Zephyr 42-inch Layers Series Wall Hood Shell DLA-M90ASSX

ZephyrModel Number: DLAM90ASSX
Streamlined pyramid-shaped styling and a menu of blower options make this updated and improved Layers Wall the timeless classic hood... Streamlined pyramid-shaped styling and a menu of blower options make this updated and improved Layers Wall the timeless classic hood your kitchen needs. It features Zephyr's state-of-the-art Perimeter Aspiration System, which increases air velocity and improves the capture of cooking contaminants. It is also packed with a bevy of additional features like Invisible Touch Controls and tri-level LED lighting. Blower sold separately. View more
Save $350.00 Price:
$3,499.00 $3,849.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
Features
CLEAN AIR
Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
Specifications
General
Series Name
Layers
Blower Included
No
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Technologies
Perimeter Aspiration System
Ducting Information
• Vertical Single Internal Blower 6" Round
• Vertical In-Line/External Blower 10" to 8" Round
Speeds
3 Speeds
Additional Information
• Invisible Touch Controls
• Auto Delay-Off
• CleanAir Function
• Lighting LED, 5W x4
• Tri-Level Lighting
• Filter Aluminum Mesh x1
• Recirculating
• Extension Duct Cover Option Up to 12’ Ceiling
Certifications and Approvals
Information
ADA with remote option
Accessories
Optional
• Internal Blower (CBI-290C) 200-290 CFM, 1.4-3 sones
• Internal Blower (CBI-600A) 240-600 CFM, 1.8-6 sones
• In-Line Blower (PBN-1000A) 500-1,000 CFM, sones NA
• External Blower (CBE-1000) 500-1,000 CFM, sones NA
• Recirculating Kit ZRC-00VS
• Remote Control 14000010
• Duct Cover - Stainless Steel Z1C-00VS
• Make-Up Air Kit MUA006A (600 CFM), MUA008A (1,000 CFM)
Dimensions
Class Width
42"
Width
41.94 inch(es) / 106.52 cm
Height
29.81 inch(es) / 75.71 cm
Depth
22 inch(es) / 55.88 cm
Warranty
Warranty
2 Year Parts, 1 Year Labor
