Dacor 36-inch Built-in Induction Cooktop with Flex Zone™ DTI36M977BB/DA

DacorModel Number: DTI36M977BB
Dacor 36-inch induction cooktop with Flex Zone™. The VirtualFlame™ provides a visual cue when the heat is on and the... Dacor 36-inch induction cooktop with Flex Zone™. The VirtualFlame™ provides a visual cue when the heat is on and the LCD control panel with guided cooking is beautifully functional. A 4800-watt power element delivers faster heating and multiple FlexZones™ offer precision across the entire surface, accommodating pots and pans of various sizes. With the residual heat warning and child safety lock, your guests and little ones can join in the fun without holding back. View more
Bonus Offer
Save $274.00 Price:
$5,375.00 $5,649.00
Protection Plans

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

Features Specifications Documents
Documents
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
Features
FLEX ZONE™
Flex Zone™ is a large open area that offers greater flexibility for cookign multiple dishes at one time. Easily accommodates various cookware sizes.
FLEX ZONE™

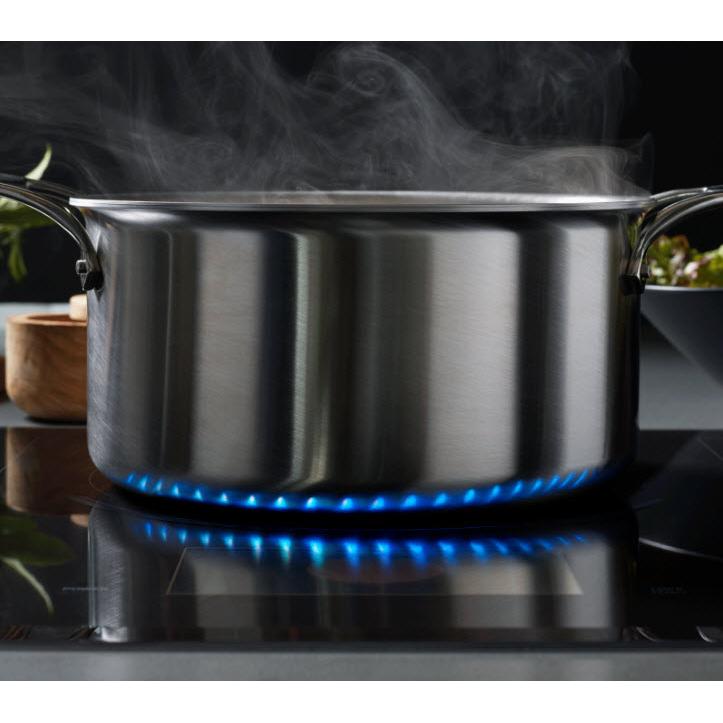

VIRTUAL FLAME™
Vertual Flame™ is a beautiful and intuitive LED light that displays virtual flames to provide an attractive visual cue when the heat is on.
VIRTUAL FLAME™

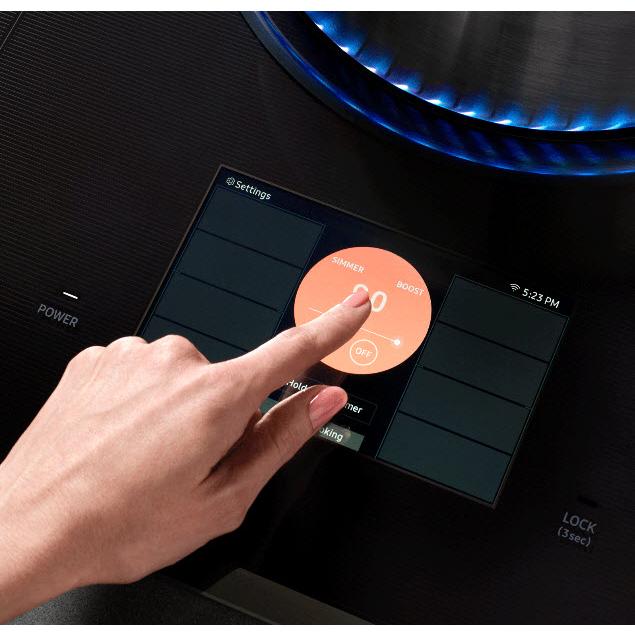

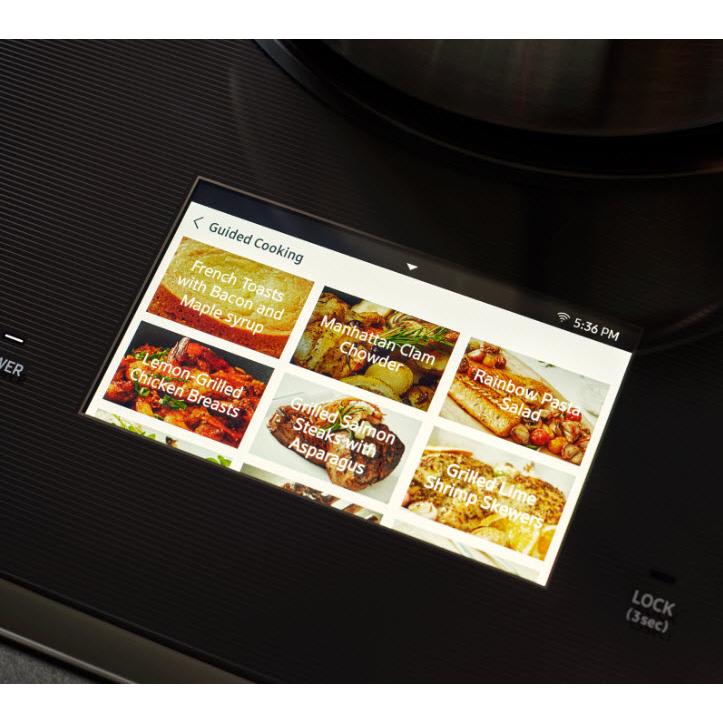

LCD CONTROL PANEL
LCD control panel allows easy access to cooktop functions, including pre-programmed recipes.
LCD CONTROL PANEL
Specifications
General
Series Name
Modernist
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Flex Zone Left Front (W): 1800 / 2600 (B)
• Flex Zone Left Rear (W): 1800 / 2600 (B)
• Power Coil Center (W): 3600 / 4800 (B)
• Flex Zone Right Front (W): 1800 / 2600 (B)
• Flex Zone Right Rear (W): 1800 / 2600 (B)
Burner/Element Size
• Flex Zone Left: 8 1/5"W x 15 6/25"D
• Flex Zone Right: 8 1/5"W x 15 6/25"D
• Center Heating Element: 7"/11" Power Coil™ (VF)
Elements
Smoothtop
Surface Features
Black Glass
Features
Technologies
• Dacor iQ Kitchen App
• Smart Connectivity
• Flex Zone™
• Virtual Flame™
Wi-Fi
Yes
Clock
Yes
Control Lock
Yes
Digital Display
Yes
Downdraft Ventilation
No
Additional Information
• Auto Pan Detection
• Sound On/Off
• Demo Mode
• Bluetooth Connect
• Kitchen Timer
• Guided Cooking: 15 Ea
• Recommended Power Level
• Pause
• Power Level Setting: 9 + Power Boost
• Quick Stop
• Simmer/Melt
• Power On/Off
• Zones with Booster: 7
• LCD Control Panel
• Residual Heat Reminder
• Up to 9 Cooking Zones
Electrical Information
Information
• 240 V / 208 V
• 60 Hz
• 45 A
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
4 inch(es) / 10.16 cm
Depth
21.25 inch(es) / 53.98 cm
Additional Dimensions
• Appliance Dimensions (H x W x D) (in.): 4" x 36" x 21 1/4"
• Required Cutout Size (H x W x D) (in.): 3 3/4" x 33 3/4" x 19"
• Minimum Distance from Counter Front (in.): 1 1/2""
• Minimum Distance from Rear Wall (in.): 1 1/7"
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
847364019480
