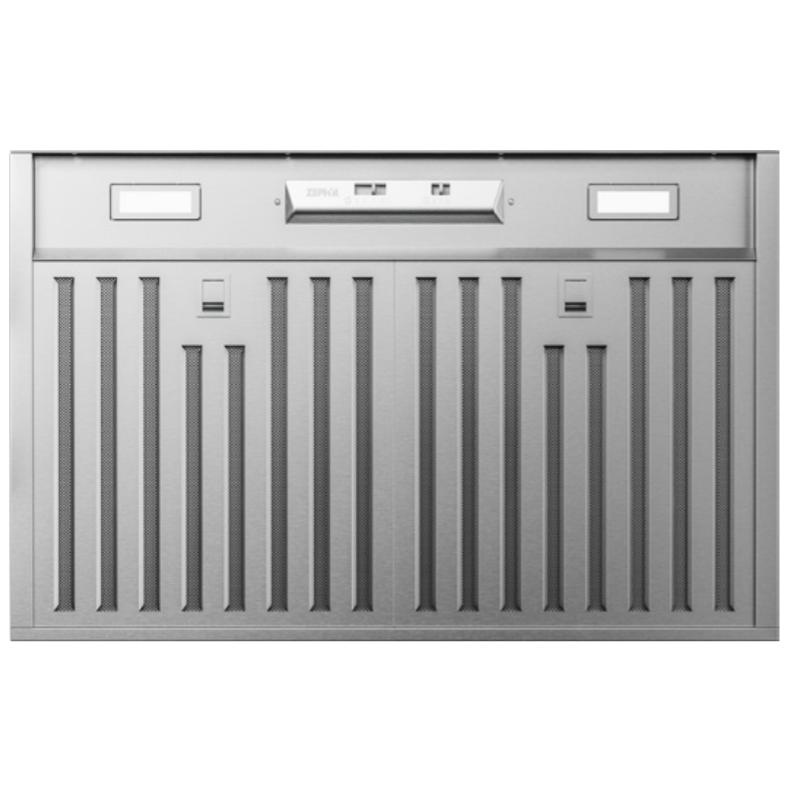

Zephyr 36-inch Monsoon Mini Hood Insert AK9134BS IMAGE 1

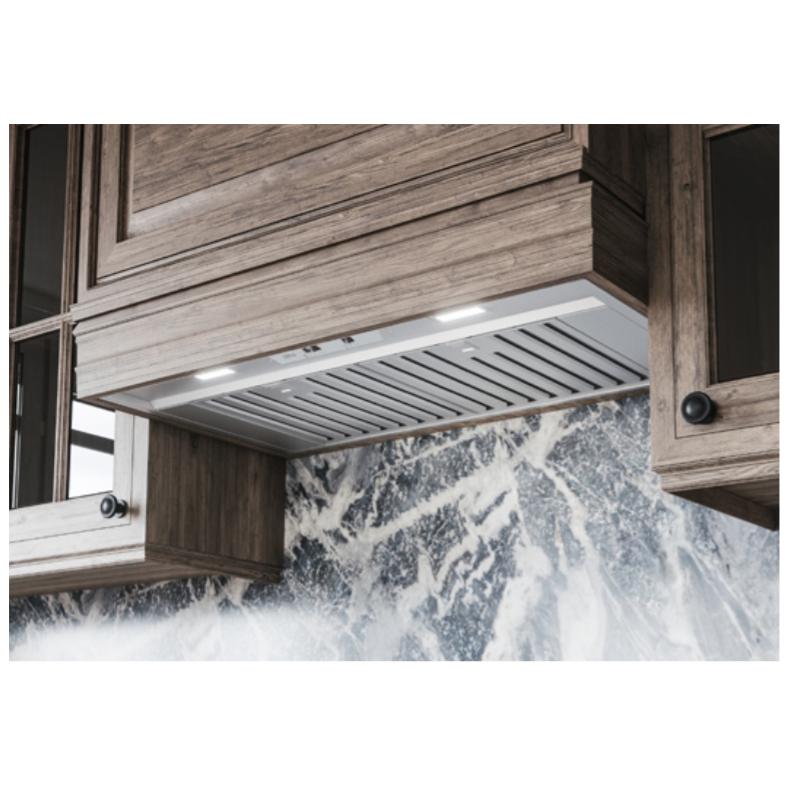

Zephyr 36-inch Monsoon Mini Hood Insert AK9134BS IMAGE 2
Roll over image to zoom in Click on image to zoom
Zephyr 36-inch Monsoon Mini Hood Insert AK9134BS IMAGE 1
Zephyr 36-inch Monsoon Mini Hood Insert AK9134BS IMAGE 2

Zephyr 36-inch Monsoon Mini Hood Insert AK9134BS

ZephyrModel Number: AK9134BS
Zephyr 36" Monsoon Mini insert hood that features dual-level LumiLight LED lights, hybrid baffle filters, and a recirculating option for... Zephyr 36" Monsoon Mini insert hood that features dual-level LumiLight LED lights, hybrid baffle filters, and a recirculating option for ductless installations. View more
Save $110.00 Price:
$1,139.00 $1,249.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Product Specifications
Dimensions Sheet
Features
HYBRID BAFFLE
Hybrid baffle
MECHANICAL SLIDE CONTROL
Mechanical slide control
Specifications
General
Series Name
• Monsoon Mini
• Core Collection
Blower Included
Yes
Airflow
300 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
• Vertical Internal Blower: 7" Round, 3-1/4" x 10"
• Horizontal Internal Blower: 3-1/4" x 10"
Speeds
• Speed Levels: 3
• Blower CFM (Min. - Max.): 150 - 300
• Sones (Min. - Max.): 1.5 - 4
Additional Information
• Controls: Mechanical Slide
• Lighting: LumiLight LED, 6W x2
• Dual-Level Lighting
• Filters: Hybrid Baffle x2
• Recirculating Option
Electrical Information
Information
120V, 60Hz at Max. 2A
Certifications and Approvals
Information
cULus
Accessories
Optional
• Recirculating Kit: ZRC-9100A • Damper 7" Round: AK00067
Dimensions
Class Width
36"
Width
34.37 inch(es) / 87.31 cm
Height
6.13 inch(es) / 15.56 cm
Depth
18.06 inch(es) / 45.88 cm
Additional Dimensions
Mounting Height Range: 24" - 36"
Warranty
Warranty
• 3-Year limited on parts
• 1-Year limited for labor
