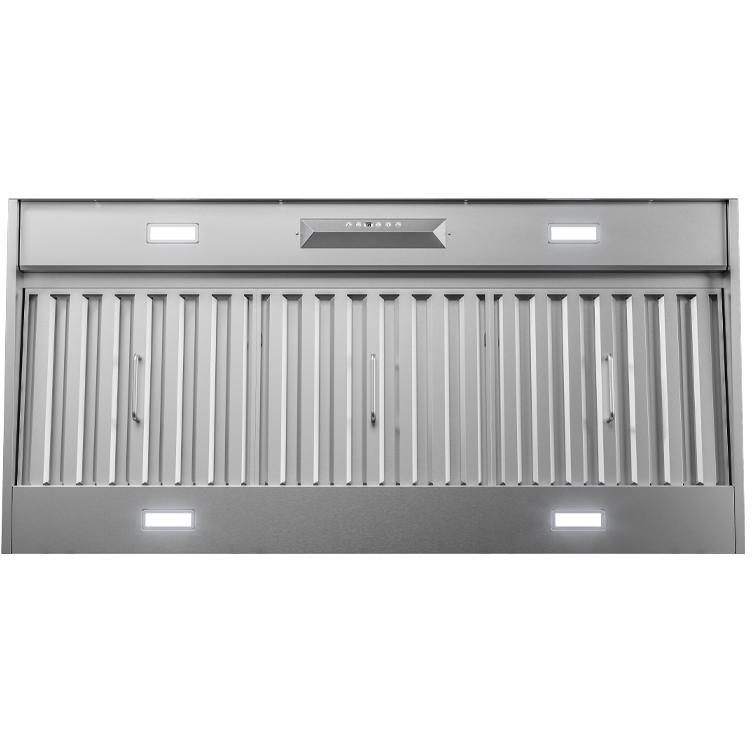

Zephyr 48-inch Core Collection Monsoon II Built-In Hood Insert AK9346BS

ZephyrModel Number: AK9346BS
With LumiLight LED lighting and ACT™ technology, Zephyr Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions,... With LumiLight LED lighting and ACT™ technology, Zephyr Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected. View more
Save $310.00 Price:
$3,249.00 $3,559.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
Features
ELECTRONIC TOUCH CONTROL
Zephyr’s wireless RF remote puts you in control of your one-piece liner from up to 15 feet away.
ELECTRONIC TOUCH CONTROL
CLEAN AIR
Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
AIRFLOW CONTROL TECHNOLOGY
Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.
Specifications
General
Series Name
• Core Collection
• Monsoon II
Blower Included
Yes
Airflow
1200 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Technologies
Airflow Control Technology™
Ducting Information
10" Round - Vertical
Speeds
6
Additional Information
• Electronic Touch controls
• Auto delay-off
• CleanAir function
• Sones (Min. - Max.): 3.5 - 9
• Lighting: LumiLight LED, 6W x4
• Dual-level lighting
• 3 Pro baffle filters
• Grease collection tray
• ADA Compliant
Electrical Information
Information
120V, 60Hz at Max. 7A
Certifications and Approvals
Hvi Certified
No
Accessories
Included
Wireless Remote Control
Optional
Make-up air kit: MUA010A
Dimensions
Class Width
48"
Width
46.37 inch(es) / 117.79 cm
Height
12 inch(es) / 30.48 cm
Depth
22.5 inch(es) / 57.15 cm
Additional Dimensions
Mounting height range: 26" - 36"
Warranty
Warranty
• 1-Year limited warranty on labor only
• 3-Year limited warranty on none-consumable parts
