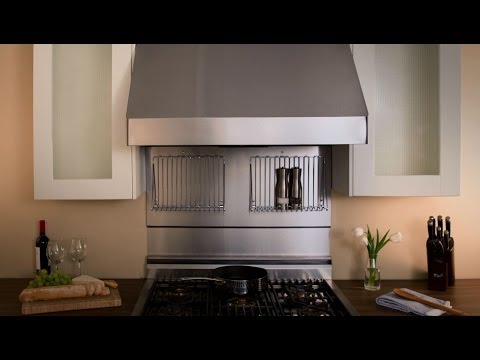

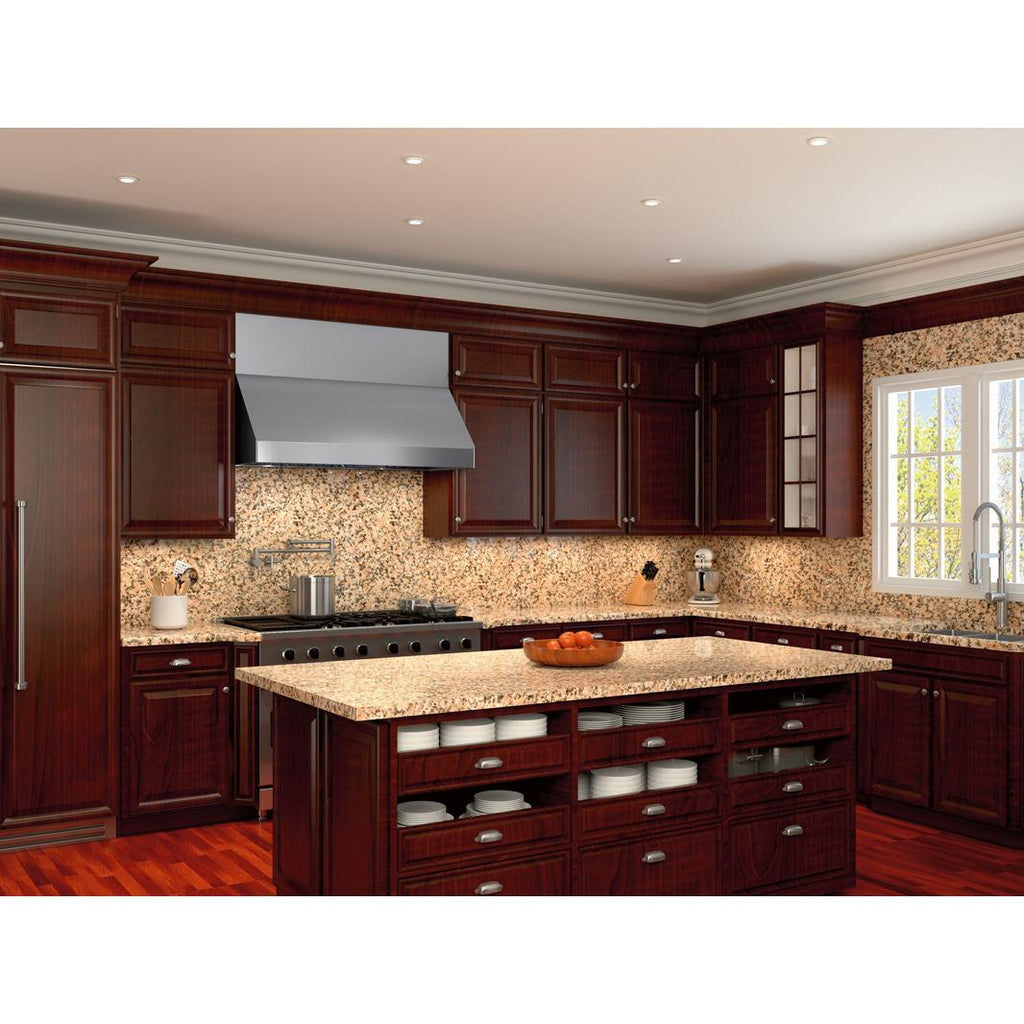

Zephyr 36-inch Tempest II Wall Mount Range Hood AK7536CS

ZephyrModel Number: AK7536CS
Zephyr Tempest II Wall pro-style 36" stainless steel wall hood with rounded edges and seamless front. It features a powerful... Zephyr Tempest II Wall pro-style 36" stainless steel wall hood with rounded edges and seamless front. It features a powerful 650-CFM fan, LumiLight LED lighting, dishwasher-safe baffle filters, electronic touch controls and the ACT™ Technology. View more
Save $520.00 Sale ends: June 30, 2024 Price:
$2,349.00 $2,869.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
Features
PRO-BAFFLE FILTER
These baffle filters are intended to filter out residue from cooking.
ELECTRONIC TOUCH CONTROL
Zephyr’s wireless RF remote puts you in control of your one-piece liner from up to 15 feet away.
ELECTRONIC TOUCH CONTROL
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
Specifications
General
Series Name
• Tempest II Wall
• Pro
Blower Included
Yes
Airflow
650 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Technologies
• Dual-level LumiLight LED lighting
• ACT™ Technology
Ducting Information
• Vertical single internal blower: 8" Round
• Horizontal single internal blower: 3-1/4" x 10"
Speeds
6
Additional Information
• Electronic touch controls
• Auto delay-off
• CleanAir function
• Lighting: LumiLight LED, 6W x2
• Dual-level lighting
• Filters: Pro baffle x2
• Min. - max. sones: 1 - 6
Electrical Information
Information
120V, 60Hz, Max. 5A
Certifications and Approvals
Energy Star Certified
No
Accessories
Optional
• 12" Duct cover: AK0726
• 24" Duct cover: AK1726
• Wireless remote control: 14000005
• Dual internal blower kit: PBD-1200A
• Recirculating kit: ZRC-7036C
• Telescopic backsplash with shelves: AK0716
• Make-up air kit (single blower): MUA008A
• Make-up air kit (dual blower): MUA010A
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
18 inch(es) / 45.72 cm
Depth
24 inch(es) / 60.96 cm
Additional Dimensions
Mounting height: 26" - 36"
Warranty
Warranty
• 1-Year limited warranty on labor only
• 3-Year limited warranty on none-consumable parts
