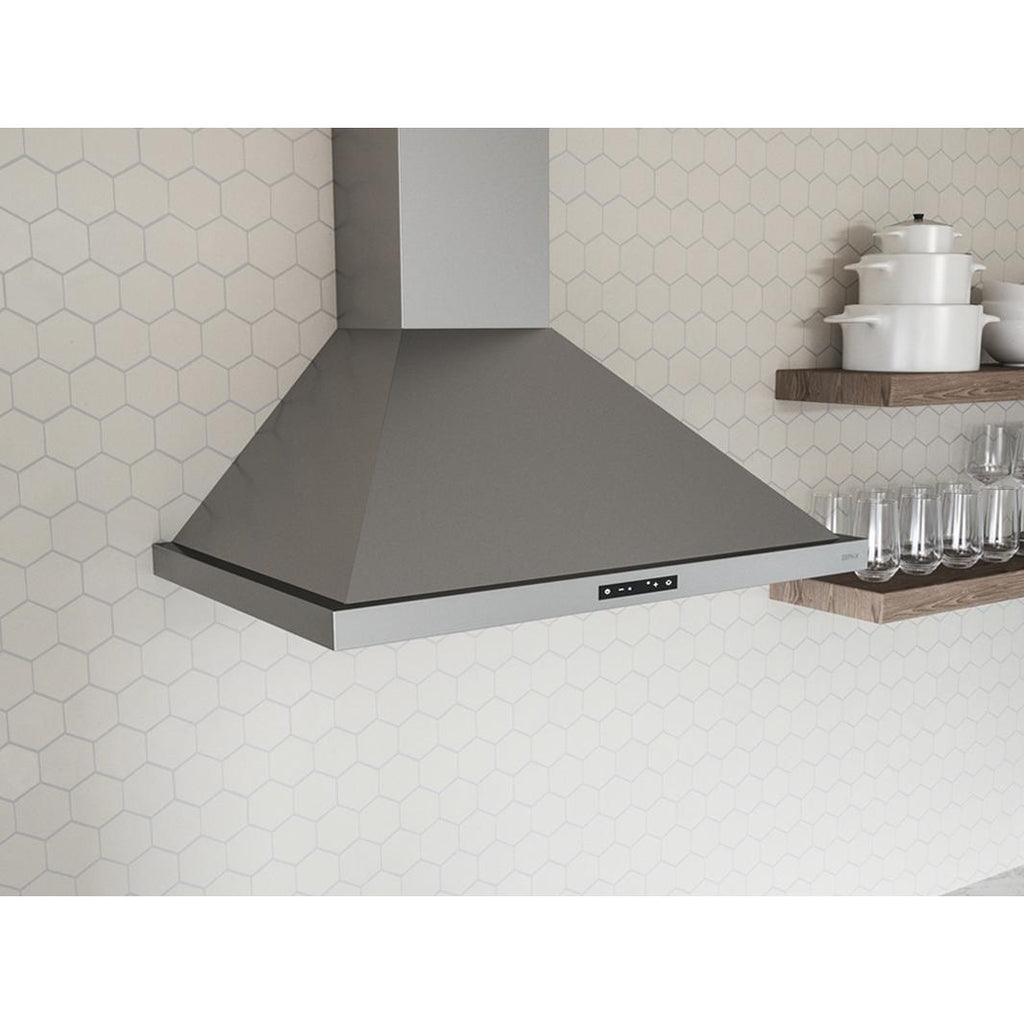

Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 1

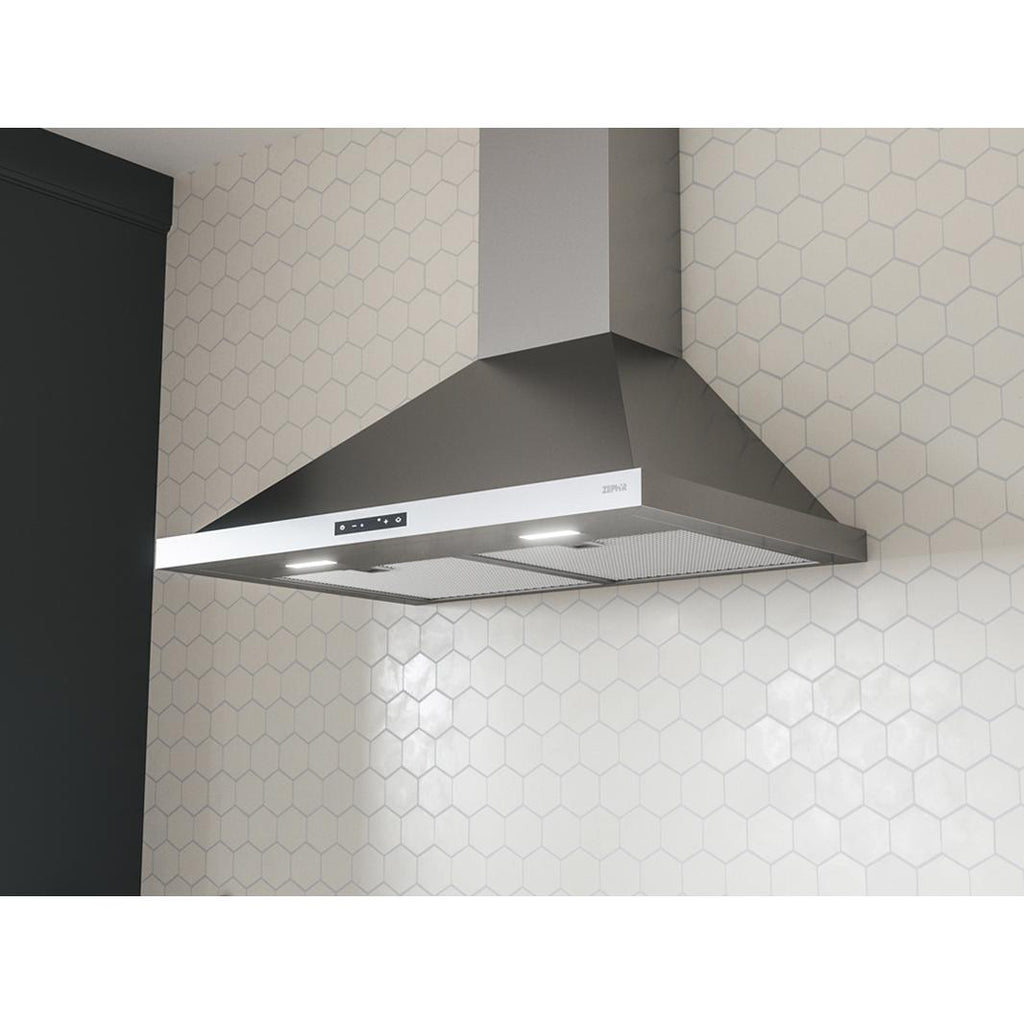

Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 2

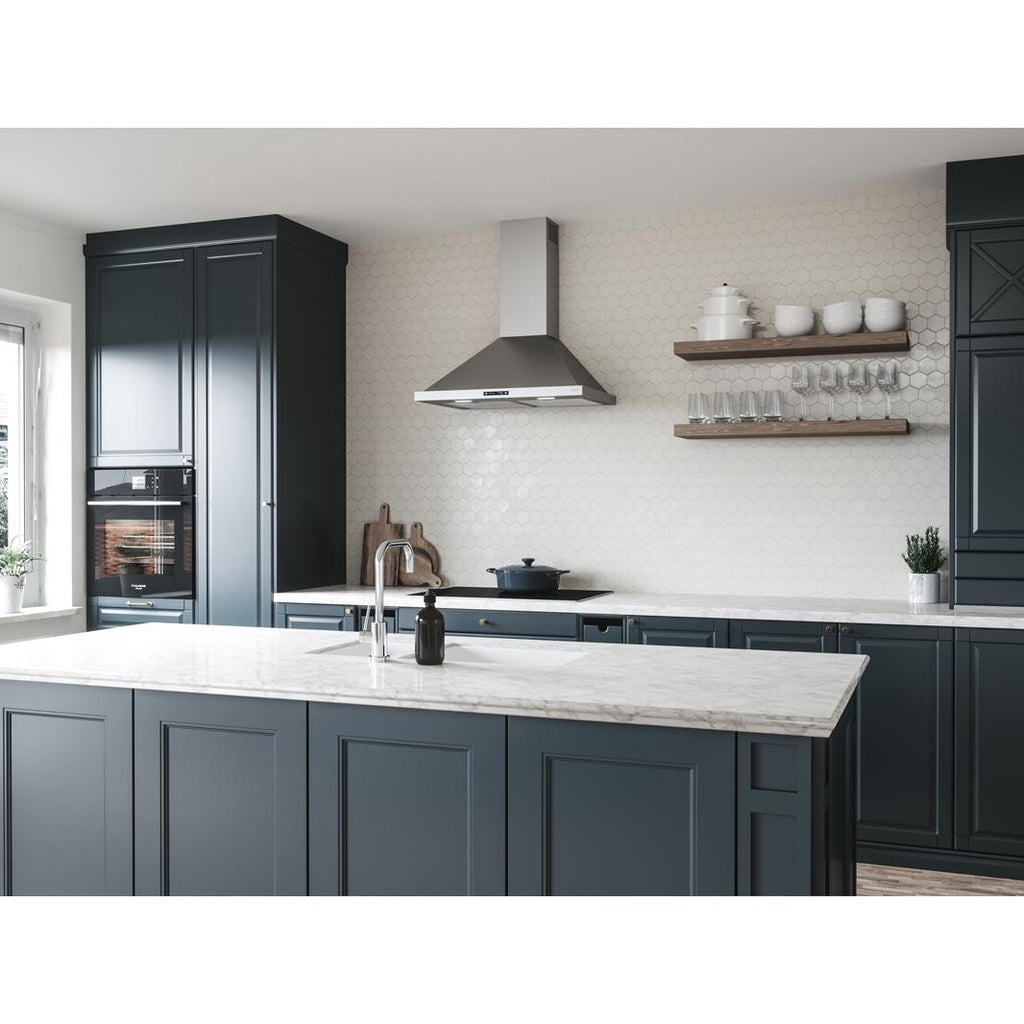

Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 3
Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 4
Roll over image to zoom in Click on image to zoom
Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 1
Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 2
Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 3
Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS IMAGE 4

Zephyr 36-inch Ombra Wall Mount Range Hood ZOM-E36BS

ZephyrModel Number: ZOME36BS
Zephyr Ombra 36-inch wall hood. Ombra is the perfect combination of form and function with its LumiLight LED Lighting, capacitive... Zephyr Ombra 36-inch wall hood. Ombra is the perfect combination of form and function with its LumiLight LED Lighting, capacitive touch controls, and optional hybrid baffle filters. Ombra features a powerful 600-CFM blower with the exclusive Airflow Control Technology™ (ACT™) to meet local code requirements. View more
Save $340.00 Sale ends: June 30, 2024 Price:
$1,299.00 $1,639.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
ALUMINUM MESH FILTERS
The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean.
Specifications
General
Series Name
• Ombra
• Core Collection
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Technologies
• Airflow Control Technology™ (ACT™)
• LumiLight LED Lighting
Ducting Information
• 6" Round
• Vertical Ducting
Speeds
4 Speeds
Additional Information
• Capacitive Touch Controls
• Auto Delay-Off
• Lighting: LumiLight LED, 6W x2
• Dual-Level Lighting Filters
• Filters: Aluminum Mesh Filters x2
• Recirculating Option
• Duct Cover Extension Option: Up to 12’ Ceiling
Electrical Information
Information
• 120V
• 60Hz
• 4A
Certifications and Approvals
Information
cULus
Accessories
Optional
• Recirculating Kit: ZRC-01OM
• Duct Cover Extension: Z1C-01OMS
• Make-Up Air Kit: MUA006A
• Hybrid Baffle Filter Kit (2 filters): Z0F-B002
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
12 inch(es) / 30.48 cm
Depth
19.75 inch(es) / 50.17 cm
Additional Dimensions
Mounting Height Range: 24" - 34"
Warranty
Warranty
• 1-Year for labor
• 3-Year limited for parts
