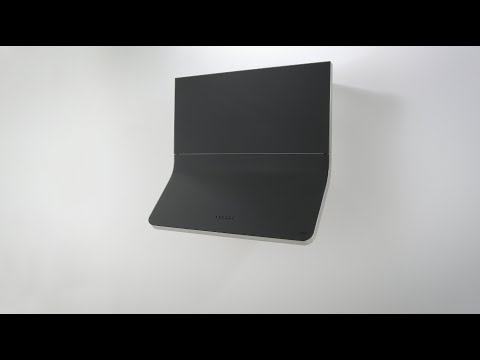

Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMBX EXTERNAL_VIDEO 1

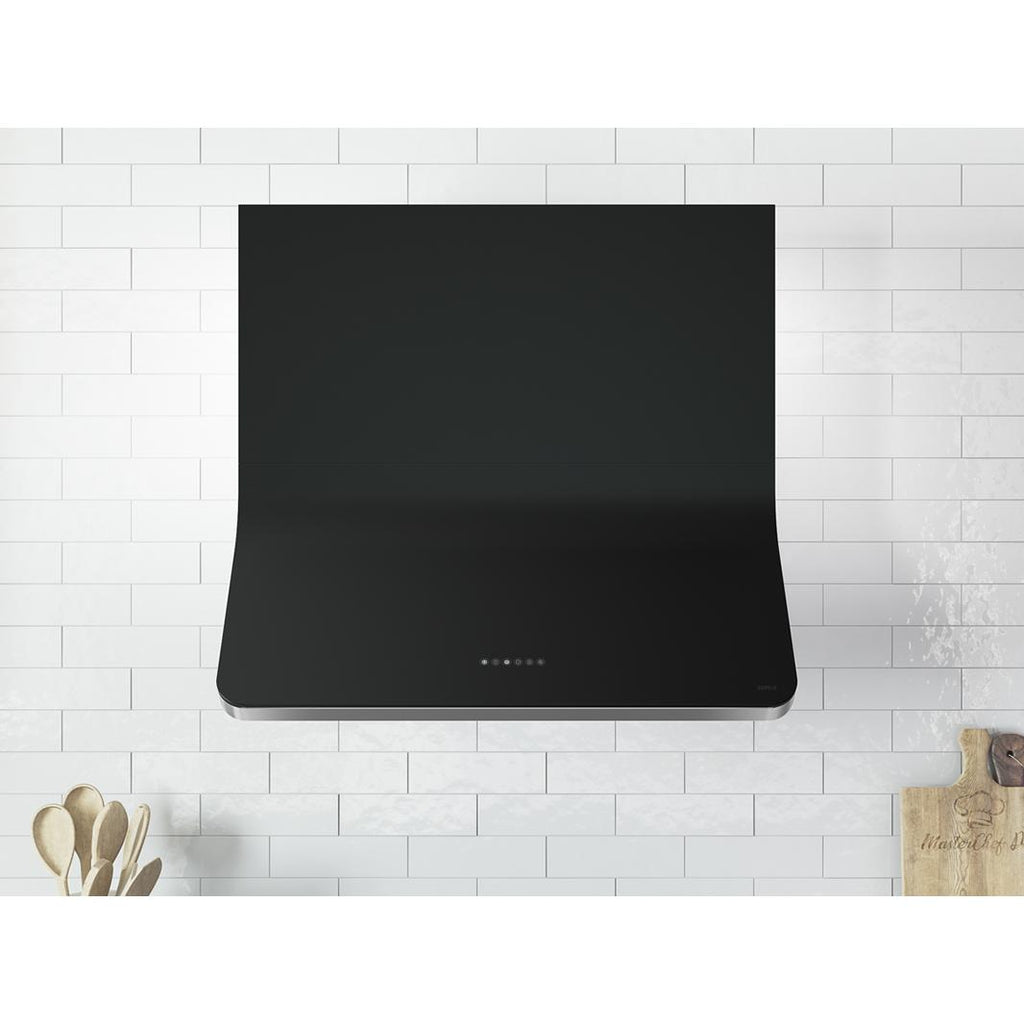

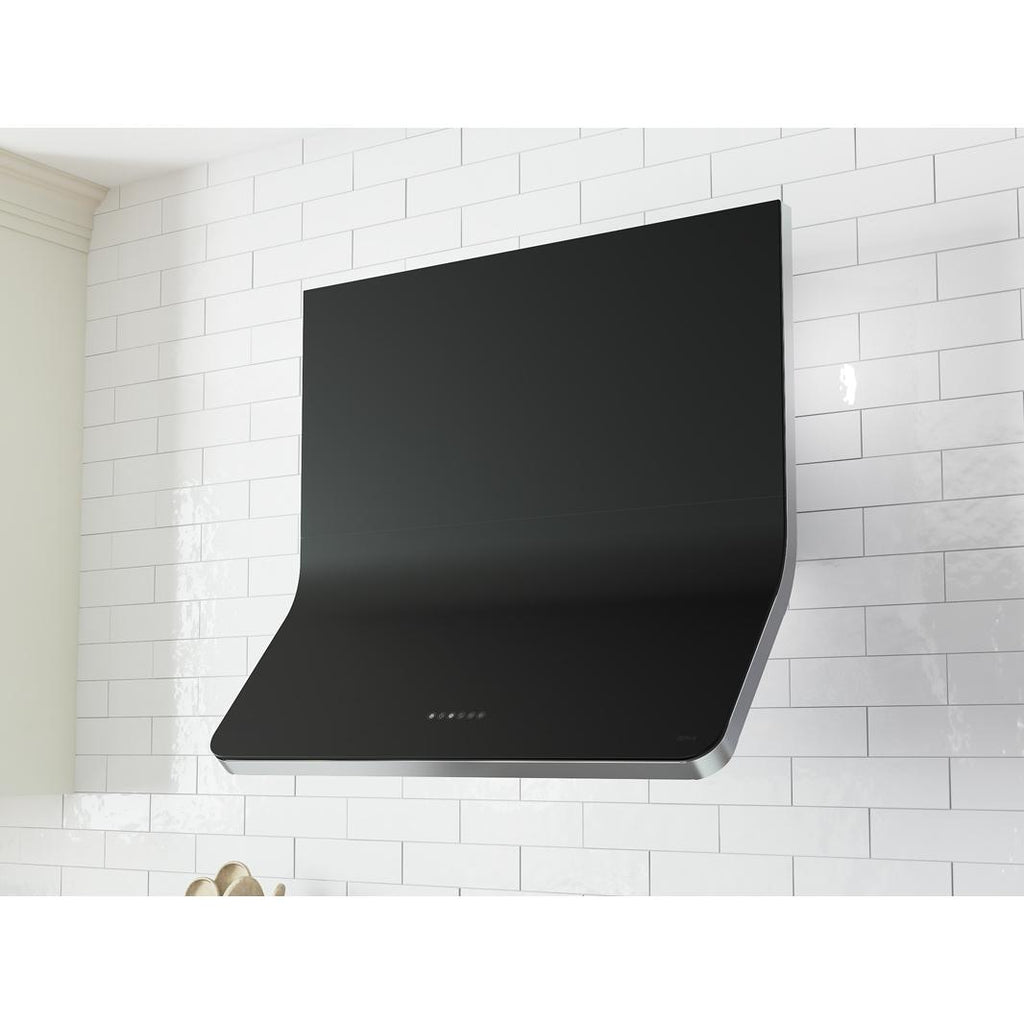

Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMBX

ZephyrModel Number: DHZM90AMBX
Appearing to float above your cooktop, the iconic Horizon is back. The original showstopper, Horizon will make every cooking session... Appearing to float above your cooktop, the iconic Horizon is back. The original showstopper, Horizon will make every cooking session look and feel cooler. It features dual capture zones, capacitive touch controls, multiple blower options, hybrid baffle filters, and better-than-ever soft ambient lighting. Compatible with an optional remote control accessory. Blower sold separately. View more
Save $470.00 Price:
$4,699.00 $5,169.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
Features
CLEAN AIR
Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
DELAY OFF
This feature is used for programmed shut down of blowers 15 minutes after the function is activated. Press once, a dot flashes in the lower right side of display indicating the function is on. The blowers will shut down after 15 minutes.
Specifications
General
Series Name
Horizon
Blower Included
No
Style
Standard
Color
Black
Manufacturer Color
Matte Black
Installation
Wall Mount
Features
Ducting Information
• Vertical Single Internal Blower 6" Round
• Vertical In-Line/External Blower 10" to 8" Round
• Horizontal Single Internal Blower 6" Round
• Horizontal In-Line/External Blower 10" to 8" Round
Speeds
3 Speeds
Additional Information

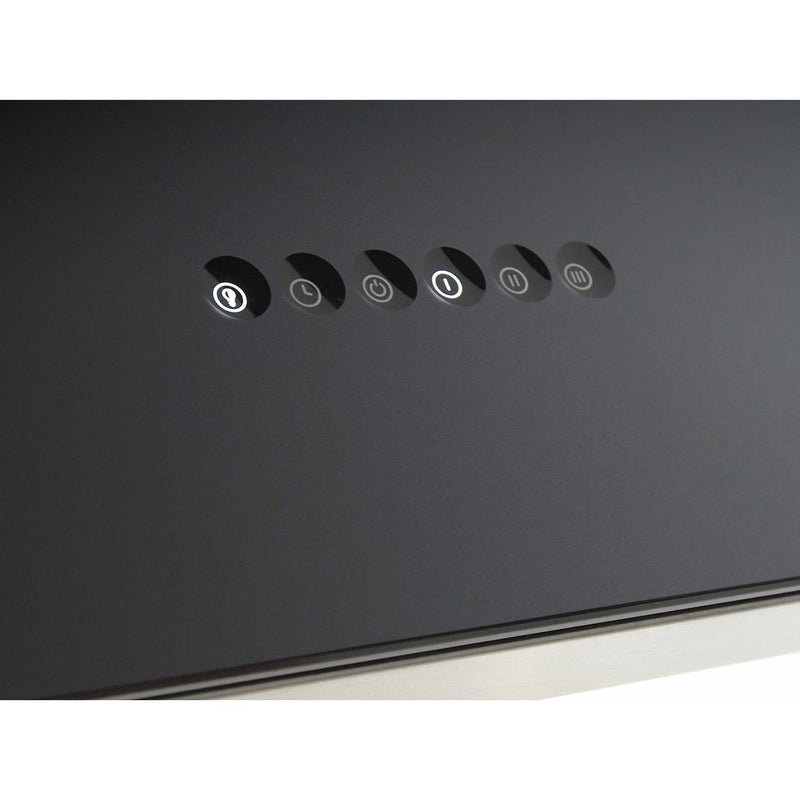

• Capacitive Touch Controls
• Auto Delay-Off
• CleanAir Function
• Lighting LED, 5W x6
• Tri-Level Lighting
• Dual Capture Zones
• Hybrid Baffle x4
• Recirculating (Not compatible with optional duct cove)
Certifications and Approvals
Information
ADA with Remote Option
Accessories
Optional
• Internal Blower (CBI-290C) 200-290 CFM, 1.4-3 sones
• Internal Blower (CBI-600A) 240-600 CFM, 1.8-6 sones
• In-Line Blower (PBN-1000A) 500-1,000 CFM, sones NA
• External Blower (CBE-1000) 500-1,000 CFM, sones NA
• Recirculating Kit Z0F-C010
• Remote Control 14000010
• Duct Cover - Stainless Steel Z1C-01HZ
• Make-Up Air Kit MUA006A (600 CFM), MUA008A (1,000 CFM)
Dimensions
Class Width
36"
Width
35.37 inch(es) / 89.85 cm
Height
32.87 inch(es) / 83.5 cm
Depth
20.12 inch(es) / 51.11 cm
Warranty
Warranty
2 Year Parts, 1 Year Labor
