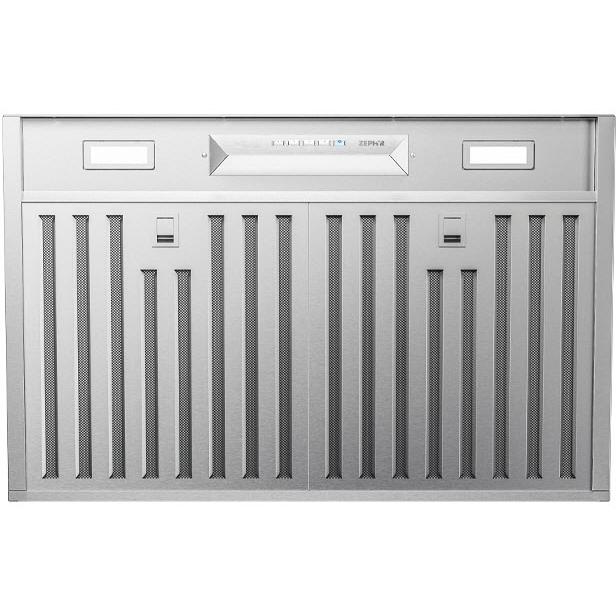

Zephyr 30-inch Monsoon Mini II Series Hood Insert AK9528AS

ZephyrModel Number: AK9528AS
A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. It features... A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. It features a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT™), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options. View more
Save $150.00 Sale ends: June 30, 2024 Price:
$1,349.00 $1,499.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
Specifications
General
Series Name
Monsoon Mini II
Blower Included
Yes
Airflow
600 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Technologies
ACT™ Technology
Ducting Information
• Vertical Internal Blower 7" Round, 3-1/4" x 10"
• Horizontal Internal Blower 3-1/4" x 10"
Speeds
3 Speeds: *When ACT™ is enabled the maximum speed levels will change. ACT 390 = 2 speeds and ACT 290 = 1 speeds
Additional Information
• Blower CFM (Min. - Max.) 290 - 600
• Sones (Min. - Max.) 1.5 - 6
• ACT 390 CFM (Min. - Max.) 290 - 390
• ACT 290 CFM (Min. - Max.) 290 - 290

• Electronic Touch Controls
• Auto Delay-Off
• LumiLight LED, 6W x2
• Dual-Level Lighting
• Filters Hybrid Baffle x2
• Recirculating Option
Electrical Information
Information
• 120 V
• 60 Hz
• 4 A
Accessories
Optional
• Recirculating Kit ZRC-9100A
• Make-Up Air Kit MUA006A
• Damper, 7" Round AK00067
Dimensions
Class Width
30"
Width
28.37 inch(es) / 72.07 cm
Height
6.12 inch(es) / 15.55 cm
Depth
18.06 inch(es) / 45.87 cm
Warranty
Warranty
3 Years Parts, 1 Year Labor
