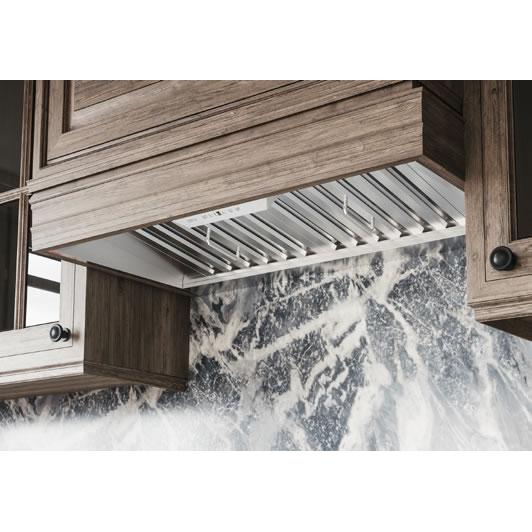

Zephyr 30-inch Core Collection Monsoon I Built-In Hood Insert AK9228BS

ZephyrModel Number: AK9228BS
The Zephyr, Core Collection, Monsoon I has taken the one-piece liner to the next level. It includes dual-level LumiLight LED’s... The Zephyr, Core Collection, Monsoon I has taken the one-piece liner to the next level. It includes dual-level LumiLight LED’s and an ADA-compliant wireless remote that lets you easily control the Monsoon I without ever reaching over a dangerous cooking surface. It is equipped with 6-speed electronic controls, pro baffle filters, Zephyr's exclusive ACT™ technology and a powerful 600-CFM blower. View more
Save $870.00 Sale ends: June 30, 2024 Price:
$1,229.00 $2,099.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
Features
ELECTRONIC TOUCH CONTROL
Zephyr’s wireless RF remote puts you in control of your one-piece liner from up to 15 feet away.
ELECTRONIC TOUCH CONTROL
CLEAN AIR
Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
AIRFLOW CONTROL TECHNOLOGY
Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.
Specifications
General
Series Name
• Core Collection
• Monsoon I
Blower Included
Yes
Airflow
600 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Technologies
Airflow Control Technology™
Ducting Information
8" Round
Speeds
6
Additional Information
• Electronic Touch controls
• Auto delay-off
• CleanAir function
• Sones (Min. - Max.): 1 - 6
• Lighting: LumiLight LED, 6W x2
• Dual-level lighting
• 2 Pro baffle filters
• Grease collection tray
Electrical Information
Information
120V, 60Hz at Max. 5A
Certifications and Approvals
Hvi Certified
No
Accessories
Included
Wireless Remote Control
Optional
Make-up air kit: MUA006A
Dimensions
Class Width
30"
Width
28.37 inch(es) / 72.07 cm
Height
12 inch(es) / 30.48 cm
Depth
19.25 inch(es) / 48.9 cm
Additional Dimensions
Mounting height range: 26" - 36"
Warranty
Warranty
• 1-Year limited warranty on labor only
• 3-Year limited warranty on none-consumable parts
