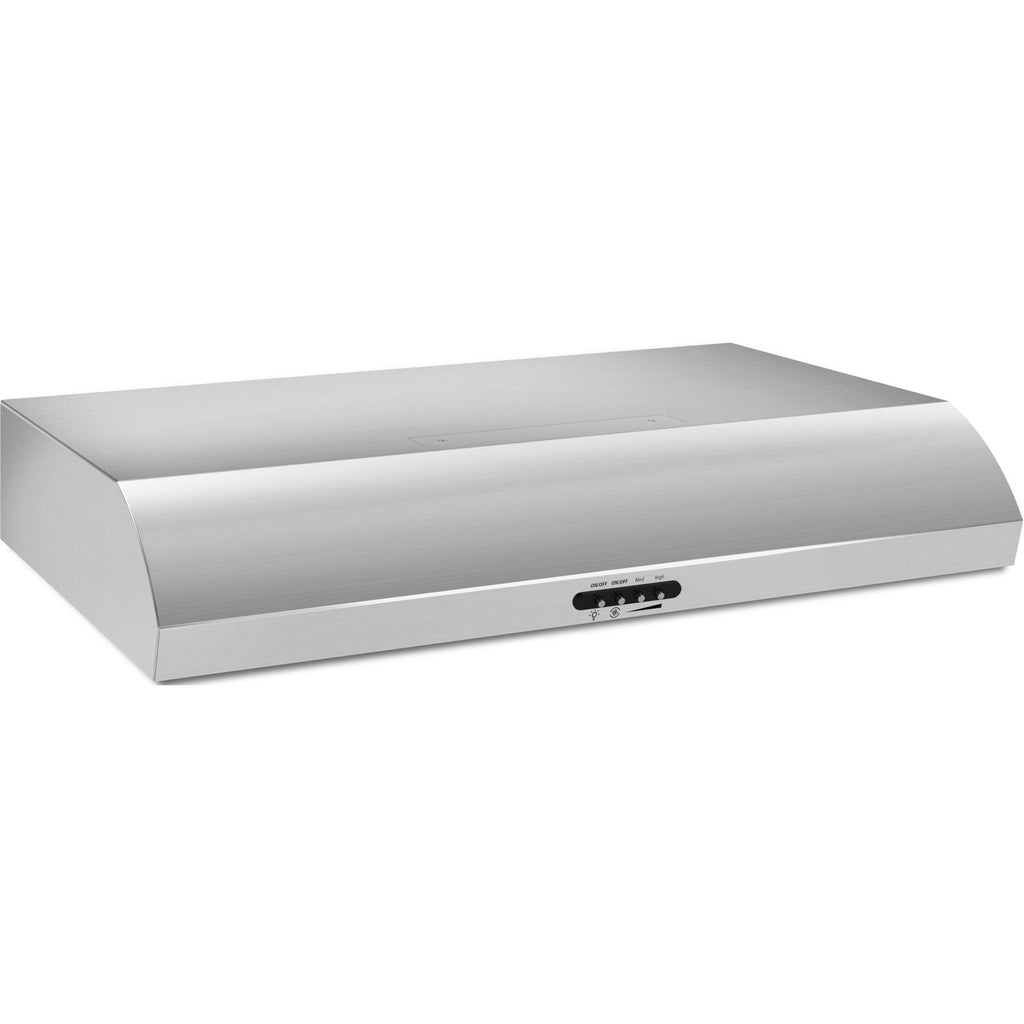

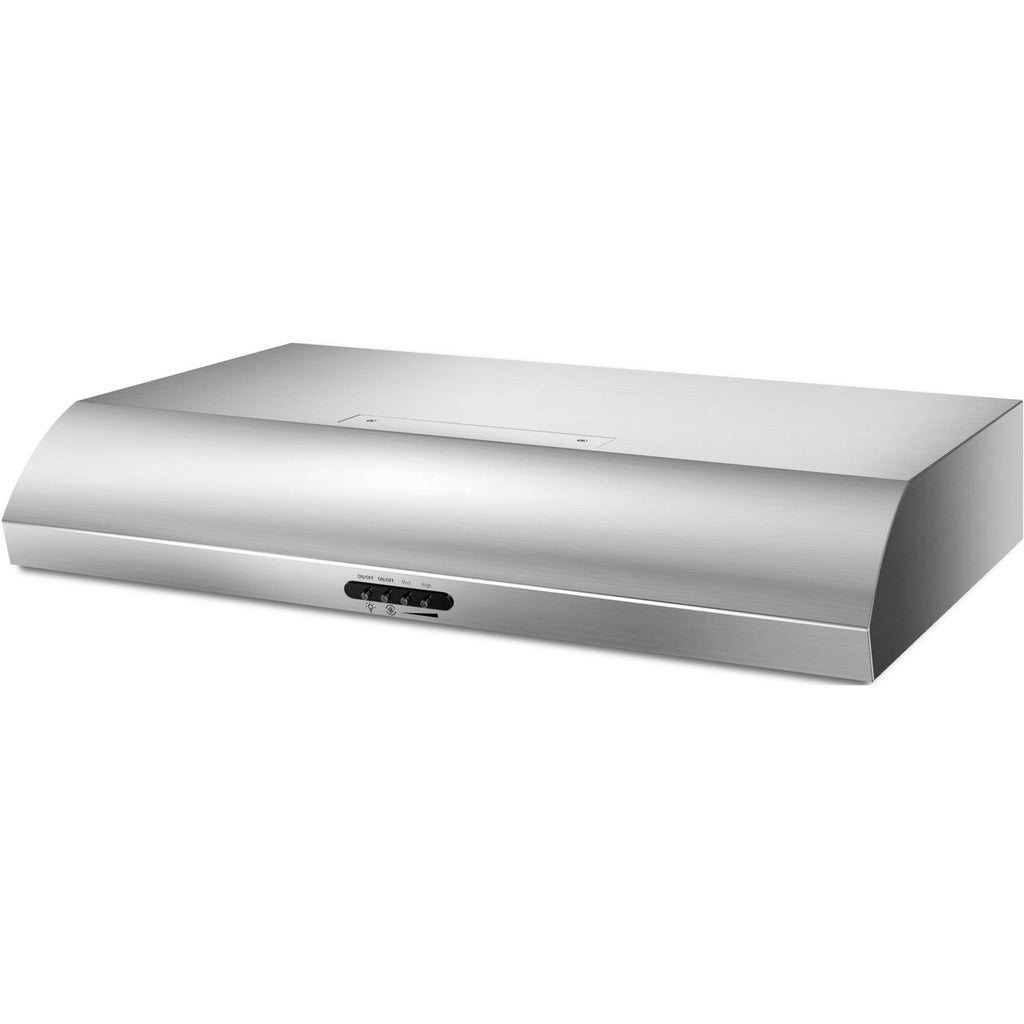

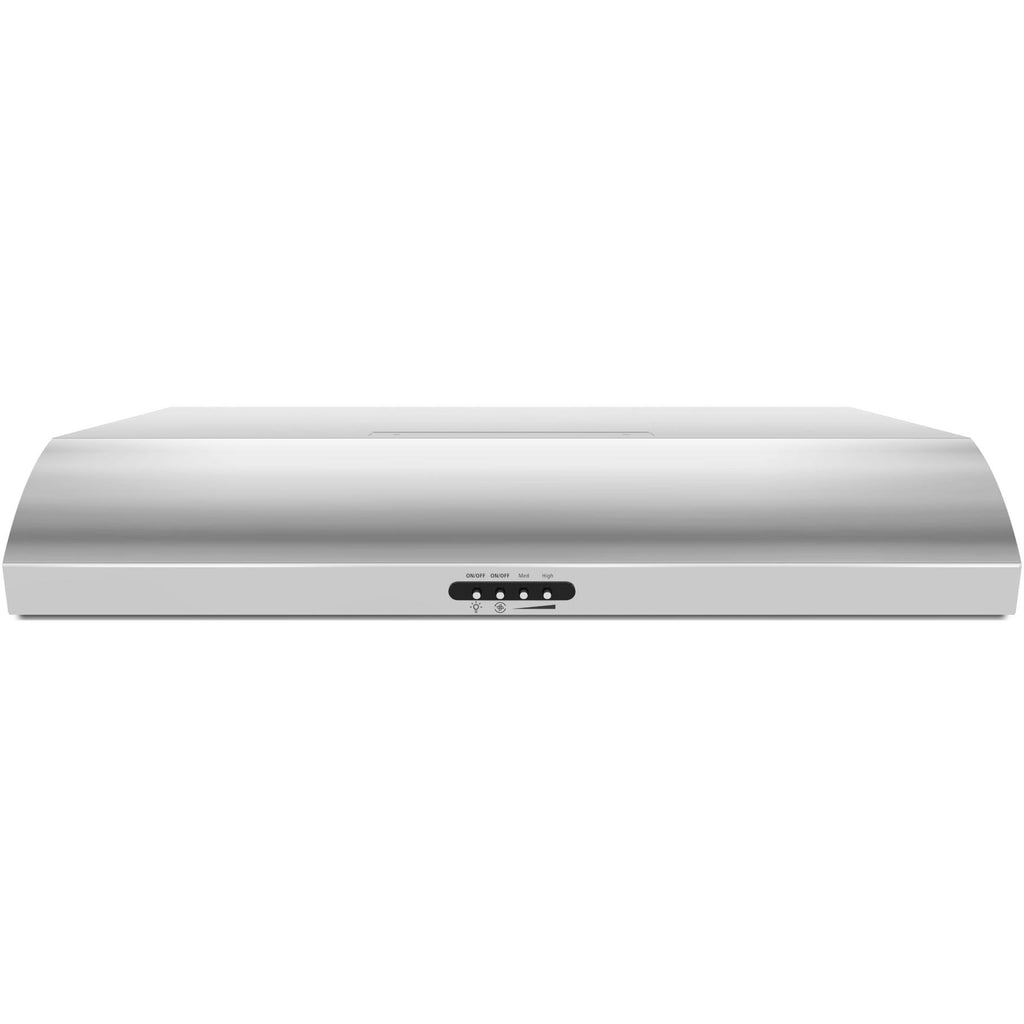

Whirlpool 30-inch Under-Cabinet Range Hood UXT5230BDS

WhirlpoolModel Number: UXT5230BDS
Installing this stove hood with halogen lighting is quick and easy. The FIT system helps reduce measuring, cutting and trim... Installing this stove hood with halogen lighting is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. The powerful 3-speed hood vent kitchen fan takes care of steam, grease, smoke and odors in the surrounding air. View more

Save $120.00 Sale ends: February 28, 2024 Price:
Sale price$399.99 Regular price$519.99
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features
FIT SYSTEM
The FIT system eliminates measuring, cutting and filler strips for a perfect fit every time. The FIT system ensures your hood will install seamlessly into your cabinet cutout in three easy steps.
HIDDEN VENT
This sleek and stylish hidden vent matches almost every modern or traditional kitchen. The design moves the ventilation out of sight to create a seamless look and a surface that's super easy to clean.
DISHWASHER SAFE GREASE FILTER
Wash metal filter as needed in dishwasher or hot detergent solution.
Specifications
General
Blower Included
Yes
Airflow
350 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
7" Rectangular & Circular
Speeds
3
Additional Information
• 50K BTU Threshold
• Sones with High Speed: 7 (Horizontal) & 6.5 (Vertical)
• Charcoal Odor Removing Filter
• Push Button
• 2 Light Settings
Electrical Information
Information
• 120 V
• 60 Hz
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
4.94 inch(es) / 12.54 cm
Depth
18.63 inch(es) / 47.31 cm
Weight
14 lb(s) / 6.35 kg
Shipping Dimensions
Width
31.75 inch(es) / 80.65 cm
Height
20.75 inch(es) / 52.71 cm
Depth
7 inch(es) / 17.78 cm
Weight
17 lb(s) / 7.71 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049326535

Customer Reviews

Based on 30 reviews
50%
(15)
33%
(10)
7%
(2)
0%
(0)
10%
(3)
C
Canyon
Extremly HOT halogen bulbs

This was an upgrade that was installed in our home when it was built 2 years ago. I accidently brushed my left index finger against the glas lamp enclosure, 2nd degree burns was the result...not vey happy. With the advent of terrific LED lighting these days I intend to replace those halogen lamps with LED replacements.

P
Pastacooker
One major unresolved flaw! Yuck!

When you boil a large pot of water for about 20 - 25 minutes, like when you're boiling pasta or canning, condensation collects in mesh of hood and runs down in a trickle on your stove , splashing into any open pans/pots. A Lowe's appliance technician checked it out and verified hood was properly installed and vented to outside. This technician was so baffled by what he witnessed that he called Whirlpool tech. support and went through all the authorized checks with him still on the phone. Whirlpool tech.'s advice was a basic lesson on how condensation forms and to always use lids. Whirlpool twice scheduled other (Whirlpool authorized) appliance technicians to investigate. Both times I waited around to later call and ask why they didn't come and was told that neither one serviced hoods. Upper level Whirlpool supervisors (Executive Office - called twice) said nothing would be done because technician (first non-Whirlpool authorized one) said it was operating 'properly'. With some coaching on my part, one service rep. agreed to order me a new mesh to try and my 1 year warranty was extended another 6 months. I am not very hopeful this unusual problem will be resolved. I am mainly disappointed in Whirlpool's robotic adherence to policy instead of using common sense. I repeatedly asked if they'd be happy if it was happening in their home. I gave the hood a three star rating because other than this icky problem when I boil a big pot of water, the hood is attractive, bright and draws very well. Whirlpool, however gets a one star.

G
Gar1950
Two Major Problems

After installing and removing the protective coating found a dent in the front side of the hood. Hardly noticeable however the dent created a sharp edge. So I thought I could remove the filter and push the dent out from the side of the hood. Unfortunately the Phillip head screw used to hold the filter is stripped and it is impossible to remove the filter. I paid $100 to have this installed and now I am out the cost of the hood and the installation cost.

S
Sandra Gail
Nice look!

Just delivered yesterday!Nice sleek design!Dissapointed that no charcoal filter included,as when we ordered salesman knew we would be using as recirculating fan!Now need to find same or order ourselves!Very inconvenient!

s
sam19
great vent

I bought this 4 month ago, very quite, very powerful, easy to clean with affresh stainless cleaner
