Features
STATEMENT & MINIMALIST COLLECTION HANDLES
Elevate the design of your beverage center with one of Monogram’s handles. HANDLES SOLD SEPARTELY
PANEL READY REFRIGERATION
Use custom panels to match your cabinetry from your cabinetmaker, or purchase a Stainless Steel panel – STAINLESS PANELS SOLD SEPARTELY
EXPANDED ENTERTAINMENT AREAS
Install your beverage center side by side to other Monogram undercounter refrigeration and ice maker models.
Additional Features
CUSTOMIZED CAPACITY
A variety of storage configurations can hold up to 126 cans / 13 wine bottles or use the top quick space shelf to make room for taller bottles and containers.

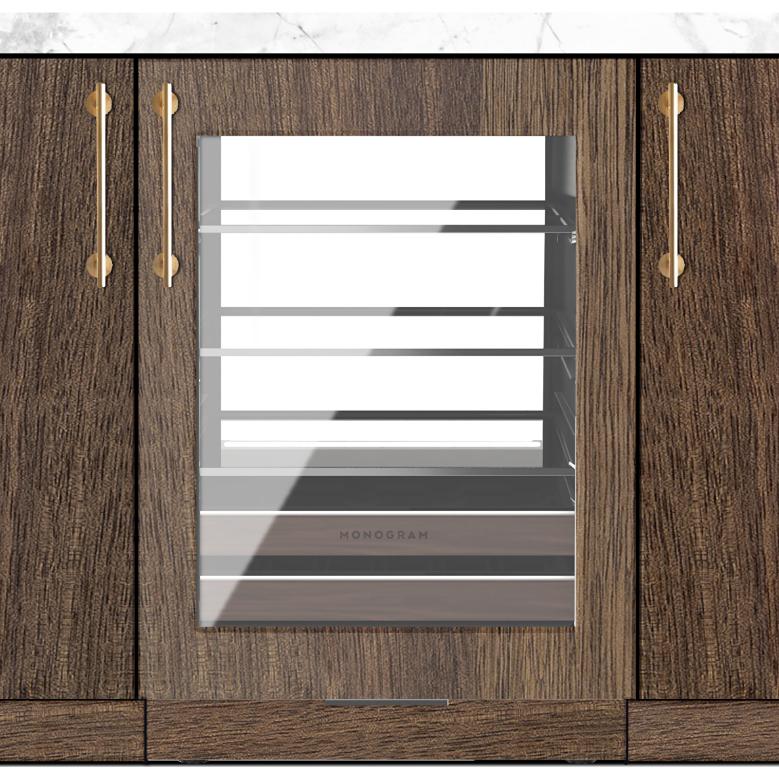

FLUSH INSTALLATION.
Designed for nearly seamless flush installation for beautiful integration to kitchen or entertainment area.
ILLUMINATED INTERIOR
Back wall lighting and overhead LED lights brighten the interior to easily select your beverage of choice
DELICATE STORAGE
Beautifully crafted dark walnut wooden slats cradle wine bottles, designed to maintain label integrity

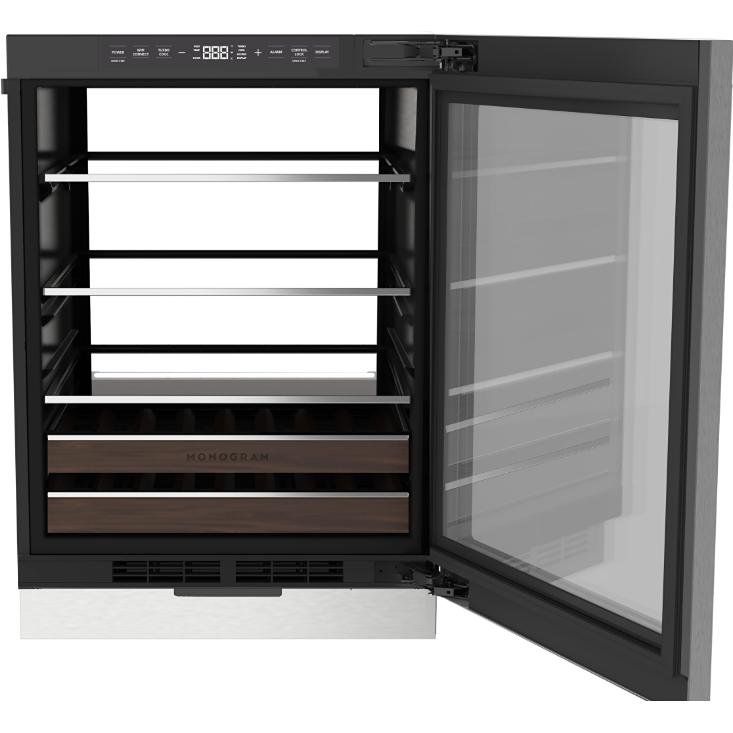

6 FULL EXTENSION WINE RACKS
Smooth glide full extension racks allow you to easily stock with your favorite wine or bottled selections
UV PROTECTED GLASS
Ensure your beverages are preserved properly with UV protected glass
BACKLIT ELECTRONIC CONTROL
Set the temperature, connect to WiFi, and control the light settings with backlit LED control panel
PROXIMITY LIGHTING
Built in sensors detect movement nearby and automatically turn on the interior lighting.
Specifications
General
Type
Beverage Center
Installation
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Cabinet Color
Grey
Temperature Zones
1
Temperature Settings
34 degrees to 45 degree F
Hinge Side
Right
Capacity
Total Capacity
5.1 cu. ft.
Cans
126
Bottles
13
Wine Racks
2
Features
Technologies
• Wi-Fi Connect Built-in
• Amazon Alexa, Google Home
• Amazon Alexa, Google Home
Digital Temperature Display
Yes
Glass Door
Yes
Interior Light
Yes
Lock
Yes
Reversible Door
Yes
Additional Information
• Built-In or Free-Standing, Side by Side Install Capable with ZIWD24PWII (Additional kit required: ZKAW)
• Adjustable Temperature Control
• Collection: Statement, Minimalist
• Control Features: Turbo Cool / Freeze, Door Alarm, Hi-Temp Alarm, Child Lock, Power On/Off
• Upfront Electronic Temperature Controls, Digital Temperature Display
• Custom Panel Ready: Flush Inset Panels,3/4-Inch Overlay Panels
• Cycle Defrost
• Full Extension Slides
• Interior Lighting: LED - Door Closed: On/Off Option; Door Open: Always On
• Leveling System: 2 rear roller adjustable from front; 2 front legs
• Proximity Lighting Control: On/Off Option, Multi key or in APP
• Refrigerant Type: R600a
• Removable Slide-Out Shelves
• Spillproof Glass Shelves: 3 Glass
• Tuckaway Shelf: Quick Space Top Shelf
• Wine Racks: 2 Full Extension Soft Close, Wood Slats
• Adjustable Temperature Control
• Collection: Statement, Minimalist
• Control Features: Turbo Cool / Freeze, Door Alarm, Hi-Temp Alarm, Child Lock, Power On/Off
• Upfront Electronic Temperature Controls, Digital Temperature Display
• Custom Panel Ready: Flush Inset Panels,3/4-Inch Overlay Panels
• Cycle Defrost
• Full Extension Slides
• Interior Lighting: LED - Door Closed: On/Off Option; Door Open: Always On
• Leveling System: 2 rear roller adjustable from front; 2 front legs
• Proximity Lighting Control: On/Off Option, Multi key or in APP
• Refrigerant Type: R600a
• Removable Slide-Out Shelves
• Spillproof Glass Shelves: 3 Glass
• Tuckaway Shelf: Quick Space Top Shelf
• Wine Racks: 2 Full Extension Soft Close, Wood Slats
Electrical Information
Information
• 120 V
• 60 Hz
• 15 or 20 A
• 60 Hz
• 15 or 20 A
Certifications and Approvals
Energy Star Certified
Yes
Sabbath
Yes
Information
ADA Compliant
Accessories
Optional
• Minimalist Handle Kit - ZXGP1H1CPSS
• Statement Handle Kit - ZXGP1H1PWSS
• Stainless Steel Panel Kit with stainless toe-kick - ZK1GC240WSS
• Undercounter Unification Kit - ZKAW
• Side by Side Install Toe-Kick Kit - ZKN48W
• Handle Stud Kit - ZKPN
• Statement Handle Kit - ZXGP1H1PWSS
• Stainless Steel Panel Kit with stainless toe-kick - ZK1GC240WSS
• Undercounter Unification Kit - ZKAW
• Side by Side Install Toe-Kick Kit - ZKN48W
• Handle Stud Kit - ZKPN
Dimensions
Class Width
24"
Width
23.87 inch(es) / 60.64 cm
Height
34.1 inch(es) / 86.61 cm
Depth
23.39 inch(es) / 59.4 cm
Additional Dimensions
• Overall Height: 34 1/10" - 35 1/10 "
• Minimum Cabinet Width: 24" (61.0 cm)
• Minimum Cabinet Depth: 24" (61.0 cm)
• Cutout Width: 23 7/8" (60.6 cm)
• Cutout Height: 34 1/2" (87.6 cm) Min, 35" (88.9 cm) Max
• Minimum Cabinet Width: 24" (61.0 cm)
• Minimum Cabinet Depth: 24" (61.0 cm)
• Cutout Width: 23 7/8" (60.6 cm)
• Cutout Height: 34 1/2" (87.6 cm) Min, 35" (88.9 cm) Max
Shipping Dimensions
Weight
162 lb(s) / 73.48 kg
Warranty
Warranty
• Labor Warranty: Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
• Parts Warranty: Limited 12-year sealed system, Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
• Parts Warranty: Limited 12-year sealed system, Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
