Features
TRUE EUROPEAN REVERSE AIR CONVECTION SYSTEM
True European Reverse Air Convection System - Designed to deliver more even cooking results, the convection fan and heating element.
PRECISION TEMPERATURE PROBE
Precision Temperature Probe - Cook roasts and meats to perfection with a temperature probe that shows the cooking progress on the wall oven screen or SmartHQ™ app, eliminating the need to open the oven door.
SOFT-CLOSE HINGES
Soft-Close Hinges - Specially designed, soft close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement.
SEAMLESS STAINLESS TOP FRAME
Seamless Stainless Top Frame - Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.

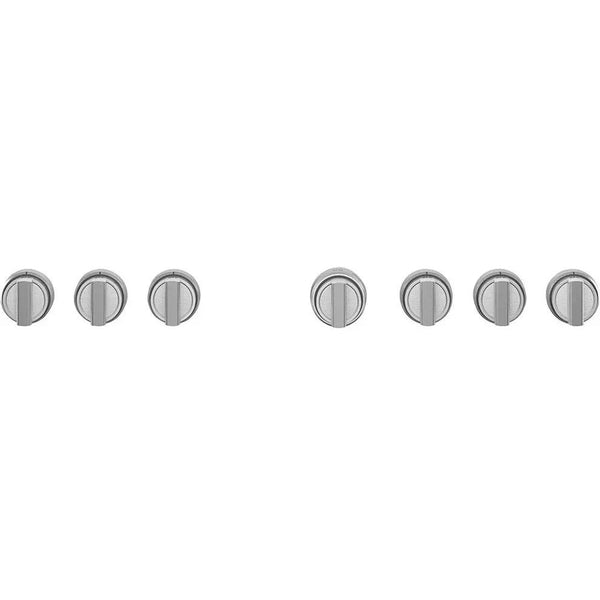

SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
Solid Brass Blades on Precision Machined Knobs - With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents.
RING-LIT KNOBS
Ring-Lit Knobs - Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven.
CHEF CONNECT
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items, like appliance clocks, surface lights and even the vent when the burners are on.
INDUSTRY EXCLUSIVE CUSTOM COLOR LED ACCENT LIGHTING
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance.
DYNAMIC OVEN LCD
Dynamic Oven LCD - Functional and stylish, the LCD shows which oven mode is currently in use
and other helpful information, like oven temperature, timer and probe temp.
HOT AIR FRY
Hot Air Fry - A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter.
WIFI MONITORING AND REMOTE CONTROL WITH THE SMARTHQ™ APP
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more.

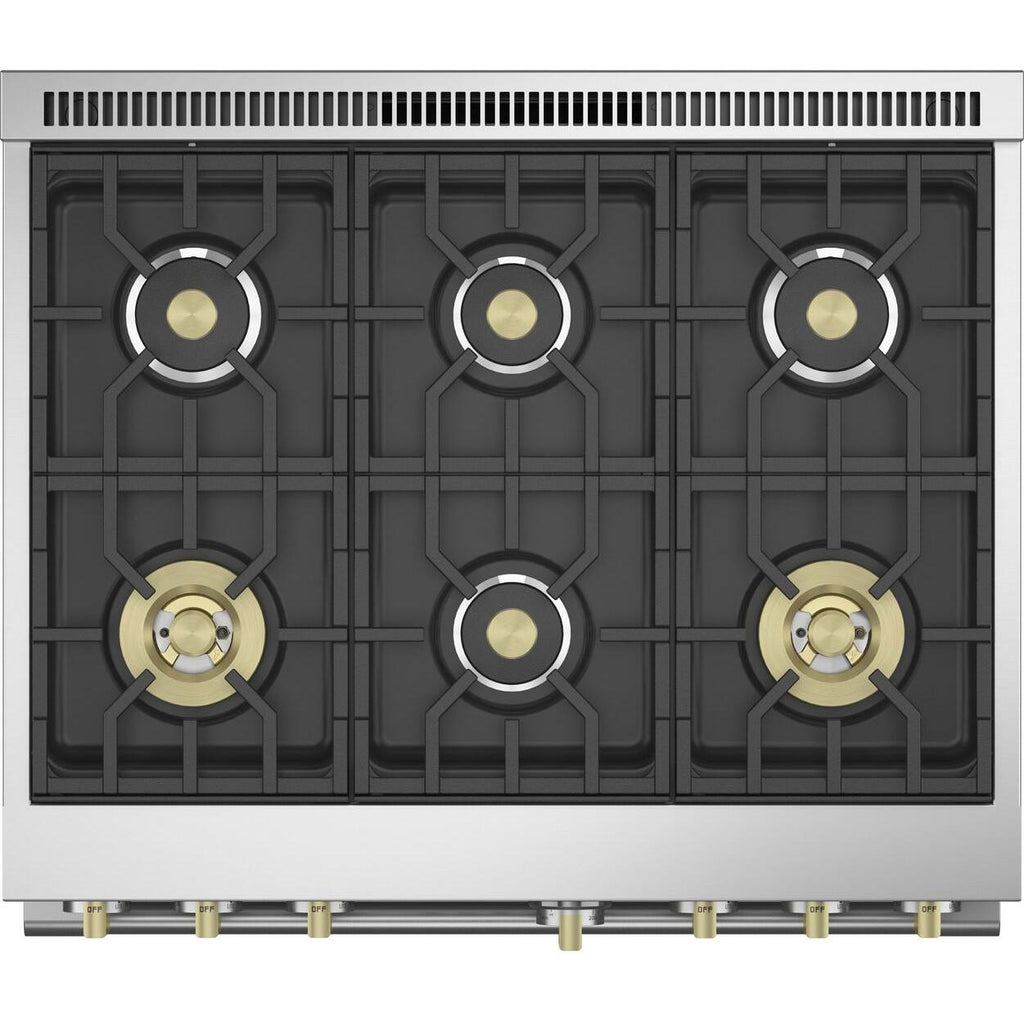

3-PIECE GRATES WITH REVERSIBLE WOK FEATURE
Designed to adapt to different cooking styles, these reversible grates are flat on one side and uniquely contoured on the other to perfectly fit round-bottom woks.
VERSATILE GAS BURNER CONFIGURATION
Delivering exceptional cooking flexibility, the multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame.
SMARTHQ™ APP
SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance.
Specifications
General
Series Name
Professional Statement Collection
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Self Oven and Steam Clean
• Self-Clean Oven Door Lock
• 3 Self-Clean Oven Racks
• 3-5 Hours Cleaning Time
• Delay Clean Option
• Self-Clean Oven Door Lock
• 3 Self-Clean Oven Racks
• 3-5 Hours Cleaning Time
• Delay Clean Option
Cooktop
Burners/Elements
6
Burners/Elements Output
• Front Left Burner: 23000 BTU
• Back Left Burner: 18000 BTU
• Back Right Burner: 18000 BTU
• Front Right: 23000 BTU
• Middle Back Burner: 15000 BTU
• Middle Front Burner: 15000 BTU
• Back Left Burner: 18000 BTU
• Back Right Burner: 18000 BTU
• Front Right: 23000 BTU
• Middle Back Burner: 15000 BTU
• Middle Front Burner: 15000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
5.75 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake Multi-Rack
• Convection Broil Hi/Lo
• Convection Roast
• Hot-Air Frying
• Precision Cooking Modes
• Proof
• Scan-to-Cook
• Warming
• Convection Broil Hi/Lo
• Convection Roast
• Hot-Air Frying
• Precision Cooking Modes
• Proof
• Scan-to-Cook
• Warming
Features
Technologies
• True European Reverse Air Convection
• Hot Air Fry Technology
• Chef Connect
• WIFI Connect
• Amazon Alexa
• Bluetooth
• Drop
• IFTTT
• Innit
• Sonos
• The Google Assistant
• Hot Air Fry Technology
• Chef Connect
• WIFI Connect
• Amazon Alexa
• Bluetooth
• Drop
• IFTTT
• Innit
• Sonos
• The Google Assistant
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• 2 Sealed, Dual Flame Stacked (Remobable Brass Accents
• 4 Sealed, Dual Flame Stacked
• Customizable LED Bullnose and Knob Accent Lighting
• Digital Temperature LCD Display with Timer Display
• Continuous Grates
• Convection Roasting Rack
• Full Extension Racks
• 5 Rack Positions
• Electronic with Auto Reignition
• Oven Control Features 12-Hour Shut-Off Capability
• Audible Preheat Signal
• Auto Recipe Conversion
• Automatic Oven Meat Probe
• C° or F° Programmable
• Proof Mode
• Probe Mode
• 4 Sealed, Dual Flame Stacked
• Customizable LED Bullnose and Knob Accent Lighting
• Digital Temperature LCD Display with Timer Display
• Continuous Grates
• Convection Roasting Rack
• Full Extension Racks
• 5 Rack Positions
• Electronic with Auto Reignition
• Oven Control Features 12-Hour Shut-Off Capability
• Audible Preheat Signal
• Auto Recipe Conversion
• Automatic Oven Meat Probe
• C° or F° Programmable
• Proof Mode
• Probe Mode
Electrical Information
Information
• 240 V
• 30 A
• 30 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
LP Conversion Kit
Optional
• 30"-36" Adjustable Stainless Steel Backsplash with Warming Shelf (UXADBS36PSS)
• High Altitude Kit - WB28K10553
• Reversible Griddle/Grill Accessory - UXPRRGG
• High Altitude Kit - WB28K10553
• Reversible Griddle/Grill Accessory - UXPRRGG
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
35.25 inch(es) / 89.54 cm
Depth (Without Handles)
28.25 inch(es) / 71.76 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Weight
417 lb(s) / 189.15 kg
Additional Dimensions
Height with Legs Extended - Maximum Height: 36 3/4"
Shipping Dimensions
Width
38.5 inch(es) / 97.79 cm
Height
47 inch(es) / 119.38 cm
Depth
34.7 inch(es) / 88.14 cm
Weight
462 lb(s) / 209.56 kg
Warranty
Warranty
• Limited 2 Years Parts and Labor
• Limited 5 Years Gas Surface Burners
• Limited Lifetime Oven Racks
• Limited 5 Years Gas Surface Burners
• Limited Lifetime Oven Racks
UPC
UPC#
084691851325
