Documents
Features
SMARTDIAGNOSIS™
If you ever experience an issue with your LG refrigerator, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.
ICEPLUS™
Is an accelerated freezing setting that allows you to speed up the ice making and or freezing process if needed. The set temperature of the freezer stays the same, but the fan turns on to speed up the freezing process.
SMART COOLING SYSTEM
Smart Cooling system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.
SPILL PROTECTOR™ TEMPERED GLASS SHELVES
Contain spills to facilitate cleanup.
PRINTPROOF™
Now you can have all of the things you love about stainless, without the need for special cleaners or constant attention. LG’s PrintProof™ fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth for a distinctive kitchen that handles real-life in style.

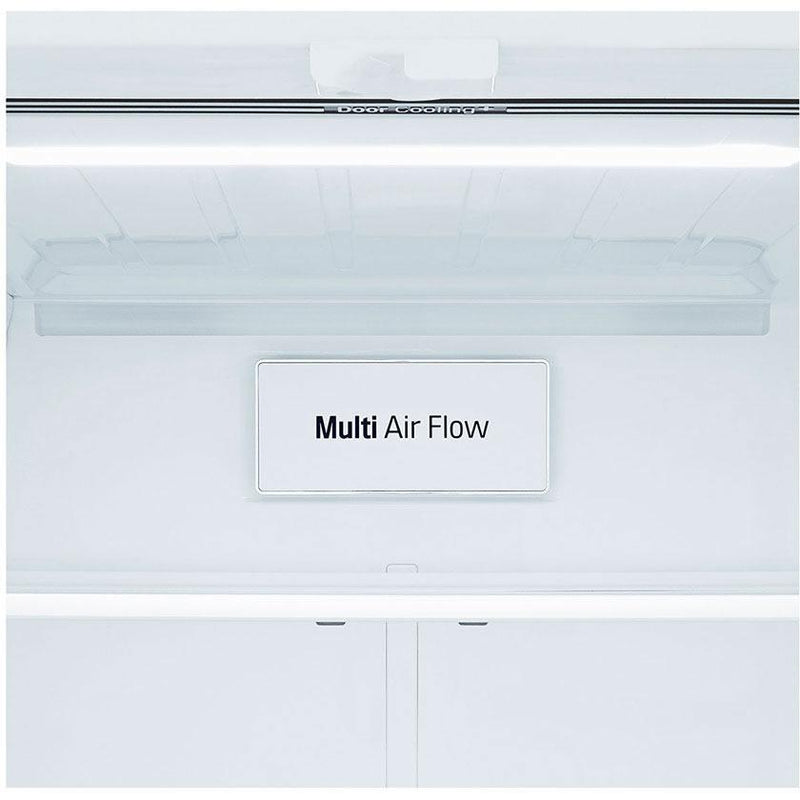

MULTI-AIR FLOW COOLING
Multi-Air Flow Freshness System is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator and strategically-placed vents in every section to help surround your food with cool air no matter where you put it.
Specifications
General
Refrigerator Type
French 3-Door
Installation Type
Freestanding
Door Hinge
Left and Right
Color
Stainless Steel
Manufacturer Color
PrintProof™ Stainless Steel
Capacity
Total
25.10 cu. ft.
Refrigerator
16.90 cu. ft.
Freezer
8.30 cu. ft.
Refrigerator Features
Technologies
• SmartDiagnosis™ System
• Multi-Air Flow™ System
• Smart Cooling™ System

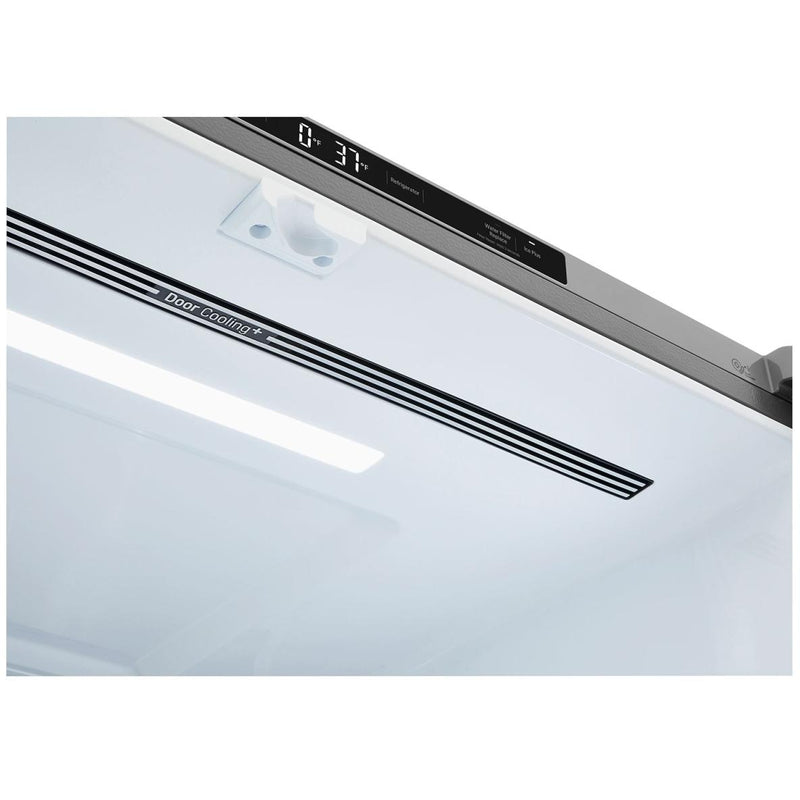

• Door Cooling+
• LoDecibel™ Quiet Operation
• Spill Protector™ Tempered Glass
• DuraBase™ Solid Freezer Drawer Base
• IcePlus™
• Multi-Air Flow™ System
• Smart Cooling™ System
• Door Cooling+
• LoDecibel™ Quiet Operation
• Spill Protector™ Tempered Glass
• DuraBase™ Solid Freezer Drawer Base
• IcePlus™
Digital Display
Yes
Door Alarm
Yes
Electronic Sensors
Yes
Interior Light
Yes
Crisper Drawers
Yes
Gallon Door
Yes
Additional Information
• Fingerprint and smudge resistant exterior
• Hidden hinges
• Contour door
• 2 Full shelves
• 2 Humidity crispers
• 6 Door bins with gallon storage
• Ceiling LED refrigerator light
• Membrane/White LED display
• Auto closing door hinge (left door only)
• Inverter linear compressor
• 1 Evaporator
• 6 Temperature sensors
• Hidden hinges
• Contour door
• 2 Full shelves
• 2 Humidity crispers
• 6 Door bins with gallon storage
• Ceiling LED refrigerator light
• Membrane/White LED display
• Auto closing door hinge (left door only)
• Inverter linear compressor
• 1 Evaporator
• 6 Temperature sensors

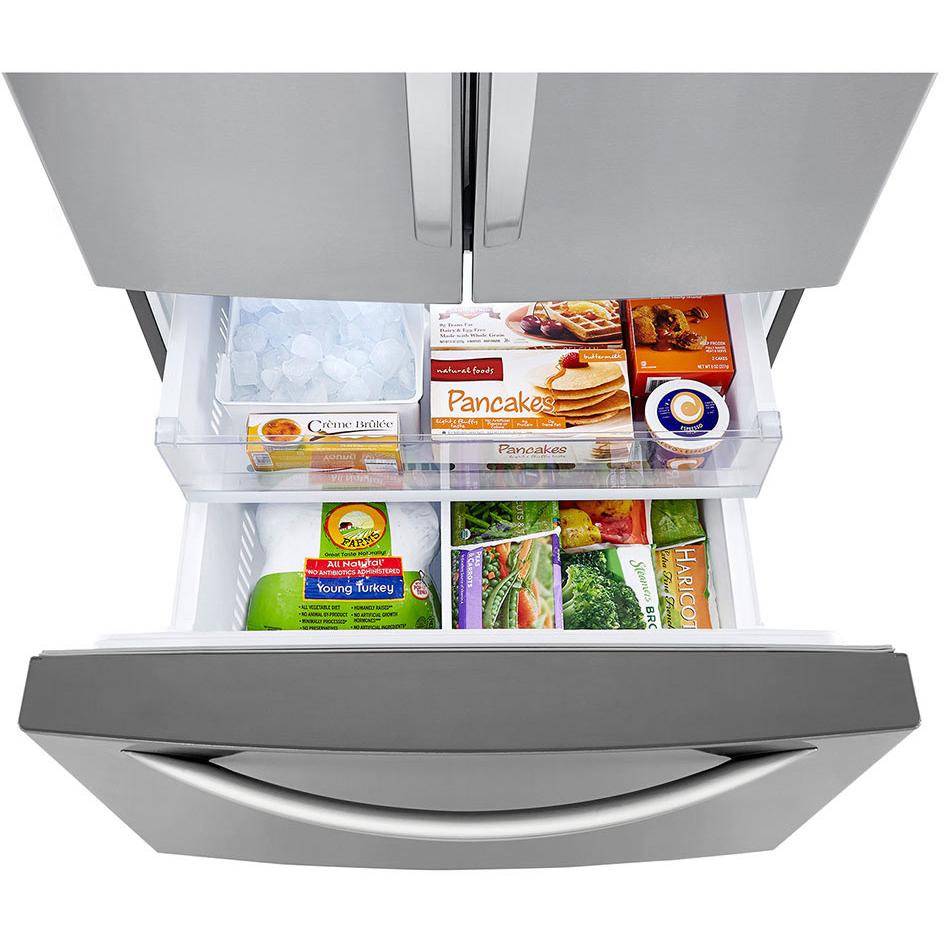

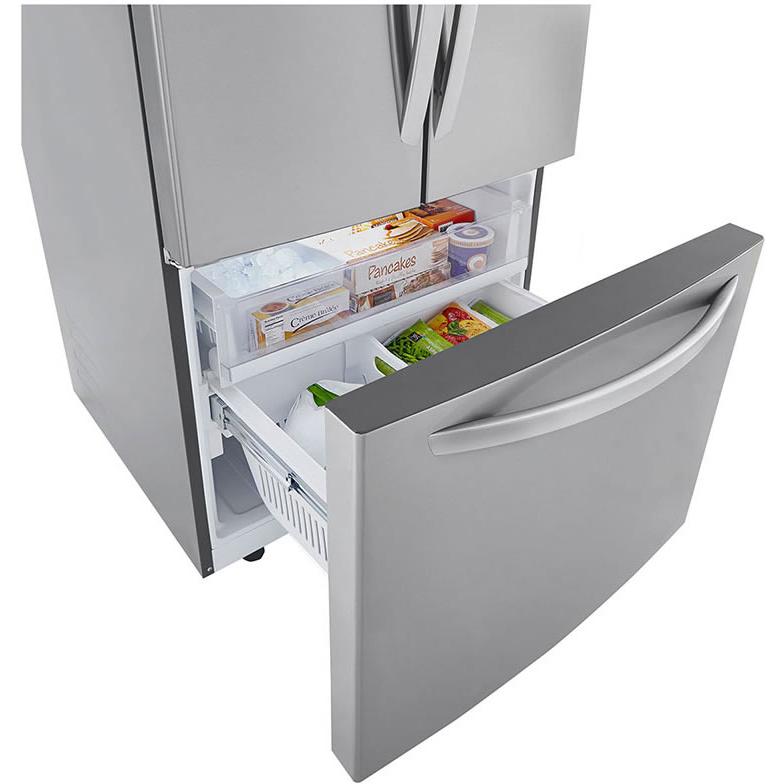

Freezer Features
Additional Freezer Information
• Pull drawer door
• 2-Tier organization
• Drawer divider
• LED freezer light
• Ice bin
• Vista freezer handle
• 2-Tier organization
• Drawer divider
• LED freezer light
• Ice bin
• Vista freezer handle
Ice and Water
Ice System
Interior
Filtration
Yes
Dispenser Features
• Factory installed ice maker
• Filtered ice
• Daily ice production: 2.5 lbs
• Ice storage capacity: 12 lbs
• IcePlus™ production: 2.7 lbs
• Filtered ice
• Daily ice production: 2.5 lbs
• Ice storage capacity: 12 lbs
• IcePlus™ production: 2.7 lbs
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
Water filter: LT1000P
Dimensions
Class Width
32" to 34.9"
Class Height
65" - 70"
Width
32.75 inch(es) / 83.19 cm
Height (With Hinge)
69.87 inch(es) / 177.48 cm
Depth (Without Handles)
33 inch(es) / 83.82 cm
Depth (With Handles)
35.5 inch(es) / 90.17 cm
Weight
233.69 lb(s) / 106 kg
Additional Dimensions
• Width (door open 90 degrees without handle): 36 1/4"
• Width (door open 90 degrees with handle): 41 1/8"
• Height to top of case: 68 5/8"
• Depth without door: 29"
• Door edge clearance without handle: 1 3/4"
• Door edge clearance with handle: 4 1/2"
• Installation clearance: Sides 1/8", Top 1", Back 1"
• Width (door open 90 degrees with handle): 41 1/8"
• Height to top of case: 68 5/8"
• Depth without door: 29"
• Door edge clearance without handle: 1 3/4"
• Door edge clearance with handle: 4 1/2"
• Installation clearance: Sides 1/8", Top 1", Back 1"
Shipping Dimensions
Width
35 inch(es) / 88.9 cm
Height
73 inch(es) / 185.42 cm
Depth
38 inch(es) / 96.52 cm
Weight
255.69 lb(s) / 115.98 kg
Warranty
Warranty
• 1 Year for parts and labor
• 5 Years for sealed system
• 5 Years for compressor
• 6-10 Years for linear compressor (parts only)
• 5 Years for sealed system
• 5 Years for compressor
• 6-10 Years for linear compressor (parts only)
UPC
UPC#
772454071942
