Features
FULLY FLUSH INSTALLATION WITH HIDDEN HINGES
Provides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the beverage center door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 90 degrees.
TWO TEMPERATURE-CONTROLLED ZONES (FOR WINE CELLAR)
Allows for two temperature zones to chill both whites and reds at their optimal temperatures to help preserve the flavor and integrity of individual wines. The top zone adjusts from 42-54°F for whites while the lower zone can be set from 42-64°F for reds.
TEMPERATURE MONITORING SYSTEM
Uses sensors to monitor temperatures inside the wine cellar for added peace of mind. If the system detects temperatures above 70°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.
MOTION-ACTIVATED LED LIGHTING
Turns on inside as you approach, so you can see what's inside without opening the door. Lights will gradually dim and turn off when no longer needed.
DOOR ALARM
Automatically alerts you when the door has been left open before items inside rise above their ideal temperature. The alarm sounds after fives minutes and goes off every two minutes until the door has been closed or the controls have been pressed.

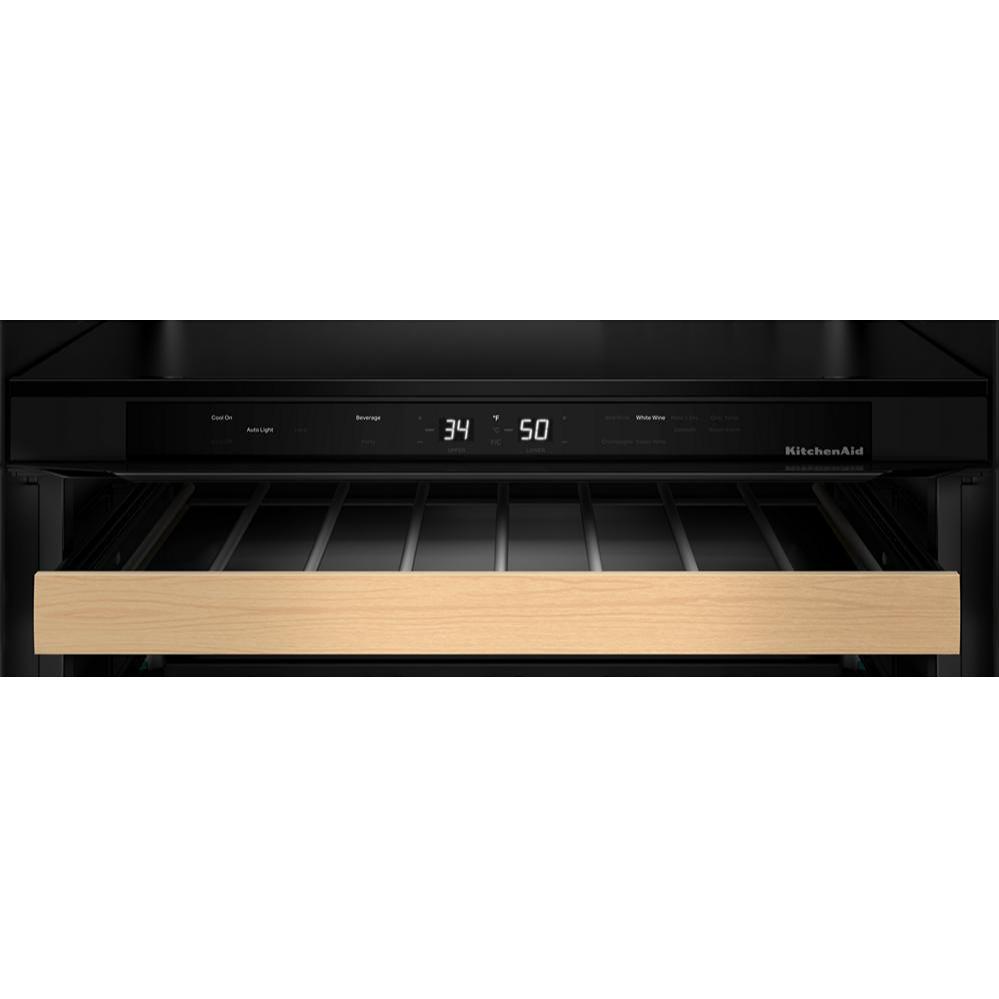

BACKLIT TOUCH CONTROLS
Make it easy to choose settings for what you're storing. Located on the divider between the two temperature zones, the lighted control panel displays current temperatures for each zone and other status alerts.

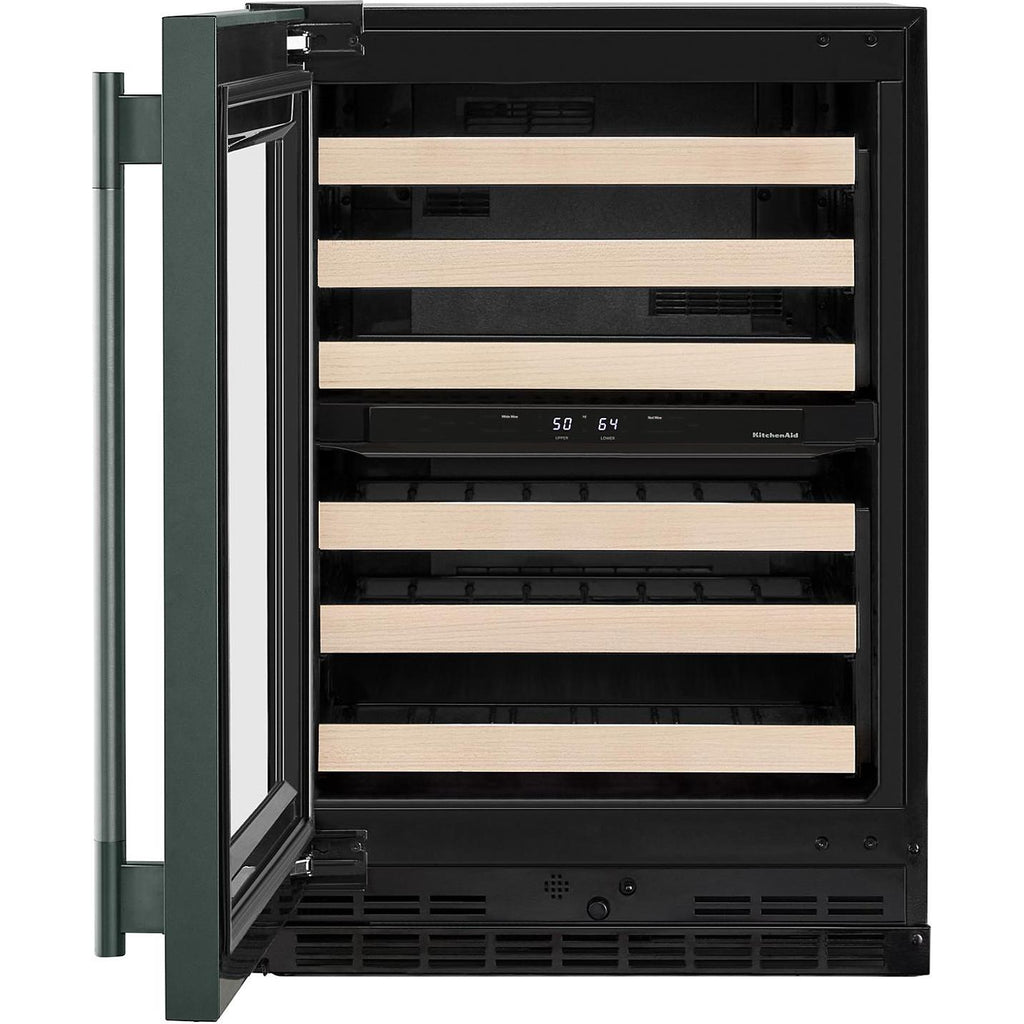

SATINGLIDE® FULL-EXTENSION WOOD-FRONT RACKS
Pull all the way out, making it easy to restock bottles and find just the one you want when serving. Wood fronts let you coordinate with your home decor.
UV-PROTECTED THERMAL GLASS DOOR
Filters UV rays to help protect wine and other beverages from premature aging.
Specifications
General
Bottles
46
Number of Racks
6
Temperature Zones
2
Temperature Settings
• Upper Zone Temperature Range: 42F to 54F
• Lower Zone Temperature Range: 42F to 64F
• Lower Zone Temperature Range: 42F to 64F
Installation
Built-In
Type
Cellar
Size
Compact
Color
Green
Manufacturer Color
Juniper
Cabinet Color
Black
Hinge
Left
Features
Digital Temperature Display
Yes
Glass Door
Yes
Interior Light
Yes
Additional Information
• Auto Defrost
• Control Lockout
• Cooling On/Off
• Door Ajar/Open Alarm
• LED Interior Light
• Rack Front Material: Wood
• Control Lockout
• Cooling On/Off
• Door Ajar/Open Alarm
• LED Interior Light
• Rack Front Material: Wood
Electrical Information
Information
• Amps: 15
• Volts: 115
• Volts: 115
Certifications and Approvals
Energy Star Certified
No
Sabbath/Star-K
Yes
Information
UL
Dimensions
Width
23.88 inch(es) / 60.66 cm
Height
34.38 inch(es) / 87.33 cm
Depth (Without Handle)
23.63 inch(es) / 60.02 cm
Depth (Including Handle)
26.43 inch(es) / 67.13 cm
Weight
94.01 lb(s) / 42.64 kg
Additional Dimensions
• Depth With Door Open 90 Degree: 48"
• Cutout Depth: 24"
• Cutout Height: 34 1/2"
• Cutout Width: 24
• Cutout Depth: 24"
• Cutout Height: 34 1/2"
• Cutout Width: 24
Shipping Dimensions
Width
25.75 inch(es) / 65.41 cm
Height
35.88 inch(es) / 91.14 cm
Depth
29.63 inch(es) / 75.26 cm
Weight
104.7 lb(s) / 47.49 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049931036
