Features

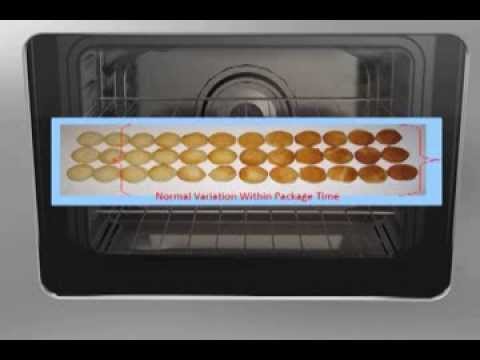

EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
GLASS TOUCH CONTROLS
Offer an intuitive, easy-to-use touch screen experience.
AQUALIFT®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
FIT GUARANTEE
A promise to fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
SIDE TRIM ACCESSORY KIT
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
STEAM RACK
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel

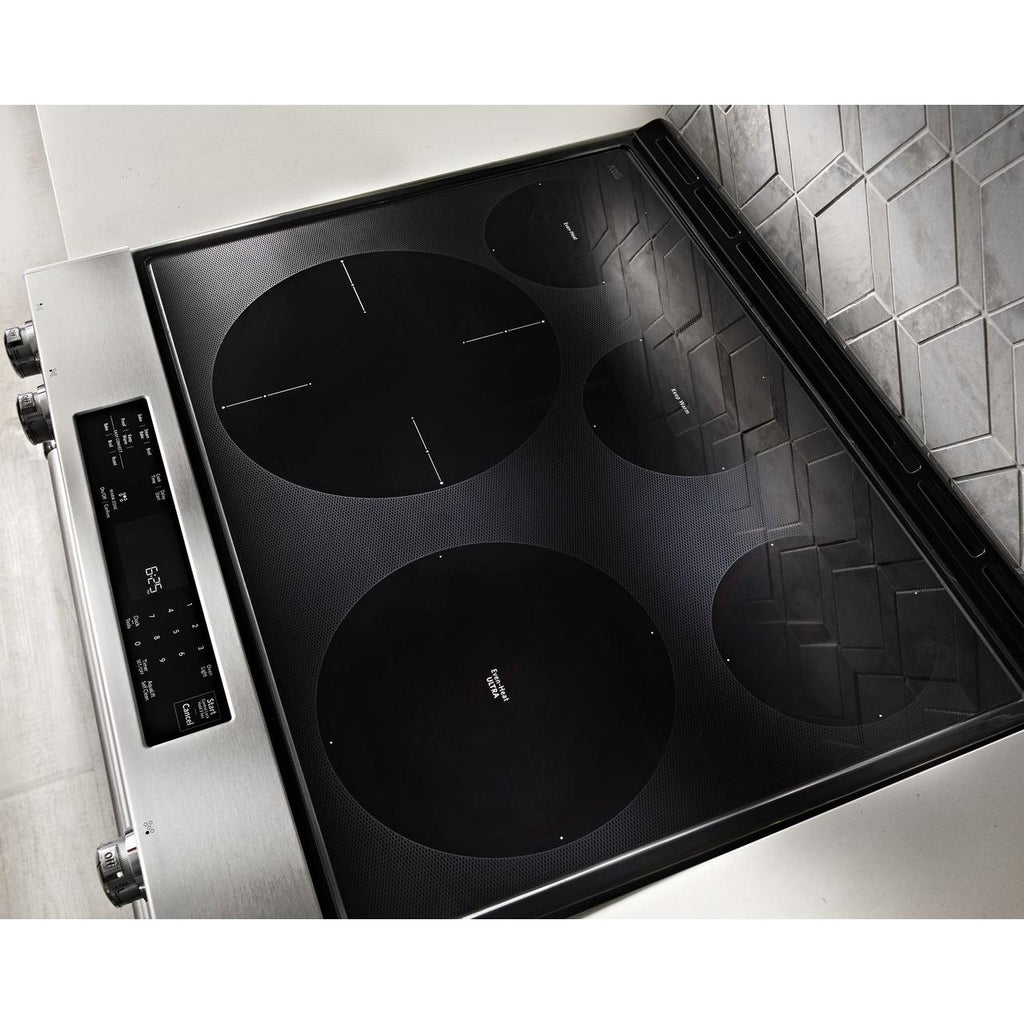

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Element : 3000/1950/1050 Watts
• Left Rear Element : 1300 Watts
• Right Front Element : 3200 Watts
• Right Rear Element : 1200 Watts
• Center Warm Zone : 100 Watts
• Left Rear Element : 1300 Watts
• Right Front Element : 3200 Watts
• Right Rear Element : 1200 Watts
• Center Warm Zone : 100 Watts
Burner/Element Size
12"/9"/6", 6", 10", 6", 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.4
Number of Ovens
Single
Features
Convection
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Even-Heat™ True Convection
• Steam Rack
• 5 Cooking Elements Including a Warm Zone
• EasyConvect™ Conversion
• Aqualift®
• Glass Touch Controls
• Stainless Steel Towel Bar Handles
• ADA Height and Operation Compliant
• Bake Element Power : 3600W@240 V

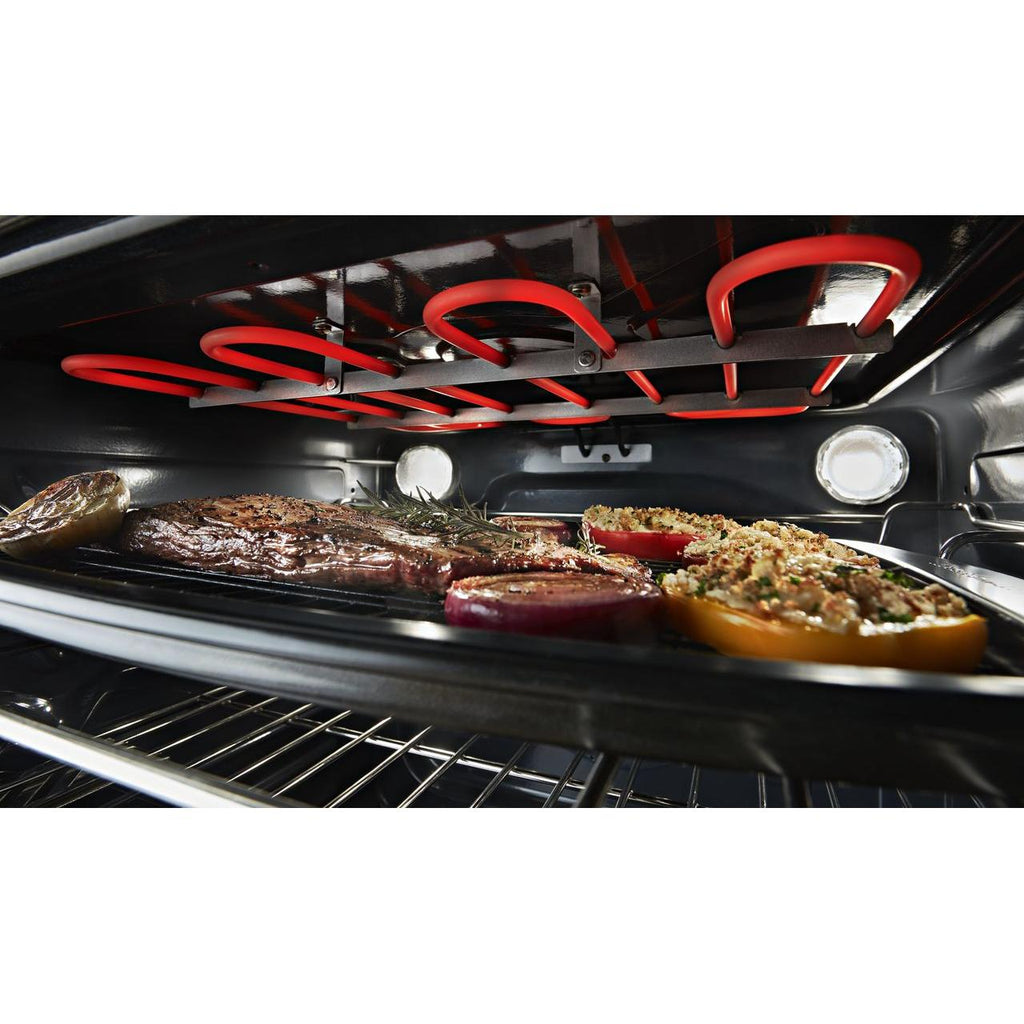

• Broiler Element Power : 4000W
• Single Convection Fan
• Selections : Steam Bake, Bread Proofing, Keep Warm Setting, Cook Time, Delay Start, Warm Zone, Clock
• Steam Rack
• 5 Cooking Elements Including a Warm Zone
• EasyConvect™ Conversion
• Aqualift®
• Glass Touch Controls
• Stainless Steel Towel Bar Handles
• ADA Height and Operation Compliant
• Bake Element Power : 3600W@240 V
• Broiler Element Power : 4000W
• Single Convection Fan
• Selections : Steam Bake, Bread Proofing, Keep Warm Setting, Cook Time, Delay Start, Warm Zone, Clock
Drawer Features
Indicator Light
No
Baking
No
Broiler
No
Storage
Yes
Warming
No
Electrical Information
Information
120/240 Volts, 120/208 Volts
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.37 inch(es) / 66.99 cm
Depth (Including Handles)
28.87 inch(es) / 73.34 cm
Weight
181.99 lb(s) / 82.55 kg
Additional Dimensions
• 1 3/16" (3.0 Cm) Height From Cooktop To Top Of Vent
• 29 7/8" (75.9 Cm)
• Model/serial Number Plate (located Behind The Oven Door On The Top Right-hand Side Of The Oven Frame)
• 36" (91.4 Cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed All The Way In (Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.)
• 28 5/16" (71.9 Cm) Max. Depth From Front Of Console To Back Of Range.
• 28 7/8" (73.3 Cm) Max. Depth From Handle To Back Of Range.
• Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.
• 29 7/8" (75.9 Cm)
• Model/serial Number Plate (located Behind The Oven Door On The Top Right-hand Side Of The Oven Frame)
• 36" (91.4 Cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed All The Way In (Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.)
• 28 5/16" (71.9 Cm) Max. Depth From Front Of Console To Back Of Range.
• 28 7/8" (73.3 Cm) Max. Depth From Handle To Back Of Range.
• Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.56 inch(es) / 77.63 cm
Weight
200 lb(s) / 90.72 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049329871
