Features

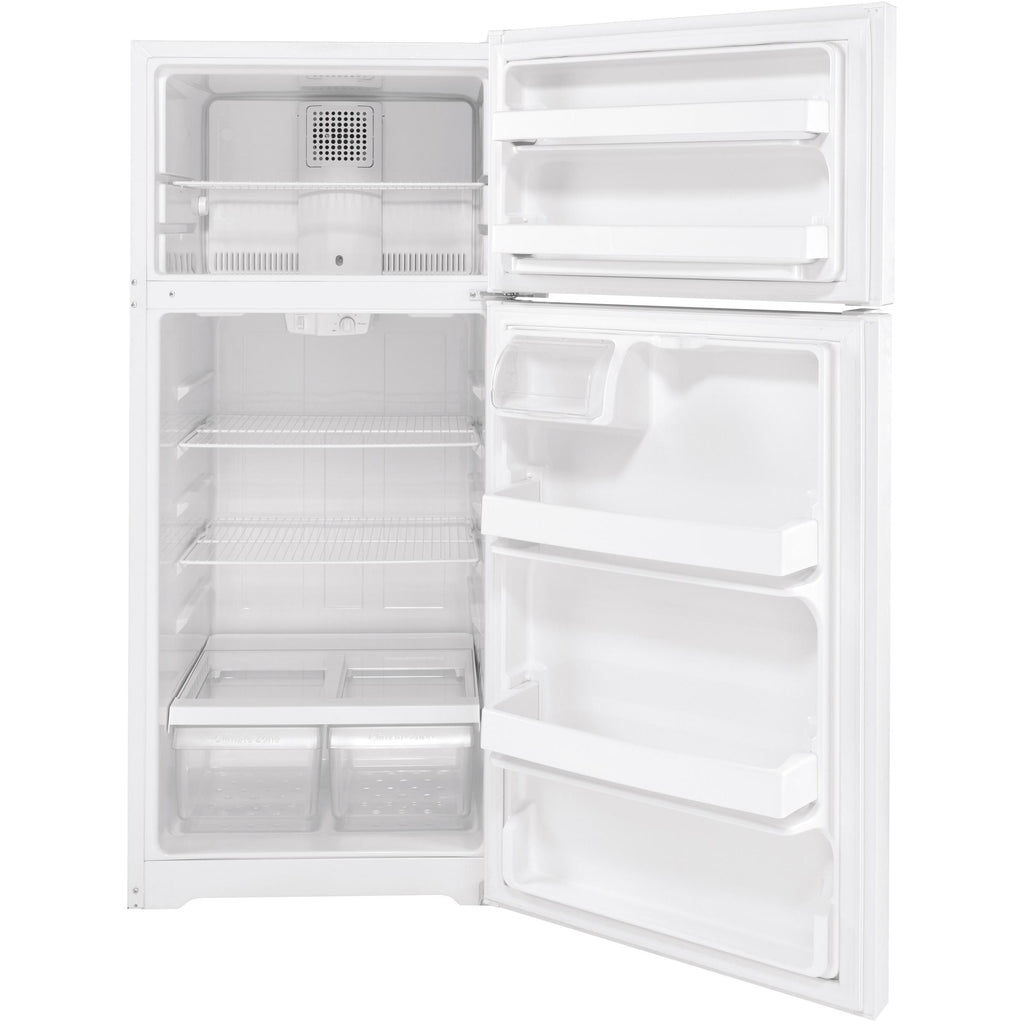

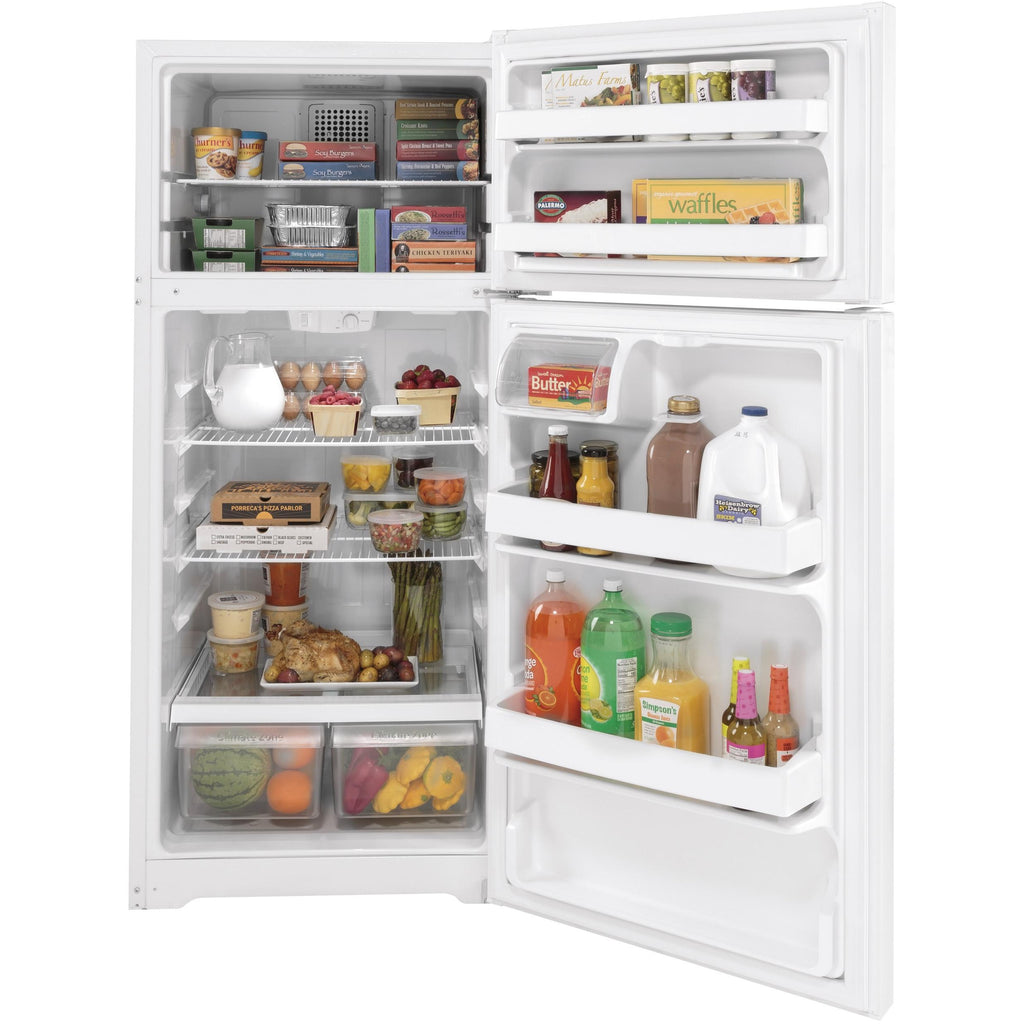

ADJUSTABLE WIRE SHELVES
Moveable racks can handle a variety of foods
LED LIGHTING
Find exactly what you’ve been looking for under crisp, clear lighting.
UPFRONT TEMPERATURE CONTROLS
Easy-to-use controls regulate both fresh food and freezer sections
ENERGY STAR QUALIFIED
Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings.
Specifications
General

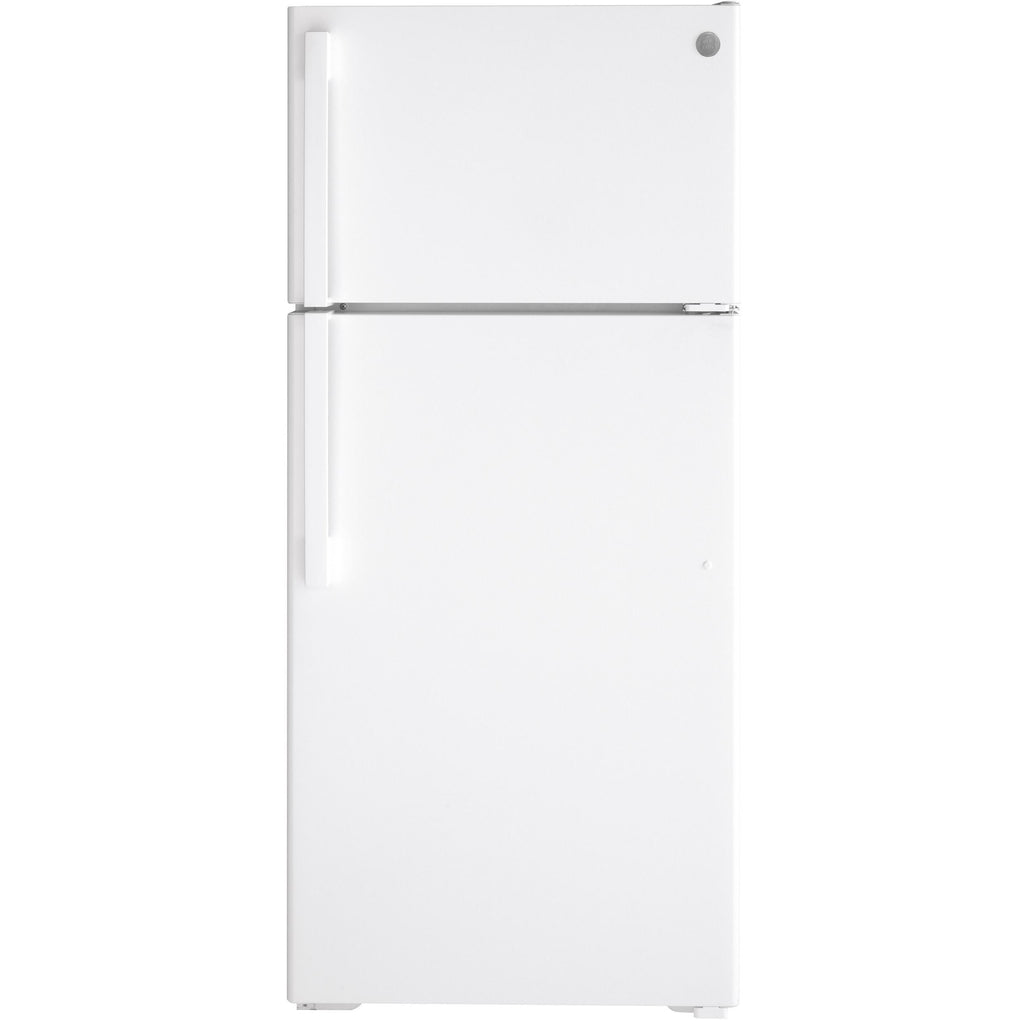

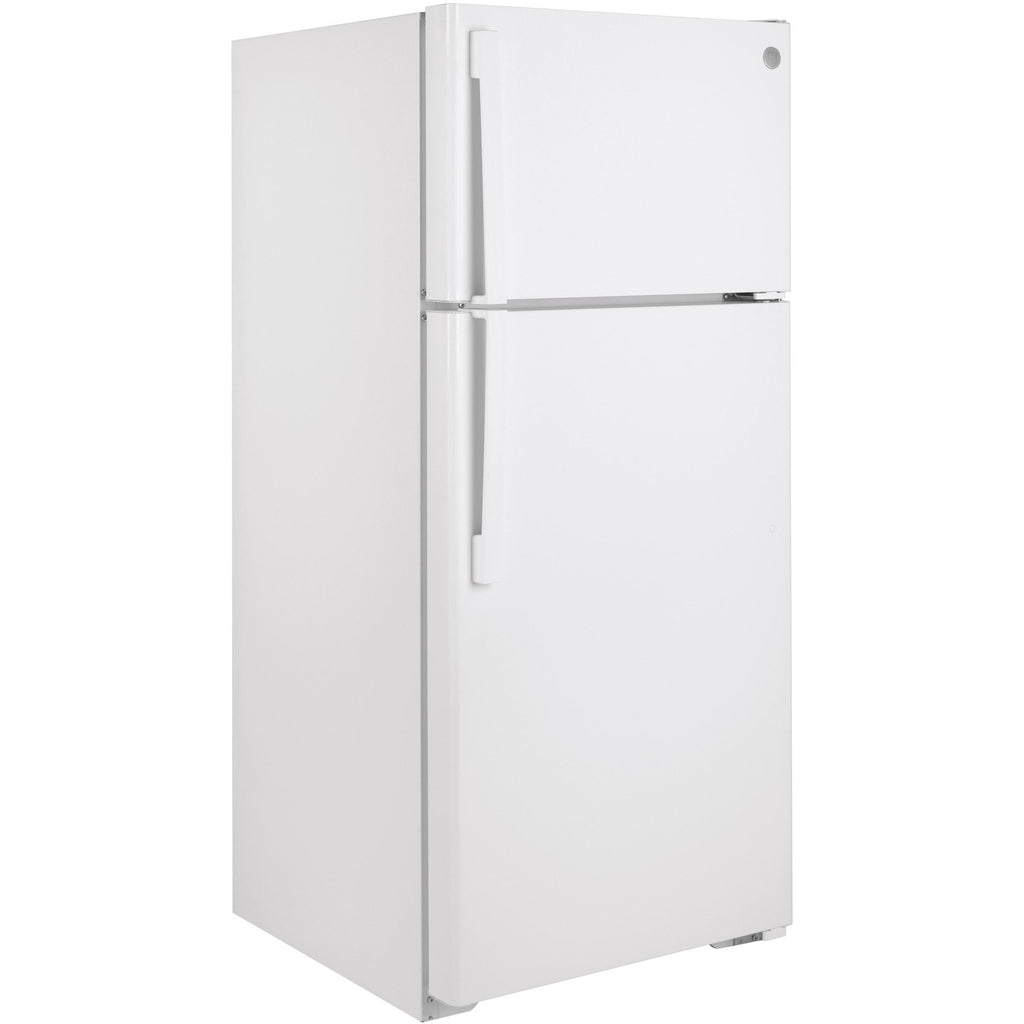

Refrigerator Type
Top Freezer
Installation Type
Freestanding
Door Hinge
Right
Color
White
Manufacturer Color
White
Capacity
Total
16.6 cu. ft.
Refrigerator
12.6 cu. ft.
Freezer
4.03 cu. ft.
Refrigerator Features
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Gallon Door
Yes
Additional Information
• Air tower temperature management
• Upfront temperature controls
• 2 Adjustable full-width wire cabinet shelves
• 1 Glass drawer cover
• 2 Door shelves with gallon storage
• 2 Clear fresh food cabinet drawers
• Dairy compartment
• 2-Point front adjustable leveling system
• Easily removable door gaskets
• Never clean condenser
• Door stops
• Reversible hinges
• Coil-free back
• Upfront temperature controls
• 2 Adjustable full-width wire cabinet shelves
• 1 Glass drawer cover
• 2 Door shelves with gallon storage
• 2 Clear fresh food cabinet drawers
• Dairy compartment
• 2-Point front adjustable leveling system
• Easily removable door gaskets
• Never clean condenser
• Door stops
• Reversible hinges
• Coil-free back
Freezer Features
Additional Freezer Information
• 1 Adjustable wire cabinet shelf
• 2 Full-width fixed door shelves
• Spillproof freezer floor
• 2 Full-width fixed door shelves
• Spillproof freezer floor
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
Icemaker kit: IM4D, IM4LED
Dimensions
Class Width
23" to 28.9"
Class Height
60" - 65"
Width
28 inch(es) / 71.12 cm
Height (With Hinge)
64.75 inch(es) / 164.46 cm
Depth (Without Handles)
30.5 inch(es) / 77.47 cm
Depth (With Handles)
32.63 inch(es) / 82.87 cm
Weight
152.01 lb(s) / 68.95 kg
Additional Dimensions
• Case depth without door: 26 3/4"
• Depth with door open 90°: 57"
• Height to top of case: 64 1/4"
• Width with door open 90 Degrees including handle: 30 5/8"
• Width with door open 90 Degrees less handle: 28 1/2"
• Back air clearances: 1"
• Side air clearances: 0-3/4"
• Top air clearances: 1"
• Depth with door open 90°: 57"
• Height to top of case: 64 1/4"
• Width with door open 90 Degrees including handle: 30 5/8"
• Width with door open 90 Degrees less handle: 28 1/2"
• Back air clearances: 1"
• Side air clearances: 0-3/4"
• Top air clearances: 1"
Shipping Dimensions
Width
31.3 inch(es) / 79.50 cm
Height
67.3 inch(es) / 170.94 cm
Depth
35.5 inch(es) / 90.17 cm
Weight
170.99 lb(s) / 77.56 kg
Warranty
Warranty
Limited 1-year warranty on entire appliance for parts and labor
UPC
UPC#
084691847106
