Features
MATTEGUARD™ SURFACE
Our new MatteGuard™ surface reduces visible scratching by 5X, helping your cooktop stay looking newer for longer. Frigidaire standard glass surface versus MatteGuard surface using IEC 60068-2-70 testing procedure.
EASY-TO-CLEAN COOKTOP
Unlike traditional electric and gas cooktops, Induction only heats the pan and the food in it, so the area around the pan stays cooler, allowing you to clean up spills and splatters while you cook.
2-IN-1 BRIDGE ELEMENT.
Allows for simultaneous control of two elements, perfect for a griddle pan or large pot.
POWERBOOST
Speed up your time to boil with Power Boost - available on all burners.

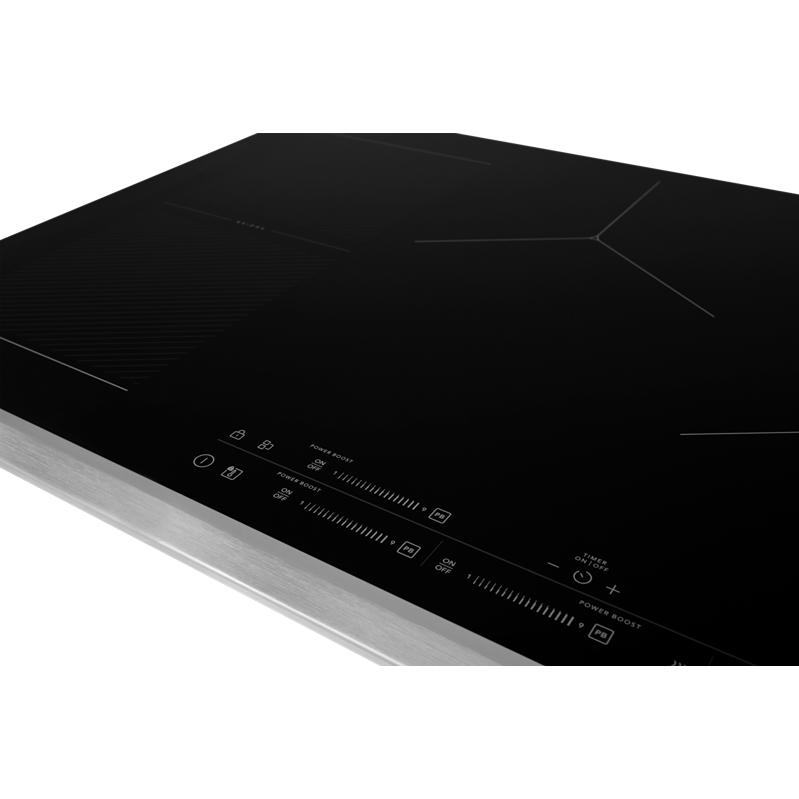

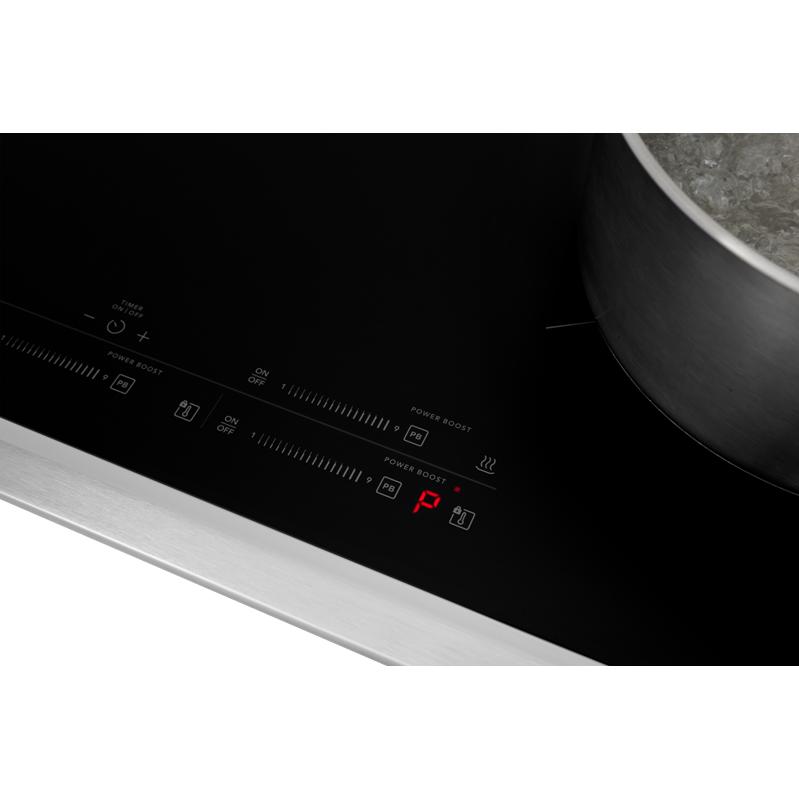

INTEGRATED TOUCH-CONTROLS
The integrated touch-control panel offers a sleek and seamless design, and when in use, allows you to adjust the heat with a simple swipe of your finger.
36,00-WATT POWERPLUS® BURNER
Our 3,600-Watt PowerPlus® Burner combines power and precision - boiling water 50% faster than gas, while offering the precision and responsiveness of induction cooking. 11" induction right front element, 6 qt./10" diameter pot, 1 qt. tepid water compared to 18,000 BTU gas right front burner.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Right Front Element: 2,300 / 3,600 Watts (Boost)
• Right Rear Element: 1,450 / 2,500 Watts (Boost)
• Left Front Element: 1,800 / 2,600 Watts (Boost)
• Left Rear Element: 1,800 / 2,600 Watts (Boost)
• Center Element: 2,300 / 3,600 Watts (Boost)
• Right Rear Element: 1,450 / 2,500 Watts (Boost)
• Left Front Element: 1,800 / 2,600 Watts (Boost)
• Left Rear Element: 1,800 / 2,600 Watts (Boost)
• Center Element: 2,300 / 3,600 Watts (Boost)
Burner/Element Size
• Right Front Element Size: 8"
• Right Rear Element Size: 6"
• Left Front Element Size: 7"
• Left Rear Element Size: 7"
• Center Element Size: 8"
• Right Rear Element Size: 6"
• Left Front Element Size: 7"
• Left Rear Element Size: 7"
• Center Element Size: 8"
Elements
Smoothtop
Features
Technologies
MatteGuard™
Control Lock
Yes
Digital Display
Yes
Additional Information
• Kitchen Timer
• On / Off (for each element)
• TempLock
• Cooking Zone Power Level Slide
• Serve Warm
• Auto Pan Detect
• Bridge Element Location: Left
• Cooking Surface Type: Smooth - MatteGuard™
• Hot-Surface Indicator Light
• Bridge On Indicator Light
• Control Location: Front
• Display Interface Color: Red
• Display Type: Capacitive Touch
• On / Off (for each element)
• TempLock
• Cooking Zone Power Level Slide
• Serve Warm
• Auto Pan Detect
• Bridge Element Location: Left
• Cooking Surface Type: Smooth - MatteGuard™
• Hot-Surface Indicator Light
• Bridge On Indicator Light
• Control Location: Front
• Display Interface Color: Red
• Display Type: Capacitive Touch
Electrical Information
Information
• Voltage: 240 V
• Connected Load @ 240V: 9.6 kW
• Minimum Circuit Required: 40 Amps
• Connected Load @ 240V: 9.6 kW
• Minimum Circuit Required: 40 Amps
Certifications and Approvals
ADA Compliant
Yes
Information
• Energy Star Certified
• cUL Listed
• RoHS
• UL Listed
• cUL Listed
• RoHS
• UL Listed
Dimensions
Class Width
36"
Width
36.75 inch(es) / 93.35 cm
Height
2.87 inch(es) / 7.30 cm
Depth
21.37 inch(es) / 54.29 cm
Weight
47 lb(s) / 21.32 kg
Additional Dimensions
• Cutout Height: 3 5/8"
• Minimum Cutout Width: 33 7/8"
• Minimum Cutout Depth: 19 1/8"
• Maximum Cutout Width: 36 1/8"
• Maximum Cutout Depth: 20 1/2"
• Minimum Cutout Width: 33 7/8"
• Minimum Cutout Depth: 19 1/8"
• Maximum Cutout Width: 36 1/8"
• Maximum Cutout Depth: 20 1/2"
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
810143401486
