Features
SIMMERSEAR™ BURNERS
Give you total control. Perfect simmering or perfect searing? Just say yes. Simmer, sear and sauté with the utmost control, thanks to our SimmerSear™ Burner, which also includes a melting feature. Precise control at ultra-high or ultra-low temperatures means superbly delicious results every time.

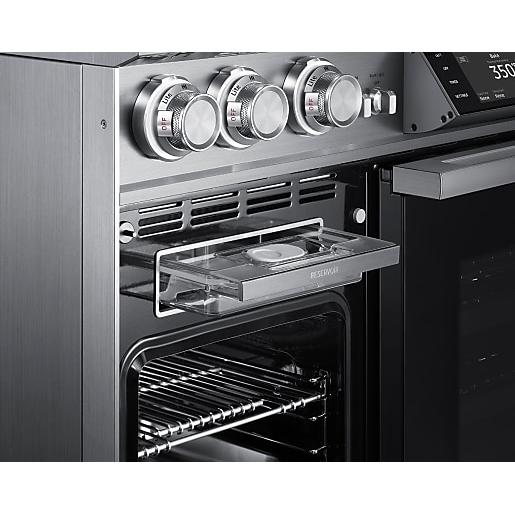

REAL STEAM™ AND CONVECTION OVEN
Offers the power of steam and convection cooking in one.

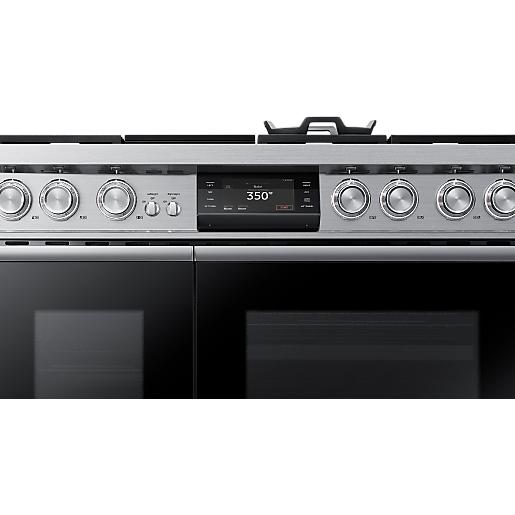

WI-FI-ENABLED SEVEN-INCH LCD CONTROL PANEL
The touch interface serves as your culinary command center, allowing you to effortlessly swipe through cooking functions, access pre-programmed settings and follow step-by-step recipes.
SMARTTHINGS INTEGRATION
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
CHEF MODE
Receive expert cooking advice straight from the 7" screen, guiding the user on the optimum rack setting, temperatures and timing.

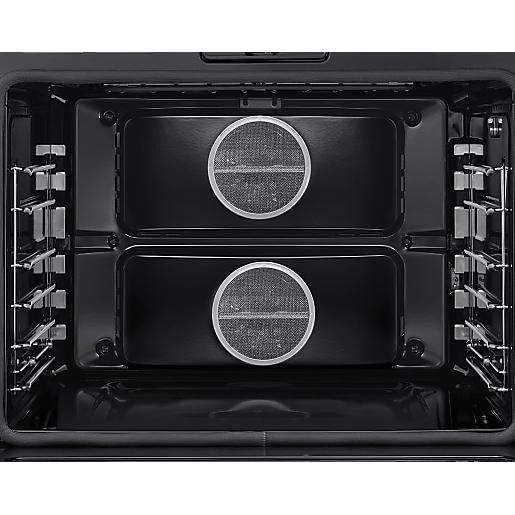

DUAL FOUR-PART PURE CONVECTION
Superior consistency and zero flavor transfer with Dual 4-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
ILLUMINA KNOBS
Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
Specifications
General
Series Name
Contemporary
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Silver
Manufacturer Color
Silver Stainless
Appliance Care
• Self Clean (Primary)
• GreenClean™ (Both Ovens)
• GreenClean™ (Both Ovens)
Cooktop
Burners/Elements
7
Burners/Elements Output
• Left Front (BTU): 18,000 Dual (Simmer)
• Left Rear (BTU): 16,000 Stack Dual (Simmer)
• Center Front (BTU): 22,000 Dual (Simmer)
• Center Rear (BTU): 9,000 Stack Dual (Simmer)
• Right Front (BTU): 16,000 Stack Dual (Simmer)
• Right Rear (BTU): 16,000 Stack Dual (Simmer)
• Griddle: 1,400 W
• Left Rear (BTU): 16,000 Stack Dual (Simmer)
• Center Front (BTU): 22,000 Dual (Simmer)
• Center Rear (BTU): 9,000 Stack Dual (Simmer)
• Right Front (BTU): 16,000 Stack Dual (Simmer)
• Right Rear (BTU): 16,000 Stack Dual (Simmer)
• Griddle: 1,400 W
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Large Oven: 4.8 cu. ft.
• Small Oven: 1.8 cu. ft.
• Total Capacity: 6.6 cu. ft.
• Small Oven: 1.8 cu. ft.
• Total Capacity: 6.6 cu. ft.
Number of Ovens
Double
Programs
• Large Cavity: Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Dual 4-Part Pure Convection, Pure Convection Sear
• Small Cavity: Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Dual 4-Part Pure Convection, Real Steam, Steam Bake, Steam Roast
• Small Cavity: Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Dual 4-Part Pure Convection, Real Steam, Steam Bake, Steam Roast
Features
Technologies
• Perma-Flame™ (Auto Re-Ignition)
• Bluetooth Auto Connect Ventilation
• Illumina™ Knobs
• Dual Four-Part Pure Convection system
• BrightVue™ LED & Halogen lighting
• Real Steam™
• Bluetooth Auto Connect Ventilation
• Illumina™ Knobs
• Dual Four-Part Pure Convection system
• BrightVue™ LED & Halogen lighting
• Real Steam™
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Bake Element: 3,000W - 8 pass (lg), 1,000W (sm)
• Broil Element: 4,400W - 10 pass (lg), 2,400W (sm)
• Convection Element: 2 x 1,300W, 2,600W total (lg) /2,000W (sm)
• Steam Heater: 2,000W (sm)
• Ambient Lighting
• Time of Day (12 Hr/24 Hr)
• Sound On/Off
• 7" LCD Control Panel
• Broil Element: 4,400W - 10 pass (lg), 2,400W (sm)
• Convection Element: 2 x 1,300W, 2,600W total (lg) /2,000W (sm)
• Steam Heater: 2,000W (sm)
• Ambient Lighting
• Time of Day (12 Hr/24 Hr)
• Sound On/Off
• 7" LCD Control Panel
Electrical Information
Information
• 240 V
• 60 Hz
• 50 A
• 60 Hz
• 50 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• 3 Grates
• 6 Burner Heads
• 8 Burner Caps
• 2 Glide Racks
• 1 Wok Ring
• 1 Anti-tip Bracket
• 1 Wire Rack
• 1 Small Rack (Steam Oven only)
• 2 Steam Trays (Steam Oven only)
• 2 half Steam Trays (Steam Oven only)
• 6 Burner Heads
• 8 Burner Caps
• 2 Glide Racks
• 1 Wok Ring
• 1 Anti-tip Bracket
• 1 Wire Rack
• 1 Small Rack (Steam Oven only)
• 2 Steam Trays (Steam Oven only)
• 2 half Steam Trays (Steam Oven only)
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
36.13 inch(es) / 91.76 cm
Depth (Without Handles)
27.5 inch(es) / 69.85 cm
Weight
564.01 lb(s) / 255.83 kg
Shipping Dimensions
Weight
650.01 lb(s) / 294.84 kg
Warranty
Warranty
Limited 2 year parts and labor
