Features
IQ REMOTEVIEW™ CAMERAS (WI-FI)
iQ RemoteView™ Cameras (Wi-Fi) enables users to check what’s
in your fridge from your phone.

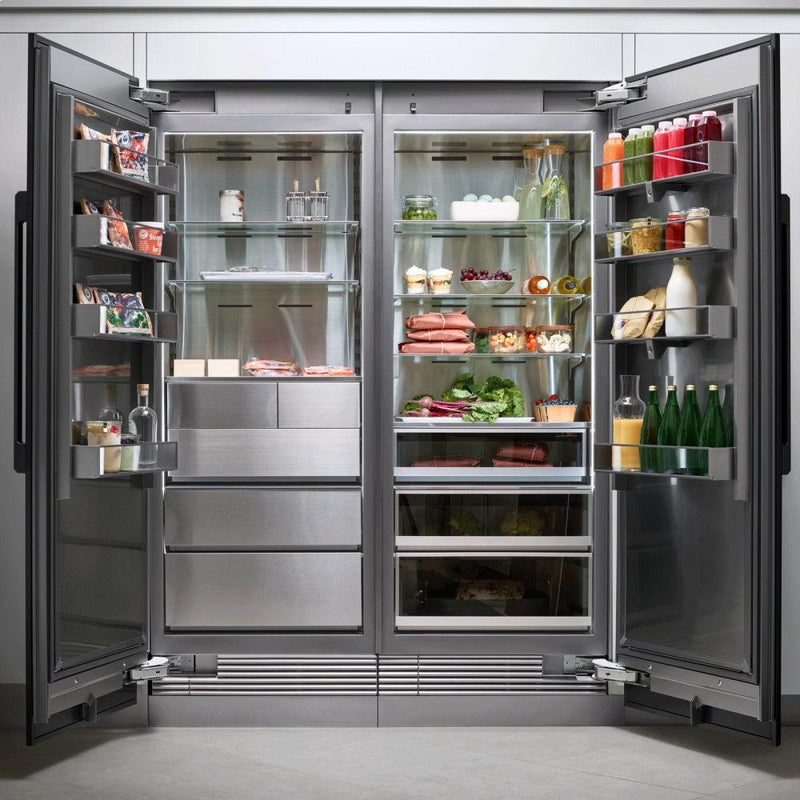

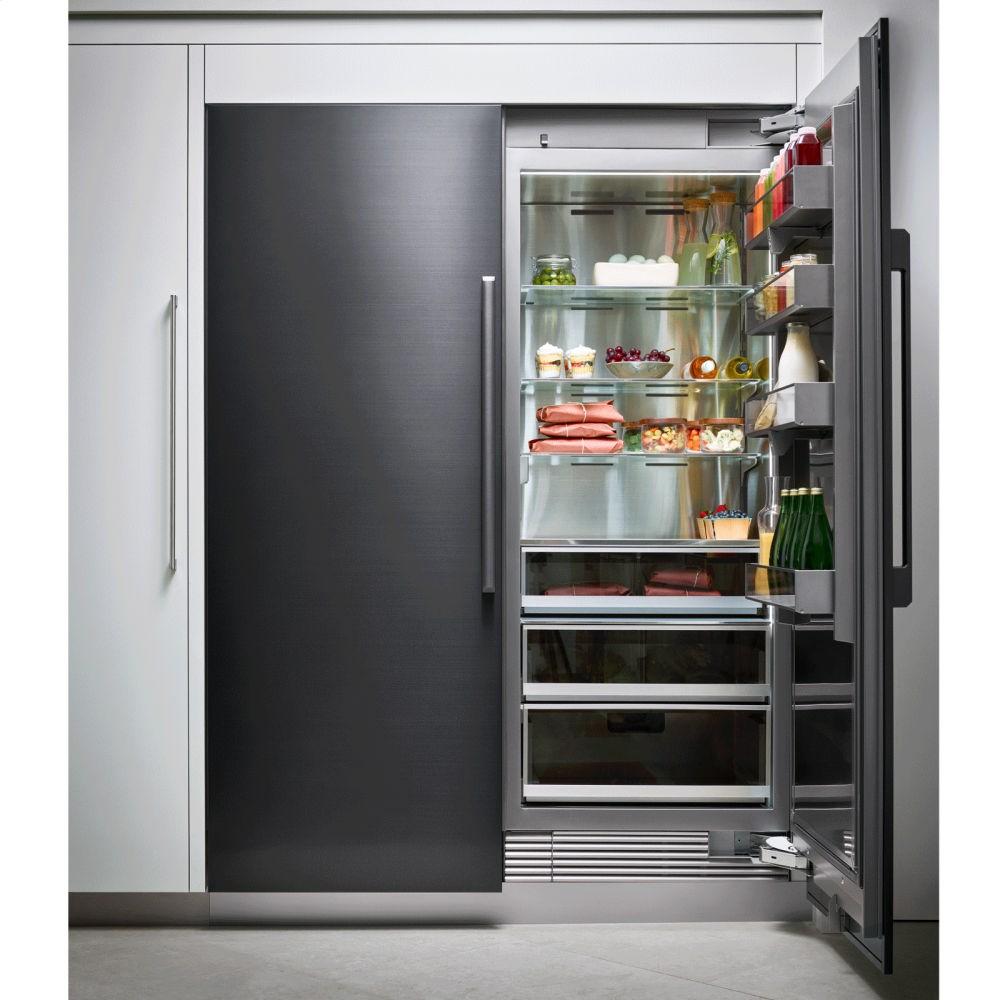

STEELCOOL INTERIOR WITH 3D LIGHTING
With a stunning all stainless steel interior, elegant glass accents and full-length 3DLighting that can adjust brightness based on conditions in the room, food is no longer just stored, it's presented.
SPACEMAX EXTRA-LARGE CAPACITY
Utilizing cutting edge insulation, Dacor's industry-leading SpaceMax technology, offer maximum storage capacity without sacrificing exterior style.

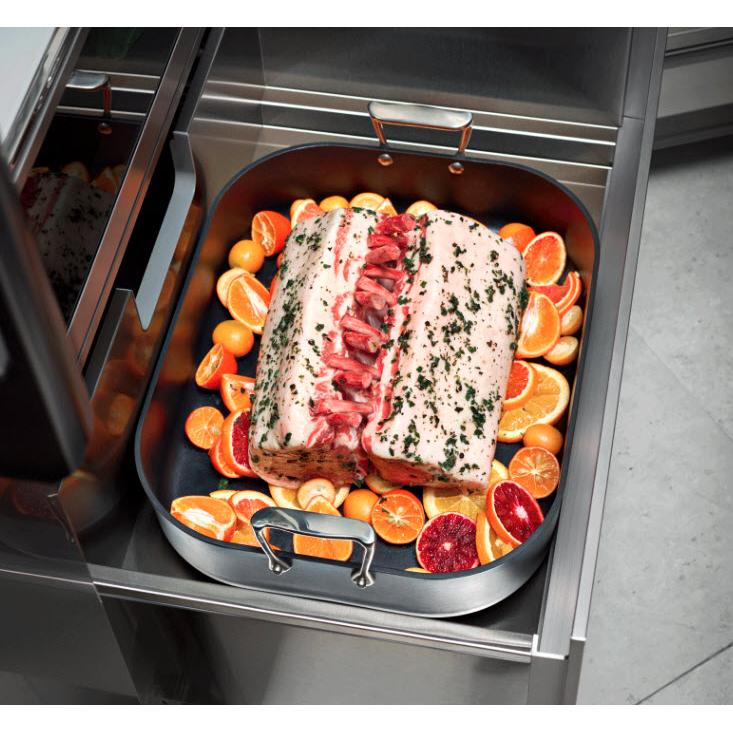

FRESHZONE™ DRAWER
Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.
INTERNAL WATER DISPENSER
For easy access to clean, filtered water.

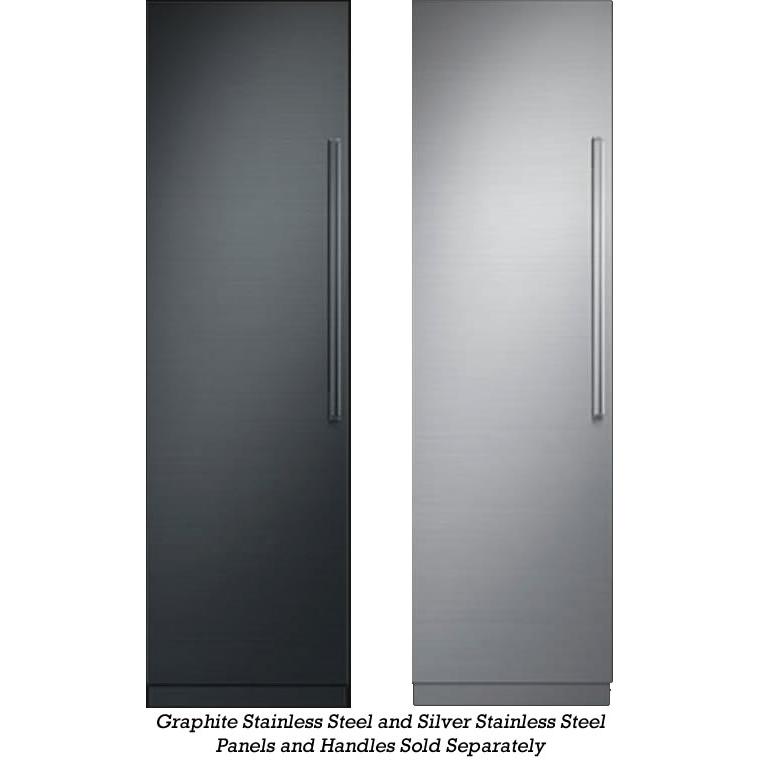

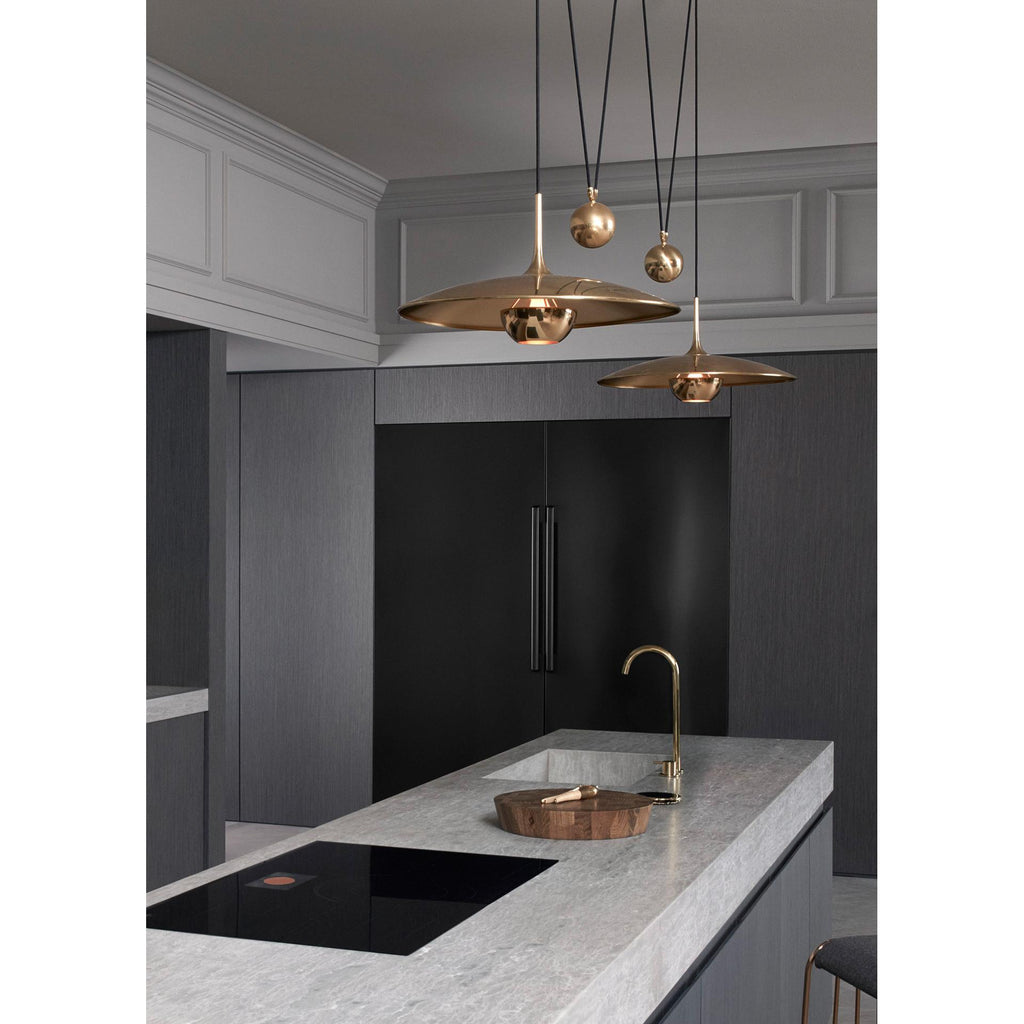

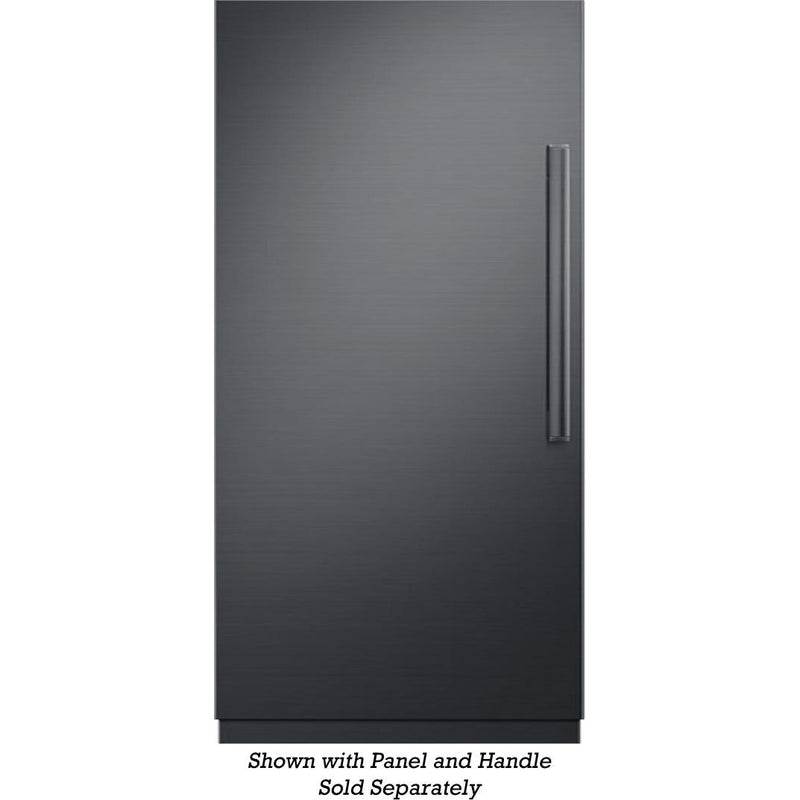

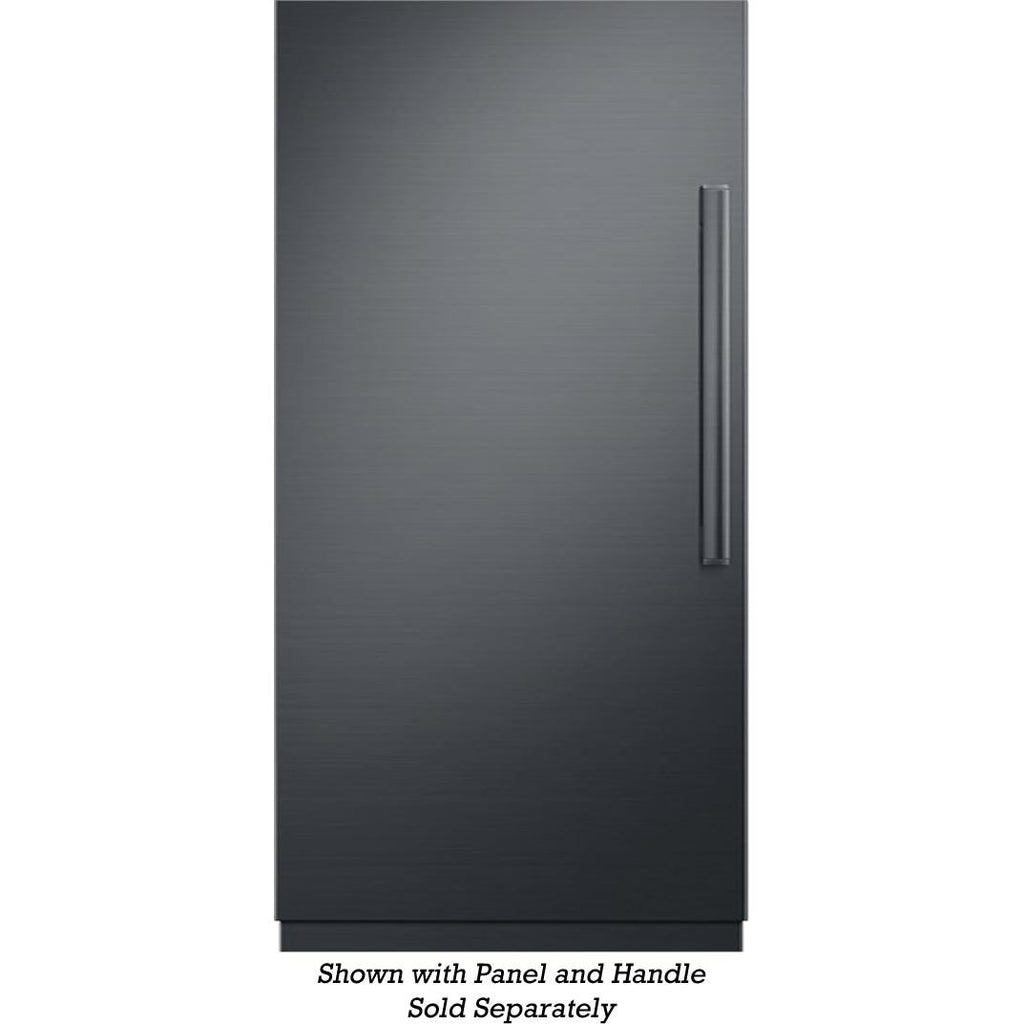

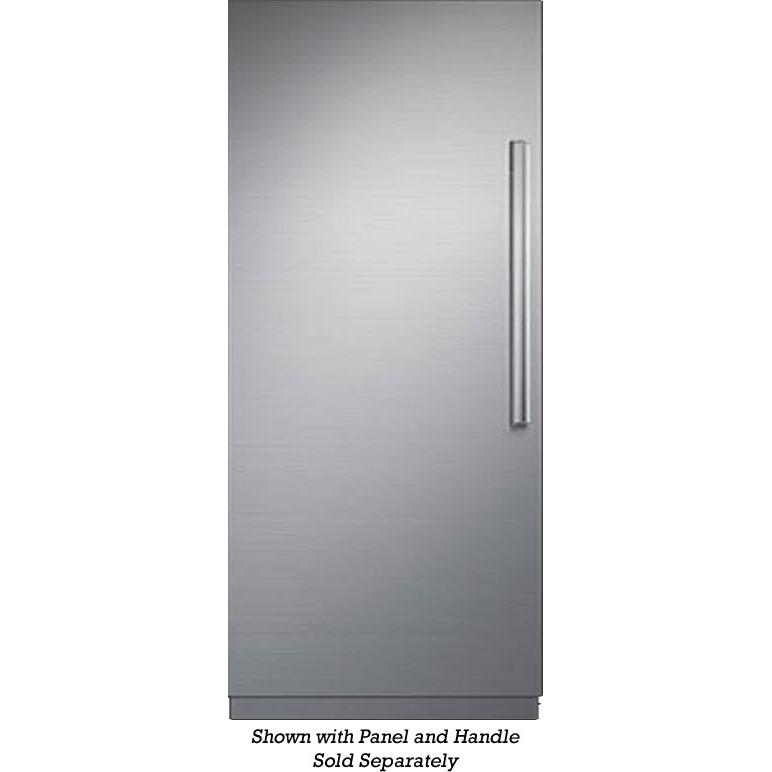

PANEL-READY, SILVER OR GRAPHITE STAINLESS STEEL
All columns come panel-ready for your custom wood paneling, allowing them to integrate beautifully into any kitchen design, or choose from silver or graphite stainless steel finishes to ensure that your kitchen will be ready for your performance.
HIDDEN TOUCH CONTROL PANEL
Touch to reveal a display that regulates temperature to preserve freshness.
Additional Features
PUSH-TO-OPEN™
Push-To-Open™ Door Assist opens the door upon a slight push
for a luxuriously convenient experience.
DEDICATED COMPRESSOR AND EVAPORATOR FOR EACH COLUMN
A dedicated compressor and evaporator for each of the refrigerator columns minimizes dry-out effects, and optimizes humidity to keep foods fresher and crisper longer, while eliminating odor transfer to ensure every bite is a showstopper.
Specifications
General
Series Name
Modernist
Refrigerator Type
All Refrigerator
Installation Type
Built-In
Door Hinge
Left
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
21.6 cu. ft.
Refrigerator
21.6 cu. ft.
Refrigerator Features
Technologies
• SteelCool™ Stainless Steel Interior
• Push-To-Open™ Door Assist
• iQ RemoteView™ Camera
• 3DLighting™
• FreshZone™ Drawer (Cheese (37°F) / Cold Drinks (33°F) / Meat (29°F)
• Push-To-Open™ Door Assist
• iQ RemoteView™ Camera
• 3DLighting™
• FreshZone™ Drawer (Cheese (37°F) / Cold Drinks (33°F) / Meat (29°F)
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Wi-Fi
Yes
Crisper Drawers
Yes
Deli Drawer/Meat
Yes
Additional Information
• Deodorizing Filter
• Tempered, Metal Trim, SpillProof Shelves
• Full Extension Drawers at 90° Door Opening Angle
• 2 Drawers with Humidity Control
• 4 Door Bins
• Total Unit Gross Capacity (cu. ft.) - AHAM: 13.7 Cu.Ft.
• Dedicated Evaporator & Compressor System
• Precise Cooling: Minimized temperature fluctuation ±0.36°F (±0.2°C)
• Refrigerator 34°F (1°C) to 44°F (7°C)
• Refrigerator - Power Cool 34°F (1°C)
• Tempered, Metal Trim, SpillProof Shelves
• Full Extension Drawers at 90° Door Opening Angle
• 2 Drawers with Humidity Control
• 4 Door Bins
• Total Unit Gross Capacity (cu. ft.) - AHAM: 13.7 Cu.Ft.
• Dedicated Evaporator & Compressor System
• Precise Cooling: Minimized temperature fluctuation ±0.36°F (±0.2°C)
• Refrigerator 34°F (1°C) to 44°F (7°C)
• Refrigerator - Power Cool 34°F (1°C)
Ice and Water
Water System
Interior
Hot Water Dispenser
No
Filtration
Yes
Electrical Information
Information
• 3 A
• 115 V
• 60 Hz
• 260 kWh/year
• Plug Type: 120V, 3 Prong
• 115 V
• 60 Hz
• 260 kWh/year
• Plug Type: 120V, 3 Prong
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
• Graphite Stainless Steel - 36" Panel (Left Hinge) RAC36DPLHMS
• Graphite Stainless Steel - 36" Kick Plate RAC36TKBBMS
• Graphite Stainless Steel - Modernist Handle RAC00MHAAMS
• Silver Stainless Steel - 36" Panel (Left Hinge) RAC36DPLHSR
• Silver Stainless Steel - 36" Kick Plate RAC36TKBBSR
• Silver Stainless Steel - Modernist Handle RAC00MHAASR
• Silver Stainless Steel - Dacor Pro Handle RAC00PHAASR
• Pair Installation Kit RAC00CPAAAA
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
• Graphite Stainless Steel - 36" Kick Plate RAC36TKBBMS
• Graphite Stainless Steel - Modernist Handle RAC00MHAAMS
• Silver Stainless Steel - 36" Panel (Left Hinge) RAC36DPLHSR
• Silver Stainless Steel - 36" Kick Plate RAC36TKBBSR
• Silver Stainless Steel - Modernist Handle RAC00MHAASR
• Silver Stainless Steel - Dacor Pro Handle RAC00PHAASR
• Pair Installation Kit RAC00CPAAAA
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.75 inch(es) / 90.81 cm
Height (With Hinge)
83.39 inch(es) / 211.8 cm
Depth (Without Handles)
23.82 inch(es) / 60.5 cm
Additional Dimensions
Required Cutout Size: 84" x 36" x 25"
Warranty
Warranty
• 2 Year Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator
• 3rd to 6th Year Limited Warranty for Sealed Refrigeration System, Parts and Labor
• 7th to 12th Year Limited Warranty for Sealed Refrigeration System, Parts Only
• 3rd to 6th Year Limited Warranty for Sealed Refrigeration System, Parts and Labor
• 7th to 12th Year Limited Warranty for Sealed Refrigeration System, Parts Only
UPC
UPC#
847364018797
