              CAFÉ FITS GUARANTEE


              When you’re updating your kitchen, attention to detail is a priority. That’s why Café wall ovens are guaranteed for an exact fit for an easy and seamless replacement.



              THE PERFECT BAKE IS NOW PERFECTLY EASY


              Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more.



          Additional Features

                THE PERFECT MARRIAGE OF QUALITY AND SPEED


                Eliminate the need for preheating and cook your favorite foods two to four times faster than a conventional oven (upper oven).

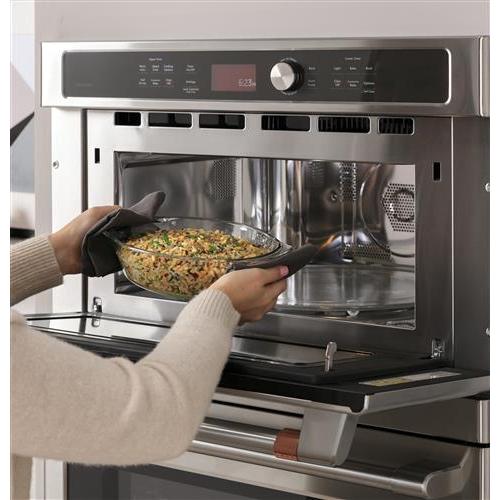

                HEALTHY MEALS WITHOUT THE FUSS


                Fresh vegetables and rice are perfectly prepared with a steam cook option that simplifies the entire process (upper oven).

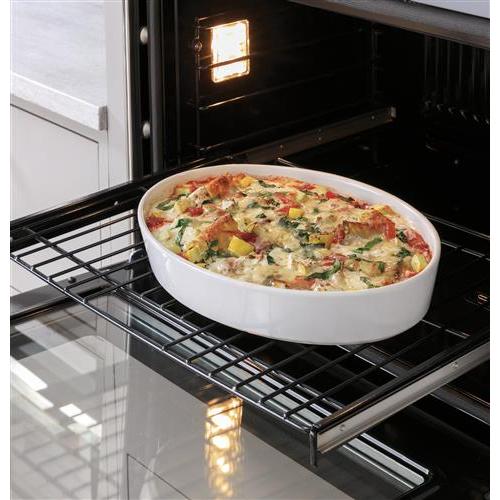

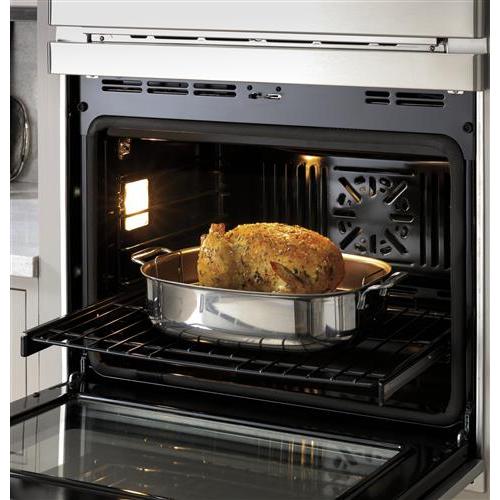

                THE OVEN RACK THAT HANDLES IT ALL


                Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly and stay in the oven during the self-clean cycle, so you never have to handle cumbersome racks again (lower oven).


      Specifications

    General






                  Fuel Type


                  Electric


                  Color


                  Stainless Steel


                  Manufacturer Color


                  Stainless Steel


                  Combination With


                  Microwave


                  Main Oven Capacity


                  5.0 cu. ft.


                  Appliance Care


                  • Self-Clean with steam clean option (Lower oven)
• Variable with delay clean option (Lower oven)
              • Variable with delay clean option (Lower oven)
Oven Specifications






                  Technologies


                  • Advantium Cooking Technology
• True European Convection (Lower oven)
              • True European Convection (Lower oven)
                  Clock


                  Yes


                  Control Lock


                  Yes


                  Convection


                  Yes


                  Delay Bake/Start


                  Yes


                  Digital Temperature Display


                  Yes


                  Oven Light


                  Yes


                  Self-Cleaning


                  Yes


                  Additional Information


                  • 8-Pass roil element
• 10-Pass bake element
• 2 Halogen interior oven lights
• Hidden bake
• 2 Self-clean heavy-duty oven racks
• 1 Self-clean heavy-duty roller rack
• 6 Ladder-rack positions
• Audible preheat signal
• Auto recipe conversion
• C° or F° programmable
• Control lock capability
• Defrost mode
• Delay clean option
• Delay start
• Electronic clock and kitchen timer (Lower oven)
• Hi / Low broil
• Temperature probe
• Proof mode
• Warm mode
              • 10-Pass bake element
• 2 Halogen interior oven lights
• Hidden bake
• 2 Self-clean heavy-duty oven racks
• 1 Self-clean heavy-duty roller rack
• 6 Ladder-rack positions
• Audible preheat signal
• Auto recipe conversion
• C° or F° programmable
• Control lock capability
• Defrost mode
• Delay clean option
• Delay start
• Electronic clock and kitchen timer (Lower oven)
• Hi / Low broil
• Temperature probe
• Proof mode
• Warm mode
Microwave






                  Capacity


                  1.7 cu. ft.


                  Power


                  1000 W


                  Power Levels


                  10


                  Convection


                  Yes


                  Programs


                  • Cook
• Defrost
• Express
• Reheat
Advantium Cooking Modes:
• Convection Bake
• Microwave
• Proof
• Speedcook
• Warm
              • Defrost
• Express
• Reheat
Advantium Cooking Modes:
• Convection Bake
• Microwave
• Proof
• Speedcook
• Warm
                  Additional Information


                  • Over 175 programmed menu selections
• 1 Halogen interior oven light
• Turntable size: 16.0"
              • 1 Halogen interior oven light
• Turntable size: 16.0"
Certifications






                  Certifications


                  • Star-K (Certified Sabbath Mode)
• UL
              • UL
Electrical Information






                  Information


                  • Electrical input - 120V Amperage: 15
• Electrical input - 120V Watts: 1800
• Amp rating at 240V: 30
• KW rating at 240V: 7.2
• Amp rating at 208V: 30
• KW rating at 208V: 5.4
• Broiler wattage: 3400W
• Bake wattage: 2850W
• Convection wattage: 2400W
              • Electrical input - 120V Watts: 1800
• Amp rating at 240V: 30
• KW rating at 240V: 7.2
• Amp rating at 208V: 30
• KW rating at 208V: 5.4
• Broiler wattage: 3400W
• Bake wattage: 2850W
• Convection wattage: 2400W
Accessories






                  Included

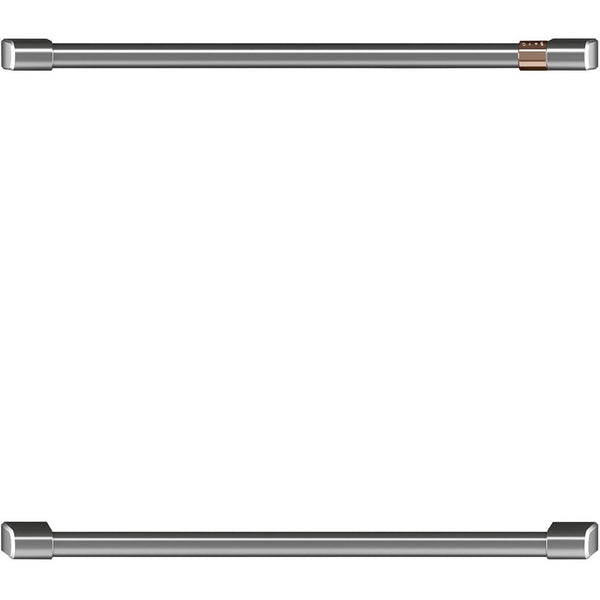

                  CXWD0H0PMSS: Brushed Stainless Steel Kit - 2 handles


                  Optional

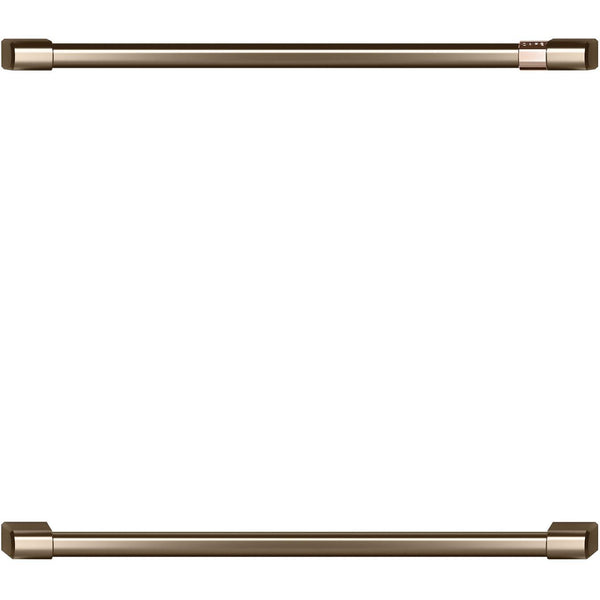

                  • CXWD0H0PMBZ: Brushed Bronze Kit - 2 handles

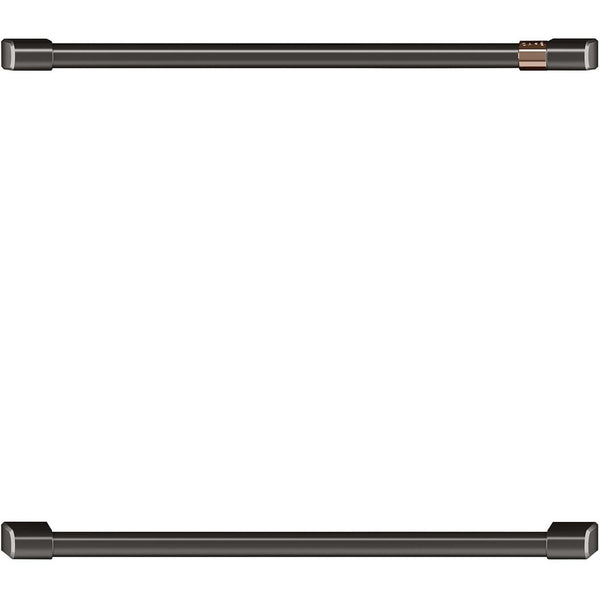

• CXWD0H0PMBT: Brushed Black Kit - 2 handles

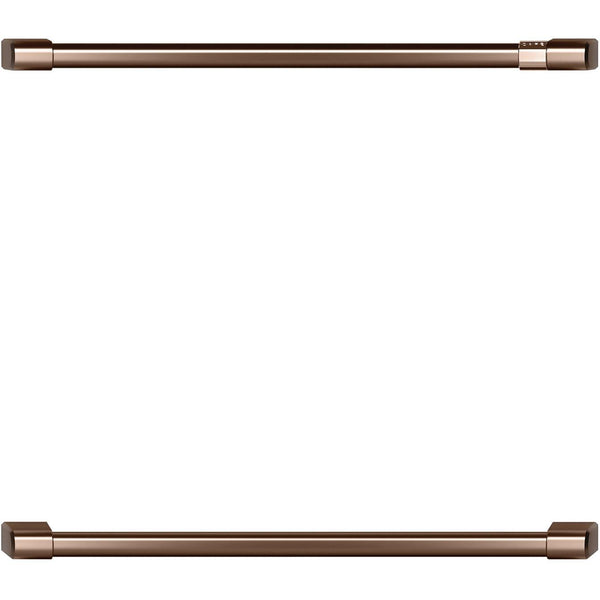

• CXWD0H0PMCU: Brushed Copper Kit - 2 handles

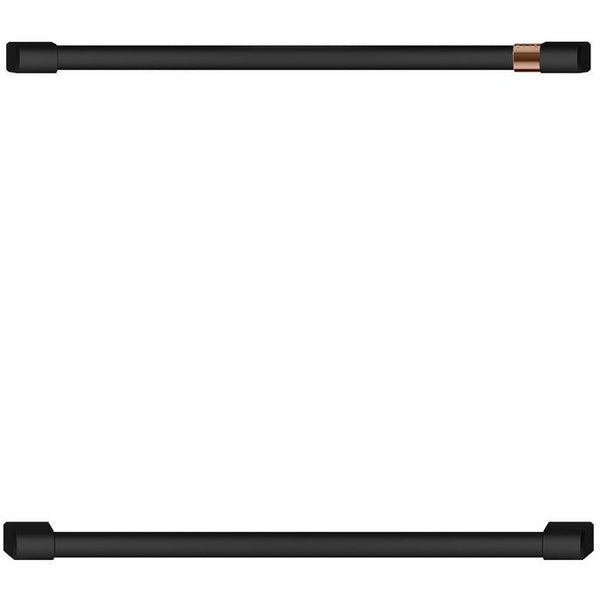

• CXWD0H0PMFB: Flat Black Kit - 2 handles
• CXWS0H0PMCG: Brushed Brass Kit - 1 handle
              • CXWD0H0PMBT: Brushed Black Kit - 2 handles
• CXWD0H0PMCU: Brushed Copper Kit - 2 handles
• CXWD0H0PMFB: Flat Black Kit - 2 handles
• CXWS0H0PMCG: Brushed Brass Kit - 1 handle
Dimensions






                  Class Width


                  30"


                  Width


                  29.75 inch(es) / 75.56 cm


                  Height


                  42.37 inch(es) / 107.63 cm


                  Depth


                  26.75 inch(es) / 67.94 cm


                  Additional Dimensions


                  • Oven interior - upper (w x h x d): 20-1/16" x 8-1/2" x 17"
• Oven interior - lower (w x h x d): 25" x 17-3/8" x 20-1/4"
• Cutout (w x h x d): 28-5/8" x 42-1/4" x 23-1/2"
              • Oven interior - lower (w x h x d): 25" x 17-3/8" x 20-1/4"
• Cutout (w x h x d): 28-5/8" x 42-1/4" x 23-1/2"
                  Weight


                  214.99 lb(s) / 97.52 kg

              Shipping Dimensions






                  Width


                  32.3 inch(es) / 82.04 cm


                  Height


                  50 inch(es) / 127.00 cm


                  Depth


                  30.3 inch(es) / 76.96 cm


                  Weight


                  234.99 lb(s) / 106.59 kg

              Warranty






                  Warranty


                  1-Year parts and labor

              UPC






                  UPC#


                  084691848875
