Specifications
General
Series Name
Mantra MTR3
Blower Included
Yes
Airflow
490 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Technologies
SmartSense™
Ducting Information
• 3.25 x 10-inch; 7-inch round
• Duct Direction: Horizontal / Vertical
• Duct Direction: Horizontal / Vertical
Speeds
2 Speeds
Additional Information
• 50 Points of Inspection: Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality

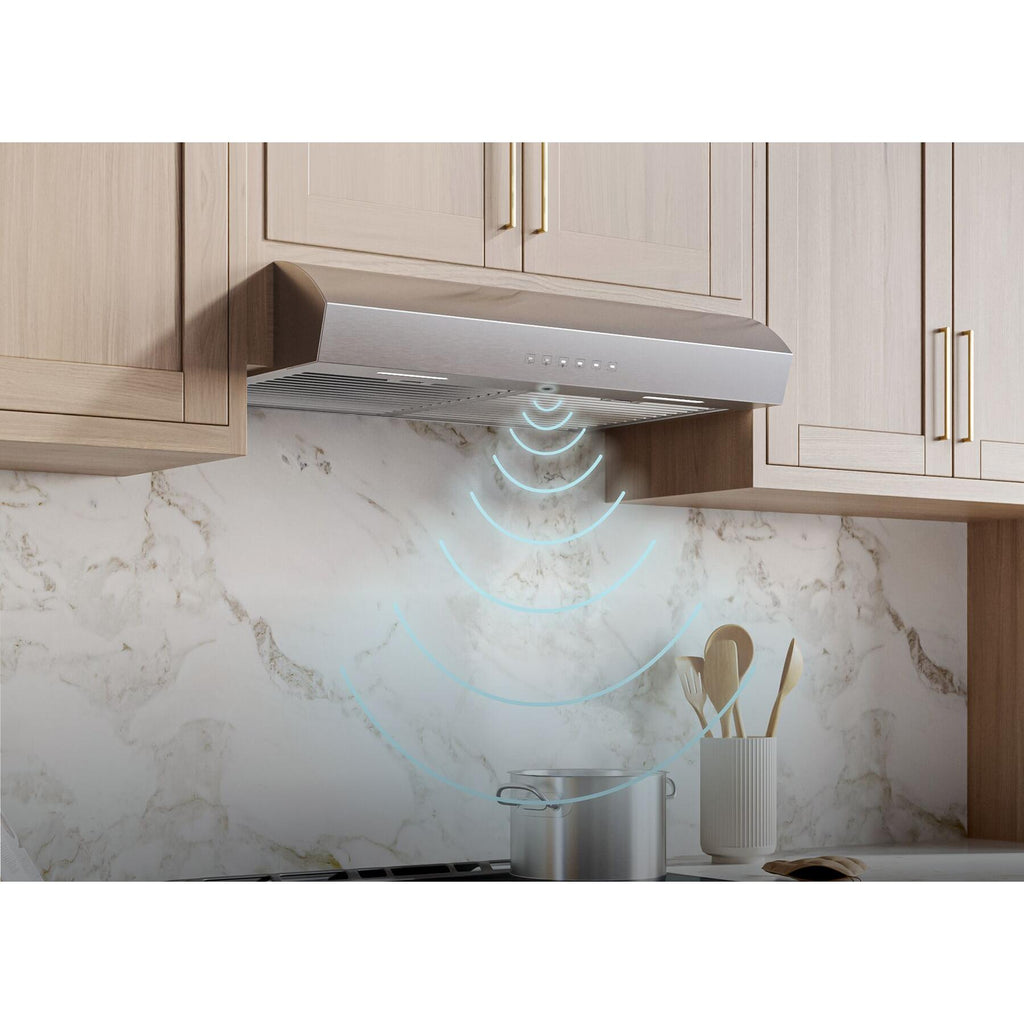

• SmartSense™ Automated Ventilation: Expel pollutants from your home without thought or action; An infrared sensor monitors for heat coming off the range and will automatically adjust the hood's fan speed as needed to eliminate smoke and odors while cooking
• Up to 71% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 71% quieter than competition at 1.1 sones on working speed
• One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
• Both ENERGY STAR certified and Title 24 compliant, this kitchen hood is energy efficient and code compliant
• Code Ready Technology (CRT): Supports the installer's job with the ability to reduce airflow to 300 or 400 CFM to address local codes or make-up air requirements, originally 490 Max Blower CFM
• Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience
• Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency hybrid baffle filters
• The infrared controls allow for manual operation to adjust the 3-speed blower and 2 level lighting
• Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
• Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
• Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
• Can be installed for ADA Compliance with the purchase of model HAWRK5 low voltage wiring and wall switch kit
• SmartSense™ Automated Ventilation: Expel pollutants from your home without thought or action; An infrared sensor monitors for heat coming off the range and will automatically adjust the hood's fan speed as needed to eliminate smoke and odors while cooking
• Up to 71% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 71% quieter than competition at 1.1 sones on working speed
• One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
• Both ENERGY STAR certified and Title 24 compliant, this kitchen hood is energy efficient and code compliant
• Code Ready Technology (CRT): Supports the installer's job with the ability to reduce airflow to 300 or 400 CFM to address local codes or make-up air requirements, originally 490 Max Blower CFM
• Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience
• Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency hybrid baffle filters
• The infrared controls allow for manual operation to adjust the 3-speed blower and 2 level lighting
• Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
• Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
• Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
• Can be installed for ADA Compliance with the purchase of model HAWRK5 low voltage wiring and wall switch kit
Electrical Information
Information
120 V
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
Yes
Information
ADA Compliance
Accessories
Included
Damper
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
5.12 inch(es) / 13.01 cm
Depth
20.06 inch(es) / 50.95 cm
Warranty
Warranty
1 Year, 3 Year LED module
UPC
UPC#
26715274680
