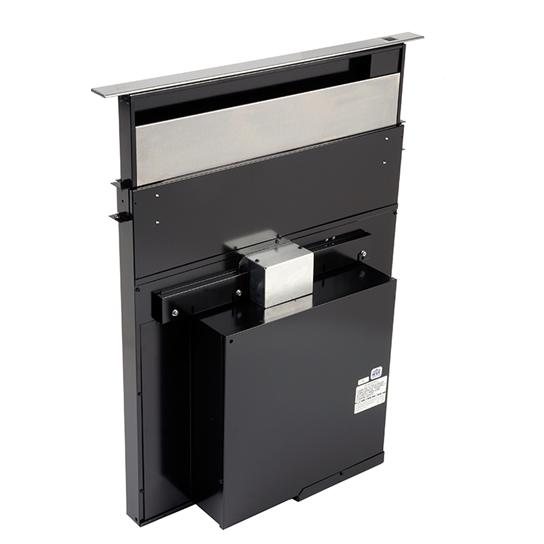

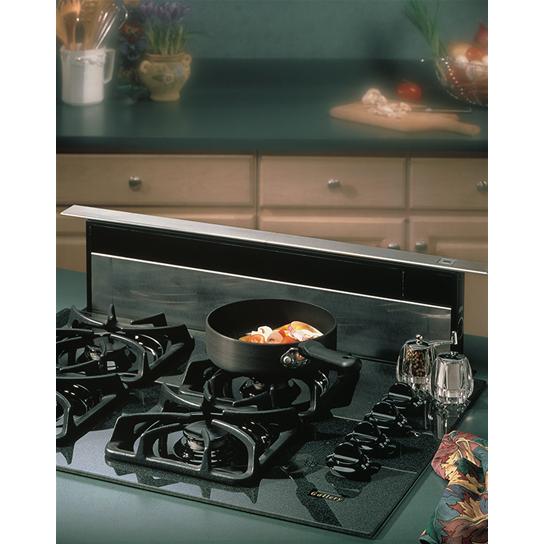

Broan 36-inch Countertop Downdraft 273603

BroanModel Number: 273603
Broan 36" downdraft with cover. Innovative downdraft system compatible with virtually all self-contained cooktops. Sleek, trim styling complements any cooktop... Broan 36" downdraft with cover. Innovative downdraft system compatible with virtually all self-contained cooktops. Sleek, trim styling complements any cooktop style or color. Automatically raises into position with the touch of a button. Disappears flush with cooktop surface. Space-saving design lets you make the most of precious, under-counter cabinet space. Infinitely adjustable speed control is flush with the side of the unit; inconspicuous, yet easy to reach and simple to use. Blower discharges right, left or down and slides side-to-side to ease installation. Front access panel allows easy cleaning. View more
Price:
$1,849.00
Warranty Products

Please select a warranty option

Available Services

Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
Specifications
General
Series Name
Elite 27000 Series
Blower Included
Yes
Airflow
500 CFM
Style
Downdraft
Color
Stainless Steel
Installation
Countertop
Features
Dishwasher-Proof Filters
Yes
Ducting Information
3 1/4" x 10"
Speeds
Infinite Speed
Additional Information
• Stainless Steel cover standard
• Aluminum Filter
• Innovative downdraft system compatible with virtually all self-contained cooktops
• Automatically raises into position with the touch of a button
• Disappears flush with cooktop surface
• Variable-speed control is flush with the side of the unit inconspicuous, yet easy to reach and simple to use
• Blower discharges right, left or down and slides side-to-side to ease installation
Electrical Information
Information
• 120 V
• 4.0 A
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Accessories
Optional
• ARP310 - Air low reducer (limits the airlow of the hood under 300 CFM)
• 273601C- White cover
• 273623C- Black cover
• 97009786 - Replacement filters
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
21.63 inch(es) / 54.93 cm
Depth
7 inch(es) / 17.78 cm
Additional Dimensions
For more information refer to dimension manual
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
55321550062
