Features
HEAT SENTRY™
Exclusive, Heat Sentry™ turns blower ON to HIGH speed when excess heat is detected.
CAPTUR™ SYSTEM
The Broan Captur™ exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance quieter operation and less energy use.
LIGHTING BUILT-IN LED MODULES
Lighting built-in LED modules that provide an even lighting over the cooktop.
Specifications
General
Series Name
Alta
Blower Included
Yes
Airflow
400 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Technologies
• Captur™ System
• Heat Sentry™ Automatic Heat Sensor
• Heat Sentry™ Automatic Heat Sensor
Ducting Information
• Ducting Size: 3-1/4 in X 10 in (H-V) or 7 in Round
• Non-Ducted Re-circulation Capable
• Non-Ducted Re-circulation Capable
Speeds

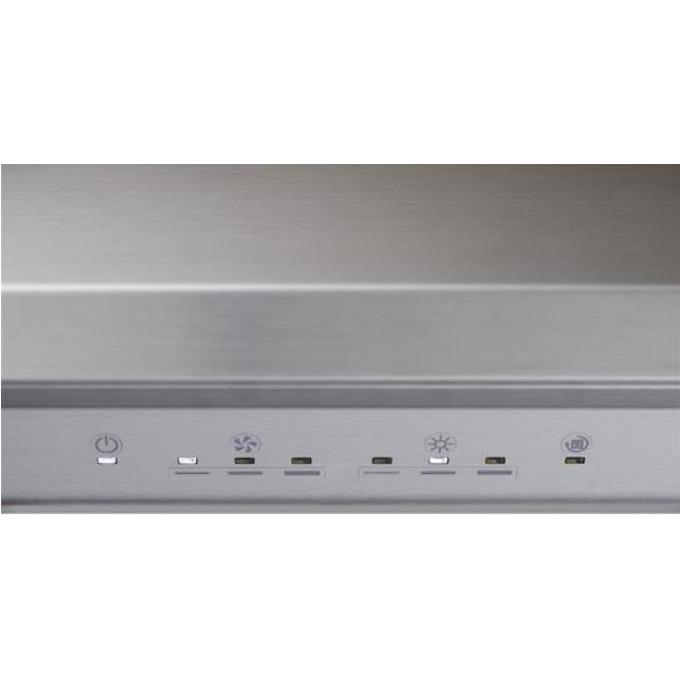

3-Speed, Whisper Touch Infrared Control
Additional Information
• 3-Speed Performant Dual Blower
• Quietest Range Hood Offering A Sound Level of 0.6 Sone at Low Speed
• Two Ultra Efficiency Hybrid Baffle Filters, Easy to Clean
• Two Built-in LED Modules Provide an Even Lighting Over the Cooktop
• EZ 1 Brackets Make It Easy for Single-Person Installation in Less than Half the Time of Traditional Methods
• Quietest Range Hood Offering A Sound Level of 0.6 Sone at Low Speed
• Two Ultra Efficiency Hybrid Baffle Filters, Easy to Clean
• Two Built-in LED Modules Provide an Even Lighting Over the Cooktop
• EZ 1 Brackets Make It Easy for Single-Person Installation in Less than Half the Time of Traditional Methods
Electrical Information
Information
• 120 V
• 1.4 A
• 1.4 A
Certifications and Approvals
Hvi Certified
Yes
Accessories
Optional
• HPFA436 Replacement Filters
• HPF36 Charcoal Replacement Filters
• HAWRK3 ADA Wiring Kit
• HCR3 Handheld Remote Control
• HPF36 Charcoal Replacement Filters
• HAWRK3 ADA Wiring Kit
• HCR3 Handheld Remote Control
Dimensions
Class Width
36"
Width
35.88 inch(es) / 91.14 cm
Height
5 inch(es) / 12.7 cm
Depth
22 inch(es) / 55.88 cm
Warranty
Warranty
• 1 Year Parts and Labor
• 3 Years on LED Modules
• 3 Years on LED Modules
UPC
UPC#
26715249688
