Documents
Features

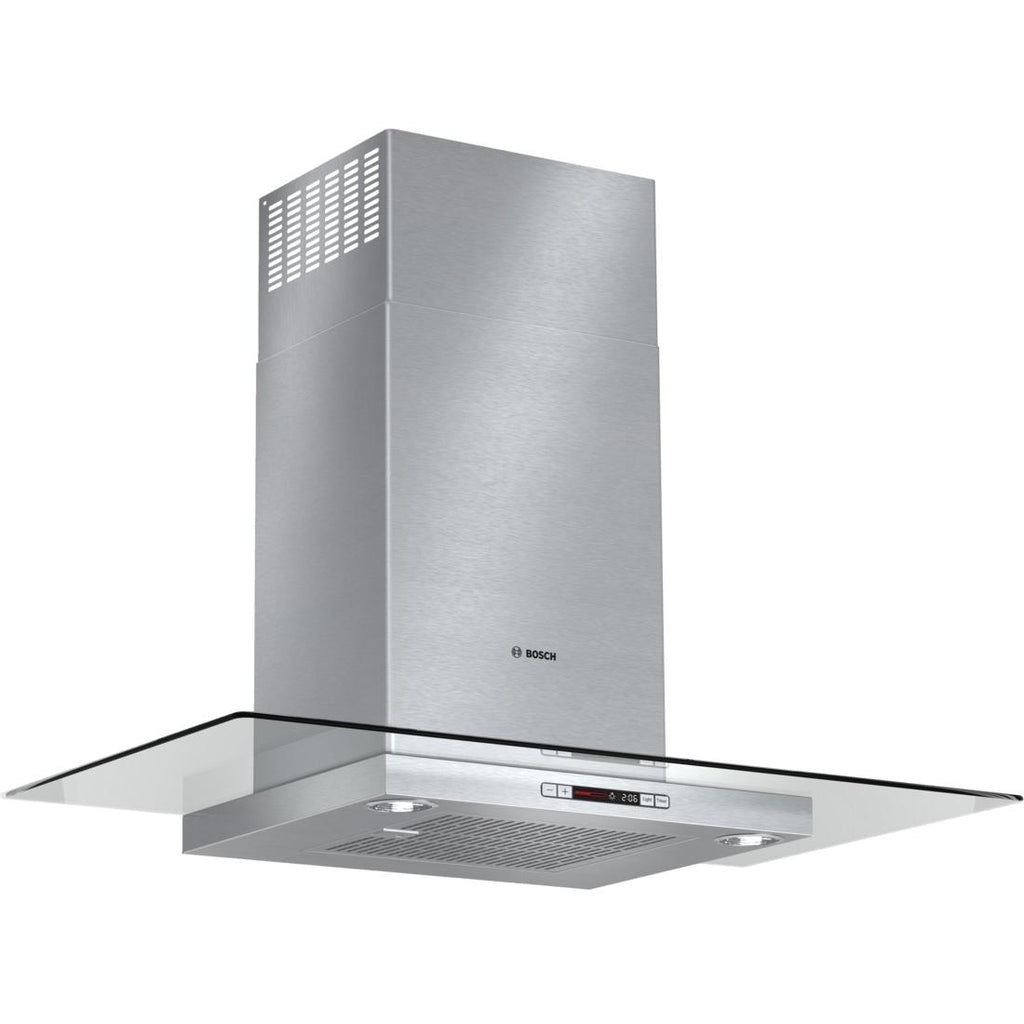

INTEGRATED BLOWER 600 CFM
600 cfm centrifugal integrated blower included
TOUCH CONTROLS WITH LCD DISPLAY
Four speed touch controls with lcd display
DISHWASHER SAFE
Dishwasher safe filters with stainless steel covers
Specifications
General
Series Name
Benchmark®
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• Convertable: Ducted / Recirculating
• Diameter of air duct (in) top: 8
• Diameter of air duct (in) top: 8
Speeds
4
Additional Information
• Touch Controls with LCD Display
• Dishwasher Safe Aluminum Mesh Filters
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• 4-stage speed settings
• Approval certificates: CSA, UL
• Dishwasher Safe Aluminum Mesh Filters
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• 4-stage speed settings
• Approval certificates: CSA, UL
Electrical Information
Information
• 530 W
• 110 V
• 60 Hz
• Plug type: 120V-3 prong
• 110 V
• 60 Hz
• Plug type: 120V-3 prong
Accessories
Optional
• Converts to Recirculation Mode with Accessory Kit (Sold separately)
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
27.44 inch(es) / 69.69 cm
Depth
19.68 inch(es) / 50.0 cm
Weight
56 lb(s) / 25.40 kg
Additional Dimensions
• Height of the chimney (in): 25 7/8" - 40 13/16"/25 7/8" - 44 3/4"
• Required distance above cooktops/ranges: 24''/27''
• Required distance above cooktops/ranges: 24''/27''
Shipping Dimensions
Width
39.99 inch(es) / 101.57 cm
Weight
63.01 lb(s) / 28.58 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
825225909064
