Features
MULTIPLE DUCTING OPTIONS
6 exhaust connections possible (Transition Sold Separately),
RETRACTS OUT OF SIGHT
Designed to preserve clean sight lines when not in use.
GUARDS AGAINST SPLATTER
A sleek front panel protects your walls from splatters.
DISHWASHER SAFE
Dishwasher safe filters with stainless steel covers
Specifications
General
Series Name
800
Blower Included
No
Style

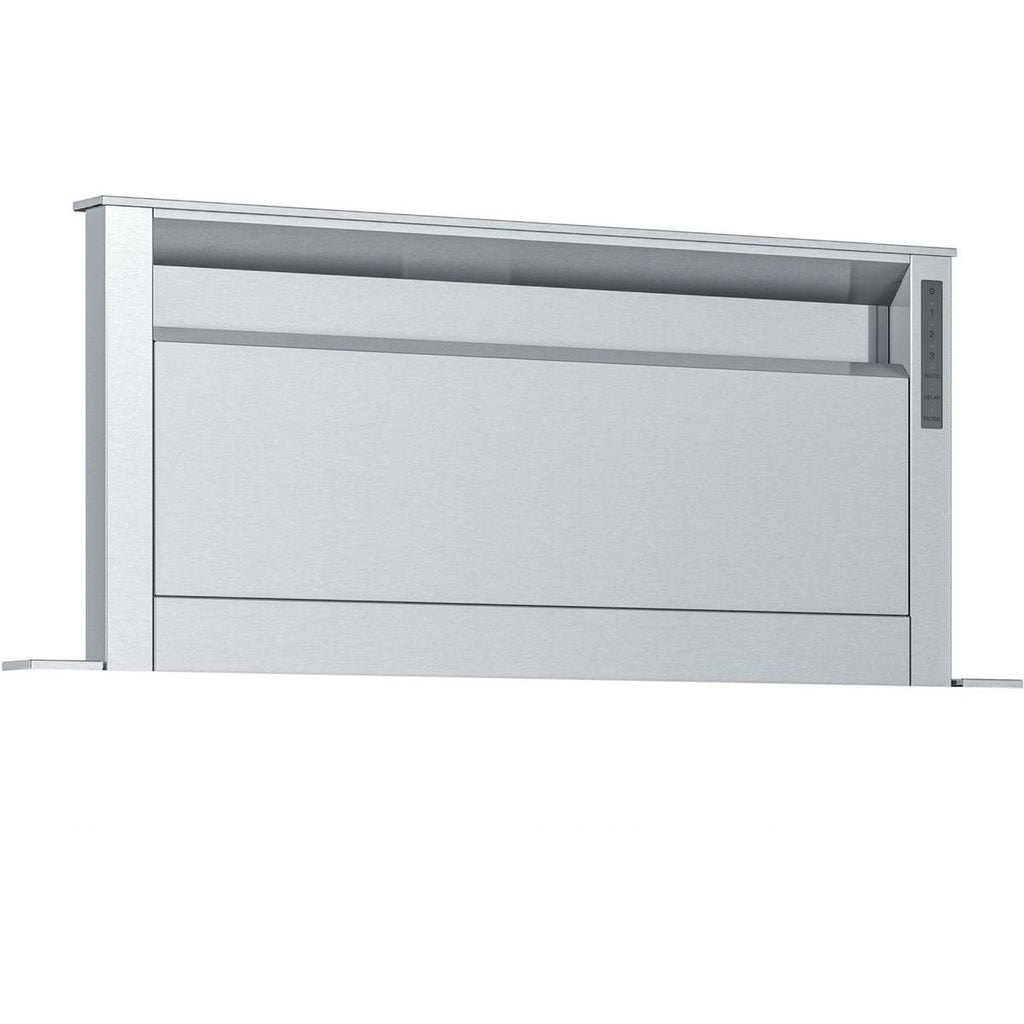

Downdraft
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Front, Left, Right, Rear, Down
Speeds
3-stage
Additional Information
• Operating mode Convertible: ducted / recirculating
• Motor location: External
• Grease filter material: Aluminum
• Grease filter type: Multilayer cassette
• Motor location: External
• Grease filter material: Aluminum
• Grease filter type: Multilayer cassette
Electrical Information
Information
• Volts: 120 V
• Frequency: 60 Hz
• Plug type: 120V-3 prong
• Frequency: 60 Hz
• Plug type: 120V-3 prong
Certifications and Approvals
Information
• cULus
• HVI-2100
• HVI-2100
Accessories
Optional
• 6" side / rear / downward transition: HDDSTRAN6
• 8" side / rear / downward transition: HDDSTRAN8
• 6" round front plate: HDDFTRAN6
• 8" round front plate: HDDFTRAN8
• Transition for rectangular duct: HDDSTRAN2
• 2' rectangular duct: HDD2RECTD
• 600 CFM flexible blower: DHG602DUC
• 600 CFM inline blower: DHI1FZUC
• 600 CFM remote blower: DHR1FZUC
• Recirculation kit (compatible with electric and induction cooktops only): HDDREC5UC
• Charcoal filter replacement for recirculation kit: HDDFILTUC
• 30" gas cooktop seal kit for downdraft (required for installation with gas cooktops): HDD0RSP
• Trim kit for 30" FlameSelect® gas cooktops: HDDTRIM30S
• 8" side / rear / downward transition: HDDSTRAN8
• 6" round front plate: HDDFTRAN6
• 8" round front plate: HDDFTRAN8
• Transition for rectangular duct: HDDSTRAN2
• 2' rectangular duct: HDD2RECTD
• 600 CFM flexible blower: DHG602DUC
• 600 CFM inline blower: DHI1FZUC
• 600 CFM remote blower: DHR1FZUC
• Recirculation kit (compatible with electric and induction cooktops only): HDDREC5UC
• Charcoal filter replacement for recirculation kit: HDDFILTUC
• 30" gas cooktop seal kit for downdraft (required for installation with gas cooktops): HDD0RSP
• Trim kit for 30" FlameSelect® gas cooktops: HDDTRIM30S
Dimensions
Class Width
36"
Width
37 inch(es) / 93.98 cm
Depth
2.75 inch(es) / 6.99 cm
Weight
47 lb(s) / 21.32 kg
Additional Dimensions
• Power cord length: 30"
• Height of the rise: 15"
• Overall height: 44 3/8"
• Diameter of air duct–internal: 8"
• Diameter of air duct–external: 6" or 8"
• Height of the rise: 15"
• Overall height: 44 3/8"
• Diameter of air duct–internal: 8"
• Diameter of air duct–external: 6" or 8"
Warranty
Warranty
1-Year parts and labor
