Features
FEATURES - HBN65
• Powered by an internal blower system with a maximum of 650 CFM.
• Near-silent performance at less than 0.3 sones on low speed.

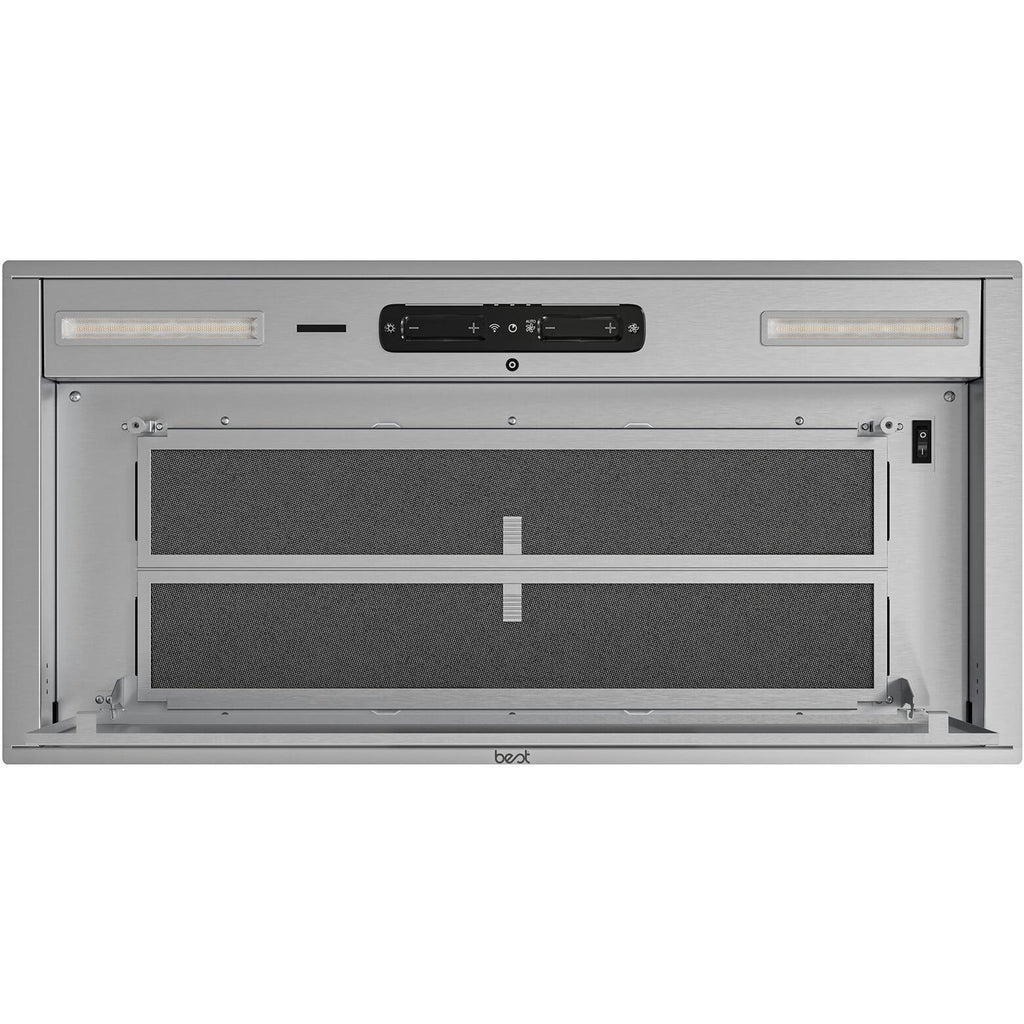

• Perimeter aspiration with mesh filters optimized for efficient capture.
• SmartSense technology uses infrared sensors to monitor heat from the cooking surface and automatically adjusts the hood fan speed to eliminate heat, CO2, and other cooking emissions.
• Wi-Fi, Bluetooth, and voice activation for hands-free operation; compatible with the BEST Kitchen app.

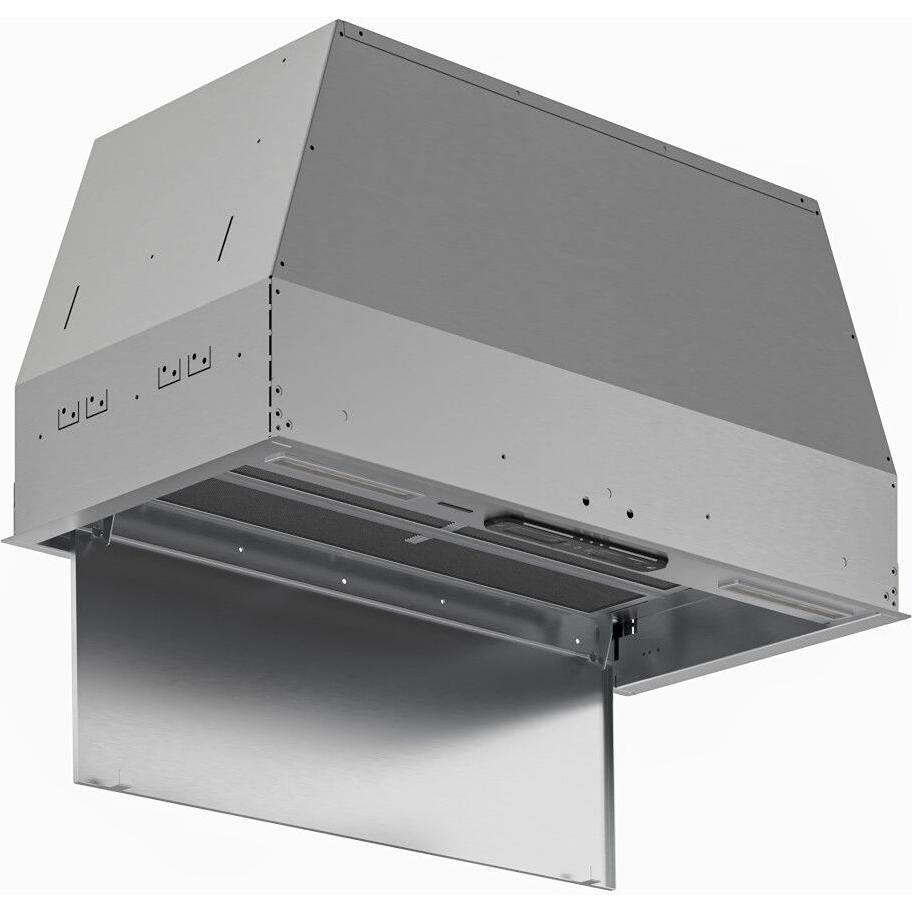

• Easy single-person installation with the EZ Install bracket system.

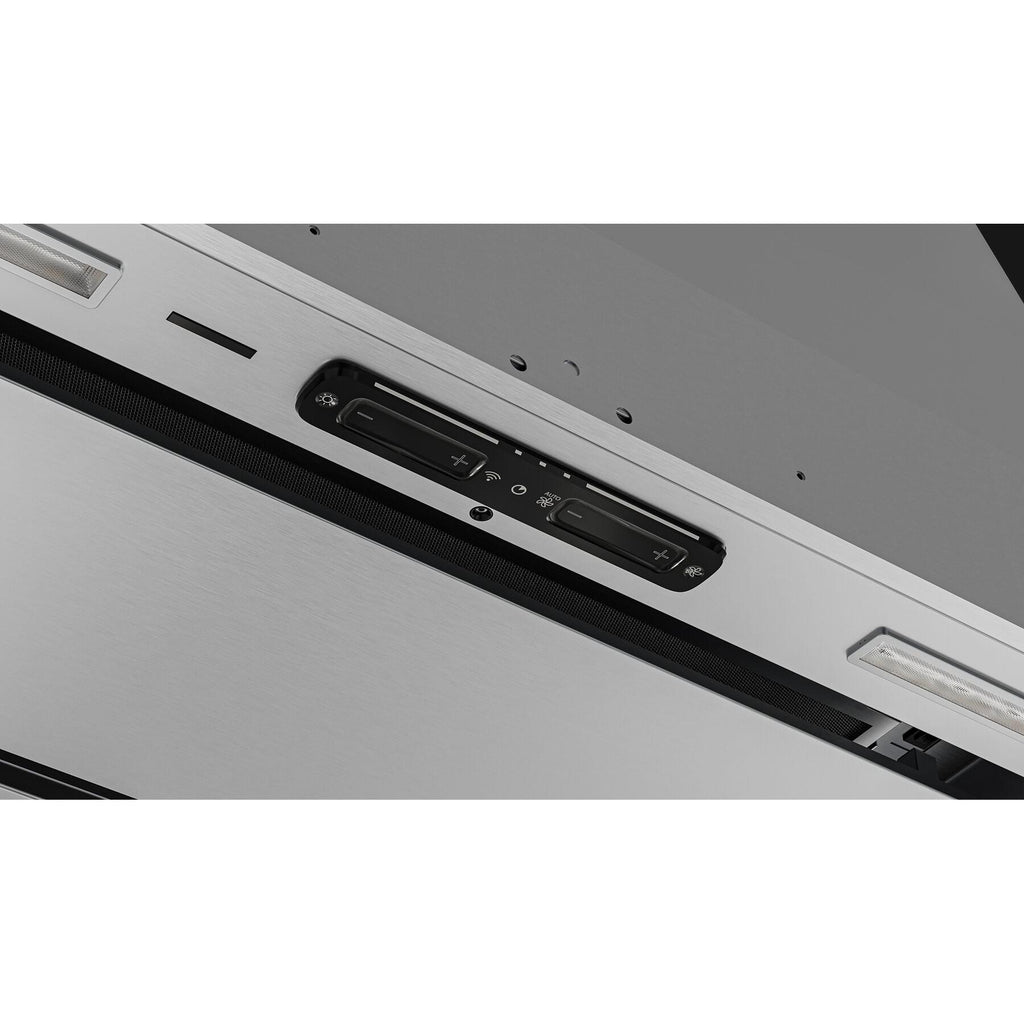

• Capacitive touch slider control with four fan speeds and four LED lighting levels.
• Code Ready Technology® (CRT) allows airflow limitation to 300 or 400 CFM to meet local make-up air code requirements.
• Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures exceed 200°F, ensuring protection.
• Compatible with 8" or 3-1/4" x 10" ducting; supports vertical (round) or horizontal (rectangular only) installation.
• Near-silent performance at less than 0.3 sones on low speed.
• Perimeter aspiration with mesh filters optimized for efficient capture.
• SmartSense technology uses infrared sensors to monitor heat from the cooking surface and automatically adjusts the hood fan speed to eliminate heat, CO2, and other cooking emissions.
• Wi-Fi, Bluetooth, and voice activation for hands-free operation; compatible with the BEST Kitchen app.
• Easy single-person installation with the EZ Install bracket system.
• Capacitive touch slider control with four fan speeds and four LED lighting levels.
• Code Ready Technology® (CRT) allows airflow limitation to 300 or 400 CFM to meet local make-up air code requirements.
• Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures exceed 200°F, ensuring protection.
• Compatible with 8" or 3-1/4" x 10" ducting; supports vertical (round) or horizontal (rectangular only) installation.
Specifications
General
Series Name
HBN65
Blower Included
Yes
Airflow
650 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Bluetooth
Yes
Wi-Fi
Yes
Technologies
• Heat Sentry™
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense
• BEST Kitchen app
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense
• BEST Kitchen app
Ducting Information
• Duct Size: 8" or 3 1/4" x 10"
• Duct Direction: Vertical (round) or Horizontal (rectangular only)
• Duct Direction: Vertical (round) or Horizontal (rectangular only)
Speeds
4 Speeds
Additional Information
• Delay-Off
• Filter Clean Reminder
• Filter Type: Perimeter with Mesh
• Control Type: Touch Slider
• Lighting Type: LED Modules (6W per Module)
• 2 Lights
• 4 Lighting Levels
• Max Blower CFM: 650
• Filter Clean Reminder
• Filter Type: Perimeter with Mesh
• Control Type: Touch Slider
• Lighting Type: LED Modules (6W per Module)
• 2 Lights
• 4 Lighting Levels
• Max Blower CFM: 650
Electrical Information
Information
• Amps @ 120V: 3.8
• Electrical Connection: Direct Wire
• Electrical Connection: Direct Wire
Accessories
Included
Backdraft Damper
Optional
• ADA Kit: HAWRK5
• Universal MUA Damper: MD8TU
• Power Cord Kit: HCK44
• Universal MUA Damper: MD8TU
• Power Cord Kit: HCK44
Dimensions
Class Width
36"
Width
34.81 inch(es) / 88.42 cm
Height
14 inch(es) / 35.56 cm
Depth
14.19 inch(es) / 36.04 cm
Additional Dimensions
Cutout W x D: 34 1/2" W x 13 5/8" D
Warranty
Warranty
5 Years Parts, 2 Years Labor
UPC
UPC#
772371160750
