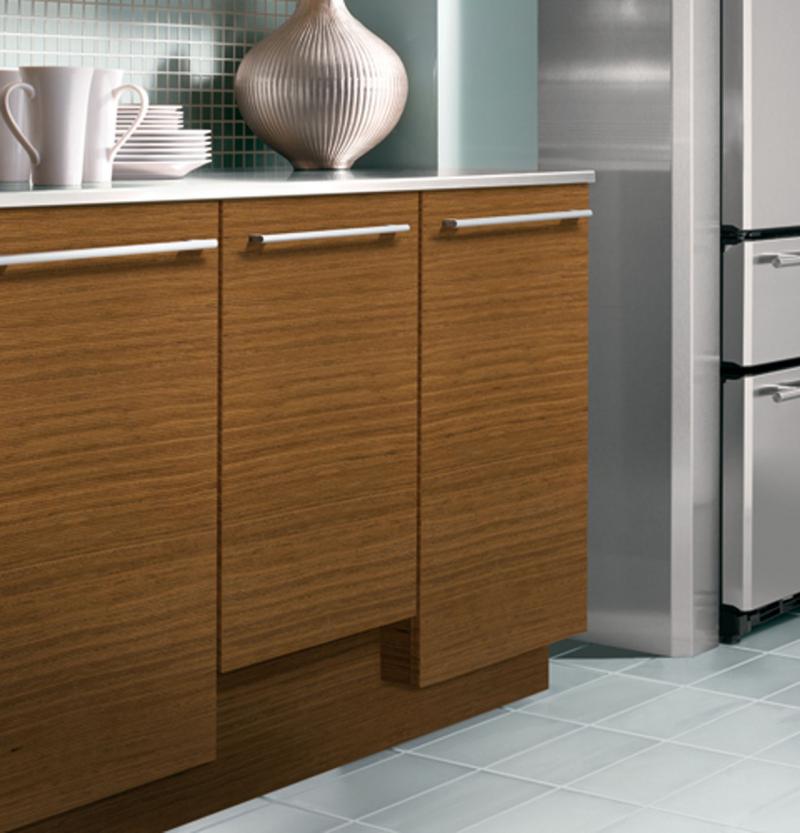

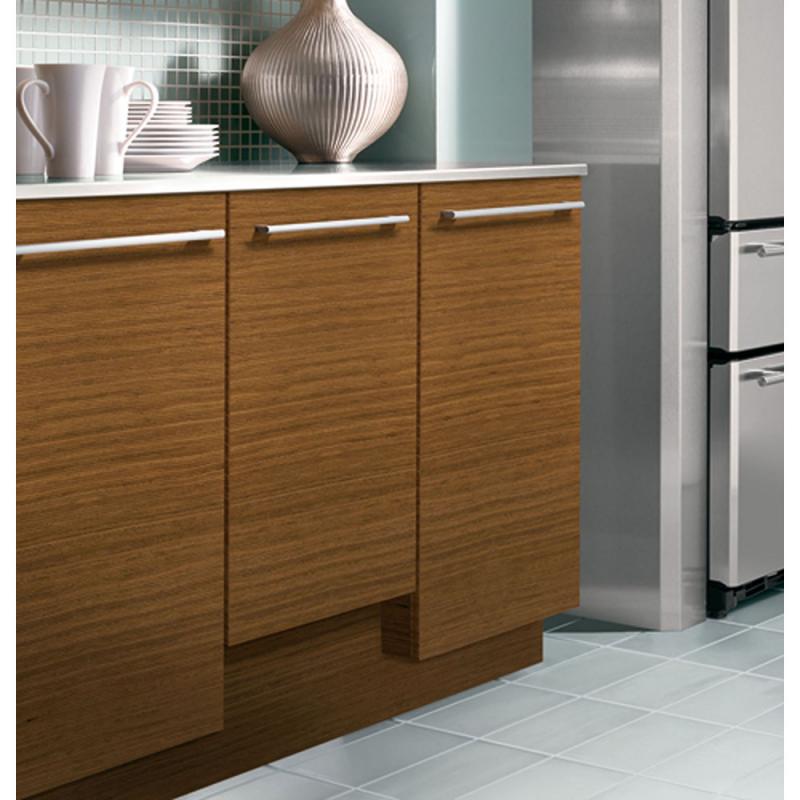

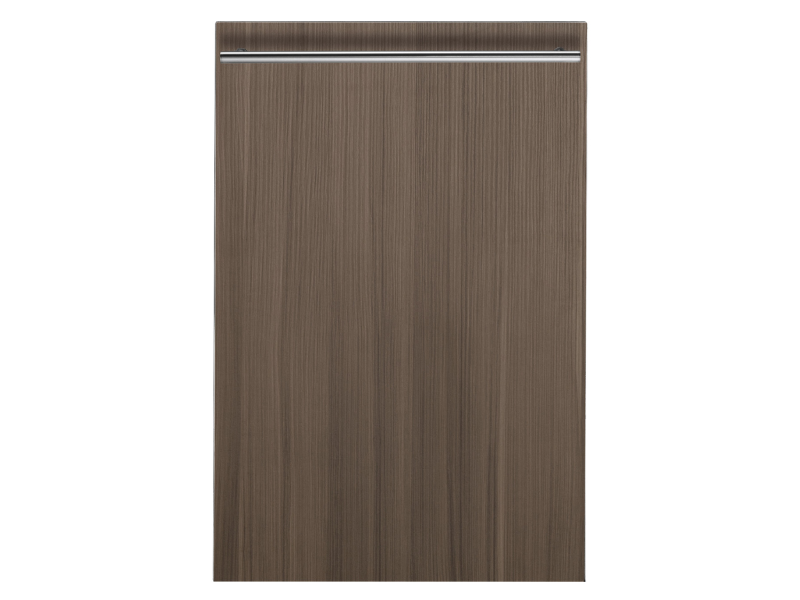

Custom Panel Model
Designed for personalization with customer-supplied cabinet-compatible panel and custom handle
Hidden, Integrated Electronic Controls
Allow easy activation of wash cycles: heavy wash, light wash and Auto Sense
Three-Level Wash System
Provides effective, yet quiet cleaning power

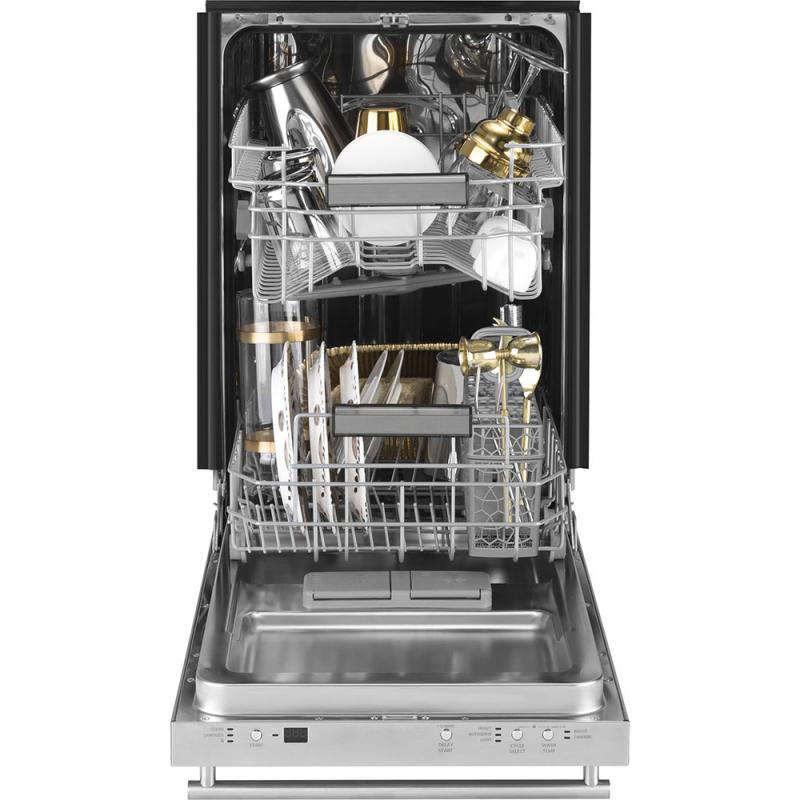

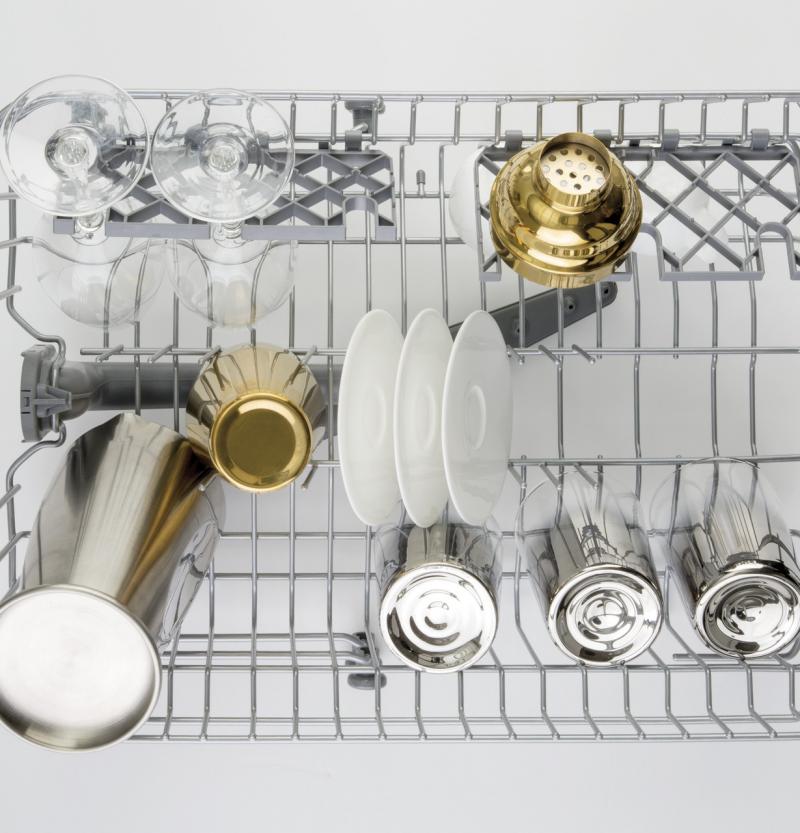

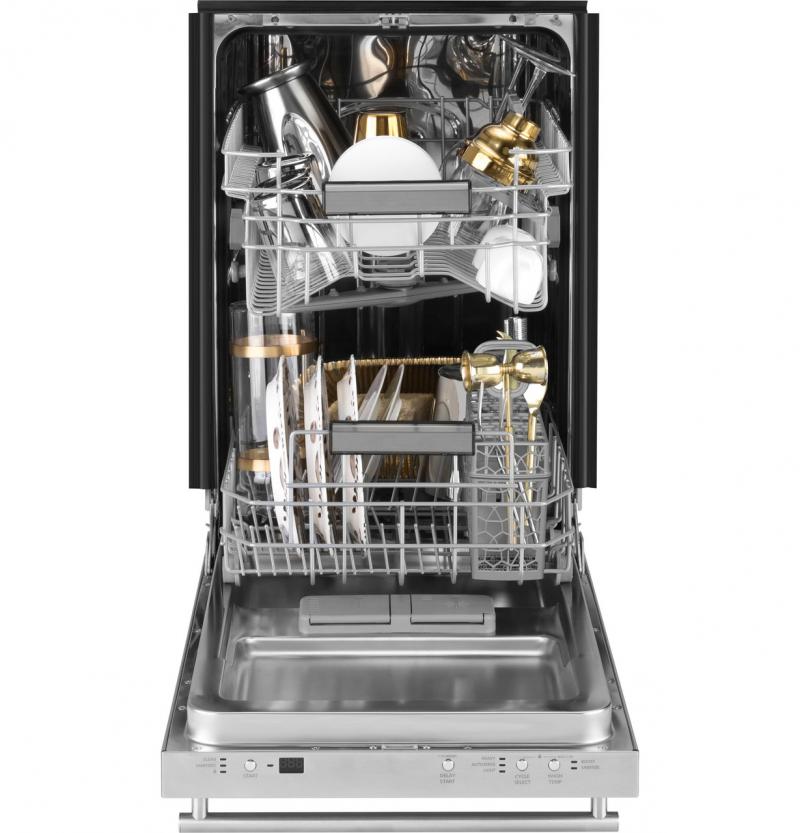

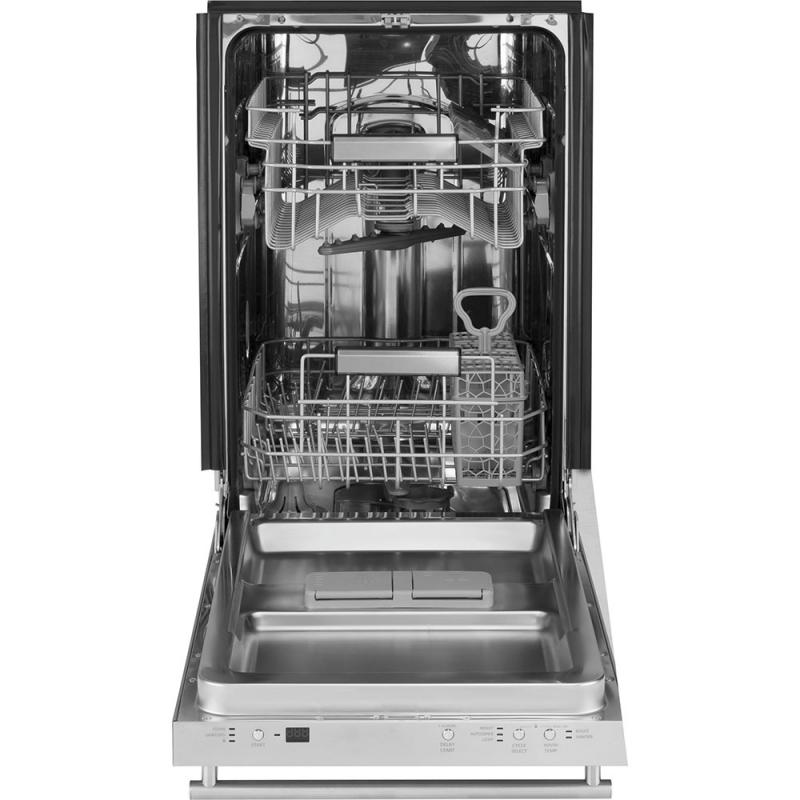

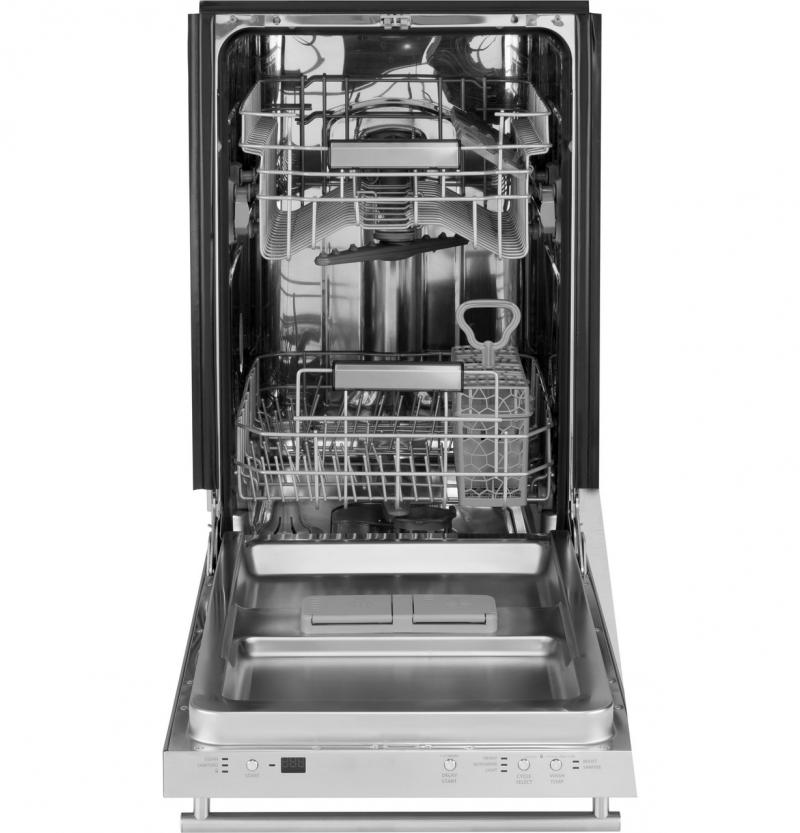

Nylon Gray Racks with Ball-Tipped Tines
Provide plenty of space and loading flexibility

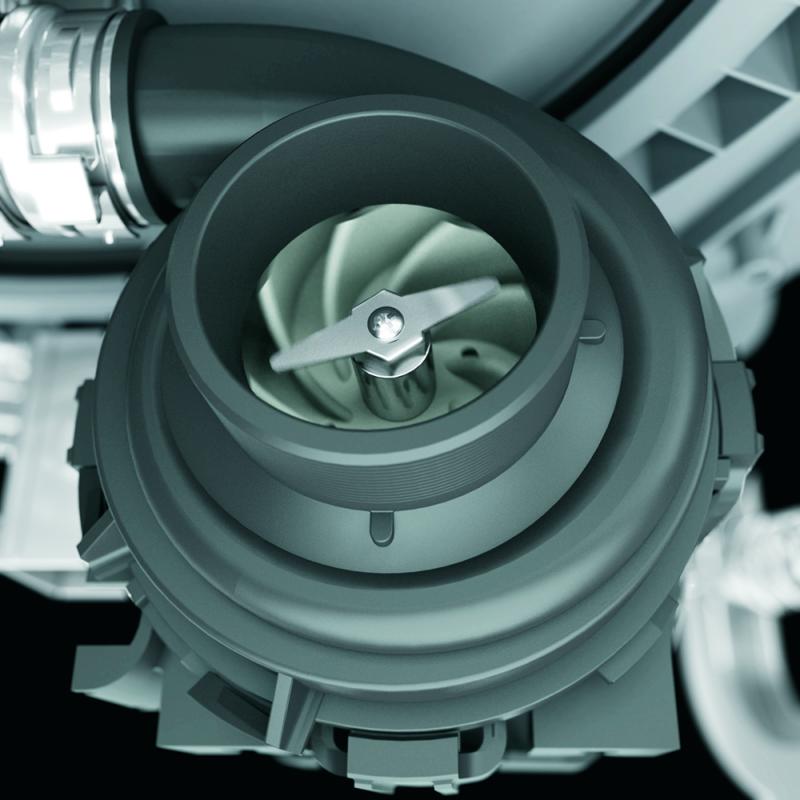

Piranha™ Hard Food Disposer
Grinds food into small particles that are washed away
47 dbA
Ultra-quiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance
| Appearance | |
|---|---|
| Color Appearance | Custom Panel and Handle Required |
| Design Style | European Stainless Steel |
| Door Appearance | Fully integrated door for custom panels |
| Door Panel Color | Custom Panel Required |
| Handle Design | Handle required |
| Panel Capability | Integrated |
| Economical / Quiet | |
| Door Insulation | Insulation, Mastic |
| Motor Type | Single Speed |
| Outer Wrap | U-Blanket |
| Quiet Features | Sealed Toe Kick, Tub Collar Trim |
| Quiet Package | 47 dBA |
| Features | |
| Control Type | Fully Integrated Electronic, Top Controls, 4 Pushbuttons |
| Custom Panel Ready | Integrated Panels |
| Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators, Cycle Countdown, Audible End-of-Cycle Signal, Last Cycle Memory, Start/Reset Pad |
| Dishwasher Cycles | AutoSense, Heavy Wash, Light Wash |
| Dishwasher Drying Features | Condensate Dry |
| Dishwasher Options | Start/Reset, Child Lock, Delay Start 1-12 Hr., TempBoost, Sani (Certified to NSF Standard 184), Automatic Hot Start |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| Exterior Style | Custom Panel |
| Floor Protection | Yes |
| Latch | Pull with Handle |
| Leveling System | Leveling Legs |
| Lower Rack | Nylon, 1 Rack handle |
| Number of Cycles | 3 |
| Number of Options | 5 |
| Number of Place Settings | 8 |
| OU Certified | No |

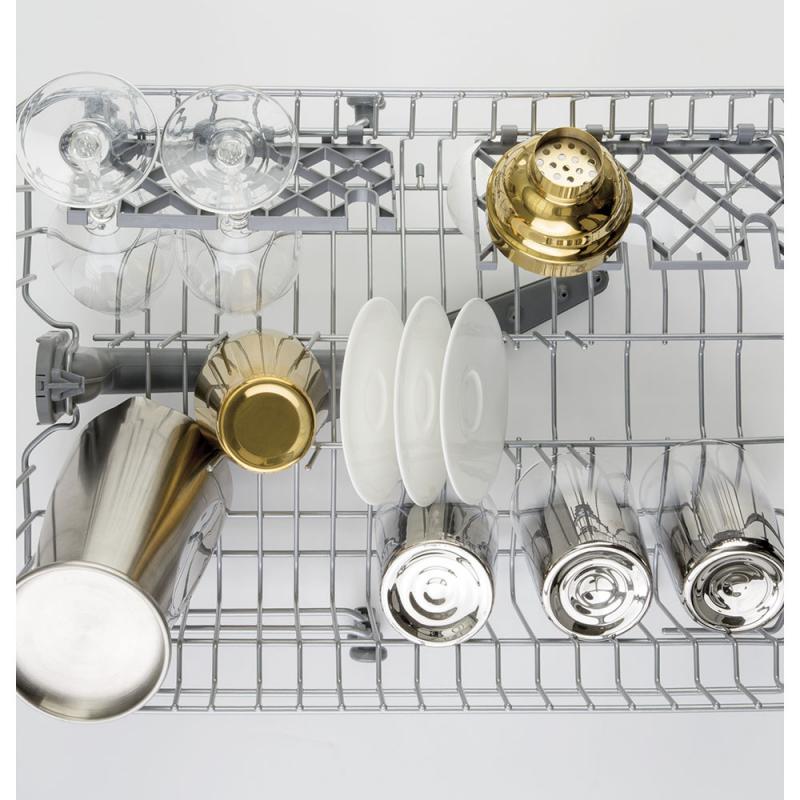

| Rack Features | 1 Piece Mid Silverware Basket w/ 1 Cell Cover, 1 Plastic Utility Shelf - Upper, Ball-Tipped Tines, Fold-Down Tines - Lower |
| Racking Material | Nylon |
| Sabbath Mode | Yes |
| Sensor | Clean Sensor |
| Style | Built-In Top Control |
| Tub and Door Liner | Stainless Steel |
| Upper Rack | Nylon, Adjustable, 1 Rack handle |
| Wash Arms | 2 with Upper Nozzle |
| Wash System Features | Automatic Temperature Control, Automatic HotStart, Flood Control System, Piranha™ Hard Food Disposer, Dual Pump |
| Wash System | Standard, 3-Level |
| Water Filtration System | 3-Stage Manual Clean Filtration |
| Power / Ratings | |
|---|---|
| Calrod Heater Watts | 1100 |
| Electrical Requirements | 120V ; 60Hz ; 10A |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Specification Dishwashers | |
| Dishwasher Drying Features | Condensate Dry |
| Dishwasher Cycles | Auto SenseHeavy WashLight Wash |
| Colour | Panel Ready |
| Control Type | Electronic Press Button |
| Rack Features | 1 Piece Silverware Basket with 3 Cell CoversUtility ShelfUpper Rack - Ball-Tip TinesLower Rack - Fold Down TinesLower Rack - Ball-Tip TinesUpper Rack - Adjustable |
| LED Display | Yes |
| Features | Floor Protect |
| Handle | Consumer Supplied |
| Delay Start | 1-12 hr. |
| Leveling Legs (4) | Yes |
| Number of Cycles | 3 |
| Rack Material | 2 |
| Dishwasher Options | Last Cycle MemoryStart/ResetAuto WashChild LockSanitize (NSF)Temp BoostRinse Aid with Indicator and Adjustment |
| End-of-Cycle Signal | Yes |
| Number of Place Settings | 8 place settings |
| Style | Built-in |
| Control Location | Top |
| Sensor | Clean Sensor |
| Tub and Door Liner | Stainless Steel |
| Wash Arm - Lower Level | Yes |
| Wash Arm - Upper Level | Nozzle |
| Wash System | 3 Level |
| Confined | Yes |
| Sabbath Mode | Yes |
| Wash System Features | Automatic HotStartAutomatic Temperature ControlDual Pumps and MotorsPiranha Hard Food Disposer |
| Digital Cycle Countdown | Yes |
