EvenTemp® Element
Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
Bridge Element
Connect two elements to create a larger cooking surface, perfect for griddles or large pans.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire Professional radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100(1) 1
Features
Keep Warm Zone
Keeps dishes warm while the rest finish so that your entire meal is ready when you are.

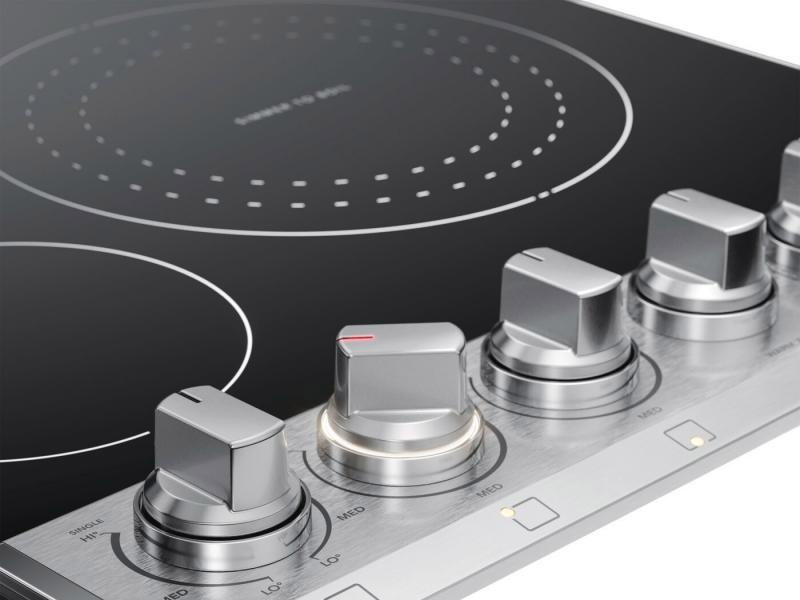

Backlit LED Knobs
Lights up when an element is on, so you know when your cooktop is in use.
Front Control Design
Adjust the cooking temperature without having to reach over hot items on the cooktop
Easy-to-Clean Glass Cooktop
Wipe away spills more easily with the smooth ceramic glass cooktop
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Smudge-Proof® Stainless Steel
Resists fingerprints and cleans easily.
| COOKTOP | |
|---|---|
| Bridge Element | Yes |
| Bridge Element Location | Left |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 9" |
| Left Front Element Burner Size | 7" |
| Left Rear Element Burner Size | 7" |
| Center Front Element Burner Size | 6" |
| Right Front Element Burner | 3200 Watts |
| Left Front Element Burner | 1800 Watts |
| Left Rear Element Burner | 1800 Watts |
| Center Front Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Display | |
| Control Location | Front |
| Display Type | Mechanical |
| Dimensions and Volume | |
| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Cutout Height | 5" |
| Minimum Cutout Width | 28 1/2" |
| Minimum Cutout Depth | 19 5/8" |
| Maximum Cutout Width | 29 7/8" |
| Maximum Cutout Depth | 20 1/2" |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Connected Load @ 240V | 8.1 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 34 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
