| Certifications |
| ADA Compliant | ADA Height and Side Reach Compliant |
| CEC Listed | Yes |
| CUL | Yes |
| Energy Star® Qualified | No |
| Star K Certified | No |
| UL | Yes |
| Details |
| Cooktop Configuration | All Burners |
| Digital Display | No |
| Fuel Type | Gas |
| Gas Regulator Inlet Thread Size | .75 |
| Installation Configuration | Built-In |
| LP Convertible | Yes - Kit Included |
| Natural Gas Convertible | Yes |
| Personalized Hardware | Yes |
| Power Outage Compatible | Yes |
| Cooktop Details |
| Auto Re-ignition | No |
| Combination Match with Oven | KOES430R, KOES527P, KOES530P, KOES530S, KOES630S, KOES727S, KOES730P, KOES730S, KOES930S, KOSE500E, KOSE507E, KOSE900, KOSE900H |
| Cooktop Surface Color | Stainless |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic Automatic |
| Installs Over Built-In Oven | Yes |
| Dimensions |
| Common Size | 91.44 cm, 36 in |
| Cutout Depth | 50.33 cm, 19.813 in |
| Cutout Depth Max | 50.80 cm, 20 in |
| Cutout Depth Min | 49.53 cm, 19.5 in |
| Cutout Height | 12.70 cm, 5 in |
| Cutout Width | 89.38 cm, 35.188 in |
| Cutout Width Max | 90.49 cm, 35.625 in |
| Cutout Width Min | 88.58 cm, 34.875 in |

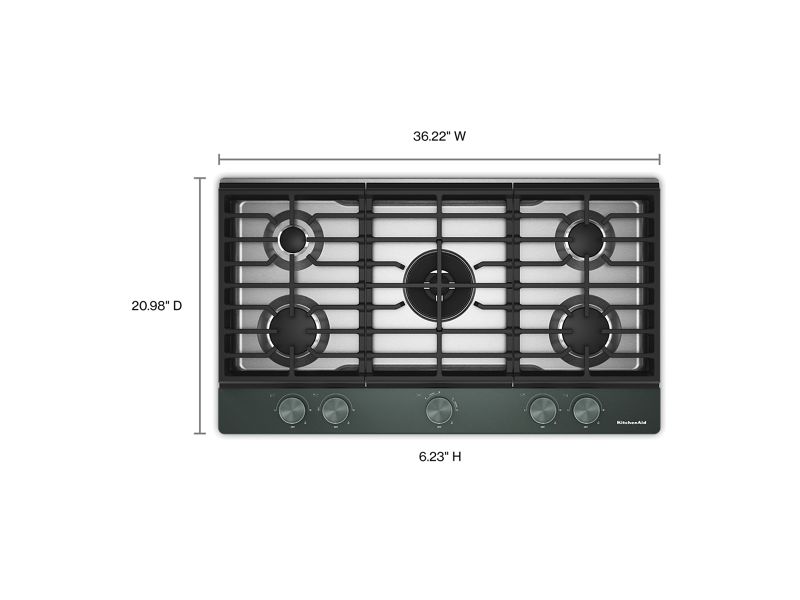

| Depth | 53.29 cm, 20.98 in |
| Gross Weight | 30.39 kg, 67 lbs |
| Height | 15.82 cm, 6.23 in |
| Maximum Height | 16.00 cm, 6.3 in |
| Minimum Height | 15.65 cm, 6.16 in |
| Net Weight | 27.22 kg, 60 lbs |
| Width | 92.00 cm, 36.22 in |
| Element/Burner Details |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |

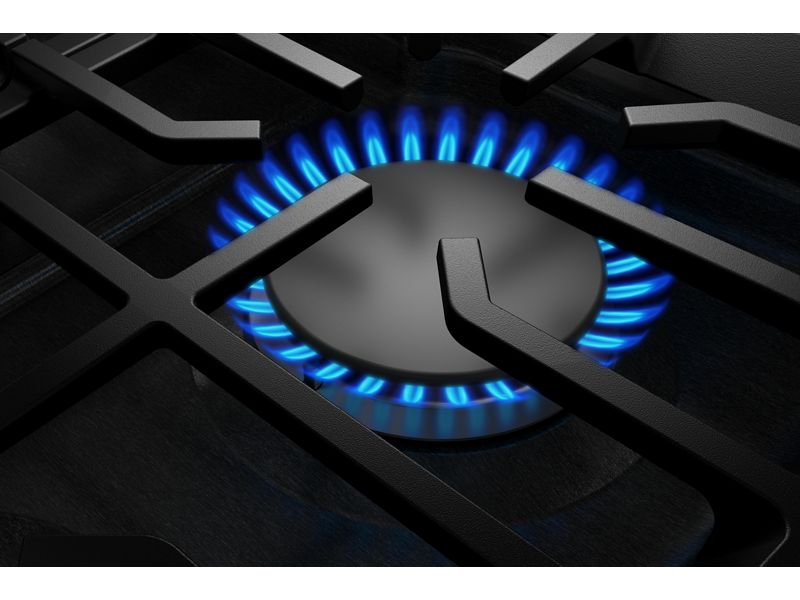

| Center Element Burner Power | 20,000 BTU |
| Center Element Burner Type | Professional Dual Ring |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 12,000 BTU |
| Left Front Element-Burner Type | Rapid |
| Left Rear Element-Burner Power | 6000 BTU |
| Left Rear Element-Burner Type | Melt / Simmer |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 3 |
| Power Boost | No |
| Right Front Element-Burner Power | 10,000 BTU |
| Right Front Element-Burner Type | Rapid |
| Right Rear Element-Burner Power | 7000 BTU |
| Right Rear Element-Burner Type | Semirapid |
| Electrical |
| 208V Compatible | No |
| Amps | 15 |
| Hz | 60 |

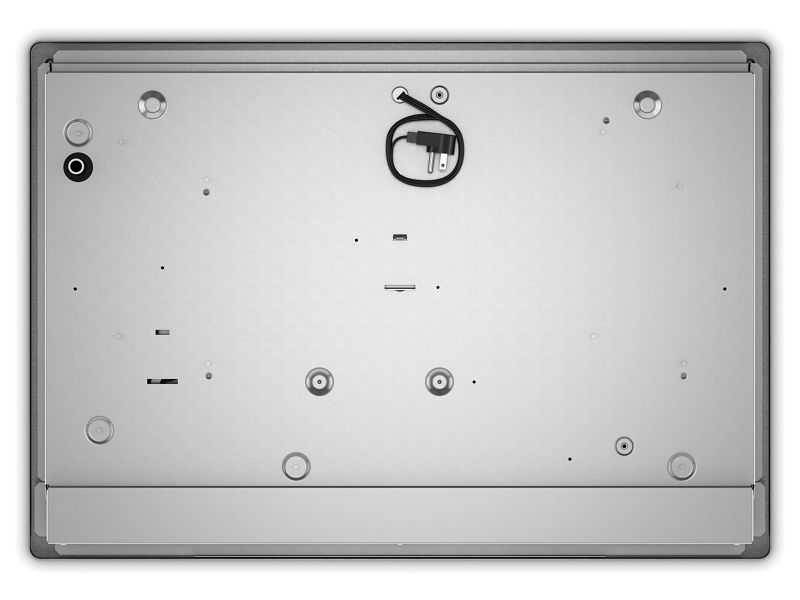

| Power Cord Included | Yes |
| Volts | 120 |
