Features

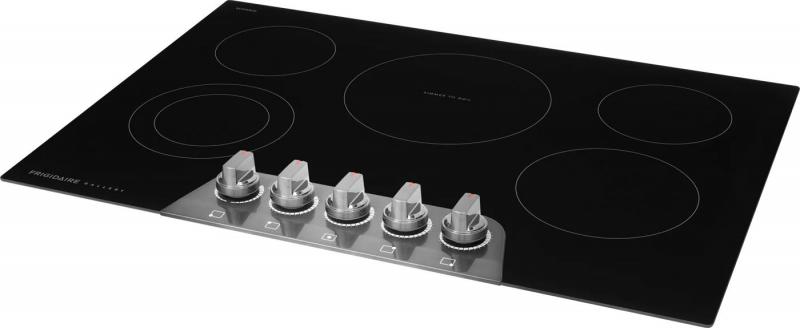

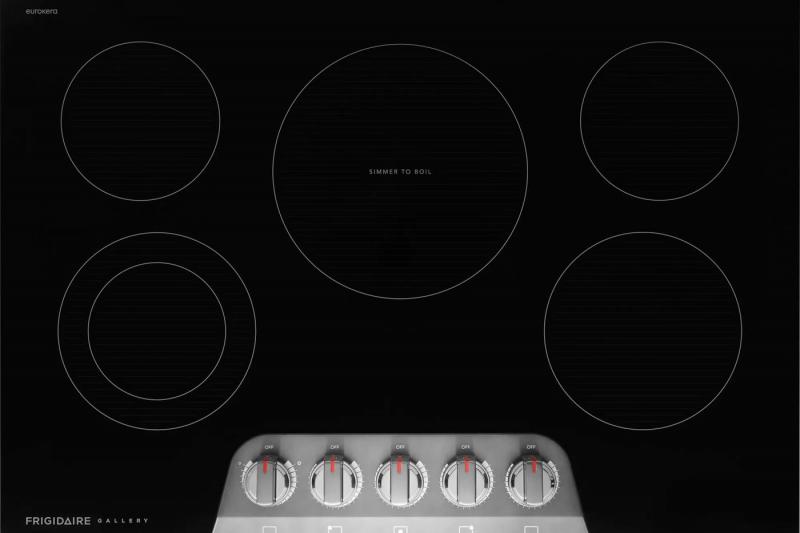

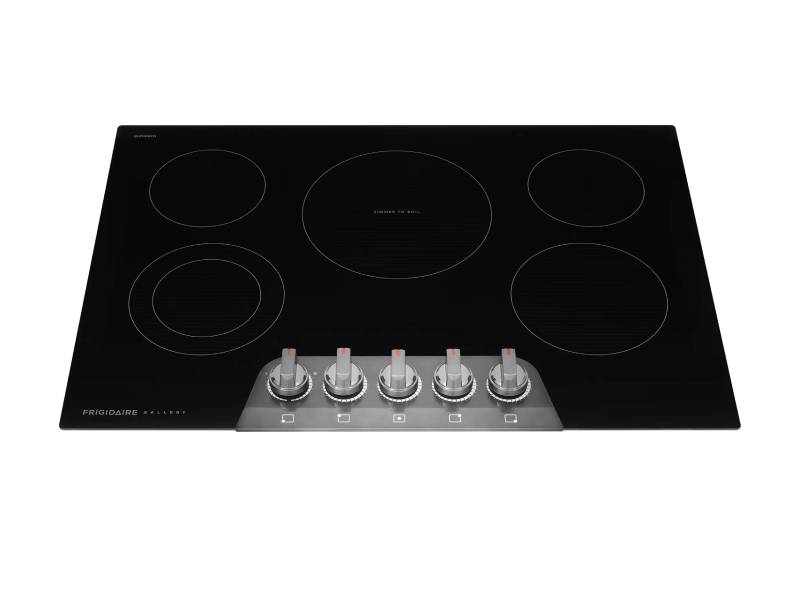

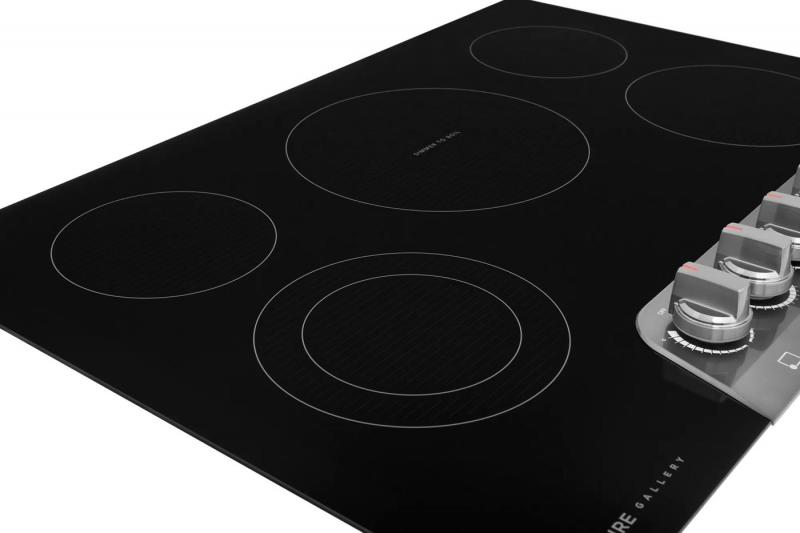

Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200-Watt EvenTemp™ Element, a versatile 2-in-1 Dual Element, and convenient Keep Warm Zone.

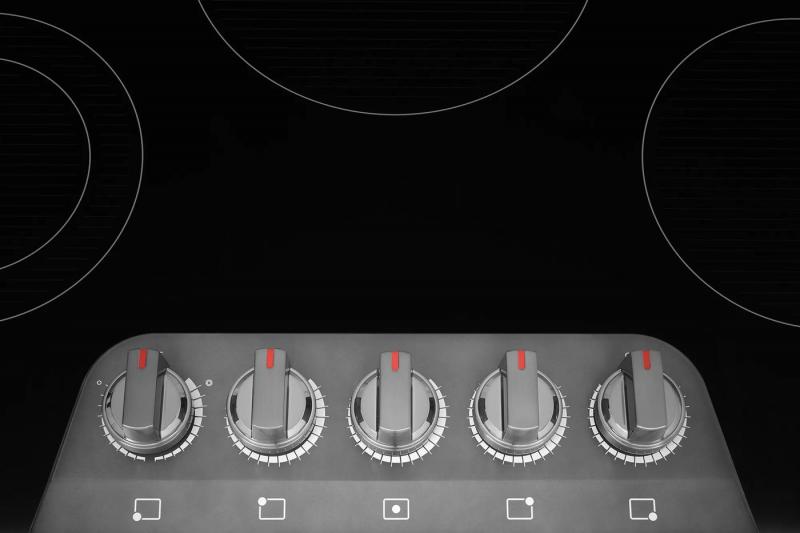

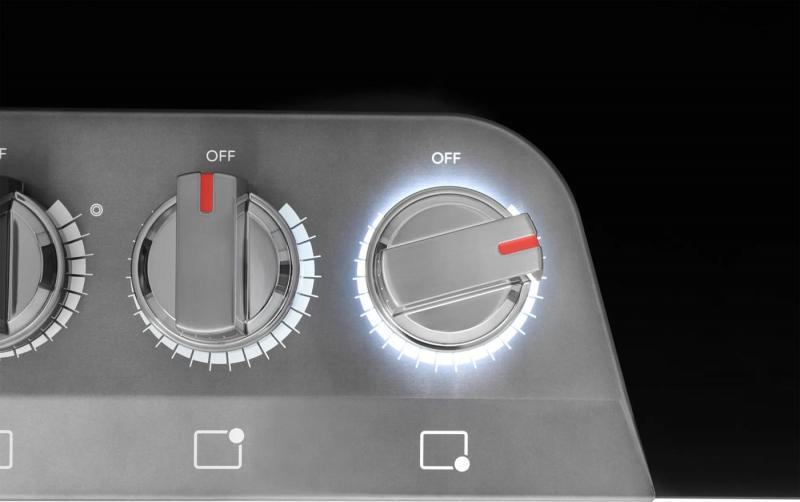

Backlit LED Knobs
Sleek LED knobs illuminate when in use, so you always know which element is on.
Powerful 3,200-Watt Element
Experience fast, even heat with our 3,200-Watt EvenTemp™ element—reducing hot and cold spots for consistent results every time.

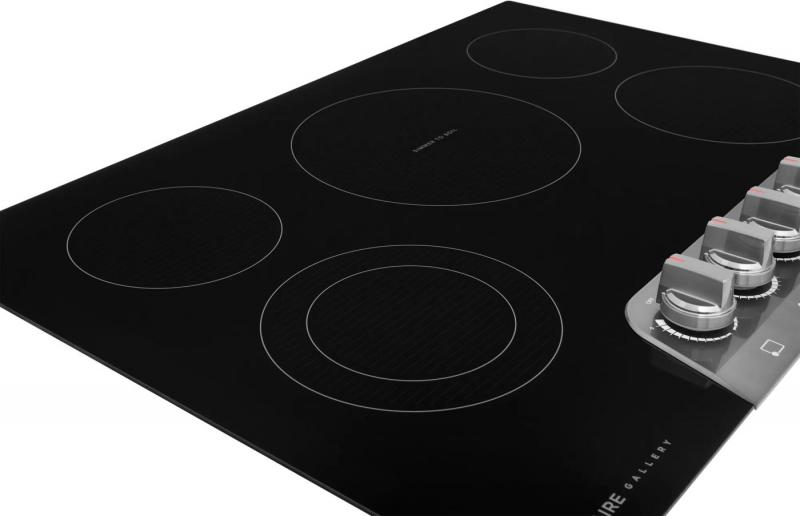

2-in-1 Dual Element
Expands from 9" to 12" to accommodate larger pots or cookware.
Ceramic Glass Cooktop
Easily wipe away spills from the smooth glass cooktop.

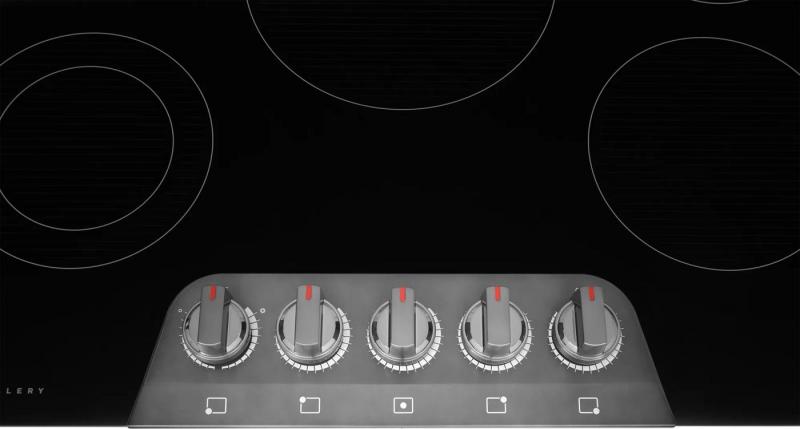

Front Control Design
Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
Keep Warm Zone
Keeps food warm until everything - and everyone - is ready.
Approved Over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
| COOKTOP | |
|---|---|
| Surface | Smooth |
| Hot-Surface Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 7" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 5" |
| Left Front Element Burner Size (Large) | 7" |
| Left Rear Element Burner Size | 6" |
| Center Rear Element Burner Size | 9" |
| Right Front Element Burner | 1800 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner (Small) | 750 Watts |
| Left Front Element Burner (Large) | 1800 Watts |
| Left Rear Element Burner | 1200 Watts |
| Center Rear Element Burner | 3200 Watts |
| Display | |
| Control Location | Front |
| Exterior | |
| Backlit Knobs | Yes |
| Dimensions and Volume | |
| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Cutout Height | 5" |
| Minimum Cutout Width | 28 1/2" |
| Minimum Cutout Depth | 19 5/8" |
| Maximum Cutout Width | 29 7/8" |
| Maximum Cutout Depth | 20 1/2" |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Amps @ 240 Volts | 38.3 Amps |
| Connected Load @ 240V | 9.2 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 31 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
