Features
Achieve better baking results with Convection Bake
Get faster, more even baking results with our fan convection baking system.
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

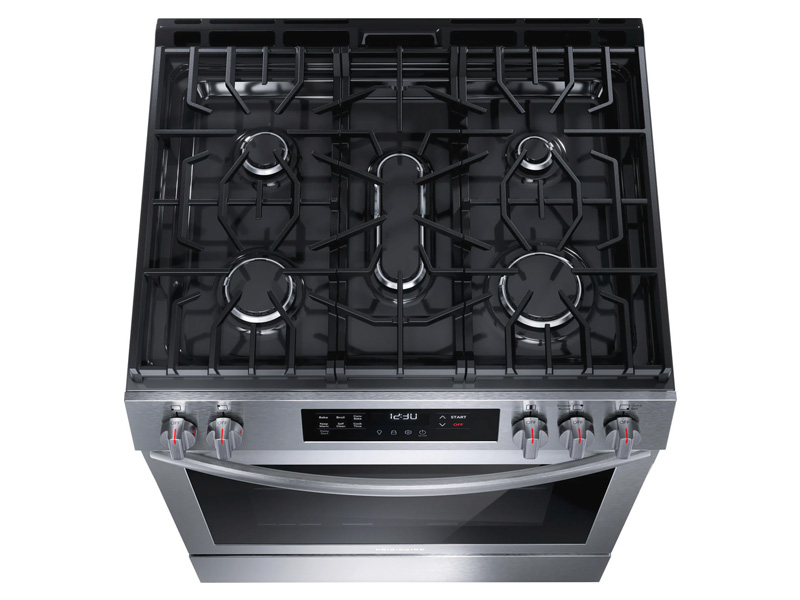

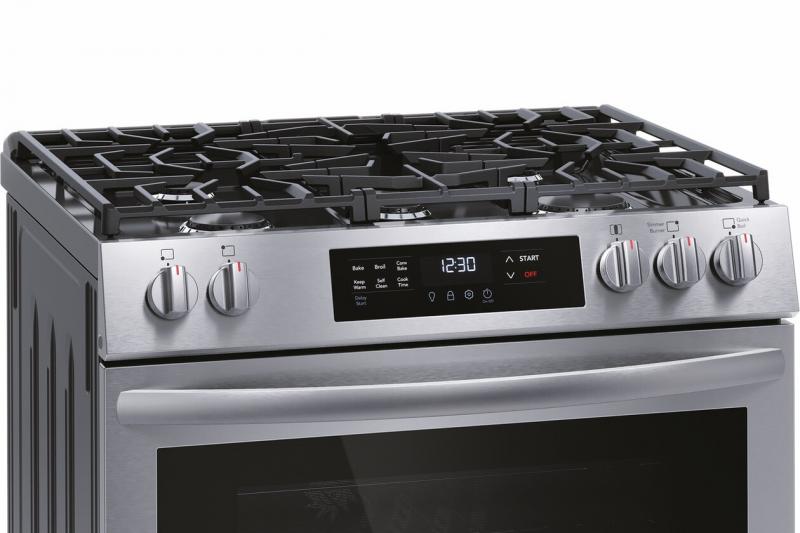

Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000-BTU simmer burner for delicate foods, a 10,000-BTU center oval burner perfect for griddles or larger pans, and our powerful 18K BTU Quick Boil Burner so you can get meals on the table, faster.
One-Touch Self Clean
A convenient 3 hour self clean cycle cleans your oven so you don't have to.

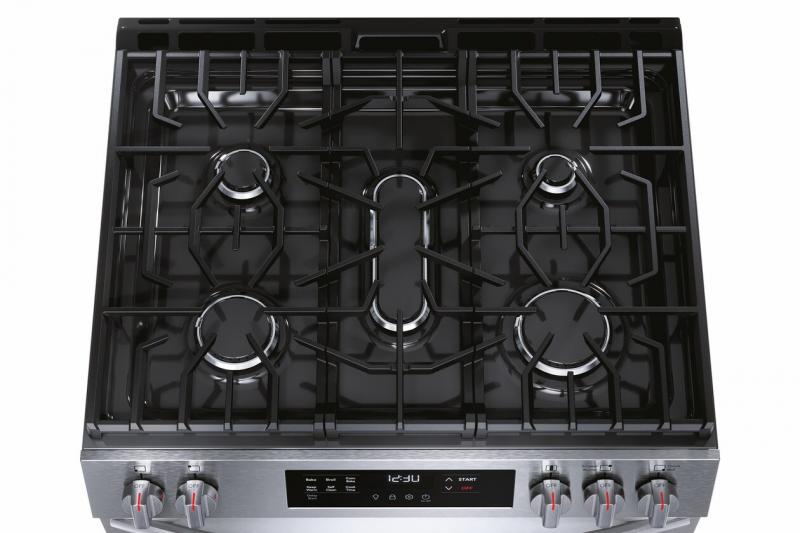

Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.

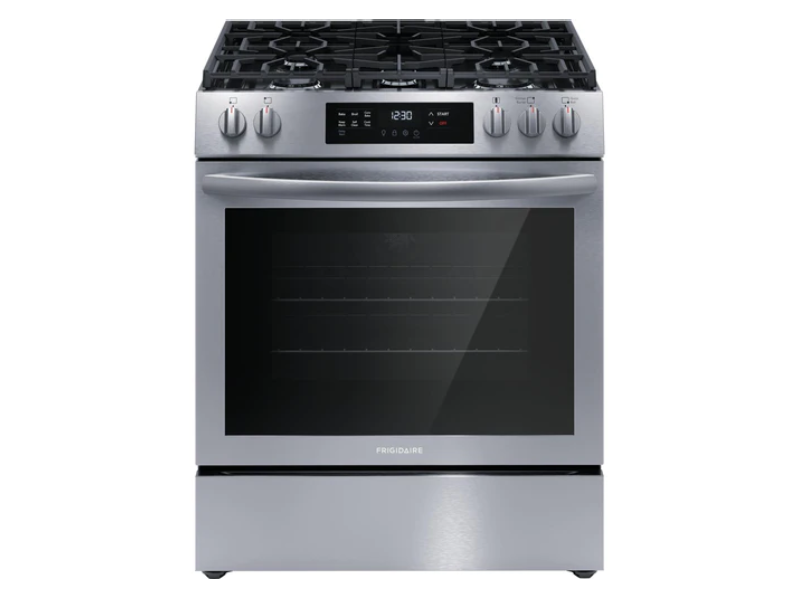

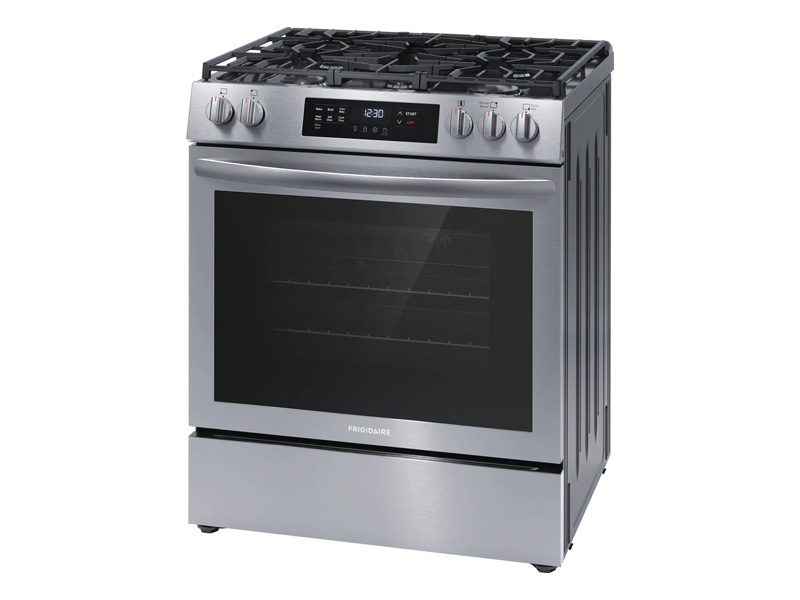

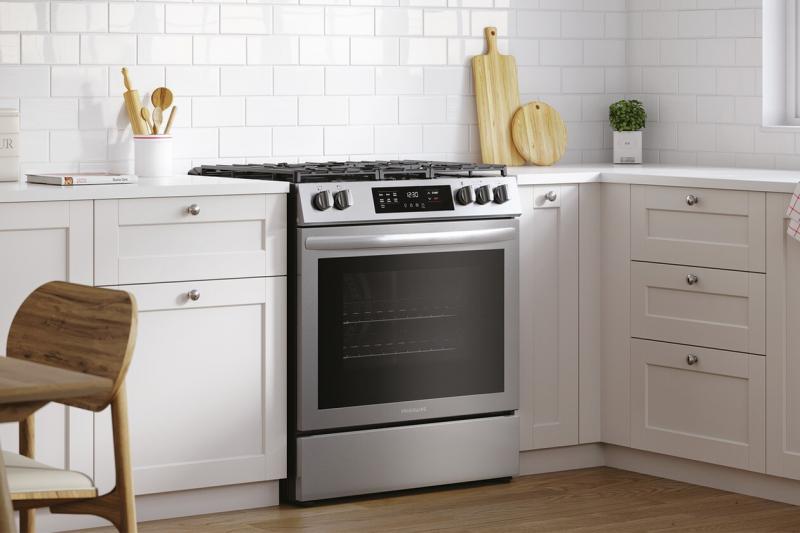

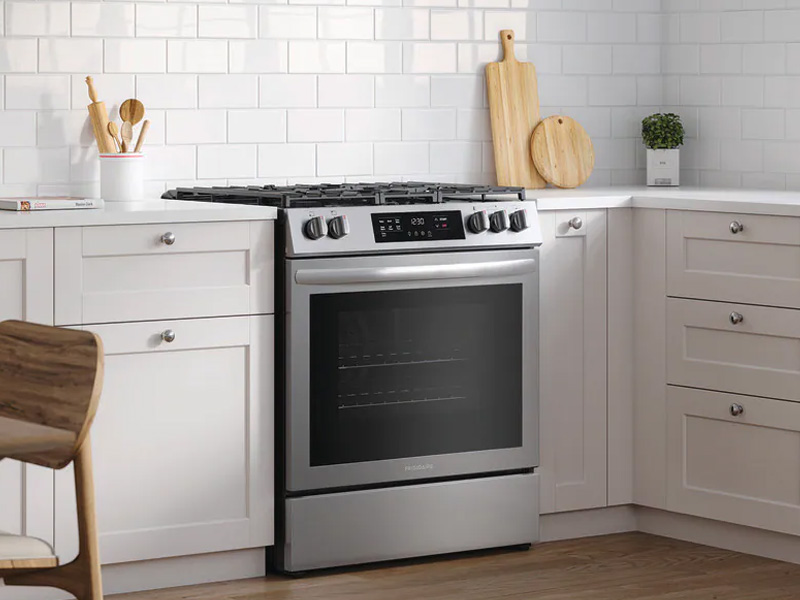

Upgrade your Kitchen with a Built-in Look
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. 1
Extra Wide Store-More Storage Drawer
Our redesigned Store-More Storage drawer is now even wider - allowing you to store any unused oven racks, baking trays and more.

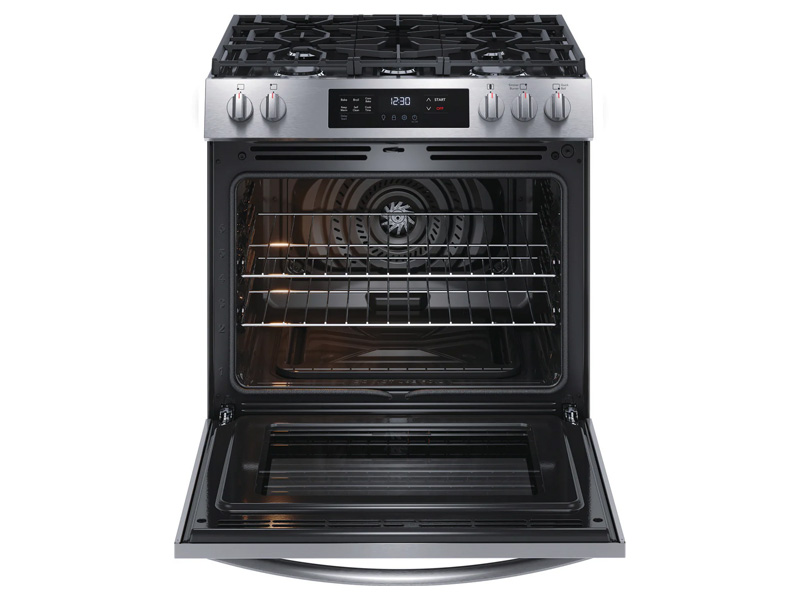

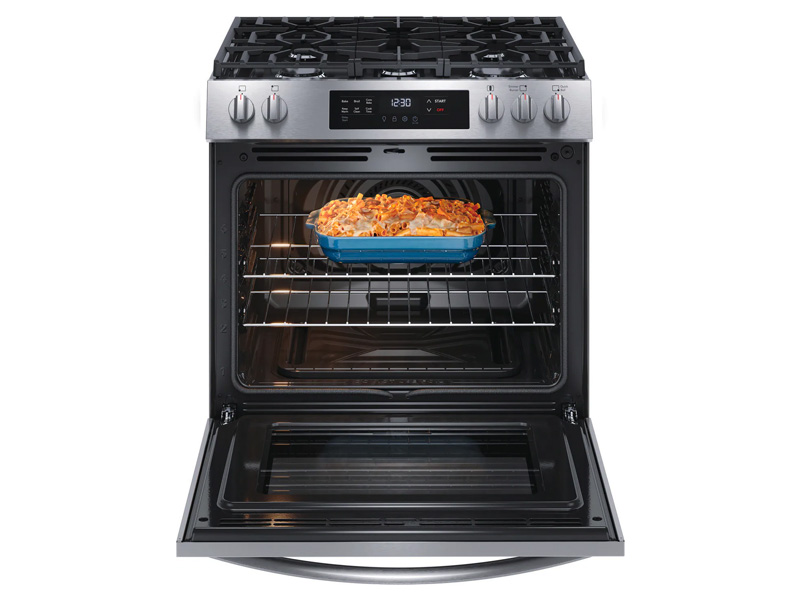

Cook more at once with our large oven capacity
5.1 Cu. Ft. Oven Capacity
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Cleanup is easier with Hidden Bake
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
| Dimensions and Volume | |
|---|---|
| Minimum Height | 35 5/8" |
| Maximum Height | 36 3/8" |
| Width | 30" |
| Depth | 26" |
| Depth With Door 90° Open | 47 1/4" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 17 5/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Capacity | 5.1 Cu. Ft. |
| Display | |
| Control Location | Front |
| Display Interface Color | White |
| Display Type | Capacitive Touch |
| General Specifications | |
| Product Weight | 180 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Cooktop Performance | |
| Right Front Element Burner | 18,000 BTU |
| Right Rear Element Burner | 5,000 BTU |
| Left Front Element Burner | 14,000 BTU |
| Left Rear Element Burner | 10,000 BTU |
| Center Rear Element Burner | 10,000 BTU |

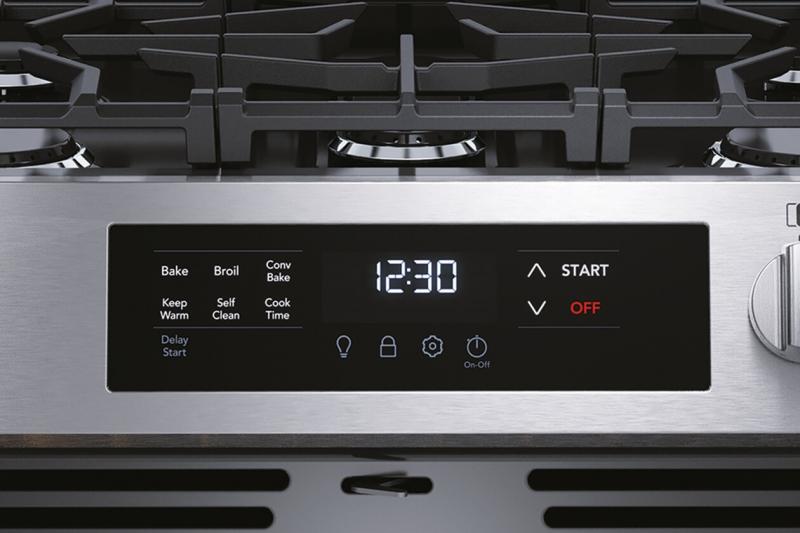

| Cooking Controls | |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Child Lock | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Up / Down Arrow | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Minimum Circuit Required | 12 Amps |
| Voltage Rating | 120 V |
| Cooking Controls Function | |
|---|---|
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| OVEN | |
| Bake Element | 17,000 BTU |
| Broil Element | 1,400 Watts |
| Cleaning System | Yes |
| Convection Cooking Technology | Yes |
| Convection Type | Fan |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Installation | |
| Adjustable Leveling Legs | Yes |
| COOKTOP | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Sealed Burners | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| DRAWER | |
| Drawer Type | Storage |
