Features
Air Fry
Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.

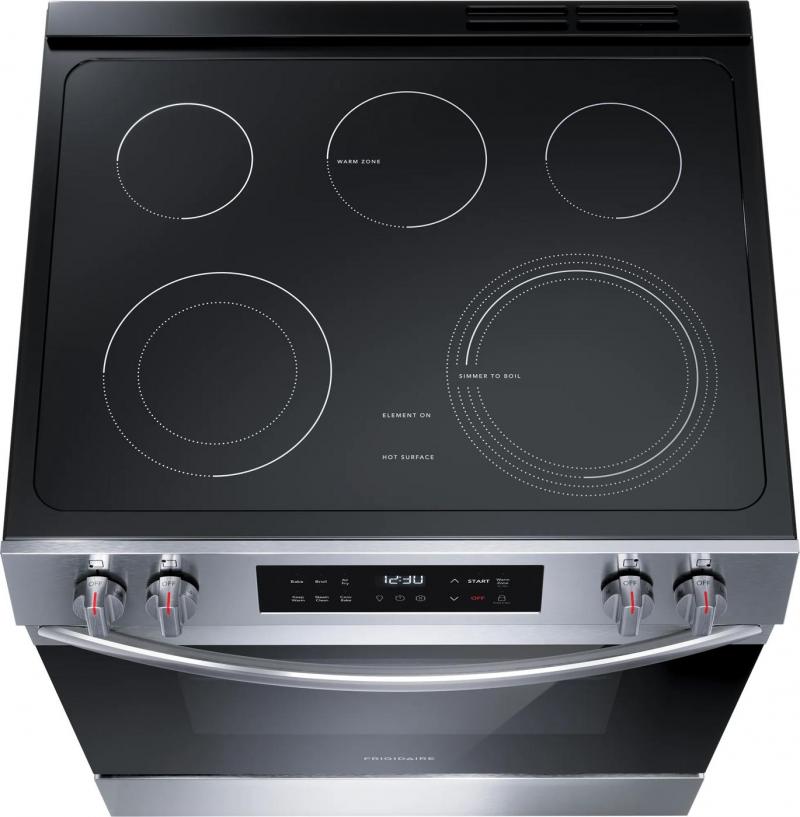

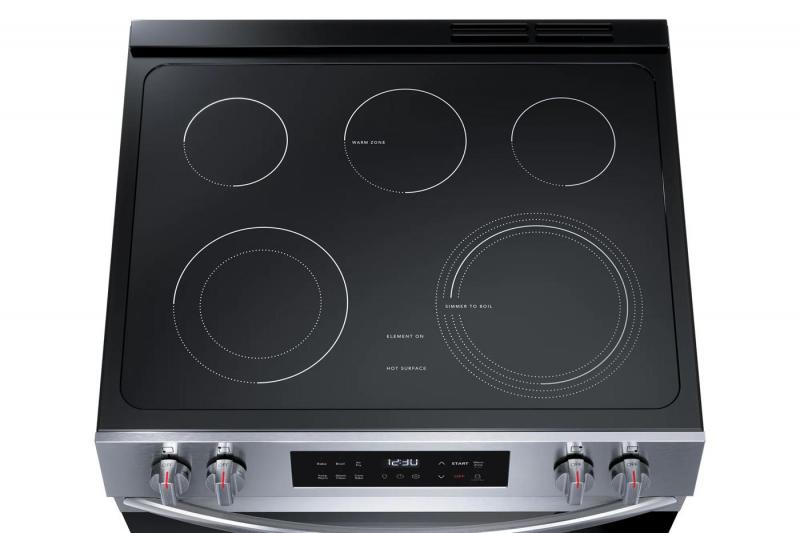

Five Element Cooktop
Designed to meet all of your cooking needs with a powerful 3,200-Watt Quick Boil Element, 2-in-1 Dual Expandable Element, and a convenient Keep Warm Zone
30-Minute Steam Clean
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
Convection Bake
Get faster, more even baking results with our fan convection baking system.
Powerful 3,200-Watt Quick Boil Element
Experience faster boil times and more powerful cooking with our powerful, 3,200-Watt element
2-in-1 Dual Element
Our 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware.

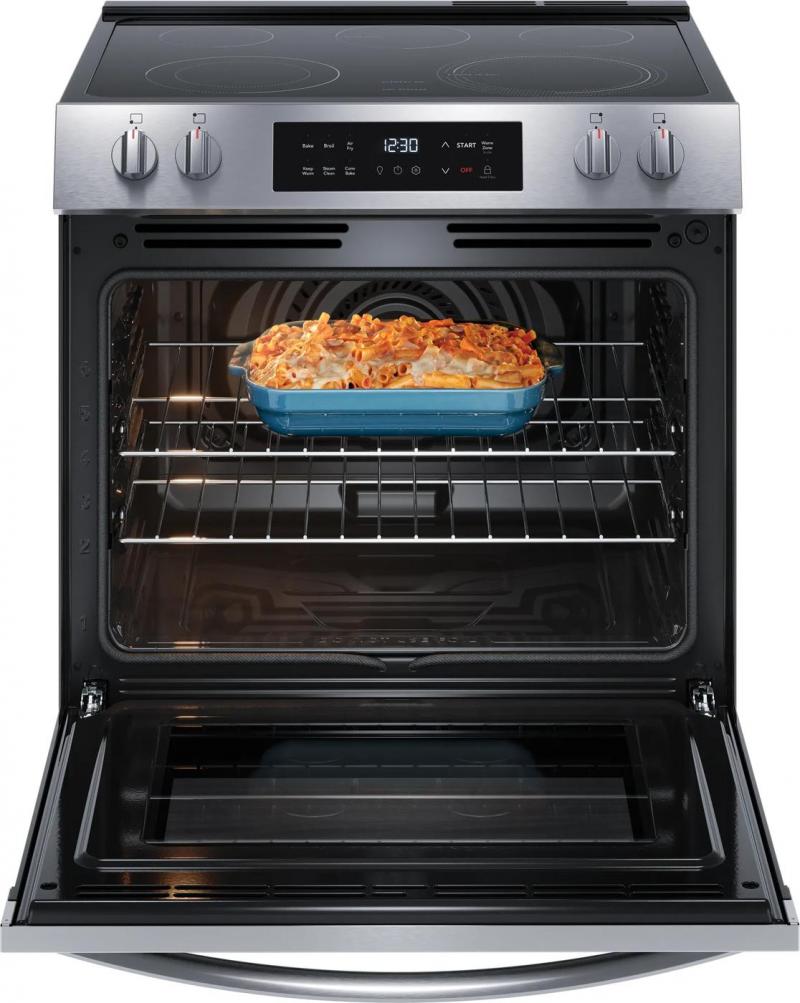

Large Oven Capacity
Cook more at once with our large, 5.3 cu.ft. capacity oven.
Extra Wide Store-More™ Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready
Hidden Bake Element
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.

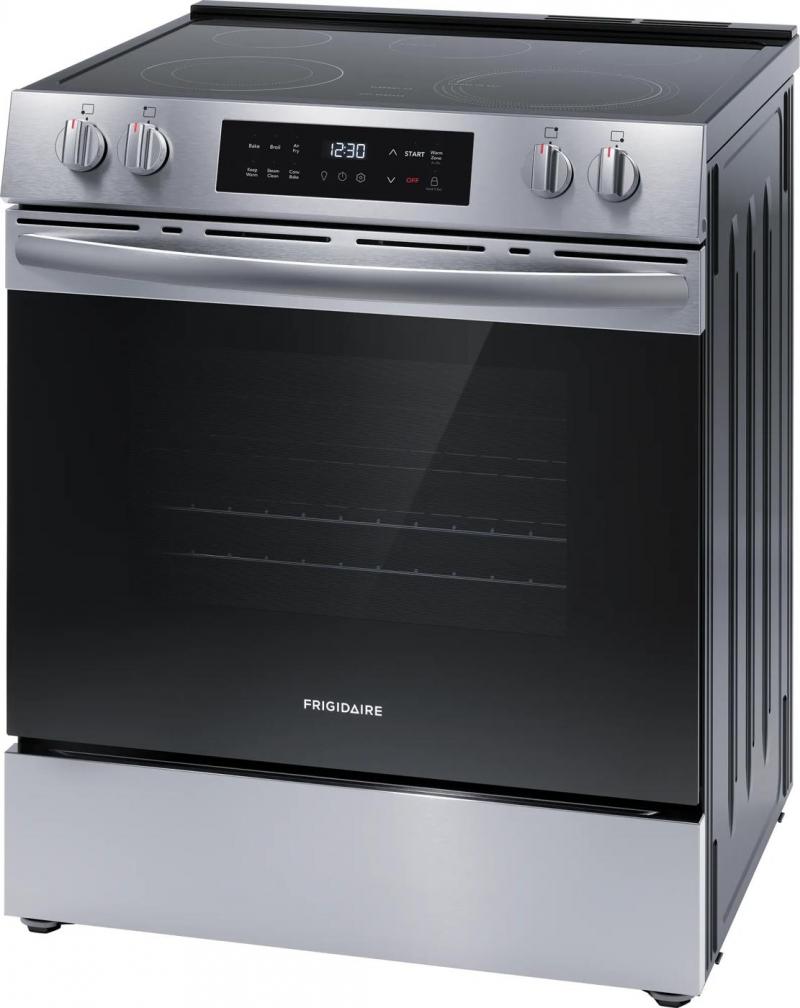

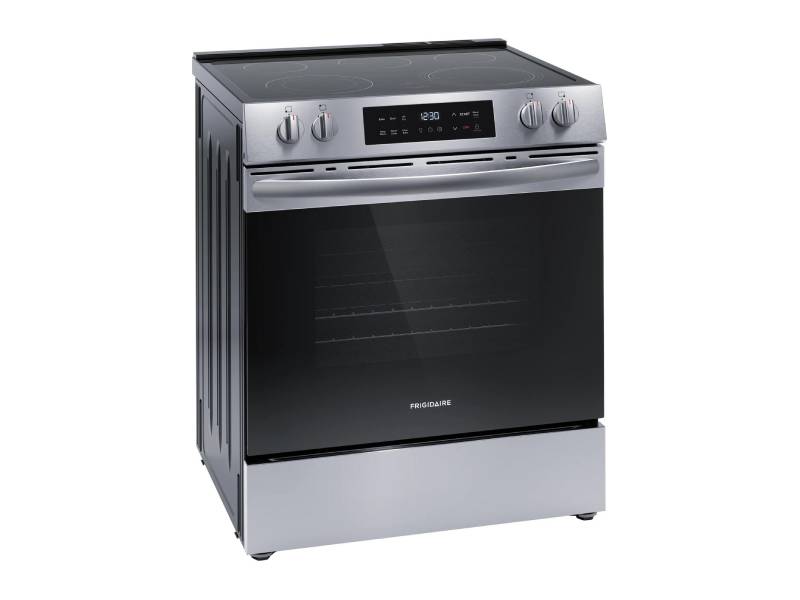

Built-in Design
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.1 1
| Right to Repair Details | |
|---|---|
| Right to Repair | Partially Available - Visit frigidaire.ca/right-to-repair for more information |
| COOKTOP | |
| Cooking Surface Type | Smooth |
| Element On Indicator Light | Yes |
| Hot-Surface Indicator Light | Yes |
| Keep Warm Zone Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 9" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 6" |
| Left Front Element Burner Size (Large) | 9" |
| Left Rear Element Burner Size | 6" |
| Right Front Element Burner | 3200 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner (Small) | 1400 Watts |
| Left Front Element Burner (Large) | 3000 Watts |
| Left Rear Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |

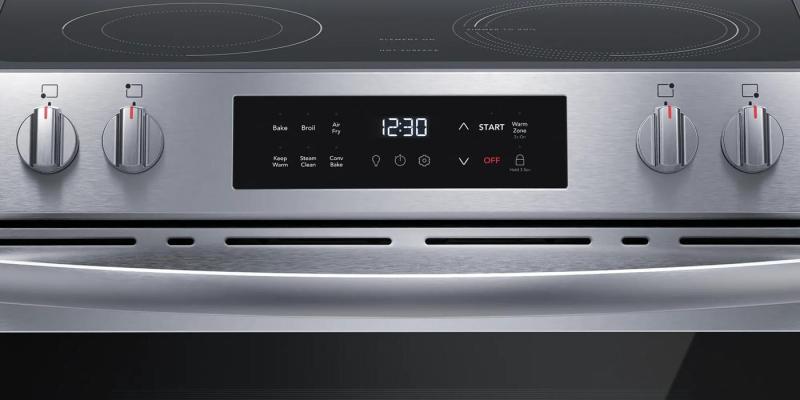

| Cooking Controls | |
| Air Fry | Yes |
| Bake | Yes |
| Broil | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Keep Warm | Yes |
| Lockout | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Set Clock | Yes |
| Start | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Up / Down Arrow | Yes |
| Warm Zone | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| OVEN | |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Bake System | Yes |
| Broil Element | 3500 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning Type | Yes |
| Convection Cooking Technology | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| DRAWER | |
| Drawer Type | Storage |
| Controls | |
|---|---|
| Control Lock | Yes |
| Display | |
| Control Location | Front |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | LED |
| Dimensions and Volume | |
| Minimum Height | 35 5/8" |
| Maximum Height | 36 5/8" |
| Width | 30" |
| Depth | 26" |
| Depth With Door 90° Open | 47 5/16" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 18 1/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Capacity | 5.3 Cu. Ft. |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 120 Volts | 9 Amps |
| Amps @ 240 Volts | 12 Amps |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 147 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| cUL Listed | Yes |
| ENERGY STAR Certified | Yes |
