Luminous LED Lights
Shine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.

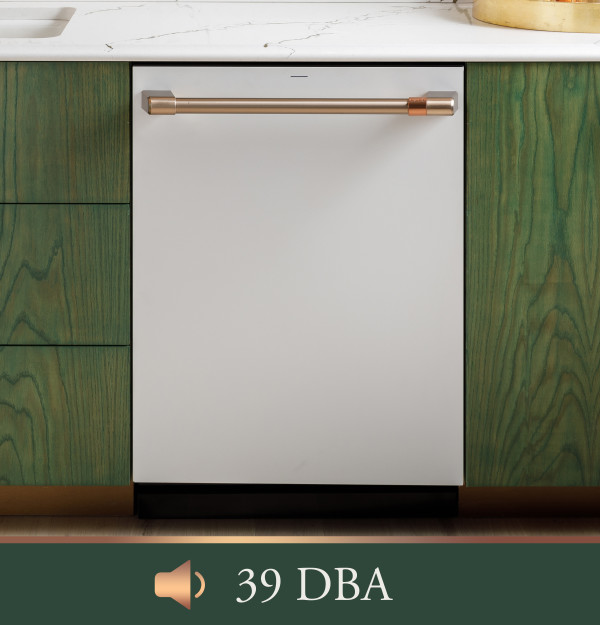

39 dBA Dishwasher
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.
CustomFit Top Rack with Ultra Wash
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

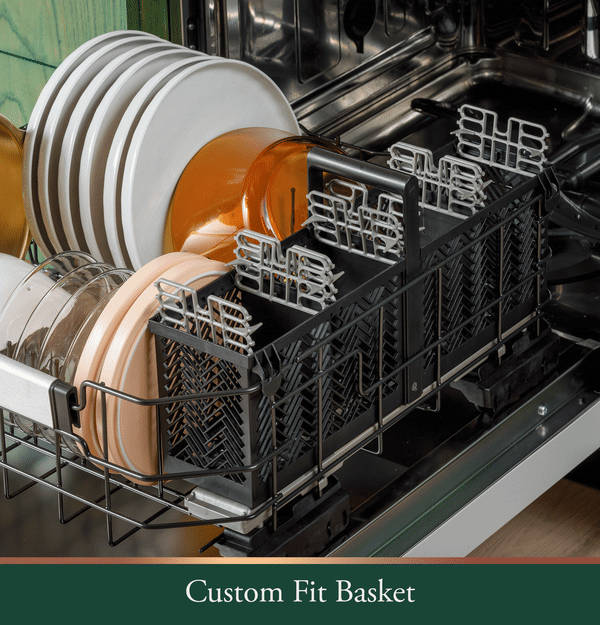

CustomFit Basket with Ultra Wash
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

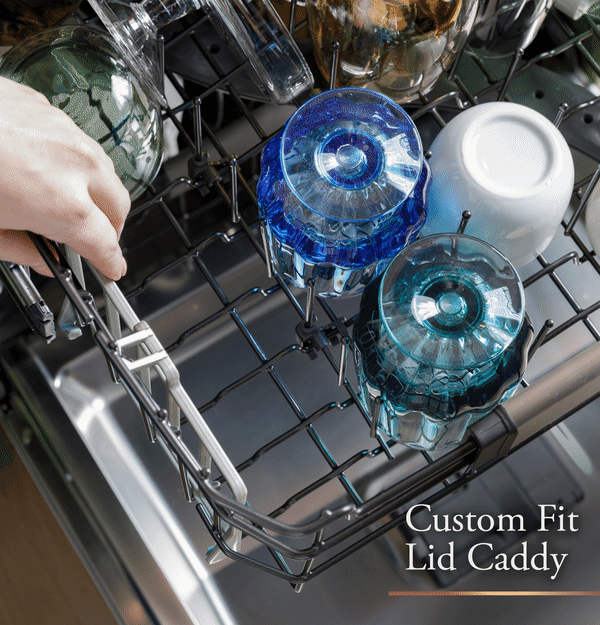

CustomFit Lid Caddy
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.
Smart Features Powered by SmartHQ™
Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.
| Accessories | |
|---|---|
| Optional Kits | CXADTH1PVBZ Brushed Bronze, CXADTH1PVCU Brushed Copper, CXADTH1PVBT Brushed Black, CXADTH1PVCG Brushed Brass, CXADTH1PVFB Flat Black, CXADTH1PVSS Brushed Stainless |
| Appearance | |
| Colour | Matte Black |
| Control Panel Color | Matte Dark Slate, Fingerprint Resistant |
| Door Appearance | Full-length flat door |
| Door Style | Long Door with Top Controls |
| Handle | Café™ |
| Handle Color | Brushed Stainless |
| Handle Design | Customizable |
| Installation | Side Installation or Top Installation Included, Built-Up Floor Capable, Flush Cabinet Installation |
| Economical / Quiet | |
| Door Insulation | Insulation, Mastic |
| Motor Type | Variable Speed |
| Outer Wrap | Full-wrap Blanket, Bitumen |
| Quiet Features | Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim |
| Quiet Package | 39 dBA |
| Features | |
|---|---|
| Additional Protection | Active Flood Protect, Leak Defense with Active Flood Protect |
| Connected Capabilities | Amazon Alexa, Google Home |

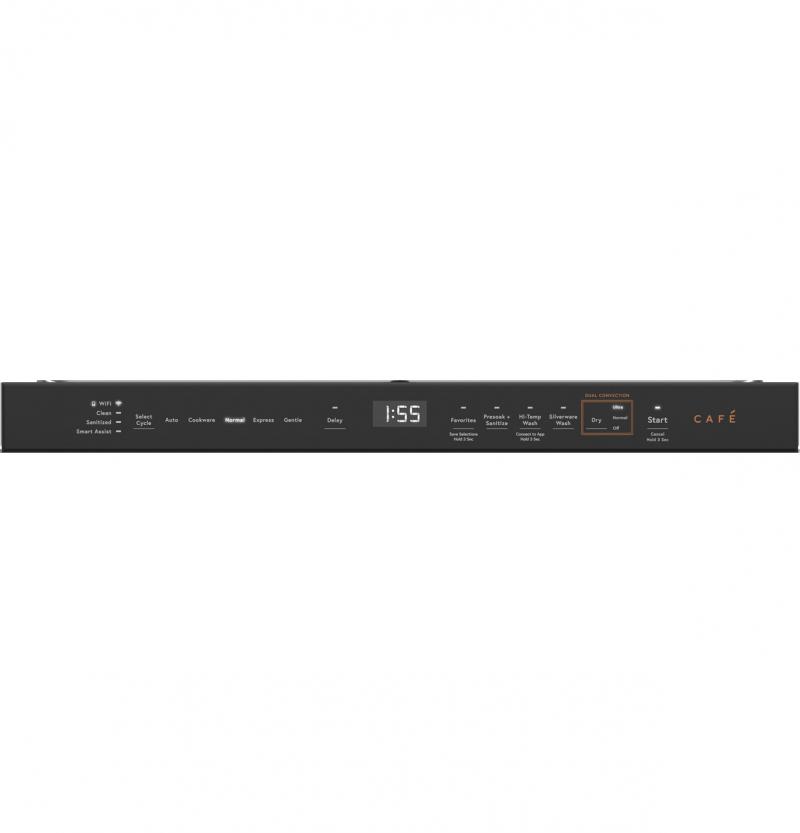

| Control Location | Top Controls, Cap Touch Controls, 8 Touchpads |
| Cutlery Tray | One piece removable 3rd rack |
| Dishwasher Control Features | Cycle Countdown with Bi-Color LED Status Light on door, Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled, Last Cycle Memory, Audible End-of-Cycle Signal |
| Dishwasher Cycles | Auto Wash, Cookware, Normal, Gentle, Express, Cascade Platinum Plus (on app) |
| Dishwasher Drying Features | Dual Convection Ultra Dry, Ultra/Normal/Off, Fan Assist Dry |
| Dishwasher Options | Delay Start 1-12 Hr., Bottle Wash (on app), Wash Zones/Half Load (on app), Favorites (on app), WiFi/Remote Enabled, Sabbath Mode, Start/Cancel, Favorites, Presoak + Sanitize (Certified to NSF Standard 184), Hi-Temp Wash, Silverware Wash, Heated Dry Off, Normal Dry, Ultra Dry, Lock Controls |
| Dispenser | Rinse Aid with Indicator and Adjustment, Electronic Low Rinse Aid Sensor |
| EcoBalance Compatible | Yes |
| Exterior Style | Traditional |
| Floor Protection | Leak Defense with Active Flood Protect - Leak Pan with Sensor |
| Interior Lighting | Yes - 4 - Café Expression |
| Latch | Pull with Handle |
| Leveling System | 3 Point Leveling |
| Lower Rack | Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines, 2 Rack handle |
| Number of Cycles | 5 |
| Number of Options | 10 |
| Number of Place Settings | 16 |
| OU Certified | No |
| Product Type | Built-In |
| Rack Color | Black Pearl |
| Rack Features | Lid Manager, Ball-Tipped Tines, Adjustable Upper Rack, Full Extension Slides - Upper, Cafe Flex Silverware Basket |
| Racking Material | Nylon |
| Racking System | Full 3rd rack |
| Sabbath Mode | Yes |
| Sensor | Clean Sensor |
| Showroom Power Mode | Yes |
| Smart Assist | Yes |
| Style | Built-In Top Control |
| Top Rack/3rd Rack | Washing, Sliding 3rd Rack w/ removable caddy |
| Tub and Door Liner | Stainless Steel |
| Tub Design | Tall Tub |
| Upper Rack | Premium Height Adjustable, Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines, Fixed tines with Bottle Jets, 1 Rack handle, Smooth Glide Upper Rack, Lid Manager |
| Wash Arms | 4 Wash Levels, Lower, Middle, Upper, 3rd Rack, Bottle Jets, Deep Clean Silverware Jets |
| Wash System Features | Variable Speed Dual Pumps and Motors, Middle Wash Arm, Lower Wash Arm, Automatic Temperature Control, Drain Pump, Hard Food Disposer with removable filter, Deep Clean Silverware Jets, 90+ Spray Jet Wash System, Hidden Heater, Automatic HotStart, Bottle Jets (4) |
| Wash System | 4-Level, 800 Series |
| Water Filtration System | 100% Filtration with Hard Food Disposer and Removable Filter |
| WiFi Connect | Built-In |
| Power / Ratings | |
| Calrod Heater Watts | 1200/400 |
| Electrical Requirements | 120V |
| Hertz | 60 |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Volts/Hertz/Amps | 120V; 60Hz; 10.2A |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
