| Technical Overview |
|---|
| Watts | 9,360 W |

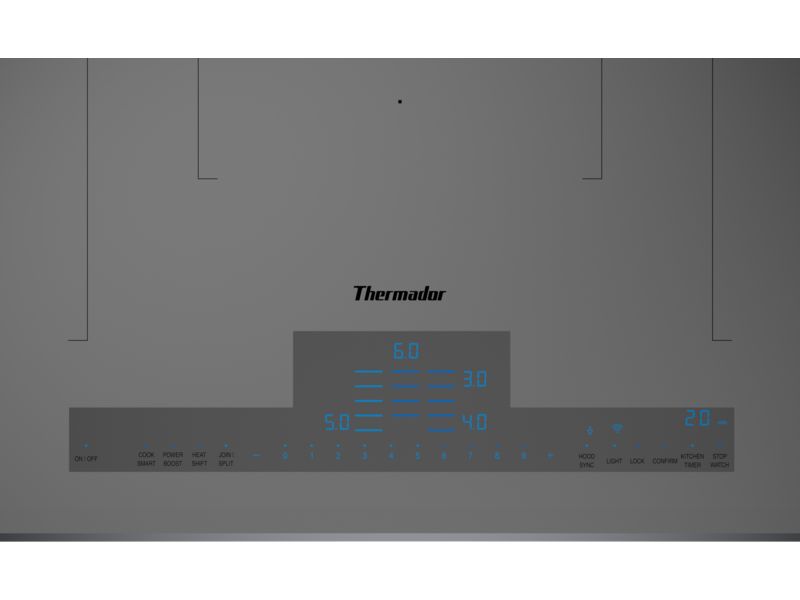

| Control Type | Electronic |
| Width of the product | 940 mm |
| Number of electric cooking zones | 5 |
| Heating Technology | Electric |
| General |
|---|
| Cooktop type | Induction cooktop |
| Self-sufficient cooker control | Self-sufficient induction hobs |
| Type of appliance width | 90 cm |
| Number of Burner | 5 |
| Dimensions of the heating elements | 1 x (28,5 x 24,0 cm), 1 x (38,0 x 21,5 cm), 1 x (38,0 x 21,5 cm) |
| Power of the heating elements | 1 x 2.2 KW, 4 x 2.2 (3.6) kW |

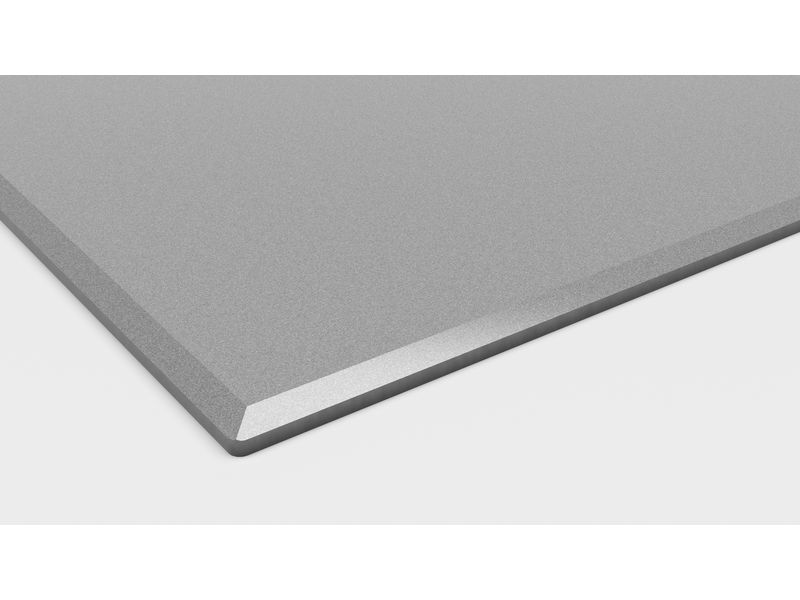

| Frame type | Facet |
| Colour | Titanium |
| Energy consumption of hob | 185.0 Wh/kg |
| Construction type |
|---|
| Installation type | Built-in |
| Number of electric cooking zones | 5 |
| Type of frame | 4 Facettes |
| Installation Type | Built-in |
| Number of Burner | 5 |
| Number of electric elements | 0 |
| Number of gas burners | 0 |
| Number of halogen elements | 0 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and Weight |
|---|
| Dimensions | 98 x 940 x 540 mm |
| Minimum height for installation | 505 mm |
| Maximum height for installation | 508 mm |
| Minimum width for installation | 883 mm |
| Maximum width for installation | 886 mm |
| Depth for installation | 98 mm |
| Appliance height above the worktop | 10.0 mm |
| Cooking zone 1 |
|---|
| Location of 1st heating element | front left |
| Cooking zone 2 |
|---|
| Dimension of 2nd heating element | 380 x 215 mm |
| Location of 2nd heating element | center left |
| Power of 2nd heating element (W) | 3.3 kW |
| Type of 2nd heating element | Induction heating |
| Energy consumption of 2nd heating element | 185.0 Wh/kg |
| Cooking zone 3 |
|---|
| Location of 3rd heating element | back left |
| Cooking zone 4 |
|---|
| Location of 4th heating element | middle back |
