Features

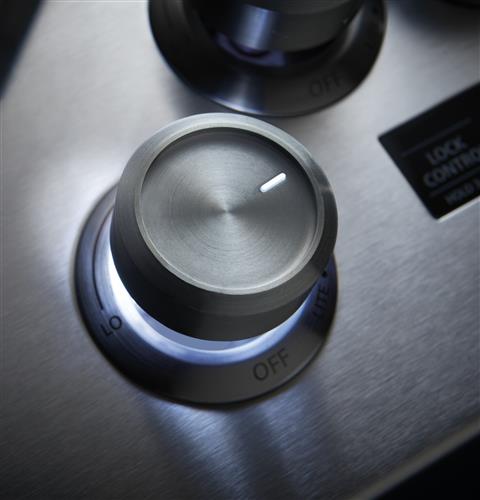

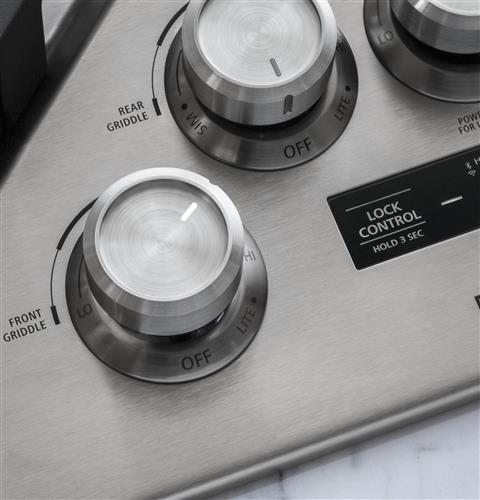

Precision knobs
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings

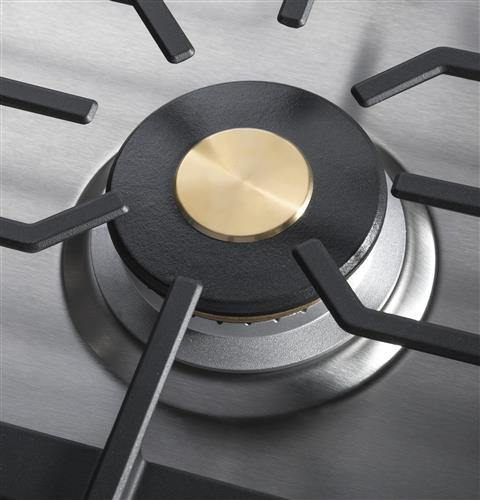

Brass burners accents
For the ultimate in elegant styling

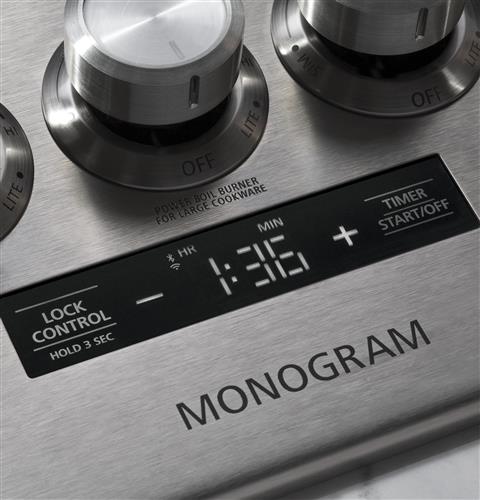

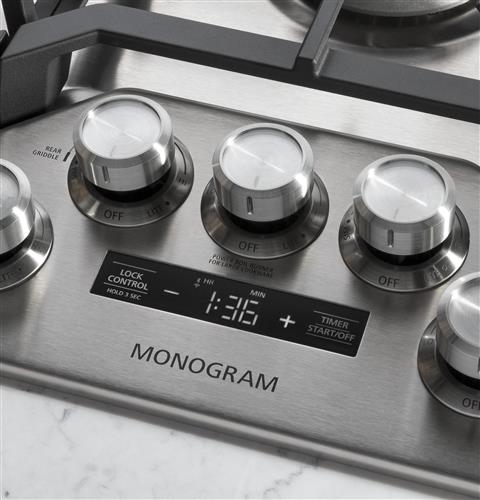

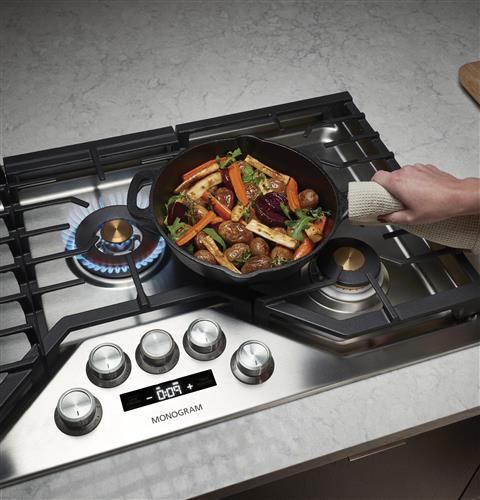

Electronic kitchen timer
Built in to the cooktop for meal preparation

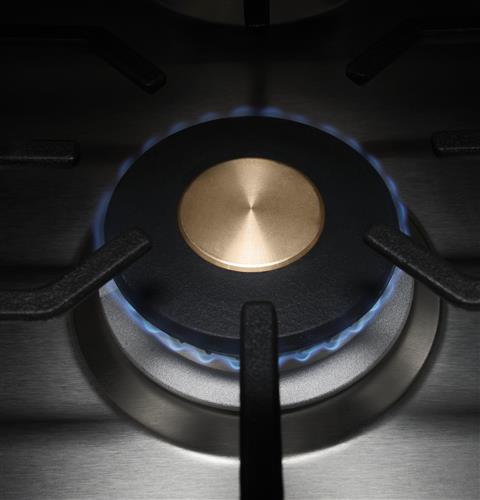

Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

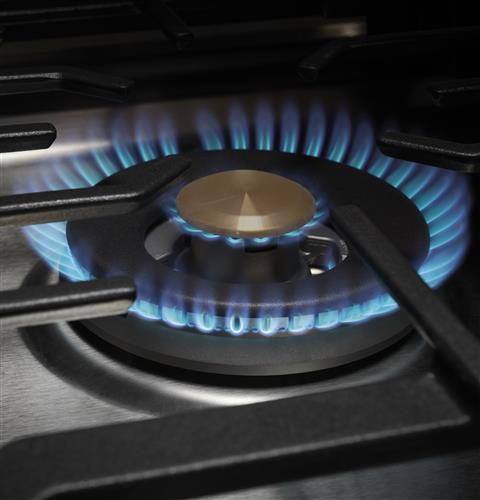

Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut ing

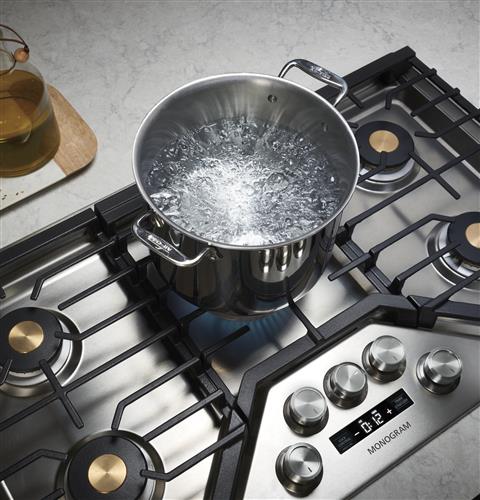

High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs

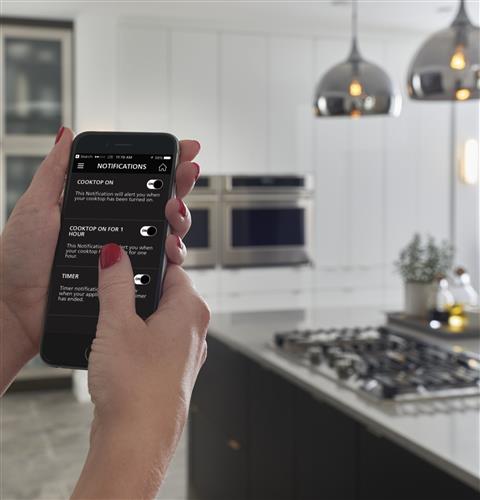

Remote connectivity via WiFi
Allows you to wirelessly control gas cooktop functions from your smartphone
Bluetooth connectivity
Bluetooth technology pairs your Monogram gas cooktop and hood for proper cooking ventilation

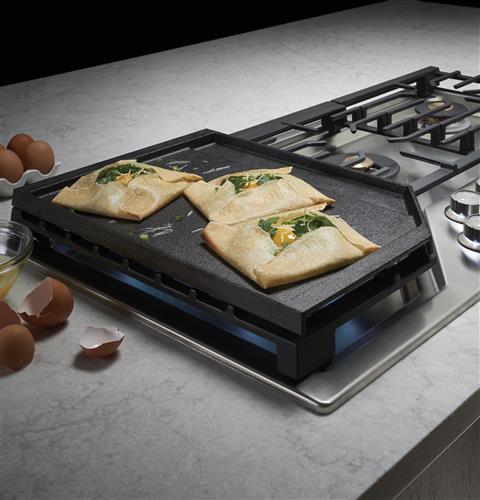

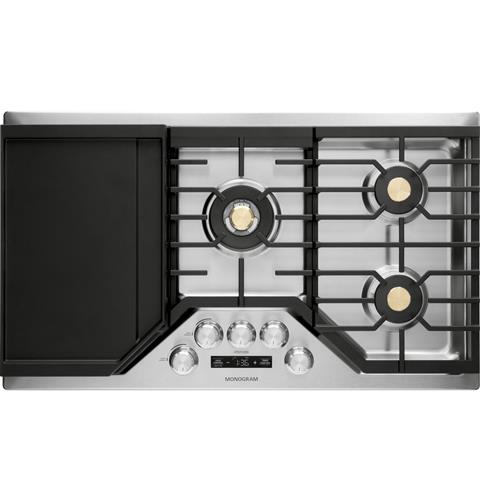

Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
| Inputs & Outputs | |
|---|---|
| Number of Burner | 5 Sealed |
| Surface | Stainless Steel |
| Ignition System | Direct Electronic Ignition |
| Automatic Re-Ignition | Yes |
| Burner - Left Front | 10,000 BTU Dual Brass Center |
| Burner - Left Rear | 10,000 BTU Dual Brass Center |
| Burner - Right Front | 12,000 BTU Dual Brass Center |
| Burner - Right Rear | 10,000 BTU Dual Brass Center |
| Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
| 140 Deg. Simmer Burner | 5 |

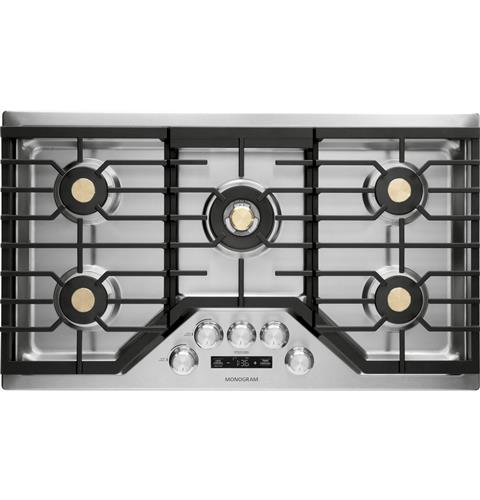

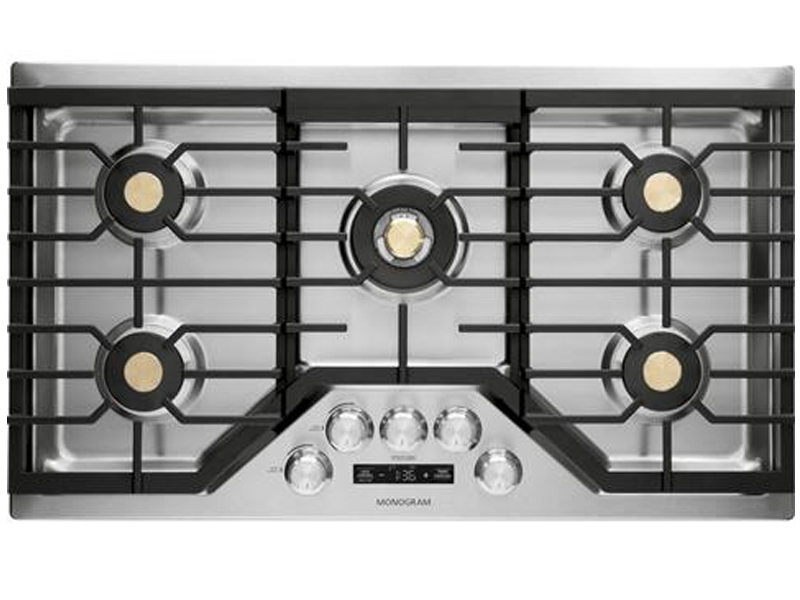

| Configuration | 5 Sealed Cooktop Burners |
| Dual Flame Stacked Burners | 5 |
| Control Type | Glass Touch Controls |
| Cooktop Control Features | Control Lock Capability, Kitchen timer |
| Control Location | Front Center |
| WiFi Connect | Built-In |
| Burner Indicator Light | Yes - in Knob |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
| Heating Technology | Natural Gas (factory set) |
| Valves (Degree of Turn) | 270 |
| Appearance | |
| Color Appearance | Stainless Steel |
| Control Knobs | Stainless Steel |
| Installation | Over Advantium Built-In 120V, Over Single Wall Oven (except Single-Double), Over Warming Drawer |
| Weights & Dimensions | |
| Approximate Shipping Weight | 65.0 |
| Cabinet Width | 36.0 |
| Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
| Net Weight | 59.0 |
| Overall Depth | 21.0 |
| Overall Height | 3.25 |
| Overall Width | 36.0 |
| Power / Ratings | |
| Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
| Accessories | |
|---|---|
| Conversion Kit | Included - Nat. Gas to LP |
| Cooktop Cleaning | Included |
| Griddle | JXGRIDL236 (Included) |
| WARRANTY | |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| FILTER | |
| App Filter - WiFi Connect | Built-In |
