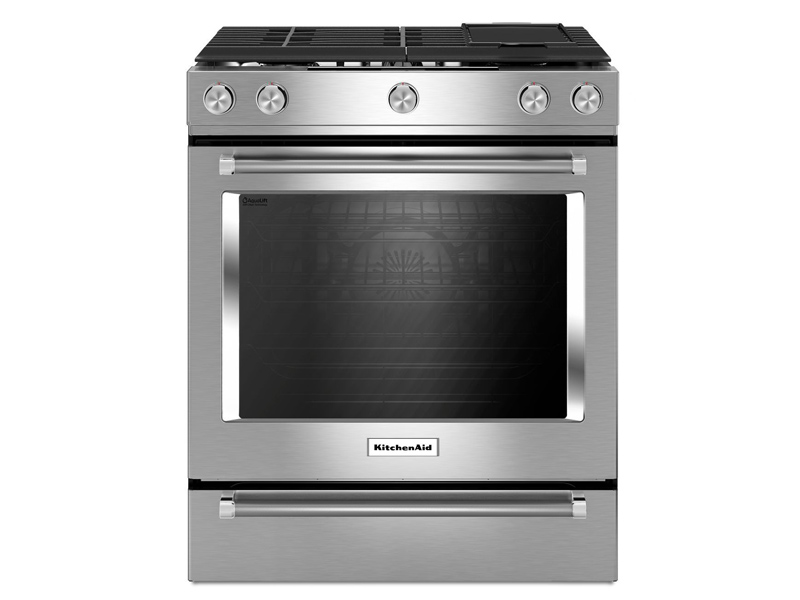

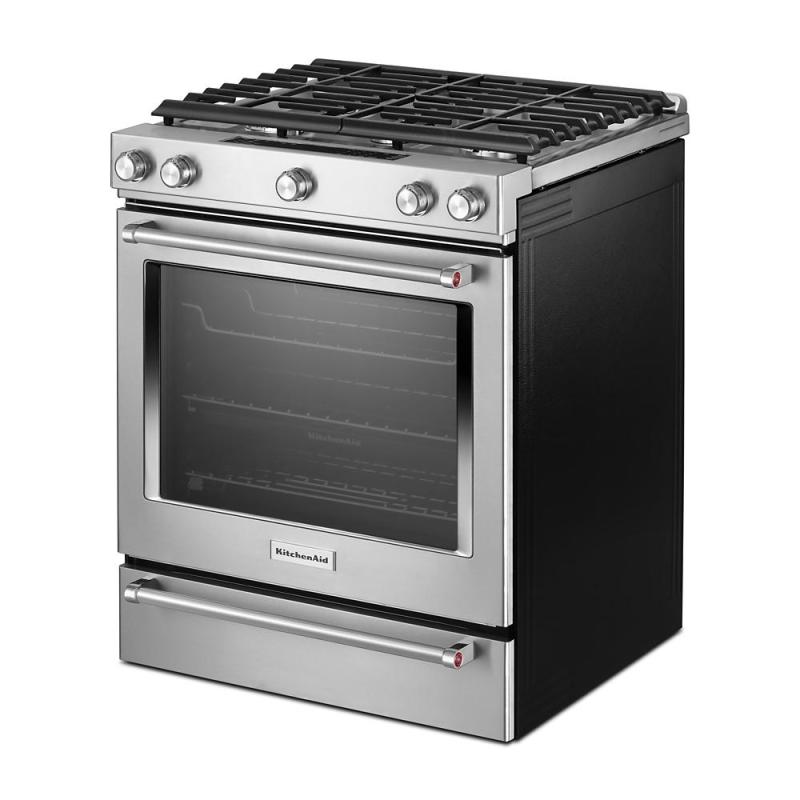

30-Inch 5 Burner Front Control Gas Convection Range with Baking Drawer
This versatile gas range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range features flawless cooking results from Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated to, and stays at, the perfect temperature.*Max Capacity Rack sold separately, W10554006. Griddle sold separately, W10432544
Features

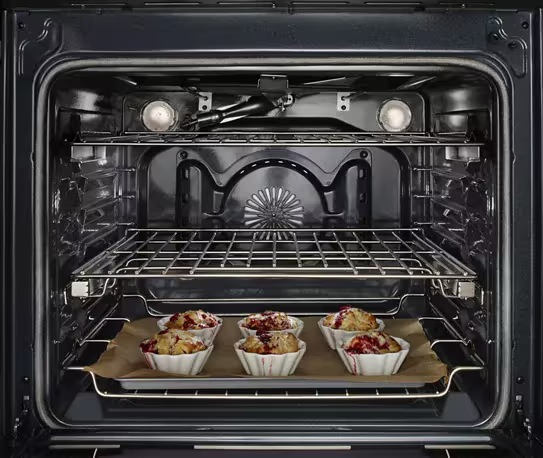

Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.

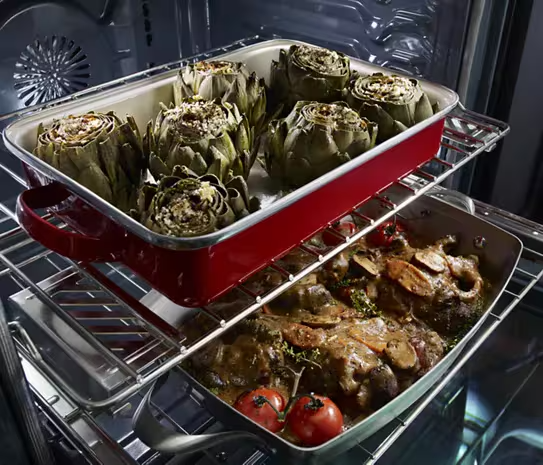

Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
EasyConvect™ Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
FIT Guarantee
Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".

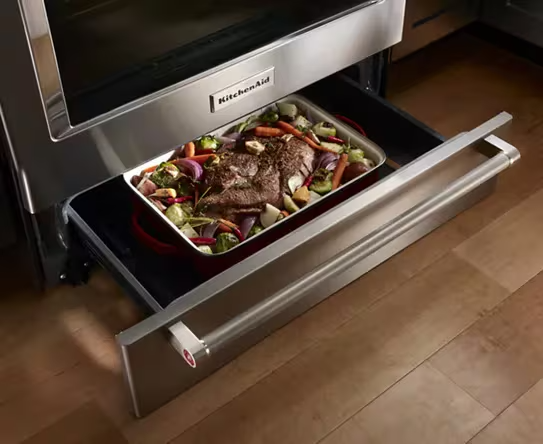

Baking Drawer
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.
Additional Features
6.5 cu ft Total Capacity
This gas slide-in range provides an extra-large cooking Capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.
5 burners (5k, 8k, 9.2k, 15k and 19k)
Provides the perfect range of cooking power from 5,000 to19,000 BTU, so you can go from a rolling boil to a delicate simmer.
Aqualift®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.

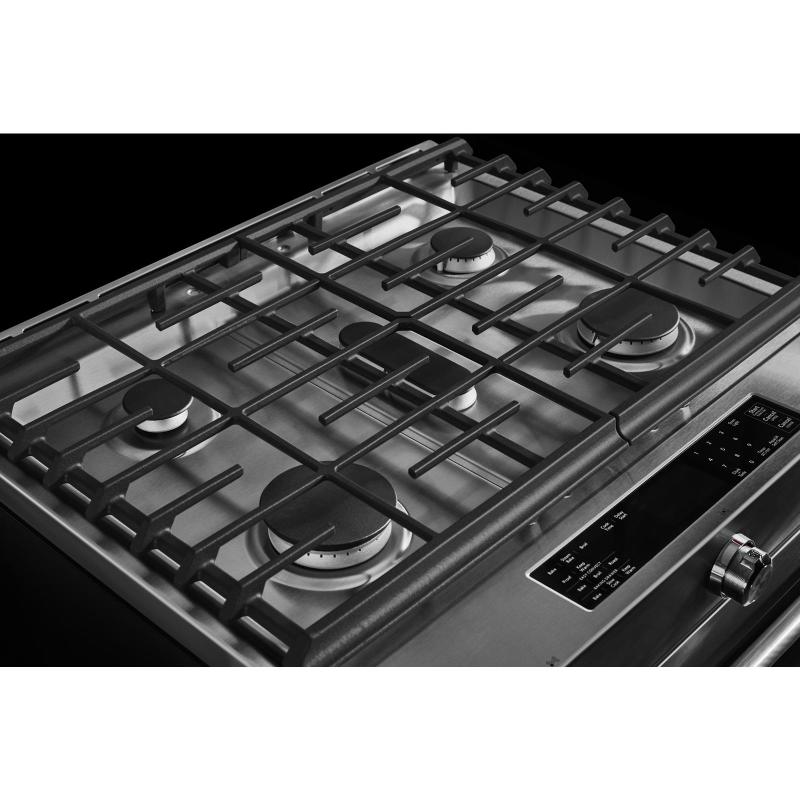

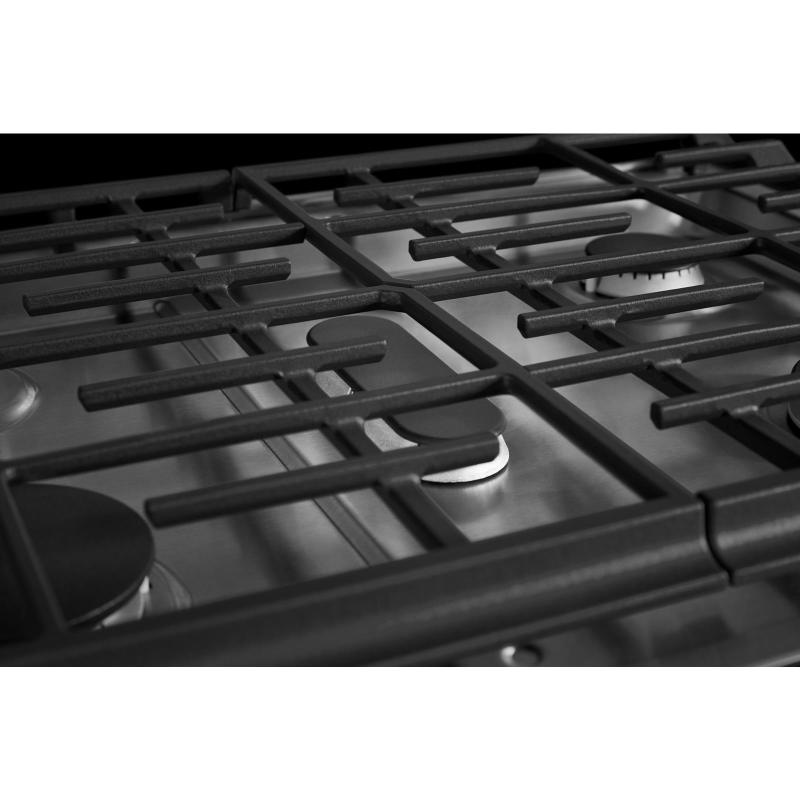

Continuous Interlocking Grates
Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.
Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.

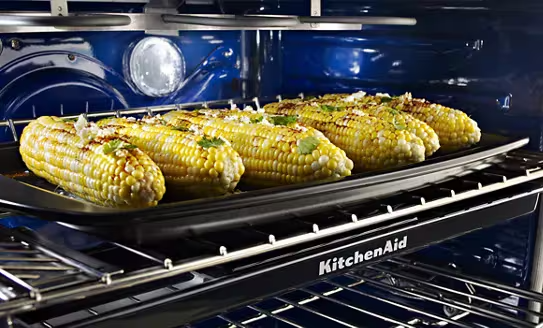

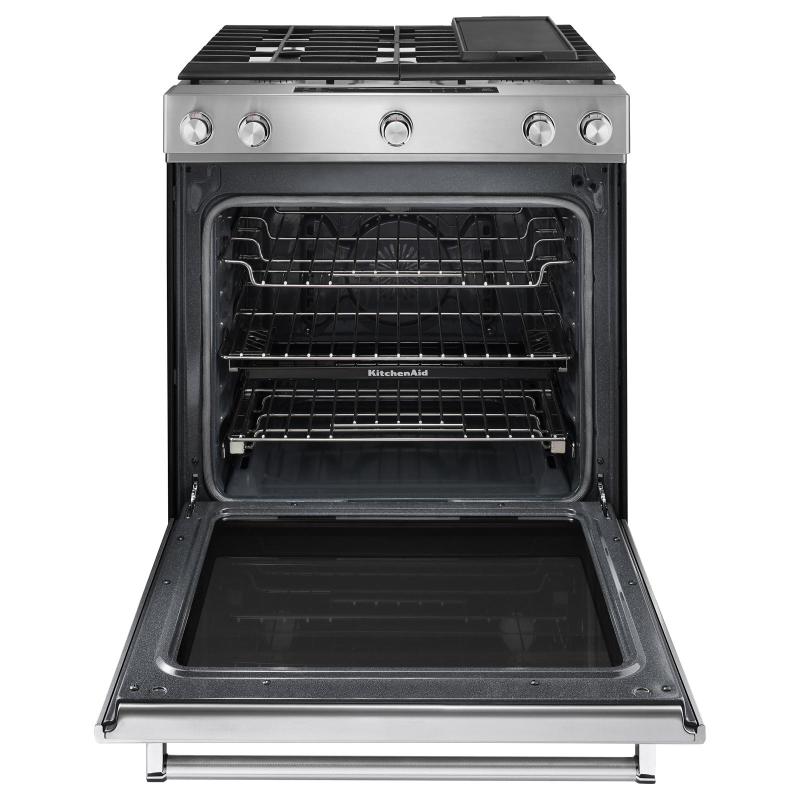

SatinGlide® Max Racks
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Max Capacity Rack (Sold separately)
The Max Capacity Rack dips down so you have plenty of room for cooking your largest dishes.
| Certifications | |
|---|---|
| ADA Compliant | ADA Height and Operation Compliant |
| UL | Yes |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| Cooktop Details | |
| Auto Re-ignition | No |
| Cooktop Control Location | Front |

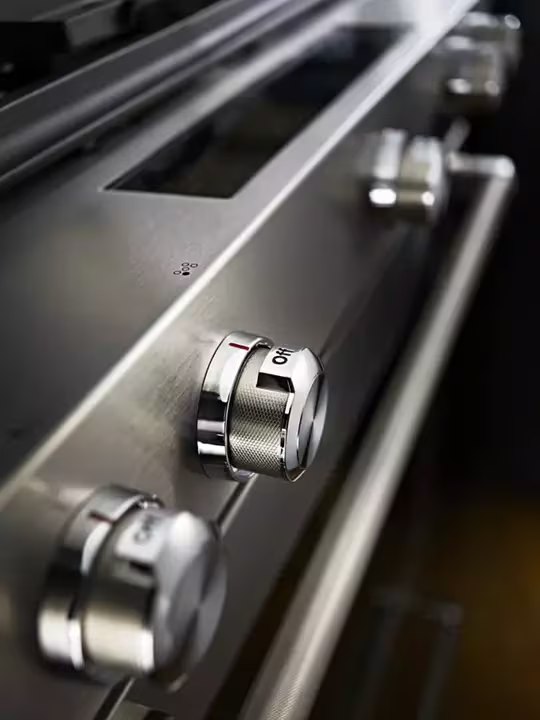

| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Color Coordinated |
| Griddle Included | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Électroniques |
| Oven Cavity Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 18,000 BTU |
| Broiler Element Power | 13000 BTU |
| Broiler Location | Top of Oven |
| Convection Element Power | 900 W, 900 W, 900 W, 900 W |
| Convection Element Type | Single-Fan |
| Convection Functions | Bake, Broil, Roast |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 7 |
| Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Steam Rack, 1 Gliding Roll-out Rack |
| Details | |
| Fuel Type | Gas |
| LP Convertible | Yes |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
| Dimensions | |
|---|---|
| Capacity | 183.95 l, 6.5 cu. ft. |
| Common Size | 76.20 cm, 30 in |
| Depth | 73.34 cm, 28-7/8 in |
| Depth Closed Excluding Handles | 66.99 cm, 26-3/8 in |
| Depth Closed Including Handles | 73.34 cm, 28-7/8 in |
| Depth With Door Open 90 Degree | 123.82 cm, 48-3/4 in |
| Gross Weight | 106.59 kg, 235 lbs |
| Height | 91.44 cm, 36 in |
| Net Weight | 97.52 kg, 215 lbs |
| Oven Interior Depth | 52.39 cm, 20-5/8 in |
| Oven Interior Height | 56.20 cm, 22-1/8 in |
| Oven Interior Width | 61.28 cm, 24-1/8 in |
| Width | 75.88 cm, 29-7/8 in |
| Element/Burner Details | |
| Center Rear Element-Burner Power | 8000 BTU |
| Center Rear Element-Burner Type | Sealed Burner |
| Cooktop Element Style | Gas Burner |
| Left Front Element-Burner Power | 19,000 BTU |
| Left Front Element-Burner Type | Sealed Burner |
| Left Rear Element-Burner Power | 5000 BTU |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Burner | 5 |
| Number of Grates | 2 |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Front Element-Burner Type | Sealed Burner |
| Right Rear Element-Burner Power | 9200 BTU |
| Right Rear Element-Burner Type | Sealed Burner |
| Display Color | Red, White |
| Electronic Display Type | igital |
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
| Grate Details | |
| Number of Grates | 2 |
| Electrical | |
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
| Volts | 120 |
| Features | |
| Range Features | ADA Compliant, Baking Drawer, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, SatinGlide™ Racks, Steam Rack |
