Key Features
Baking drawer
Even-Heat™ True Convection
Steam Rack
Overview
Product Description

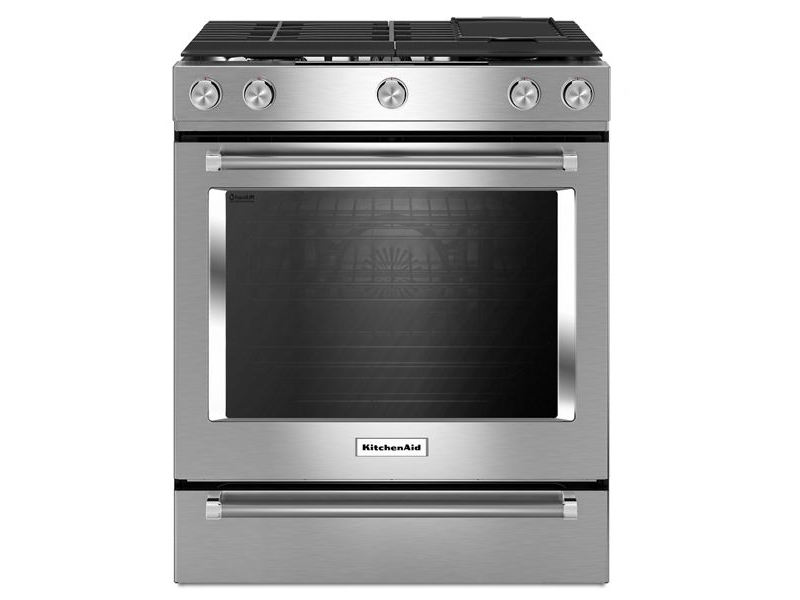

KitchenAid® 30-Inch 5-Burner Dual Fuel Convection Front Control Range with Baking Drawer
This versatile dual fuel range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range features flawless cooking results from Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated to, and stays at, the perfect temperature.
*Max Capacity Rack sold separately, W10554006. Griddle sold separately, W10432544
Features

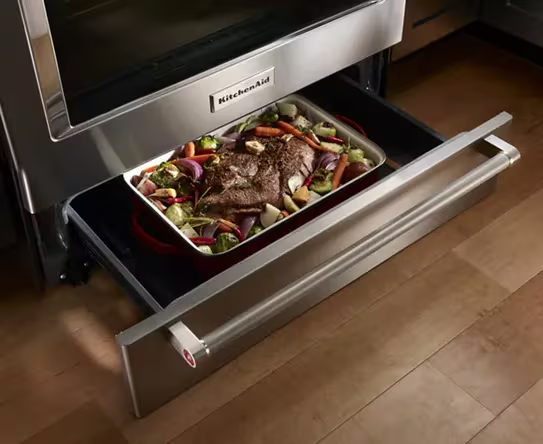

Baking drawer
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes

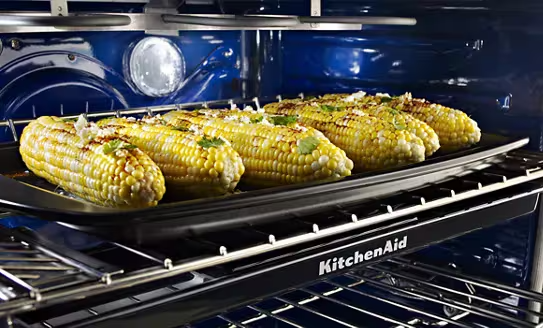

Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Additional Features
Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
7.1 cu ft total capacity
This electric freestanding range provides an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.

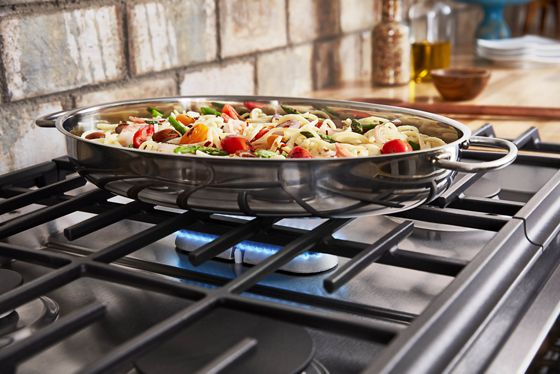

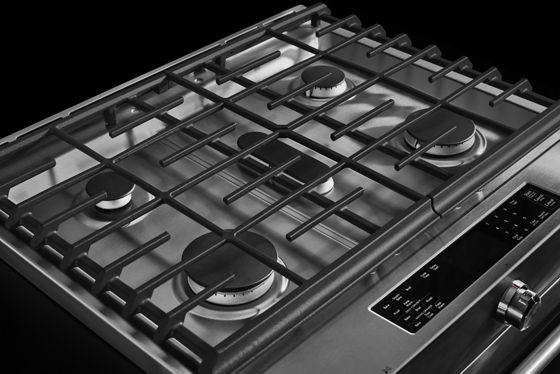

5 burners (5k, 8k, 9.2k, 15k and 19k)
Provides the perfect range of cooking power from 5,000 to 19,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Aqualift®
Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

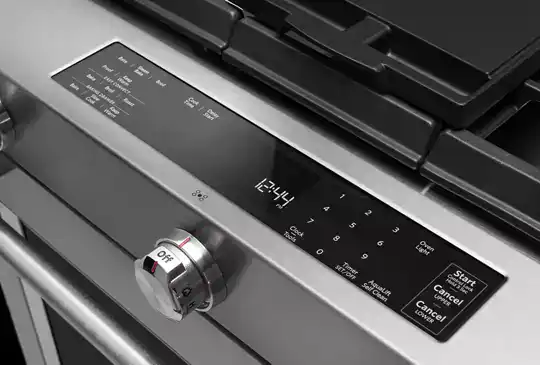

Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.
Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Certifications
ADA Compliant
ADA Height and Operation Compliant
UL
Yes
Cooktop Details
Auto Re-ignition
No
Cooktop Surface Color
Color Coordinated
Griddle Included
No
Ignition Type
Électroniques
Exterior Details

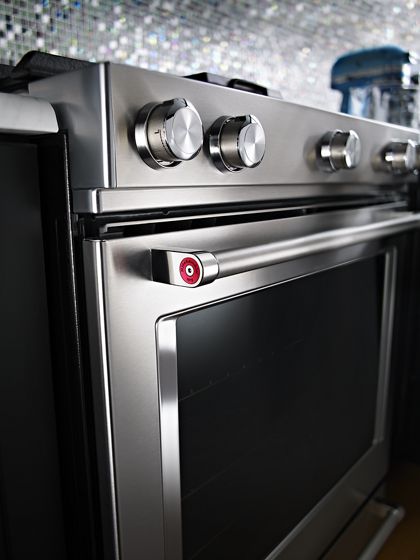

Door Type
Metal & Glass
Handle Color
Stainless Steel
Handle Material
Metal
Handle Type
Towel Bar

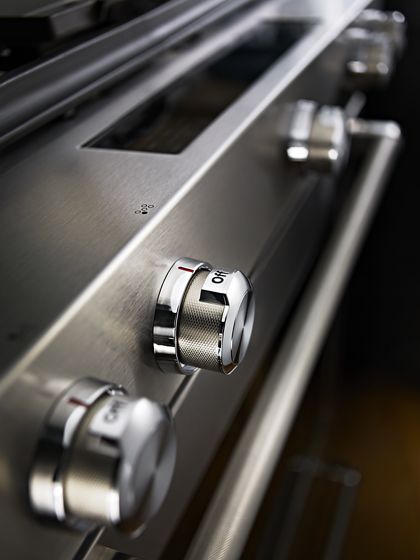

Knob Color
Stainless Steel
Knob Type
Metal
Oven Control Type
Electronic Touch
Oven Window Size
Large
Dimensions
Capacity
200.93 l, 7.1 cu. ft.
Common Size
76.20 cm, 30 in
Depth
73.34 cm, 28-7/8 in
Depth Closed Excluding Handles
66.99 cm, 26-3/8 in
Depth Closed Including Handles
73.34 cm, 28-7/8 in
Gross Weight
90.72 kg, 200 lbs
Height
91.44 cm, 36 in
Net Weight
82.55 kg, 182 lbs
Oven Interior Depth
51.12 cm, 20-1/8 in
Oven Interior Height
56.20 cm, 22-1/8 in
Oven Interior Width
61.28 cm, 24-1/8 in
Width
75.88 cm, 29-7/8 in
Oven Cavity Details
Automatic Convection Conversion Temperature Adjust
Yes
Bake Element Power
3600W
Broiler Element Power
4000W
Broiler Location
Top of Oven
Convection Element Power
3200 W, 3200 W, 3200 W, 3200 W
Convection Element Type
Single-Fan
Convection Functions
Bake, Broil, Roast
Hidden Bake Element
Yes
Interior Color
Grey
Number of Oven Lights
2
Number of Oven Racks
2
Number of Rack Guides
7
Cleaning Type
AquaLift® Self Clean
Oven Cooking System
Convection
Oven Light Type
Incandescent
Oven Rack Type
1 Steam Rack, 1 Gliding Roll-out Rack
Element/Burner Details
Center Front Element-Burner Power
8000 BTU
Center Rear Element-Burner Size
6in.
Left Front Element-Burner Power
19,000 BTU
Left Front Element-Burner Size
12in./9in./6in.
Left Rear Element-Burner Power
5000 BTU
Left Rear Element-Burner Size
6in.
Number of Burner
5
Number of Grates
2
Right Front Element-Burner Power
15,000 BTU
Right Front Element-Burner Size
10in.
Right Rear Element-Burner Power
9200 BTU
Right Rear Element-Burner Size
6in.
Details
Fuel Type
Dual Fuel
Oven Configuration
Single Oven
Power On Indicator Light
Yes
Power Outage Compatible
No
Range Configuration
Slide-In
Range Type
Slide-in
Controls
Display Color
Red, White
Electronic Display Type
Digital
Grate Details
Grate Details
Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish
