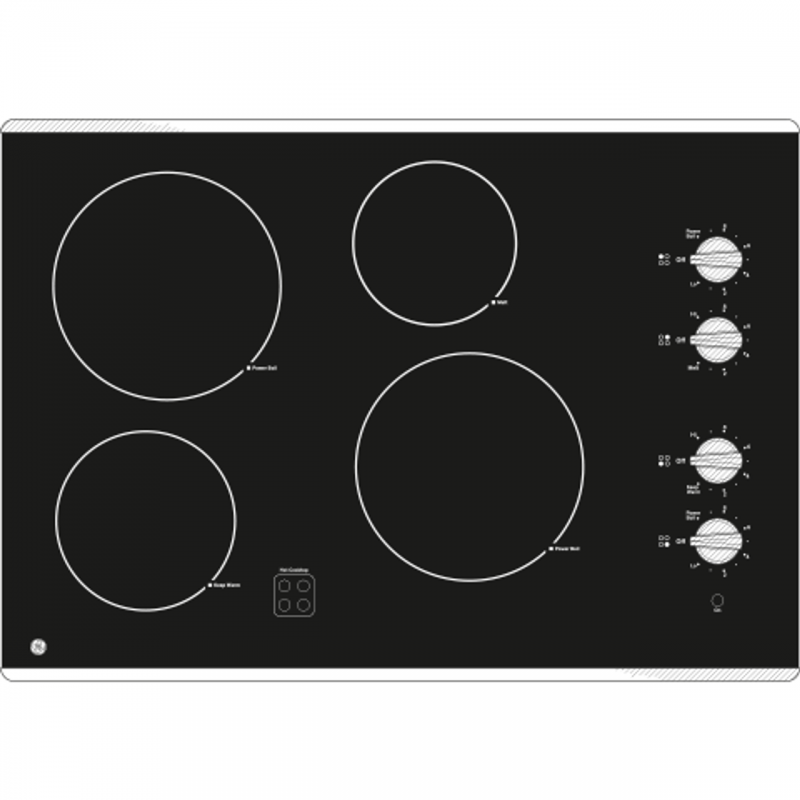

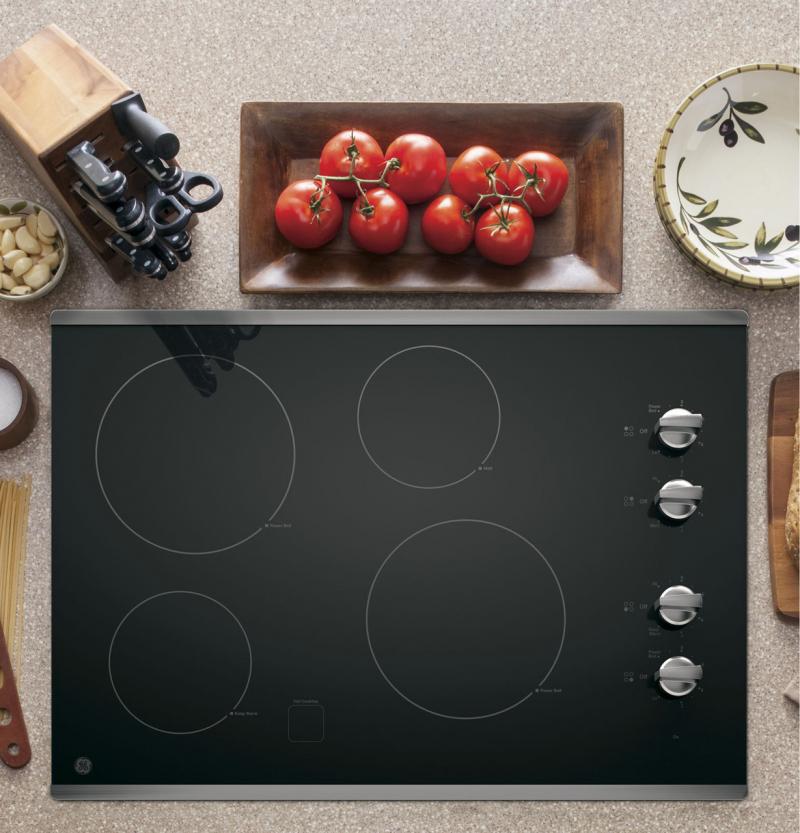

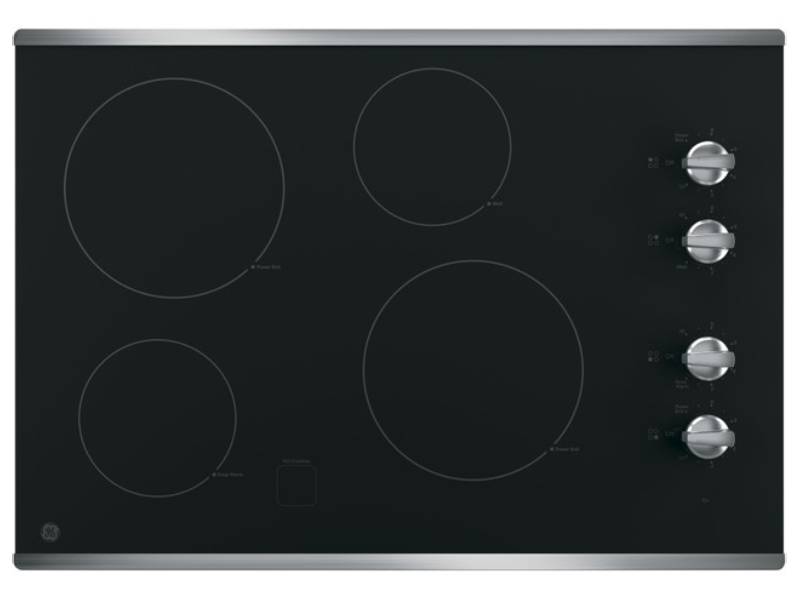

Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface

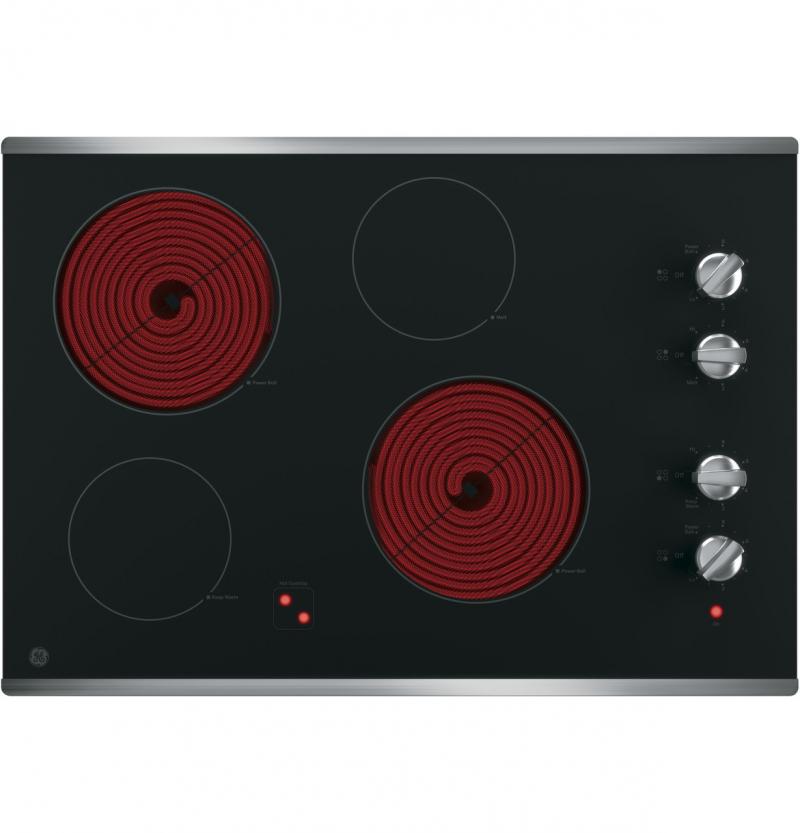

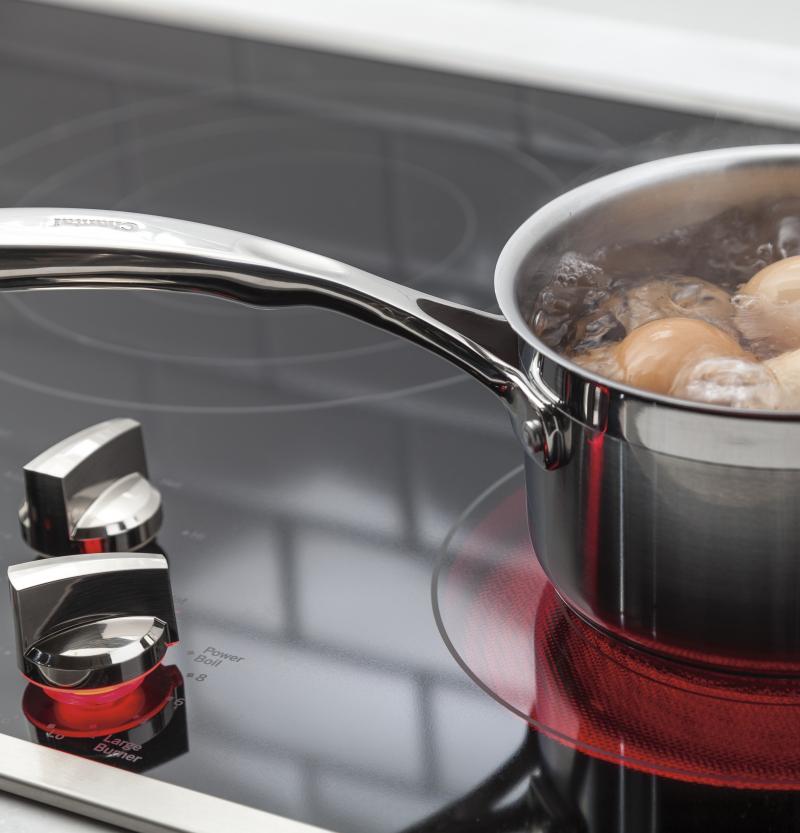

Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements

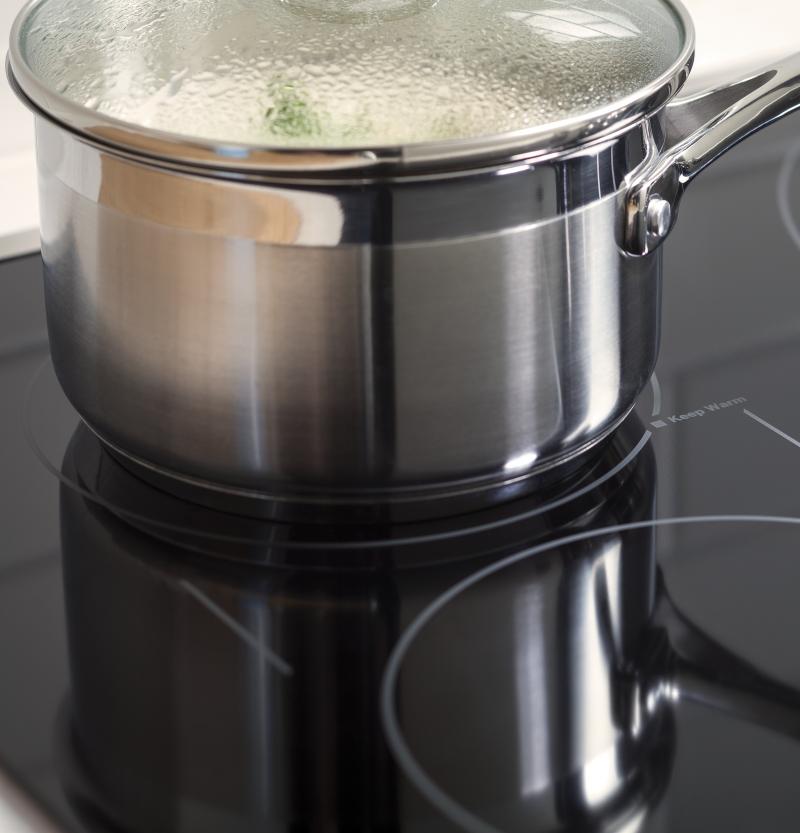

Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting

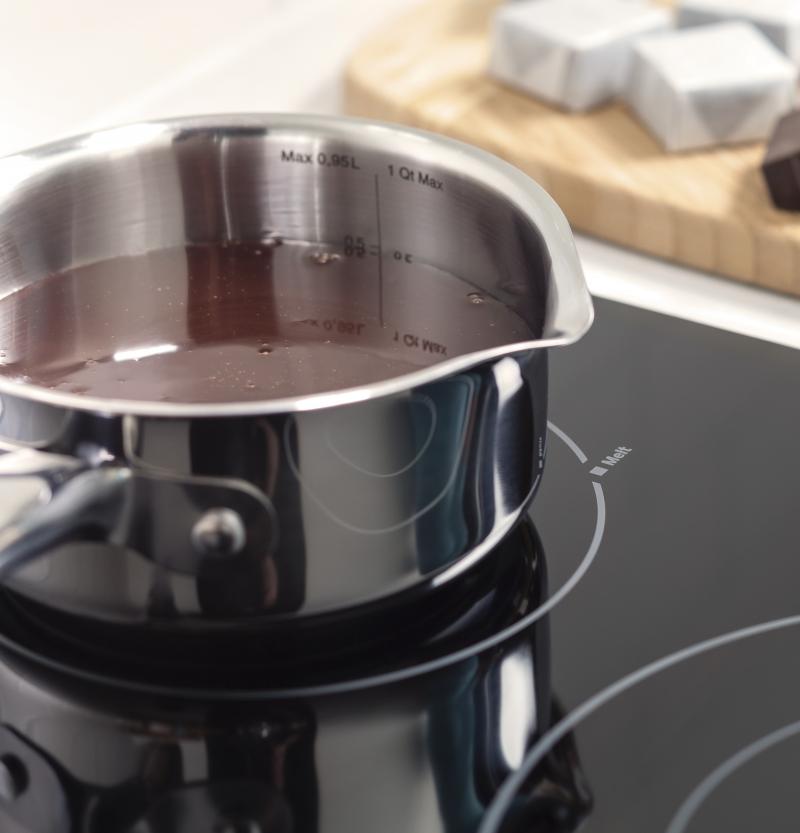

Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to 100 toward modifications. See offer criteria and details
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Stainless steel trim
Complement other stainless steel appliances in the kitchen with this touch of elegance
| Appearance | |
|---|---|
| Color Appearance | Stainless Steel on Black |
| Control Knobs | Stainless Steel Appearance |
| Frame Color / Material | Stainless Steel |
| Features | |
| Control Location | Right Side |
| Control Type | Knob (Infinite switch) |
| Cooktop Burner Type | 4 Ribbon, Smoothtop |
| Cooktop Control Features | Keep-Warm Setting, Melt Setting |
| Cooktop Surface | Black Ceramic Glass with Stainless Steel Trim |
| Cooktop Type | Radiant Smoothtop |
| Dishwasher Safe Knobs | Yes |
| Element - Left Front | 6" 1200W |
| Element - Left Rear | 8" 2500W Power Boil |
| Element - Right Front | 8" 2500W Power Boil |
| Element - Right Rear | 6" 1200W |
| Filler trim kit | JXTR32B |
| Fuel Type | Electric |
| Indicator Lights | 4 Hot Surface, Surface Element "ON", Red |
| Melt Setting | Yes |
| Power / Ratings | |
| Max. Connected Load (kW) at 208V | 5.6 |
| Max. Connected Load (kW) at 240V | 7.4 |
| Max. Current Draw (Amps) at 208V | 26.7 |
| Max. Current Draw (Amps) at 240V | 30.8 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| WARRANTY | |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Weights & Dimensions | |
| Approximate Shipping Weight | 43 lb |
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Cutout Depth (in) | 19-5/8 |
| Cutout Width (in) | 28-1/2 |
| Net Weight | 37 lb |
| Overall Depth | 21 in |
| Overall Height | 4 in |
| Overall Width | 29 7/8 in |
