24" Jenn-Air Gas Cooktop

Jenn-Air

Model: JGCK424PS

This model ships directly from our warehouse.

24" Jenn-Air Gas Cooktop - JGCK424PS

Dimensions
Depth	20.06 "
Width	24.5 "
Height	5.19 "
Net Weight	37.4 lbs
Cutout Height	3.33 "
Carton Depth Inch	28.38 "
Carton Height Inch	8.25 "
Carton Width Inch	23.63 "
Cooktop Details
Right Front Element Burner Type	Standard
Left Front Element Burner Size	4.5in.
Left Rear Element Burner Power	6300BTU
Left Rear Element Burner Size	3in.
Right Front Element Burner Power	4000BTU
Right Front Element Burner Size	2in.
Right Rear Element Burner Power	12000BTU
Left Front Element Burner Power	18000BTU
Cooktop Configuration	All Burners
Left Rear Element Burner Type	Standard
Number Of Cooking Element Burners	4
Right Rear Element Burner Type	Standard
Right Rear Element Burner Size	4in.

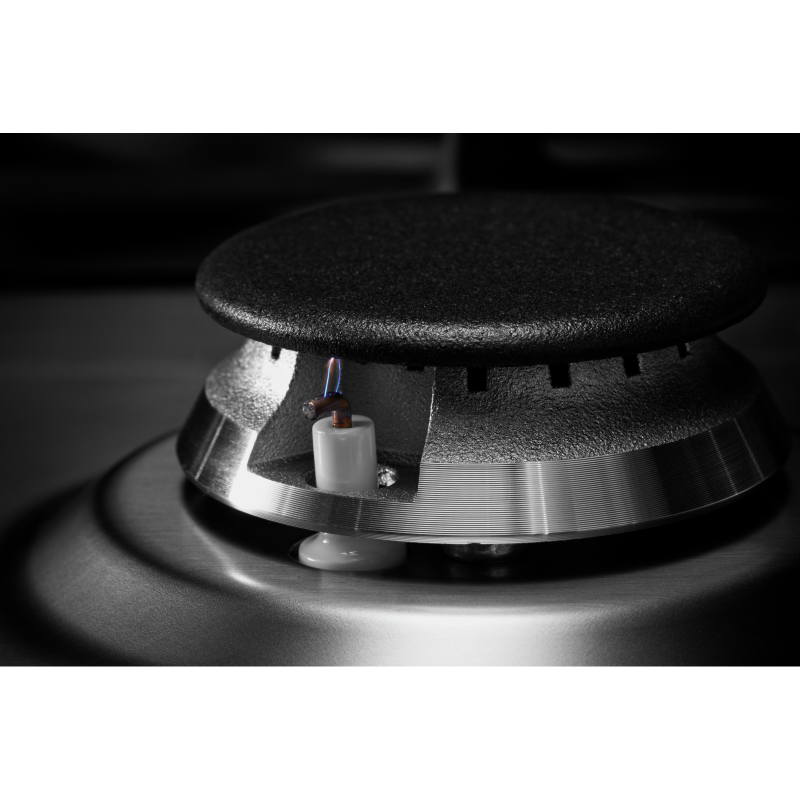

Cooktop Element Style	Sealed Burners
Left Front Element Burner Type	Dual

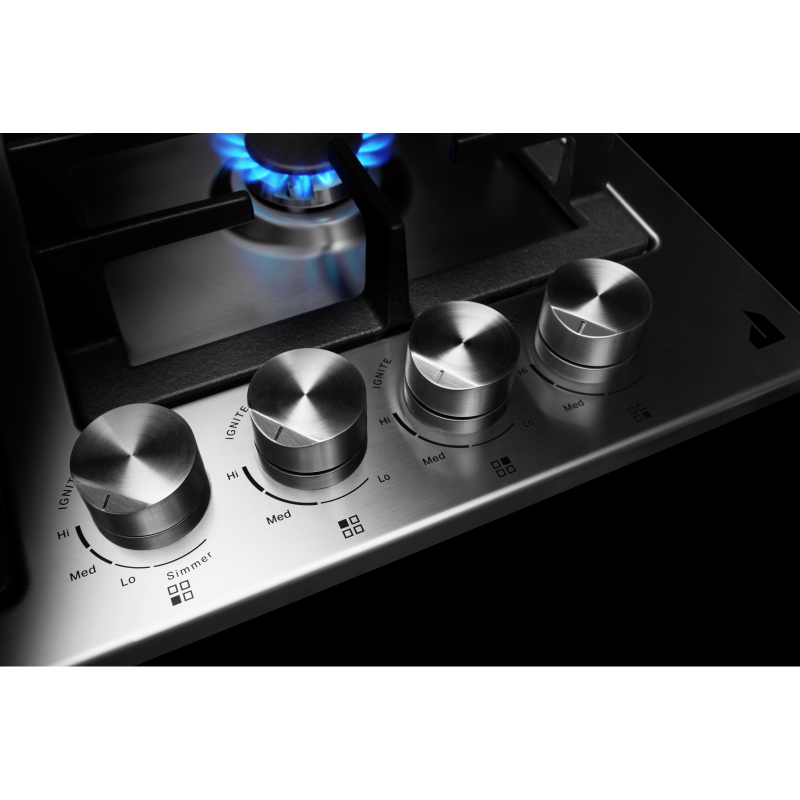

Controls
Control Type	Manual
Control Location	Front
Knob Type	Metal
Configuration and Overview
Fuel Type	Gas
Description
Cooktop Type	Traditional
Size In	24
Combinations With Oven	JJW2424 JJW2427 JJW2430 JJW3430 JJW6024

Features
Automatic Pan Detection	No
Digital Display	No
Downdraft Vent	No
Installs Over Built In Oven	Yes
LP Convertible	Yes - Kit Included
Power Boost	No
Power Outage Compatible	Yes
Heating Element On Indicator Light	No
Automatic Pan Size Adjustment	No
Griddle	N/A
Hot Surface Indicator Light	No
Electrical
208v Compatible	No
Volts	120
Hz	60
Amps	15
Power Cord Included	Yes
Specifications
Country Of Origin	Mexico
Certifications
UL	Yes
ADA Compliant	Yes
