Features

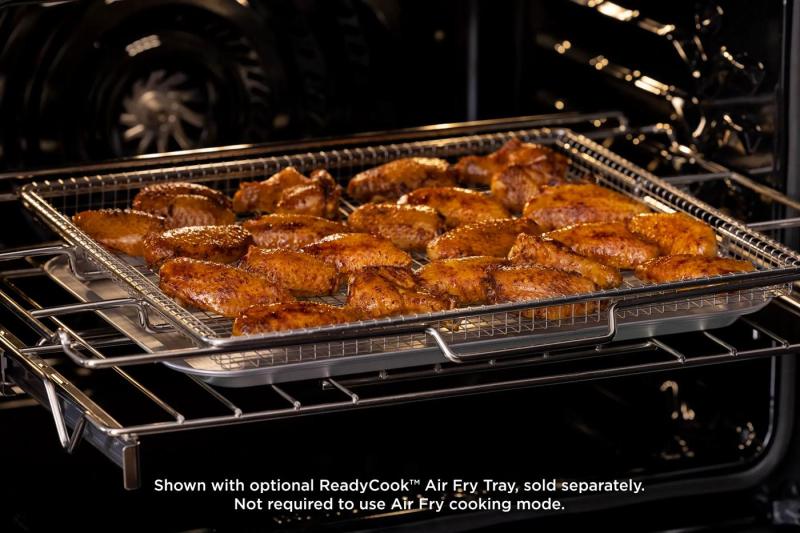

Air Fry
Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.
30-Minute Steam Clean
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
Convection Bake
Get faster, more even multi-rack baking results with Convection Bake.
Large Oven Capacity
Cook more at once with 5.3 cu.ft. of oven capacity.
Custom Broil Temp Setting
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
Electronic Touch Controls
Helps you easily navigate through your oven settings
Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
Keep Warm Setting
Use the Keep Warm setting to keep meals warm until you are ready to serve.
Hidden Bake Element
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
| Right to Repair Details | |
|---|---|
| Right to Repair | Partially Available - Visit frigidaire.ca/right-to-repair for more information |
| Cooking Controls | |
| Air Fry | Yes |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Start | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| OVEN | |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |

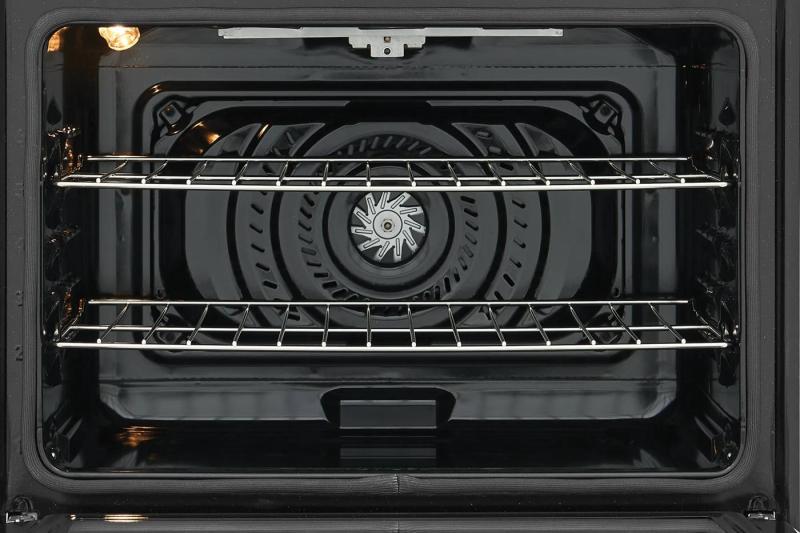

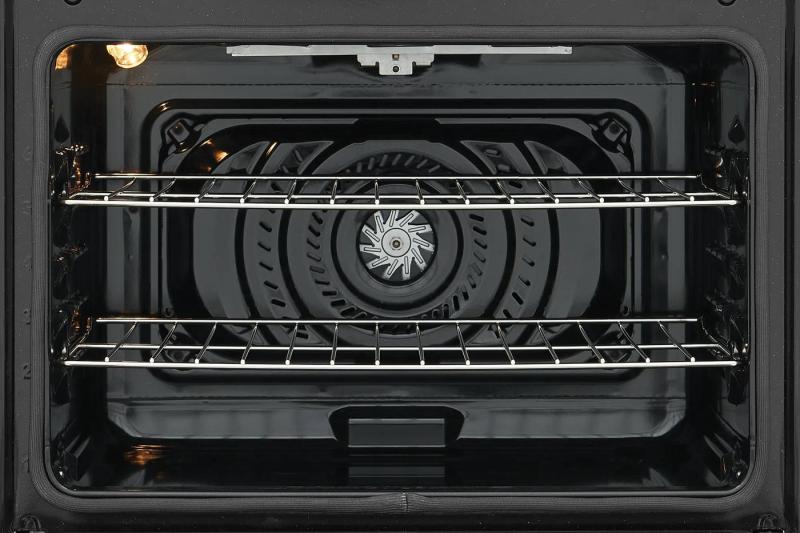

| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Display | |
| Control Location | Front |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Capacitive Touch |
| Dimensions and Volume | |
|---|---|

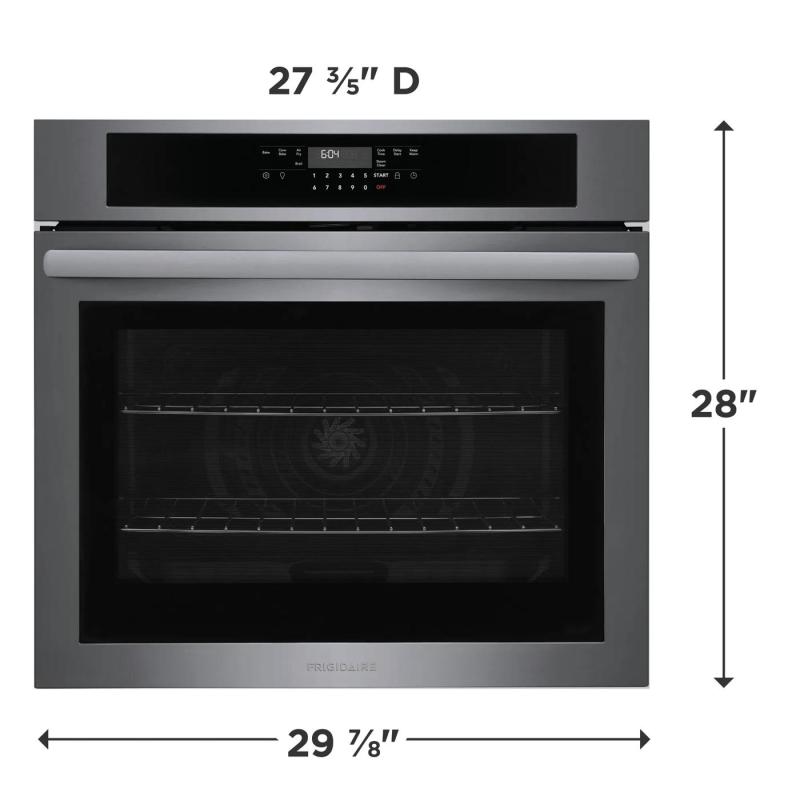

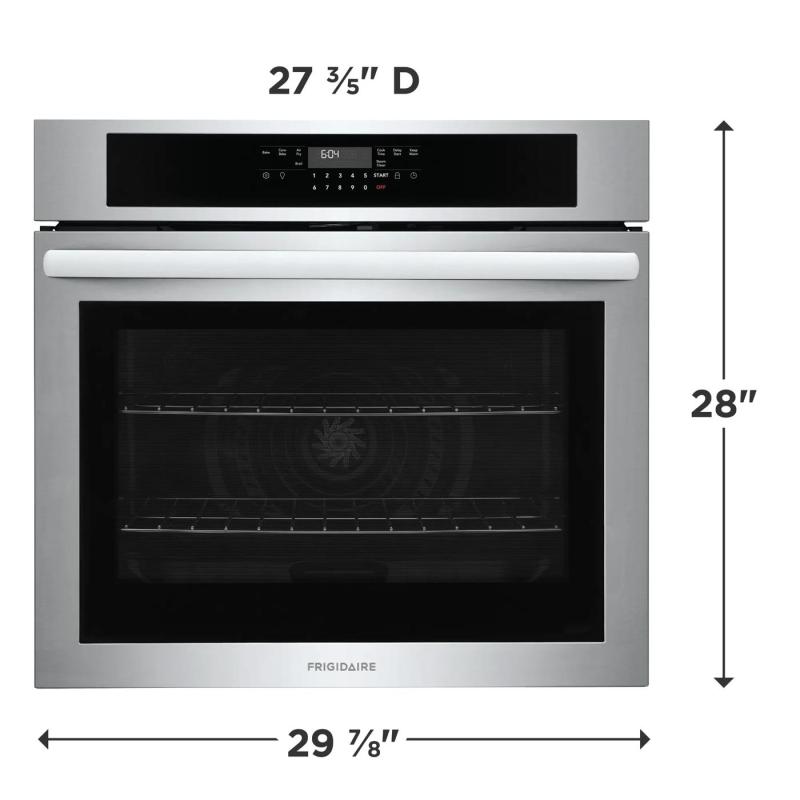

| Height | 28" |
| Width | 29 7/8" |
| Depth | 25 3/16" |
| Depth With Door 90° Open | 48 3/16" |
| Depth With Handle | 27 3/5" |
| Oven Interior Height | 18 1/8" |
| Oven Interior Width | 25 1/5" |
| Oven Interior Depth | 19 7/8" |
| Minimum Cutout Height | 26 3/4" |
| Minimum Cutout Width | 28 1/2" |
| Maximum Cutout Height | 28" |
| Maximum Cutout Width | 29" |
| Capacity | 5.3 Cu. Ft. |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 240 Volts | 20 Amps |
| Minimum Circuit Required | 20 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Annual Energy | 255 kWh |
| Product Weight | 130 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Installation | |
| Power Supply Connection Location | Top Left |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| RoHS | Yes |
| UL Listed | Yes |
| Accessories | |
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT |
