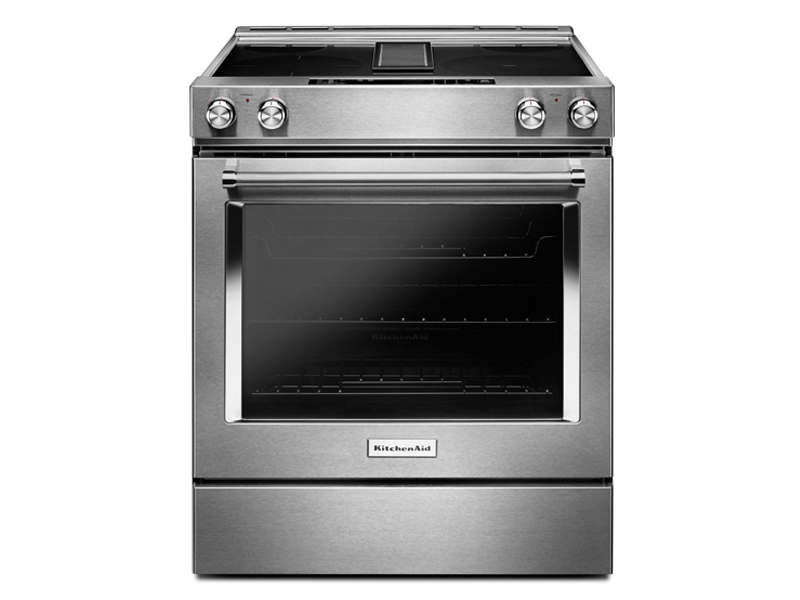

30-Inch 4-Element Electric Downdraft Front Control Range
This all-in-one eclectic range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odours can be removed outside or filtered air can be recirculated inside. This range helps you achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.
Features

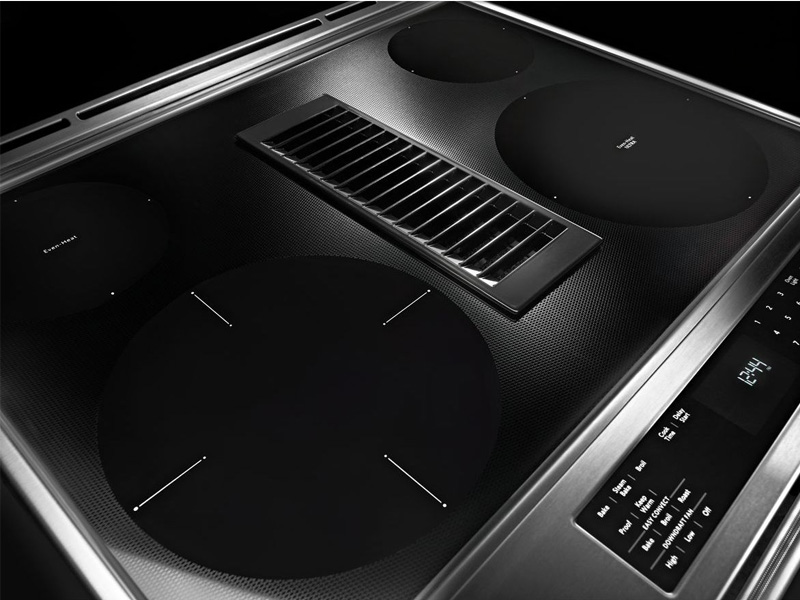

Downdraft
Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.

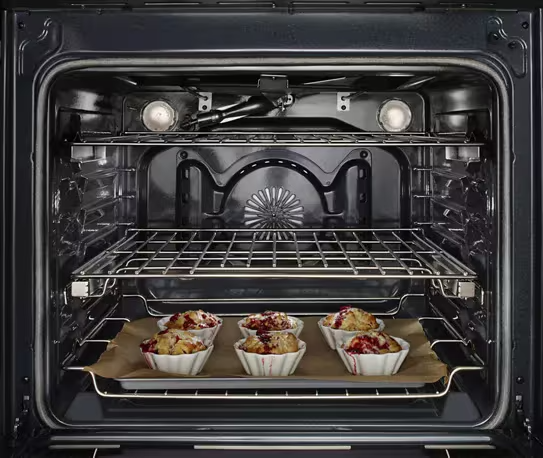

Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
6.4 cu ft Capacity
This electric slide-in range provides a large cooking capacity that easily handles multiple dishes at once.
EasyConvect™ Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
Additional Features

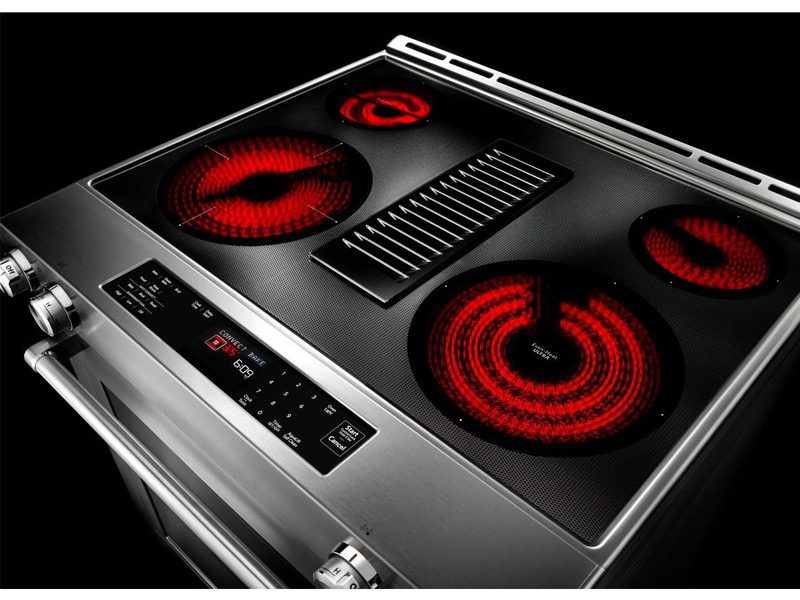

4 Cooking Elements
Provides four independent cooking surfaces that allow you to do more on your range. It features a double cooking zone of 6 and 10 inches, one 10 inch zone, plus two 6 inch cooking zones.
Aqualift®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.

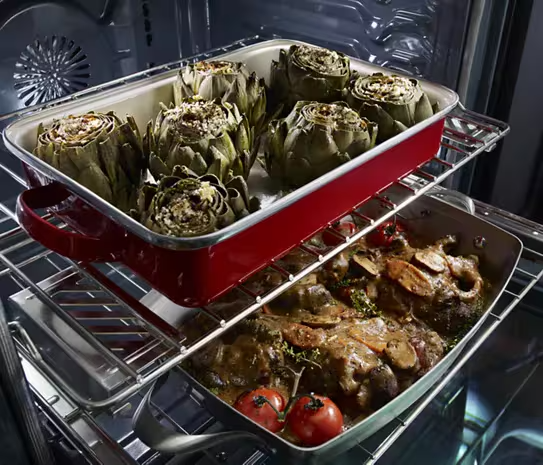

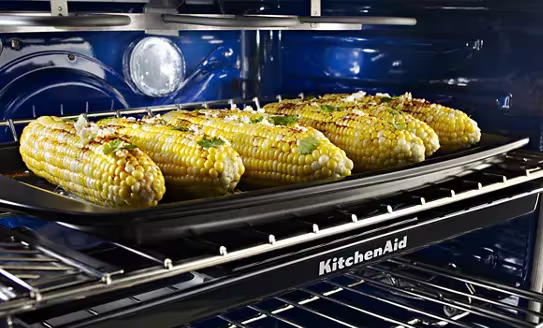

SatinGlide® Max Racks
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Max Capacity Rack (Sold separately)
The Max Capacity Rack dips down so you have plenty of room for cooking your largest dishes.
| Certifications | |
|---|---|
| ADA Compliant | ADA Height and Operation Compliant |
| UL | Yes |
| Cooktop Details | |
| Auto Re-ignition | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |

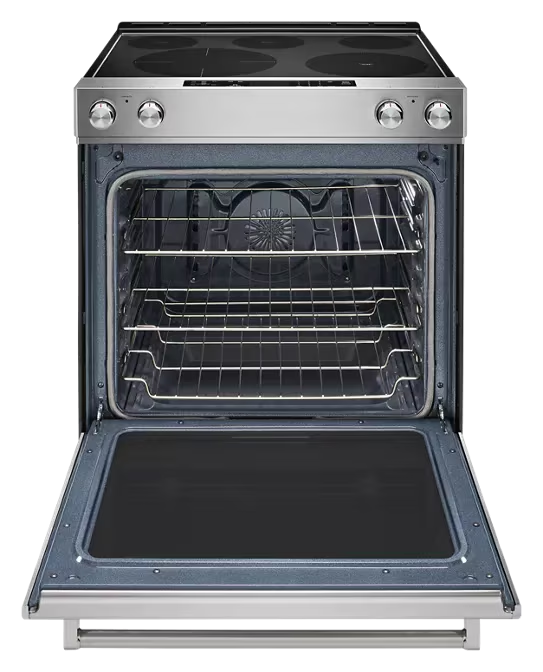

| Oven Cavity Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 3600W |
| Broiler Element Power | 4000W |
| Broiler Location | Broiler Location |
| Convection Element Power | 3200 W, 3200 W, 3200 W, 3200 W |
| Convection Element Type | Single-Fan |
| Convection Functions | Bake, Broil, Roast |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 7 |
| Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Steam Rack, 1 Gliding Roll-out Rack |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |

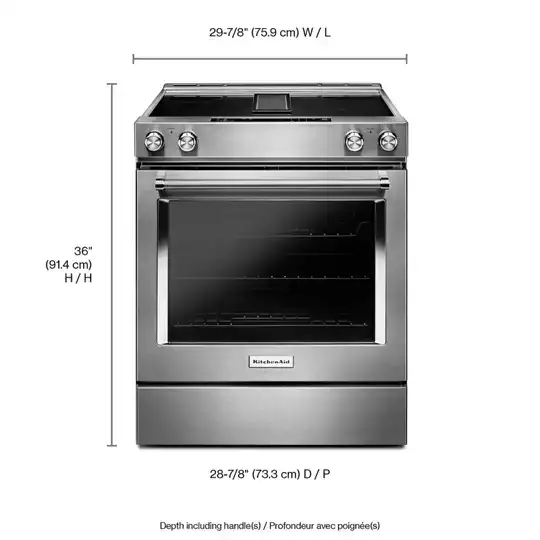

| Dimensions | |
| Capacity | 181.12 l, 6.4 cu. ft. |
| Common Size | 76.20 cm, 30 in |
| Depth | 73.34 cm, 28-7/8 in |
| Depth Closed Including Handles | 73.34 cm, 28-7/8 in |
| Depth With Door Open 90 Degree | 123.82 cm, 48-3/4 in |
| Gross Weight | 81.65 kg, 180 lbs |
| Height | 91.44 cm, 36 in |
| Net Weight | 73.48 kg, 162 lbs |
| Oven Interior Depth | 52.39 cm, 20-5/8 in |
| Oven Interior Height | 56.20 cm, 22-1/8 in |
| Oven Interior Width | 61.28 cm, 24-1/8 in |
| Width | 75.88 cm, 29-7/8 in |
| Element/Burner Details | |
| Cooktop Element Style | Radiant |
| Left Front Element-Burner Power | 3000W |
| Left Front Element-Burner Size | 12in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Power | 1300W |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Radiant Hyper |
| Number of Burner | 4 |
| Right Front Element-Burner Power | 3200W |
| Right Front Element-Burner Size | 10in. |
| Right Front Element-Burner Type | Radiant Hyper |
| Right Rear Element-Burner Power | 1200W |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Radiant |
| Details | |
|---|---|
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Single Oven |
| Oven Selections | Cancel/Off, Clock, Cook Time Indicator, Delay Start, Keep Warm Setting, Proofing, Sabbath Mode, Steam Bake, Timer |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
| Controls | |
| Display Color | Red, White |
| Electronic Display Type | Digital |
| Electrical | |
| Amps | 40 |
| Power Cord Included | 4-Prong |
| Volts | 240 |
| Features | |
| Range Features | ADA Compliant, Downdraft, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, SatinGlide™ Racks, Steam Rack |
| Ventilation Details | |
| Maximum Motor CFM | 300 |
