PLANETARIUM WASHING SYSTEM

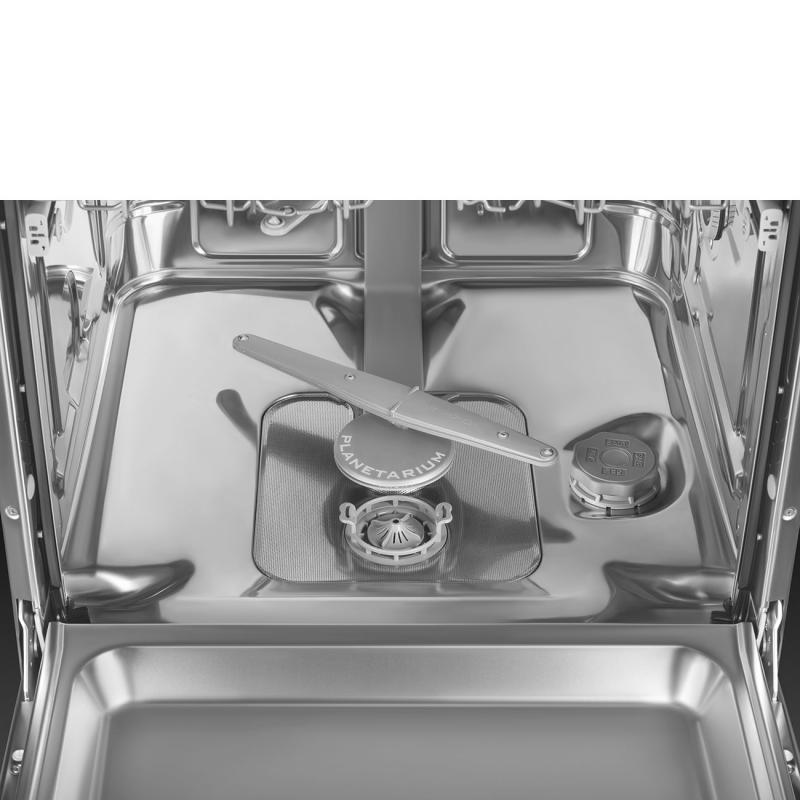

The Planetarium Wash System uses an innovative double motion of the spray arm. For every revolution of the main arm, the stem of the arm moves in the opposite direction, operating on a second axis. This spiralizing directional wash sprays water evenly in a 360° sweep. The rotation speed is 65rpm, giving the best wash results available.
MADE IN ITALY EXCELLENCE
SMEG dishwashers stand out for their uniqueness in terms of technological innovation and washing performance. With a sixty years' experience in the production of washing appliances, SMEG offers a full line of Made in Italy dishwashers: from full-size to ADA-compliant models, from panel-ready to pre-finished, from stainless steel to color options, we always have the right option for our customers' kitchen spaces.
| Type | |
|---|---|
| Product Family | Dishwashers |
| Commercial height | 82 cm |
| Number of place settings | 13 |
| Installation | Under counter built-in |
| Commercial width | 60 cm |
| EAN code | 8017709303617 |
| AESTHETICS | |
| Colour | White |
| Finishing | Glossy |
| Aesthetic | 50's Style |
| Front panel colour | Finger friendly stainless steel |
| Door colour | White |
| LED/display colour | White |
| Handle colour | Chromed |
| Programs / Functions | |
| N. of programmes | 10 |
| Soak | Yes |
| Express 27' | Yes |
| Mix | Yes |
| Sterilise | Yes |
| Delicate | Yes |
| Auto | Yes |
| Crystal & China | Yes |
| Eco express | Yes |
| Express 60' | Yes |
| Pots & Pans | Yes |
| Washing temperatures | 38, 45, 50, 55, 65, 70, 75 °F |
| Options | |
| Dry Assist option | Yes |
| Delay timer option | Up to 9 hours |
| 1/2 load FlexiZone option | Yes |
| Special programs option | Yes |
| Baskets | |
| N° baskets | 3, FlexiDuo |
| Basket components colour | Grey |

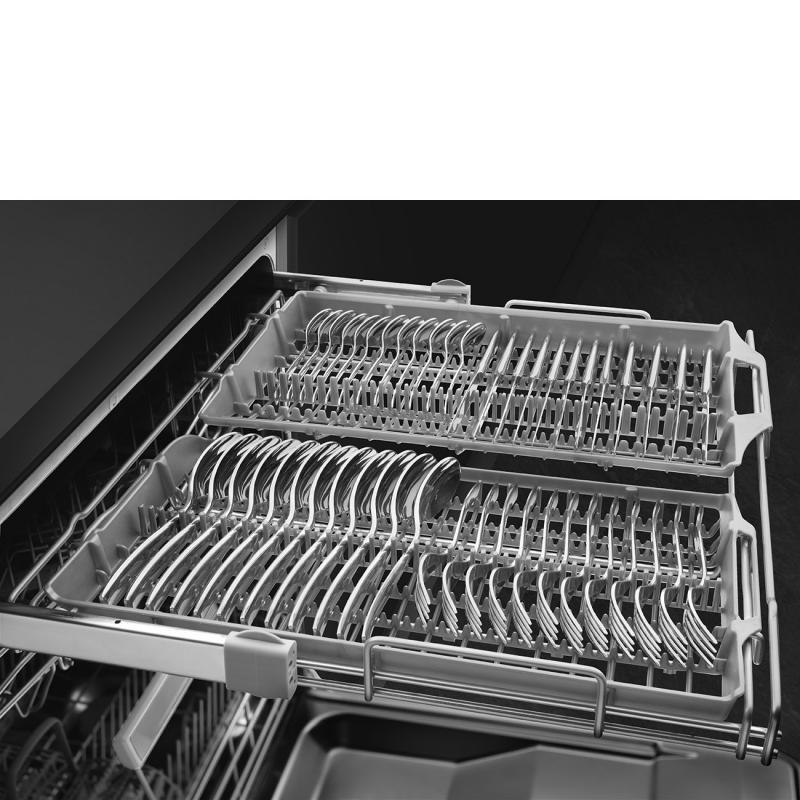

| Upper Basket | With 1 foldable rack |
| Glass holder | Yes |
| Height adjustment of the upper basket | On three levels (5 cm) |
| Sliding Guides Extra Glide | Yes |
| Lower Basket | With 2 foldable racks |
| Largest loadable dish in upper basket | 23,5 inches |
| Lower basket with anti-drip inserts | Yes |
| Largest loadable dish in lower basket | 30,0 inches |

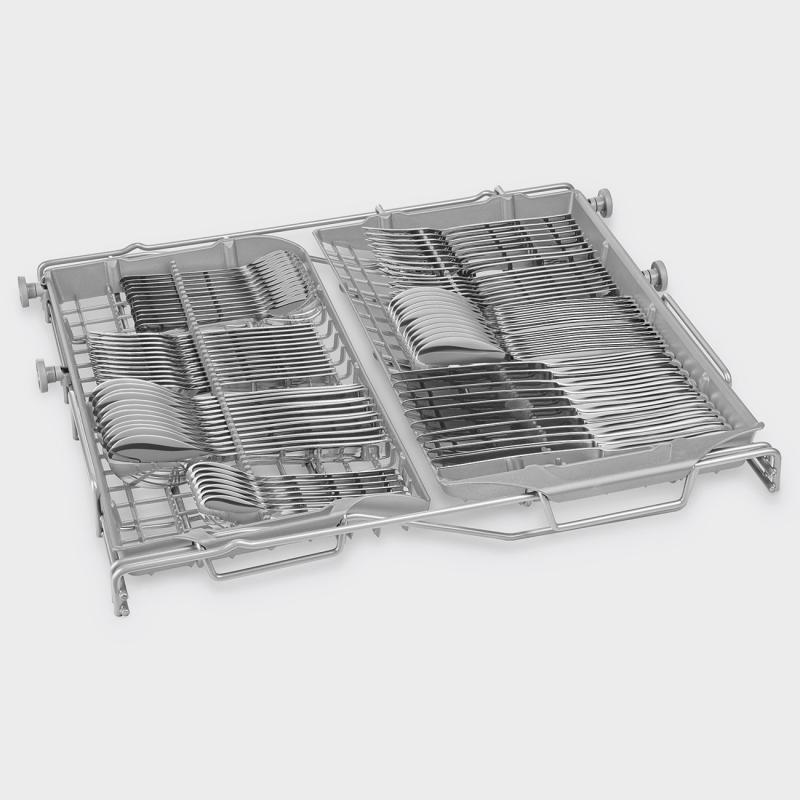

| Cutlery basket | Yes |
| Technical Features | |
|---|---|
| Display | Delayed start |
| Door opening system | Yes |
| Display type | LED display (1 digit) |
| On/off indicator | Yes |
| Salt light indicator | Light |
| Rinse aid indicator | Light |
| End of cycle indicator | Acoustic signal |
| Washing system | Planetarium |
| Drying system | Natural condenser drying, with Dry Assist automatic door opening system at the end of the cycle |
| Motor | Single phase |
| Third spray arm | Single |
| Water softener | With electronic setting |
| Turbidity sensor Aquatest | Yes |
| Flood protection system | Total Acquastop |
| Max water hardness | 100°fH;58°dH |
| Tub Material | Stainless steel |
| Filter | Stainless steel |
| Concealed heating element | Yes |
| Hinges | Self balancing with fixed hinges |
| Min. and max plinth height | 98 - 168 mm |
| Adjustable feet | 7cm, from 820 to 890 mm |
| PERFORMANCE / ENERGY LABEL | |
| Noise level (dBA) | 47 dB(A) re 1pW |
| Annual energy consumption | 235 KWh/year |
| Energy Star | Yes |
| ELECTRICAL CONNECTION | |
| Connected power | 1800 W |
| Voltage | 115 V |
| Type of connection | Single-phase |
| Frequency (Hz) | 60 Hz |
| Power supply cable length | 140 " |
| Features attributes | |
| Noise level (dBA) | 45 - 47 dB(A) |
| LOGISTIC INFORMATION | |
| Net weight (kg) | 115 lbs |
| Gross weight (kg) | 121 lbs |
