Features

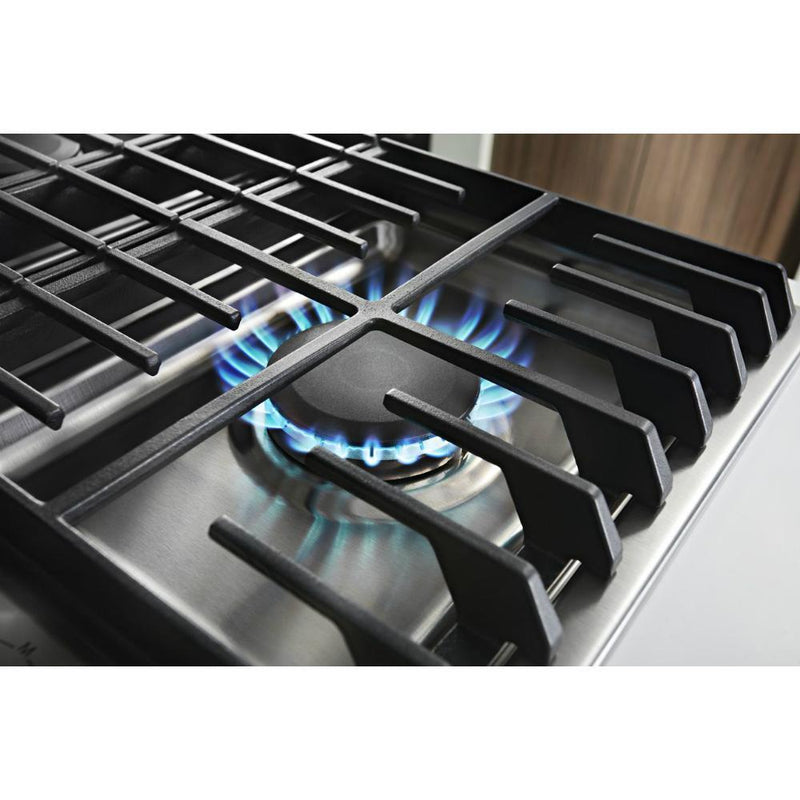

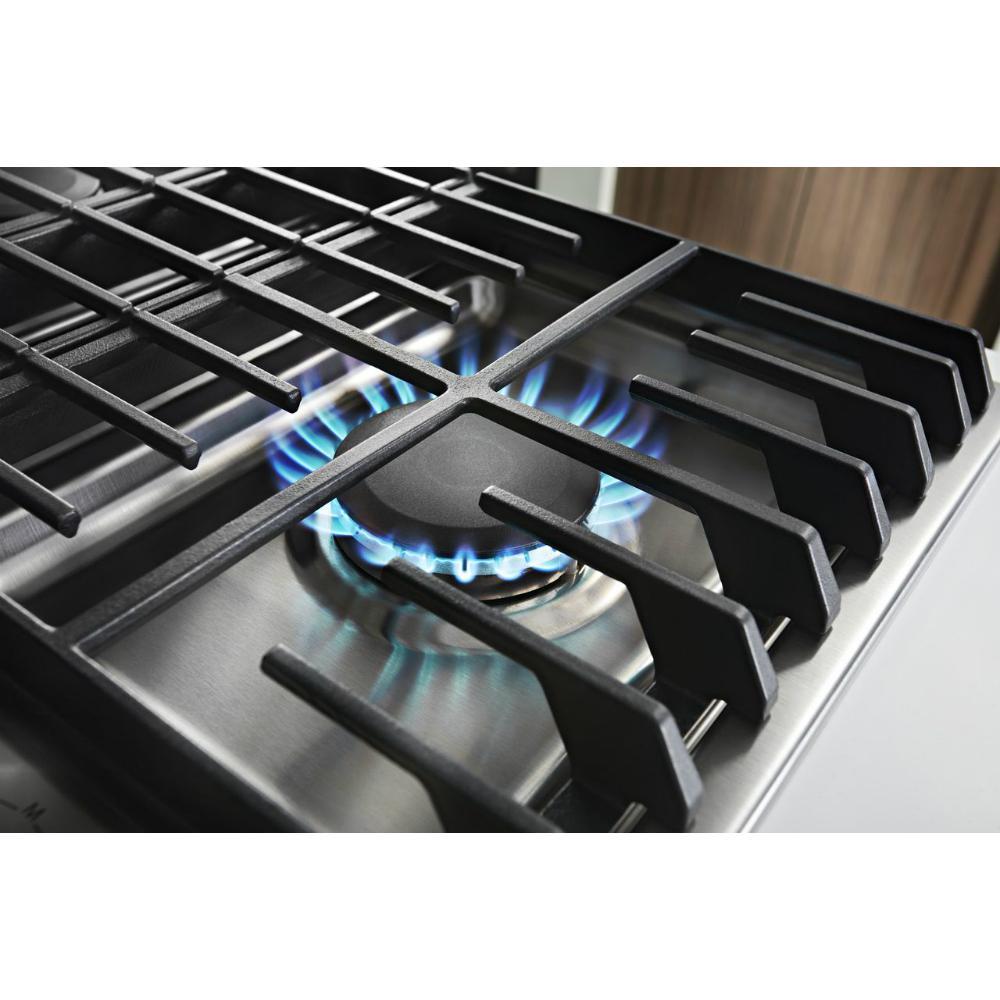

EVEN-HEAT™ 5K BTU SIMMER BURNER
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
LP CONVERSION KIT INCLUDED
Allows you to convert the cooktop so it can be used with LP gas.
ELECTRONIC IGNITION AND AUTOMATIC REIGNITION
Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
FULL-WIDTH CAST-IRON GRATES
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
DOWNDRAFT VENTILATION
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
3-SPEED FAN CONTROL
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
CONVERTIBLE TO DUCT-FREE VENTILATION
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Front Power: 17,000 BTU
• Left Rear Power: 5000 BTU
• Right Front Power: 10,000 BTU
• Right Rear Power: 15,000 BTU
• Left Rear Power: 5000 BTU
• Right Front Power: 10,000 BTU
• Right Rear Power: 15,000 BTU
Burners
Sealed
Surface Features
• Stainless Steel Knobs
• Full-Width Cast-Iron Grates
• Stainless Steel Surface
• Full-Width Cast-Iron Grates
• Stainless Steel Surface
Features
Technologies
5K BTU Even-Heat™
Downdraft Ventilation
Yes
Additional Information
• 300 CFM Exhaust Rating
• 3-Speed Fan Control
• Convertible to Duct-Free Ventilation
• Melt Cap
• Electronic Ignition and Automatic Re-Ignition
• 3-Speed Fan Control
• Convertible to Duct-Free Ventilation
• Melt Cap
• Electronic Ignition and Automatic Re-Ignition
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Accessories
Included
LP Conversion Kit
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
18.44 inch(es) / 46.83 cm
Depth
21.5 inch(es) / 54.61 cm
Weight
66.01 lb(s) / 29.94 kg
Shipping Dimensions
Width
35.13 inch(es) / 89.22 cm
Height
23.81 inch(es) / 60.48 cm
Depth
26.44 inch(es) / 67.15 cm
Weight
78 lb(s) / 35.38 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049415055
